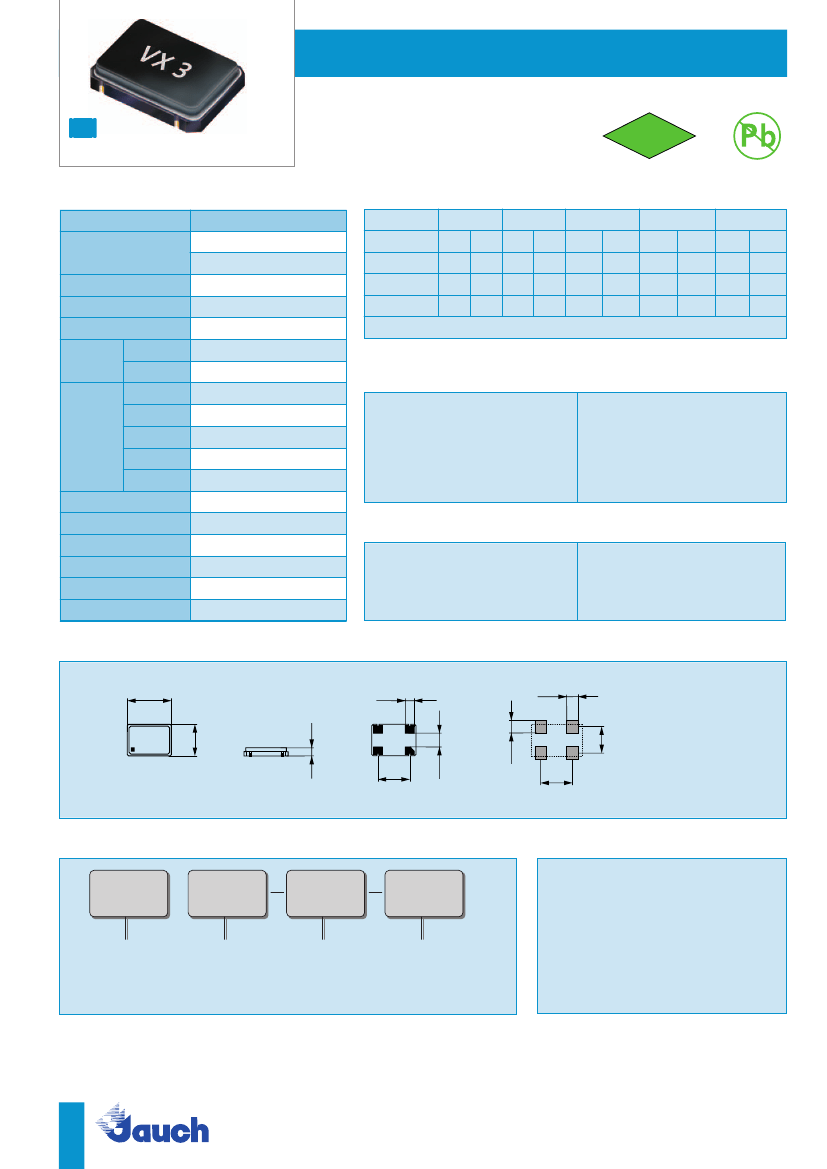

Oscillator · VX3 · 3.3 V
SMD Oscillator with Tristate Function
·
7.0 x 5.0 mm
actual size
■
preferred type for extended temperature range
■
reflow soldering temperature: 260
°C max.
■
full ceramic package
2002/95/EC
RoHS compliant
Pb free: pins / pads
RoHS
General Data
type
frequency range
VX3 3.3 V
0.50 ~ 70.0 MHz (15pF max.)
0.50 ~ 70.0 MHz (30pF max.)
frequency stability over all*
current consumption
supply voltage V
DC
temperature
operating
storage
output
rise & fall time
load max
current max.
low level max.
high level min.
output enable time max.
output disable time max.
start-up time max.
standby function
phase jitter 12 kHz ~ 20.0 MHz
symmetry at 0.5 x V
DC
± 20ppm ~ ± 100ppm (table 1)
see table 2
3.3 V ± 10%
-10 °C ~ +70 °C / -40 °C ~ +85 °C
-55 °C ~ +125 °C
see table 3
15pF / 30pF
8mA
0.1 x V
DC
0.9 x V
DC
100ns
100ns
10ms
tristate
< 1.0ps RMS
45% ~ 55% typ. (40% ~ 60% max.)
Table 1: Type
stability
type VX3
output load
-10 °C ~ +70 °C
-40 °C ~ +85 °C
± 100 ppm
J
M
± 50 ppm
K
MH
± 30 ppm
JS
15 pF
O
O
MS
30 pF
O
O
± 25 ppm
JQ
15 pF
O
O
MQ
30 pF
O
O
± 20 ppm
JP
15 pF
Δ
MP
30 pF
Δ
15 pF 30 pF 15 pF 30 pF
O
O
O
O
O
O
* includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.
•
standard
•
•
O
available
Δ
excludes aging
Table 2: Current Consumption max.
Current at 15pF load
0.5 ~ 33.9 MHz
34.0 ~ 49.9 MHz
50.0 ~ 70.0 MHz
8 mA
12 mA
25 mA
Current at 30pF load
0.5 ~ 33.9 MHz
34.0 ~ 49.9 MHz
50.0 ~ 70.0 MHz
10 mA
20 mA
25 mA
Table 3: Rise & Fall Time max.
8.0 ns: 0.5 ~ 1.79 MHz
6.0 ns: 1.8 ~ 34.99 MHz
5.0 ns: 35.0 ~ 70.00 MHz
note:
- specific data on request
- rise time: 0.1 V
DC
~ 0.9 V
DC
- fall time: 0.9 V
DC
~ 0.1 V
DC
Dimensions
7.0
±0.2
1.6
±0.15
#4
#3
5.0
±0.2
1.4
±0.1
#3
#4
2.0
±0.1
4.2
±0.1
1.8
±0.1
pin connection
# 1: e/d
# 2: ground
# 3: output
# 4: V
DC
in mm
#1
#2
#2
5.08
±0.1
#1
2.6
±0.1
5.08
±0.1
top view
side view
bottom view
pad layout
Order Information
Preferred Type
frequency
type
option
VX3MH-T1:
± 50 ppm / 30 pF/ -40 °C ~ +85 °C
VX3MH:
± 50 ppm / 30 pF
O
Oscillator
0.5 ~ 70.0 MHz
VX3J-VX3MP
see table 1
blank = -10 °C ~ +70 °C
T1 = -40 °C ~ +85 °C
Example: O 20.0-VX3MH
(LF = RoHS compliant / Pb free pads)
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
150708
Oscillator · VX3 · 3.3 V · Tristate Function
Taping Specification (JIS-C0806)
1.75
4.0
2.0
0.3
±0.1
17.5
120°
9.25
16.0
±0.3
7.4
ø 13
ø 80
ø 180
2.0
ø 21
8.0
±0.2
5.4
ø 1.5
±0.1
Direction of feed
2.7
500 pcs per reel
reel marking: type - OH/H
in mm
Enable / Disable Function
pin #1 (e/d control)
open
high ”1” (V
IH
≥
0.8 V
DC
)
low ”0” (V
IL
≤
0.2 V
DC
)
disabled conditions:
• oscillator active
• output high impedance
pin #3 (output)
active
active
high impedance
Marking
type / frequency
date code:
A ~ M: Jan.- Dec.
7: 2007
8: 2008
9: 2009
Jan.
A
July
G
Febr.
B
Aug.
H
Mar.
C
Sept.
J
Apr.
D
Oct.
K
May
E
Nov.
L
June
F
Dec.
M
Reflow Soldering Profile
temperature (°C)
260
200
150
100
50
60 ~180 s
60 s max.
10 s max.
260
°C
max.
220
±5 °C
180
±5 °C
Packing Note
–
–
standard packing units are 500 pieces per reel
non-multiple packing units are only supplied taped / bulk
time (s)
note: parts are also suitable for soldering systems with lead (Pb) content
Jauch Quartz GmbH
•
e-mail: info@jauch.de
full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com
All specifications are subject to change without notice
