SMA-J-C4-H-ST-BR1

Description
RF SMA Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack
CategoryThe connector    The connector
File Size279KB，1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Download Datasheet Parametric Compare View All

SMA-J-C4-H-ST-BR1 Overview

RF SMA Connector, 1 Contact(s), Female, Cable Mount, Crimp Terminal, Locking, Jack

SMA-J-C4-H-ST-BR1 Parametric

Parameter NameAttribute value
Objectid315814369
Reach Compliance Codecompliant
ECCN codeEAR99
subject depth0.496 inch
Body/casing typeJACK
Cable typeRG-174
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact point genderFEMALE
Contact resistance6 mΩ
Contact styleCOAX
Dielectric withstand voltage1400VAC V
Insulation resistance5000000000 Ω
Manufacturer's serial numberSMA
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency20 GHz
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
reliabilityCOMMERCIAL
Shell surfaceBRASS
Termination typeCRIMP
Total number of contacts1

Preview

Download Datasheet

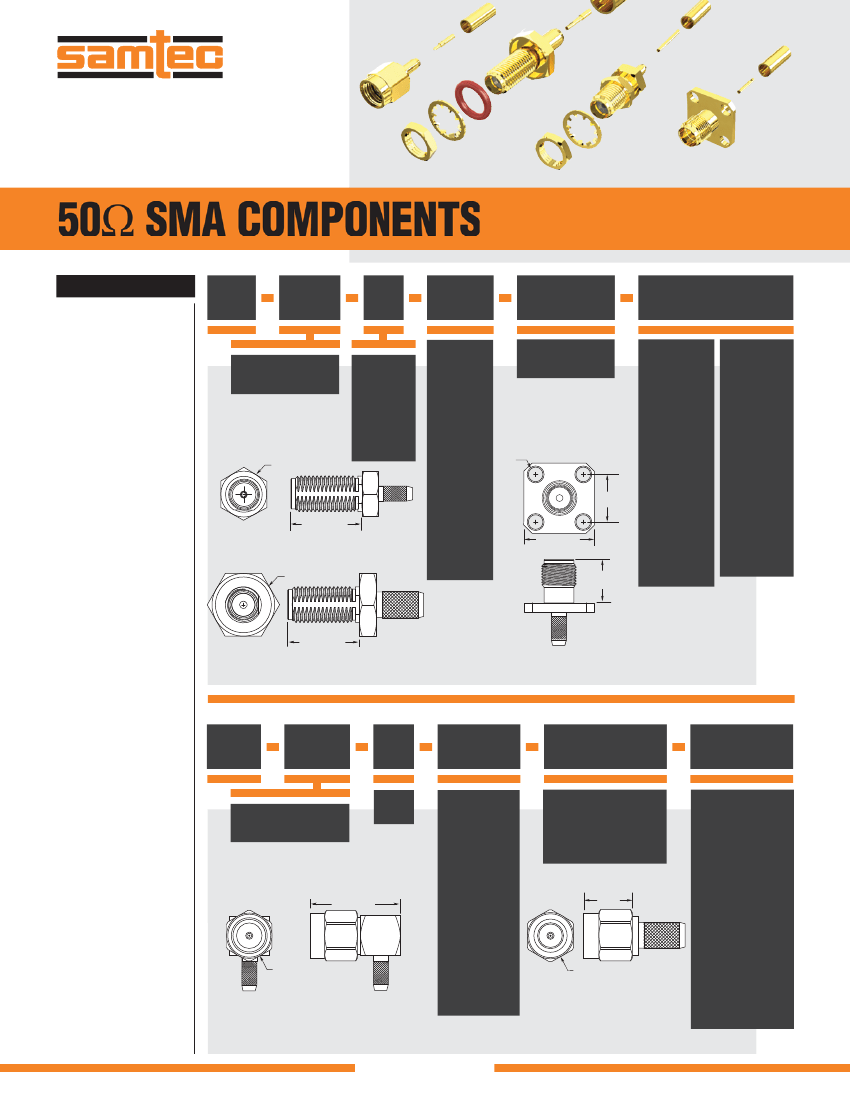

RF-13 (Rev 09OCT14)
SMA–P–C–H–ST–CA1
SMA–J–C–H–ST–BH1
SMA–J–C–H–ST–PN1
SMA–J–C–H–ST–S10
50Ω SMA COMPONENTS
SPECIFICATIONS
For complete specifications
and assembly instructions see
www.samtec.com?SMA-CA
Shell Material:
Brass
Contact Material:
Brass
Center Contact:
Soldered
Outer Ferrule:
Crimped
Operating Temperature:
-65°C to +125°C
Voltage Rating:
335V
Dielectric Withstanding
Voltage:
1,000 Vrms
Frequency Range:
0~20 GHz
(Cable dependent)
Contact Resistance:
Center Contact: 6mΩ max
Outer Contact: 2mΩ max
Insulator Resistance:
5,000 MΩ
Impedance:
50Ω
SMA
GENDER
TYPE
PLATING
ORIENTATION
TERMINATION
–J
= Jack
–C
= Cable
–H
= 30µ"
(0,76 µm)
Gold center
contact,
3µ" (0,08 µm)
Gold outer
contact
(N/A with
–BH1S)
–ST
= Straight
–BH1
= Bulkhead
RG 174 / 316
Cable
–BH1S
= Bulkhead
RG 316 Cable,
Double Shield
–C4
= Cable
4–Mounting
Screws
(–PN1 only)
–BH2
= Bulkhead
RG 178 Cable
(2,60)
.102
DIA
–B10
= Bulkhead
RG 58 Cable
(8,00)
.315
Hex.
–BR1
(8,64)
.340
–HF
(12,60) .496
–BH1, –BH2, –BR1, –BR2, BH1S
(11,00)
.433
Hex.
= 30µ"
(0,76 µm)
Gold center
contact,
3µ" (0,08 µm)
Gold outer
contact
(–BH1S only)
= Bulkhead
RG 174 / 316,
Reversed
Polarity
= 4-Hole
Panel Mount
RG 174 / 316
Cable
–PN1
(12,70) .500
–BR2
(7,85)
.309
= Bulkhead
RG 178 Cable,
Reversed
Polarity
–S10
= Sealed
Bulkhead
RG 58 Cable
(12,60) .496
–S10, –B10
–PN1
Supplied with pins, washers, nuts and ferrules. See website for dimensions.
SMA
GENDER
TYPE
PLATING
ORIENTATION
TERMINATION
–P
= Plug
–C
= Cable
–H
= 30µ" (0,76 µm)
Gold center
contact,
3µ" (0,08 µm)
Gold outer
contact
(–CA1,
-CA10 only)
–ST
= Straight
–CA1
= RG 174 / 316 Cable
–RA
= Right Angle
–CA7
= RG 405 (.086" DIA)
Semi-flexible Cable
(16,00) .630
(8,40)
.331
–CA9
= RG 402 (.141" DIA)
Semi-flexible Cable
–HF
(8,00)
.315
Hex.
–RA–CA1 & –RA–CA7
= 30µ" (0,76 µm)
Gold center
contact,
3µ" (0,08 µm)
Gold outer
contact
(–CA7, –CA9,
–CA1S only)
–C10
= RG 58 Cable
(–ST only)
(8,00) .315 Hex.
–ST–CA9 & –ST–C10
–CA1S
= RG 316 Double
Shielded Cable
(–ST only)
Supplied with pins and ferrules. See website for dimensions.
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.
