52061824400 Overview

General Purpose Inductor,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7015627343
package instruction	0603
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	0603
structure	Rectangular
core material	FERRITE
DC Resistance	2.36 Ω
Nominal inductance(L)	1.8 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	0.85 mm
Package length	1.7 mm
Package form	SMT
Package width	1.2 mm
method of packing	TR, Blister, 7 Inch
Minimum quality factor (at nominal inductance)	12
Maximum rated current	0.17 A
self resonant frequency	310 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.9 MHz
Tolerance	2%

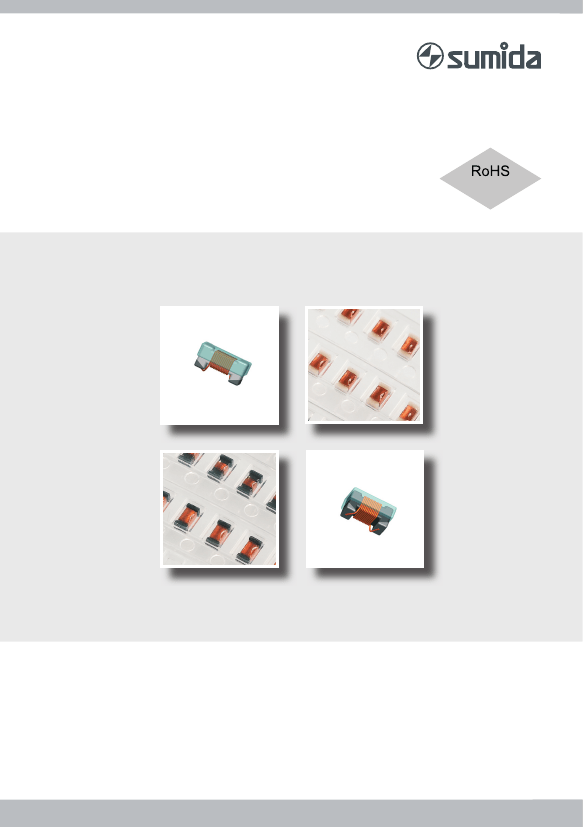

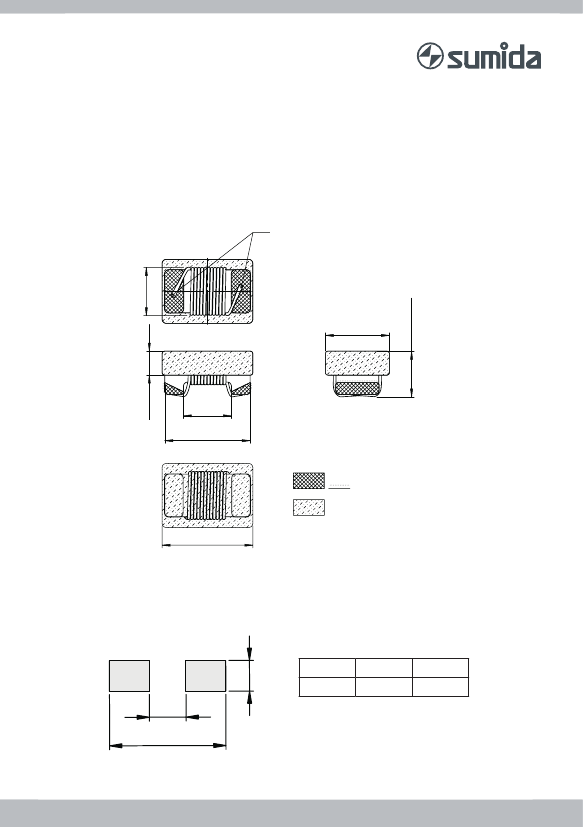

E-Serie SMT Chipinduktivitäten

E-Series SMT Chip Inductors

compliant

Baugröße / Size 0603 (1608)

Serie / Series 5206

20210101

- 57 -

	52061824400	52061524400
Description	General Purpose Inductor,	General Purpose Inductor,
Is it Rohs certified?	conform to	conform to
Objectid	7015627343	7015627334
package instruction	0603	0603
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
uppercase and lowercase codes	0603	0603
structure	Rectangular	Rectangular
core material	FERRITE	FERRITE
DC Resistance	2.36 Ω	1.6 Ω
Nominal inductance(L)	1.8 µH	1.5 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package height	0.85 mm	0.85 mm
Package length	1.7 mm	1.7 mm
Package form	SMT	SMT
Package width	1.2 mm	1.2 mm
method of packing	TR, Blister, 7 Inch	TR, Blister, 7 Inch
Minimum quality factor (at nominal inductance)	12	12
Maximum rated current	0.17 A	0.2 A
self resonant frequency	310 MHz	340 MHz
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO
surface mount	YES	YES
Terminal surface	Tin (Sn)	Tin (Sn)
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND
Test frequency	7.9 MHz	7.9 MHz
Tolerance	2%	2%
