SMAJ10A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> SMAJ10A

SMAJ10A: Description400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC; Categorysemiconductor Discrete semiconductor; File Size891KB，4 Pages; ManufacturerDCCOM [ DC COMPONENTS ]

Download Datasheet View All

SMAJ10A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMAJ10A	-	-	View	Buy Now

SMAJ10A Overview

400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC

Preview

Download Datasheet

View All

DC COMPONENTS CO., LTD.

SMAJ5.0

THRU

SMAJ170CA

RECTIFIER SPECIALISTS

TECHNICAL SPECIFICATIONS OF SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE RANGE - 5.0 to 170 Volts

PEAK PULSE POWER - 400 Watts

FEATURES

* Ideal for surface mounted applications

* Glass passivated junction

* 400 Watts Peak Pulse Power capability on

10/1000 µs waveform

* Excellent clamping capability

* Low zener impedance

* Fast response time

SMA ( DO-214AC)

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Terminals: Solder plated, solderable per

MIL-STD-750, Method 2026

* Polarity: Indicated by cathode band except Bidirectional types.

* Mounting position: Any

* Weight: 0.064 gram

.062(1.60)

.055(1.40)

.181(4.60)

.157(4.00)

.114(2.90)

.098(2.50)

.096(2.44)

.078(2.00)

.060(1.52)

.030(.76)

.008(.203)

.002(.051)

.208(5.28)

.188(4.80)

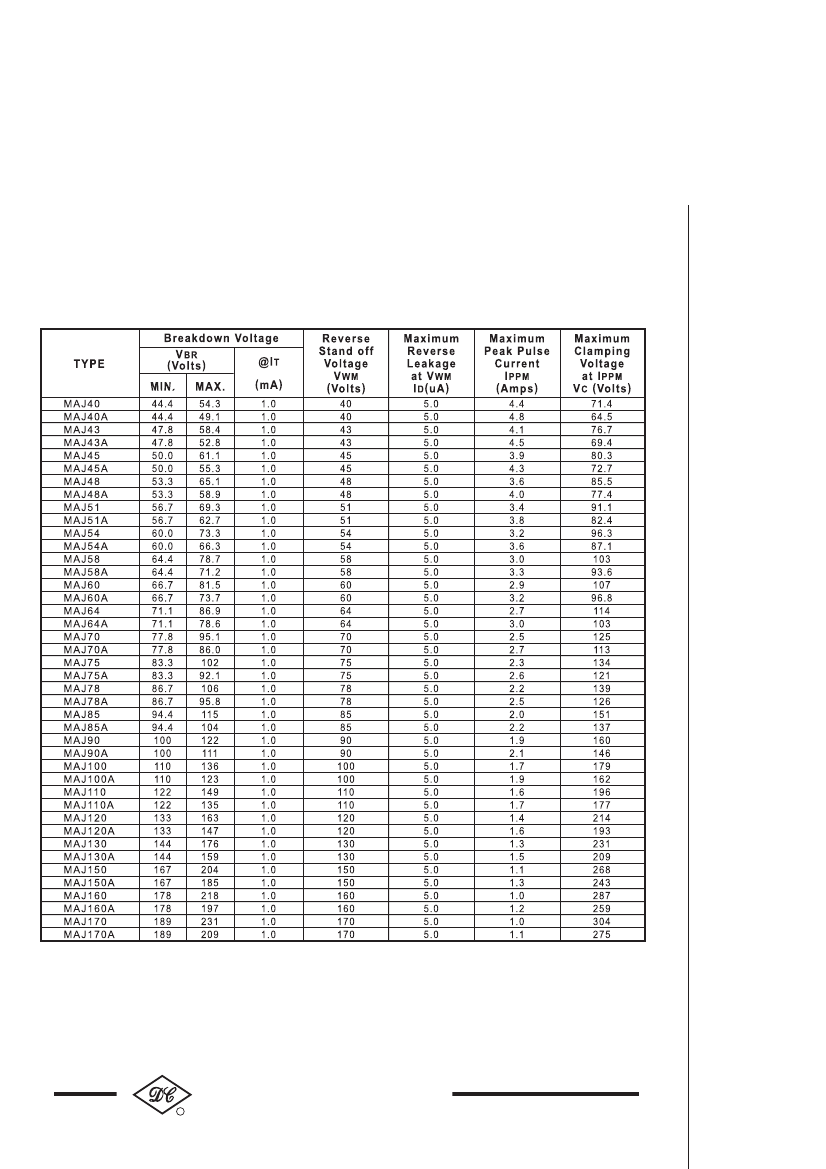

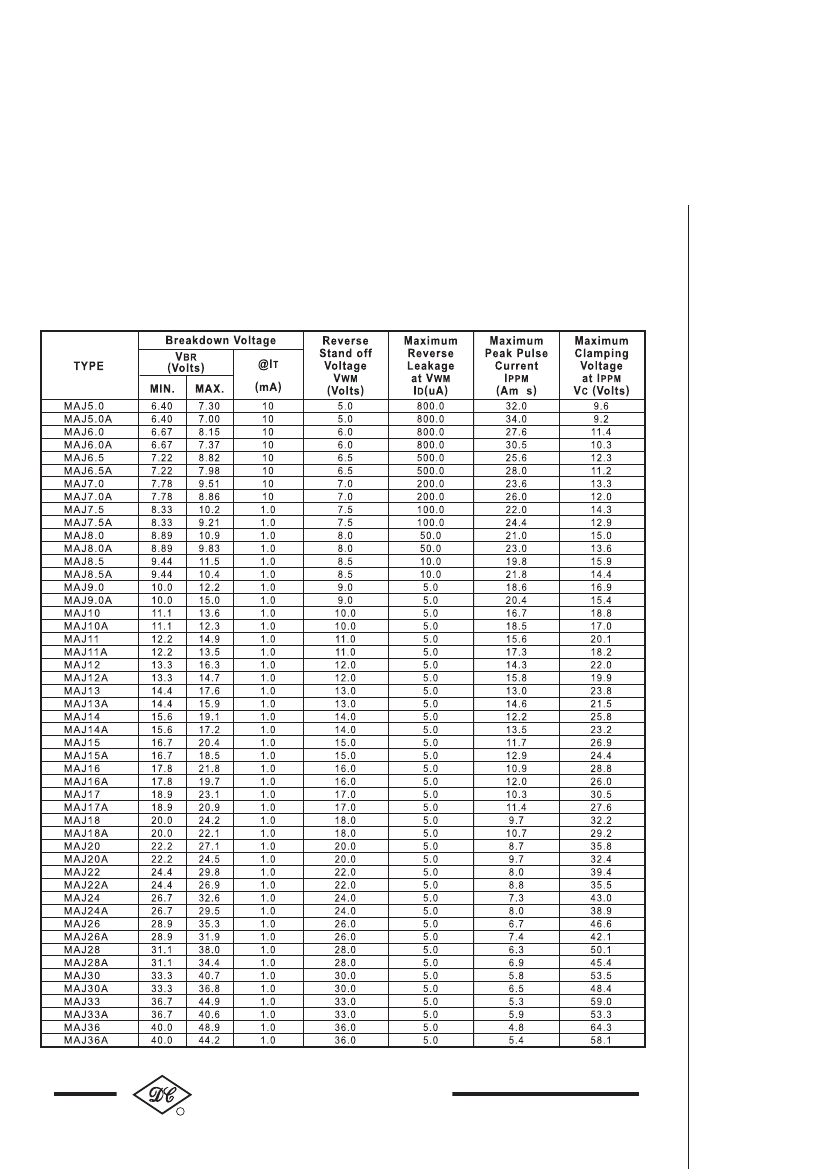

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25

C ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load,

For capacitive load, derate current by 20%.

Dimensions in inches and (millimeters)

DEVICES FOR BIPOLAR APPLICATIONS

For Bidirectional use C or CA suffix (e.g. SMAJ5.0C, SMAJ170CA)

Electrical characteristics apply in both directions

SYMBOL

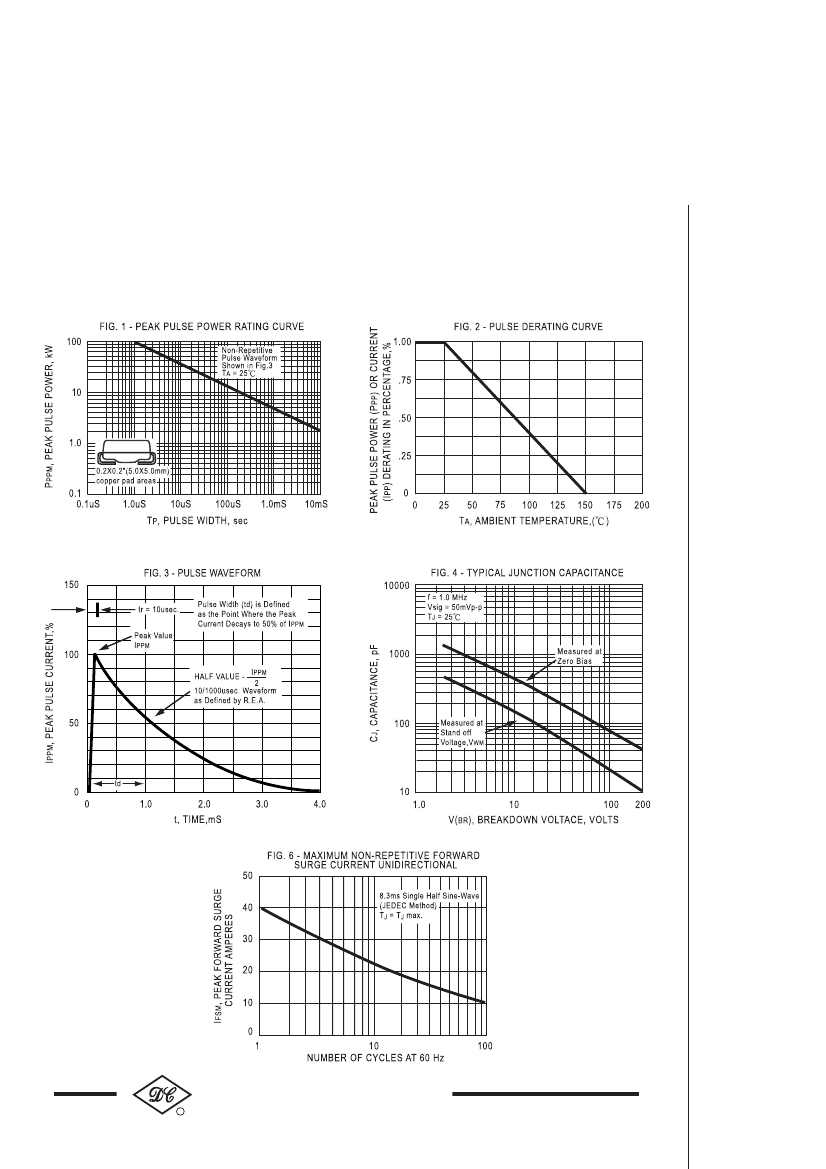

Peak Pulse Power Dissipation on 10/1000 µs waveform (Note1)

Steady State Power Dissipation ( Note 2 )

Peak Forward Surge Current, 8.3mS single half sine-wave

superimposed on rated load ( JEDEC Method ) ( Note 3 )

Operating and Storage Temperature Range

PPM

(

)

FSM

, T

STG

VALUE

Minimum 400

1.0

-65 to + 175

UNITS

Watts

Amps

NOTES : 1. Non-repetitive current pulse, per Fig.3 and derated above T

= 25

C per Fig.2.

2. Mounted on 0.2 X 0.2*(5.0 X 5.0mm) copper pad to each terminal.

3. 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.

348
