SM16LC24C Overview

500 W, BIDIRECTIONAL, 8 ELEMENT, SILICON, TVS DIODE

SM16LC24C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	SOD
package instruction	R-PDSO-G16
Contacts	16
Reach Compliance Code	compli
ECCN code	EAR99
Is Samacsys	N
Other features	LOW CAPACITANCE
Minimum breakdown voltage	26.7 V
Configuration	SEPARATE, 8 ELEMENTS
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Maximum non-repetitive peak reverse power dissipation	500 W
Number of components	8
Number of terminals	16
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	BIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	24 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

8700 E. Thomas Road

Scottsdale, AZ 85251

Tel: (480) 941-6300

Fax: (480) 947-1503

SM16LC03C

thru

SM16LC24C

TVSarray™ Series

™

DESCRIPTION (300 watt)

This 16 pin 8 line Low Capacitance Bidirectional array is designed for

use in applications where protection is required at the board level from

voltage transients caused by electrostatic discharge (ESD) as defined

in IEC 1000-4-2, electrical fast transients (EFT) per IEC 1000-4-4 and

effects of secondary lighting.

These TRANSIENT VOLTAGE SUPPRESSOR (TVS) Diode Arrays

have a peak power of 300 watts for an 8/20

µsec

pulse and are

designed to protect 3.0/3.3 volt components such as DRAM’s, SRAM’s, CMOS, HCMOS, HSIC, and low

voltage interfaces up to 24 volts.

FEATURES

•

Protects 3.0/3.3 up through 24V Components

Protects 8 lines Bidirectional

Provides electrically isolated protection

SO-16 Packaging

MECHANICAL

•

Molded SO-16 Surface Mount

Weight: 0.128 grams (approximate)

Body Marked with Logo, and device number

Pin #1 defined by DOT on top of package

Encapsulation meets UL 94V-0

MAXIMUM RATINGS

•

Operating Temperatures: -55 C to +150 C

Storage Temperature: -55

C to +150

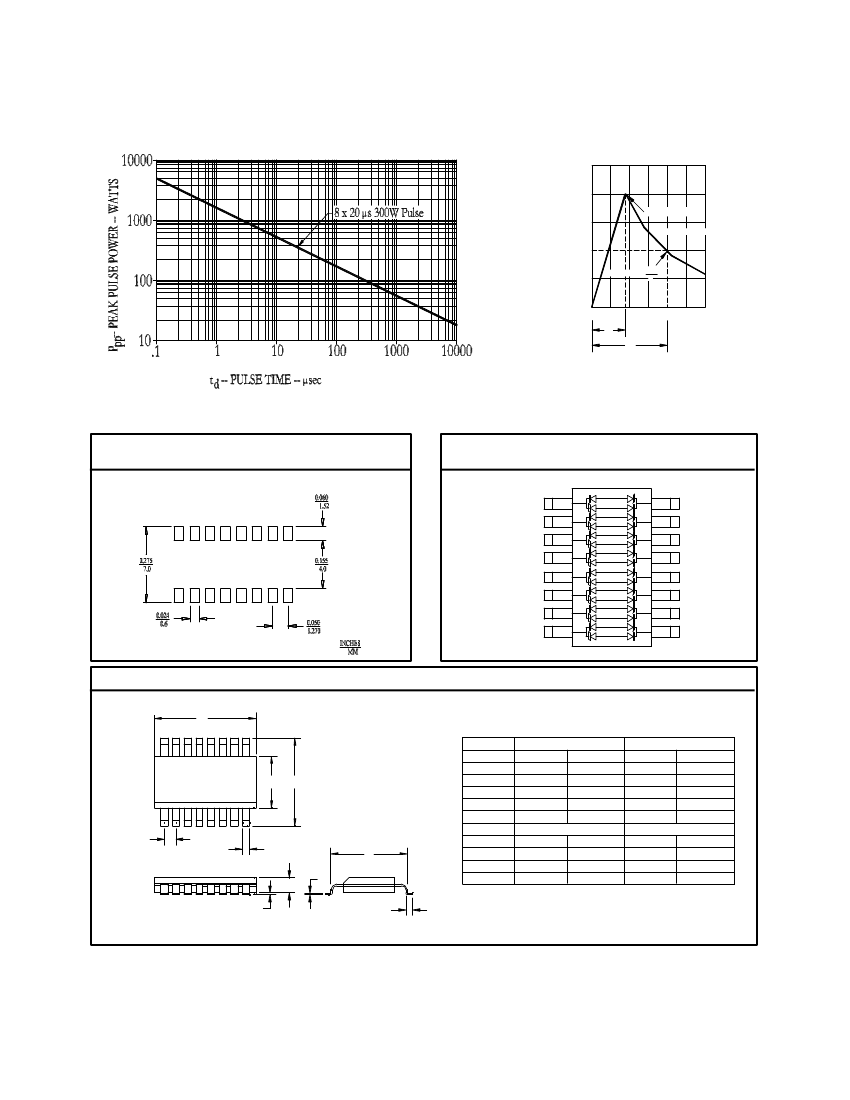

Peak Pulse Power: 300 Watts (8/20

µsec,

Figure 1)

Pulse Repetition Rate: <.01%

PACKAGING

•

Tape & Reel EIA Standard 481-1-A

13 inch reel 2,500 pieces (OPTIONAL)

Carrier tubes 48 pcs per (STANDARD)

ELECTRICAL CHARACTERISTICS PER LINE @ 25

C Unless otherwise specified

STAND

OFF

VOLTAGE

VOLTS

MAX

SM16LC03C

SM16LC05C

SM16LC08C

SM16LC12C

SM16LC15C

SM16LC24C

MAA

MAB

MAF

MAC

MAD

MAE

3.3

5.0

8.0

BREAKDOWN

VOLTAGE

@1 mA

VOLTS

MIN

8.5

13.3

16.7

26.7

CLAMPING

VOLTAGE

@ 1 Amp

(FIGURE 2)

VOLTS

MAX

7.0

9.8

13.4

CLAMPING

VOLTAGE

@ 5 Amp

(FIGURE 2)

VOLTS

MAX

9.0

16.6

LEAKAGE

CURREN

@ V

µA

MAX

200

CAPACITANCE

(f=1 MHz)

@0V

TYP

TEMPERATURE

COEFFICIENT

OF V

áV

mV/°C

MAX

-5

PART

NUMBER

DEVICE

MARKING

Part numbers with a “C” suffix are bidirectional devices

NOTE:

Transient Voltage Suppression (TVS) product is normally selected based on its stand off voltage

. Product selected voltage should be equal to or greater than the continuous peak operating voltage of

the circuit to be protected.

Application:

The SM16CXXC product is designed for transient voltage suppression protection of

components at the board level. It is an ideal product to be used for protection of I/O Transceivers.

MSC0884.PDF

ISO 9001 CERTIFIED

REV M 7/07/2000
