GXO-U129P/F27.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GXO-U129P/F27.0MHZ

GXO-U129P/F27.0MHZ: DescriptionHCMOS/LSTTL Output Clock Oscillator, 27MHz Nom; CategoryPassive components oscillator; File Size57KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

GXO-U129P/F27.0MHZ Overview

HCMOS/LSTTL Output Clock Oscillator, 27MHz Nom

GXO-U129P/F27.0MHZ Parametric

Parameter Name	Attribute value
Objectid	1286133563
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	10%
Manufacturer's serial number	GXO-U129
Installation features	SURFACE MOUNT
Nominal operating frequency	27 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/LSTTL
Output load	10 LS TTL, 15 pF
physical size	7.5mm x 5.0mm x 1.5mm
longest rise time	5 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

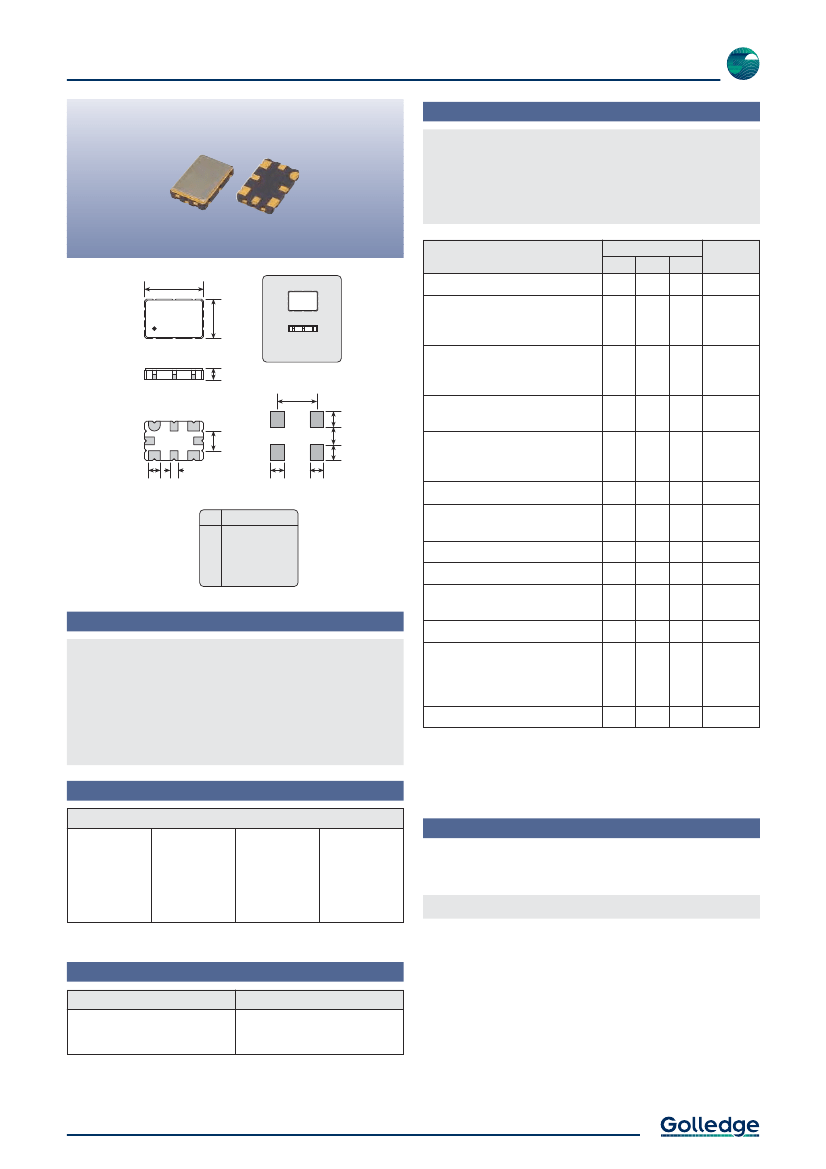

3.3V & 5V CMOS Oscillator - Tight Stability

Specifications

GXO-U129

GXO-U129P: 5.0V supply, E/D with power saving

GXO-U129S: 5.0V supply, E/D

GXO-U129L: 3.3V supply, E/D with power saving

7.50

(max)

Parameters

Frequency range:

5.00

(max)

Variant

1.8 ~ 50.0MHz

±20ppm

±15ppm

±10ppm

Option

Codes

Frequency stability*:

ACTUAL SIZE

1.50

(max)

SOLDER PAD LAYOUT

5.08

2.00

2.20

2.00

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

Supply voltage (V

+5.0V (±0.5V)

+3.3V (±0.3V)

Supply current):

22mA max

1.40

2.60

0.80

1.80

TOP VIEW

PAD

CONNECTION

Enable/Disable

Ground

Output

Supply

Logic levels:

‘0’ level = 10%V

max

‘1’ level = 90%V

min

Start up time:

Waveform symmetry:

Scale 2:1

Driving ability:

Rise / fall time:

5ms max

45:55 max

Features

10 LSTTL

15pF HCMOS

5ns max

Tight frequency stability

Enable / disable tristate function

Power saving function (P & L variants)

Industry standard SM package

Enable / disable function:

Tristate (control via pad 1)

100ns / 100ns

5ms / 150ns

Stand by current:

Standard.

50µA max

Optional - Please specify required code(s) when ordering

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply

voltage change, load change, ageing, shock and vibration.

±10ppm stability is not available over -40+85°C

Standard Frequencies

Frequencies in MHz

1.84320

2.00000

3.68640

4.00000

5.00000

8.00000

10.00000

12.00000

14.31818

16.00000

18.43200

20.00000

24.00000

24.57600

25.00000

27.00000

29.48920

29.49120

30.00000

32.00000

33.86880

36.86400

40.00000

44.23680

44.73600

48.00000

49.15200

50.00000

Ordering Information

Product name + variant + option codes + frequency

eg:

GXO-U129S/E 40.0MHz

5V, ±15ppm, -10+70°C

GXO-U129L/DI 40.0MHz

5V, ±20ppm, -40+85°C

Available on T&R - 2k pcs per reel. See our website for details

* P and L variants only. Other frequencies available. Please consult our sales office.

Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Output (pad 3)

Enabled

High Impedance

Tel:

+44 1460 256 100

25 Nov 02

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
