74ALVCH16374
Low−Voltage 16−Bit D−Type
Flip−Flop with Bus Hold
1.8/2.5/3.3 V
(3−State, Non−Inverting)
The 74ALVCH16374 is an advanced performance, non−inverting
16−bit D−type flip−flop. It is designed for very high−speed, very
low−power operation in 1.8 V, 2.5 V or 3.3 V systems. The
VCXH16374 is byte controlled, with each byte functioning
identically, but independently. Each byte has separate Output Enable
and Clock Pulse inputs. These control pins can be tied together for full
16−bit operation.
The 74ALVCH16374 consists of 16 edge−triggered flip−flops with
individual D−type inputs and 3.6 V−tolerant 3−state outputs. The
clocks (CPn) and Output Enables (OEn) are common to all flip−flops
within the respective byte. The flip−flops will store the state of
individual D inputs that meet the setup and hold time requirements on
the LOW−to−HIGH Clock (CP) transition. With the OE LOW, the
contents of the flip−flops are available at the outputs. When the OE is
HIGH, the outputs go to the high impedance state. The OE input level
does not affect the operation of the flip−flops. The data inputs include
active bushold circuitry, eliminating the need for external pull−up
resistors to hold unused or floating inputs at a valid logic state.
http://onsemi.com
MARKING DIAGRAM
48
48
1
74ALVCH16374DT
AWLYYWW
TSSOP−48
DT SUFFIX
CASE 1201
A
Location
WL
YY
WW
1
= Assembly
= Wafer Lot
= Year
= Work Week
PIN NAMES
Pins
OEn
CPn
D0−D15
O0−O15
Function
Output Enable Inputs
Clock Pulse Inputs
Inputs
Outputs
•
Designed for Low Voltage Operation: V
CC
= 1.65
−
3.6 V
•
3.6 V Tolerant Inputs and Outputs
•
High Speed Operation: 3.6 ns max for 3.0 to 3.6 V
•
•
•
•
•
•
•
•
4.5 ns max for 2.3 to 2.7 V
7.8 ns max for 1.65 to 1.95 V
Static Drive:
±24
mA Drive at 3.0 V
±12
mA Drive at 2.3 V
±4
mA Drive at 1.65 V
Supports Live Insertion and Withdrawal
Includes Active Bushold to Hold Unused or Floating Inputs at a Valid
Logic State
I
OFF
Specification Guarantees High Impedance When V
CC
= 0 V
†
Near Zero Static Supply Current in All Three Logic States (40
mA)
Substantially Reduces System Power Requirements
Latchup Performance Exceeds
±250
mA @ 125°C
ESD Performance: Human Body Model >2000V; Machine Model >200V
Second Source to Industry Standard 74ALVCH16374
ORDERING INFORMATION
Device
74ALVCH16374DTR
Package
TSSOP
Shipping
2500 / Reel
†To ensure the outputs activate in the 3−state condition, the output enable pins
should be connected to V
CC
through a pull−up resistor. The value of the resistor is
determined by the current sinking capability of the output connected to the OE pin.
©
Semiconductor Components Industries, LLC, 2006
June, 2006
−
Rev. 3
1
Publication Order Number:
74ALVCH16374/D
74ALVCH16374
OE1 1
O0 2
O1 3
GND 4
O2 5
O3 6
V
CC
7
O4 8
O5 9
GND 10
O6 11
O7 12
O8 13
O9 14
GND 15
O10 16
O11 17
V
CC
18
O12 19
O13 20
GND 21
O14 22
O15 23
OE2 24
48 CP1
47 D0
46 D1
45 GND
44 D2
43 D3
42 V
CC
41 D4
40 D5
39 GND
38 D6
37 D7
36 D8
35 D9
34 GND
33 D10
32 D11
31 V
CC
30 D12
29 D13
28 GND
27 D14
26 D15
25 CP2
D7
37
D6
38
D5
40
nCP
D
nCP
D
nCP
D
Q
D4
41
nCP
D
Q
D3
43
nCP
D
Q
6
O3
D11
32
nCP
D
nCP
D
nCP
D
nCP
D
nCP
D
Q
17
O11
D2
D1
46
nCP
D
nCP
D
Q
3
O1
D9
35
nCP
D
nCP
D
Q
14
O9
D0
47
OE1
CP1
1
48
nCP
D
Q
2
O0
OE2
CP2
D8
24
25
36
nCP
D
Q
13
O8
44
Q
5
O2
D10
33
Q
16
O10
8
O4
D12
30
Q
19
O12
9
O5
D13
29
Q
20
O13
Q
11
O6
D14
27
Q
22
O14
Q
12
O7
D15
26
Q
23
O15

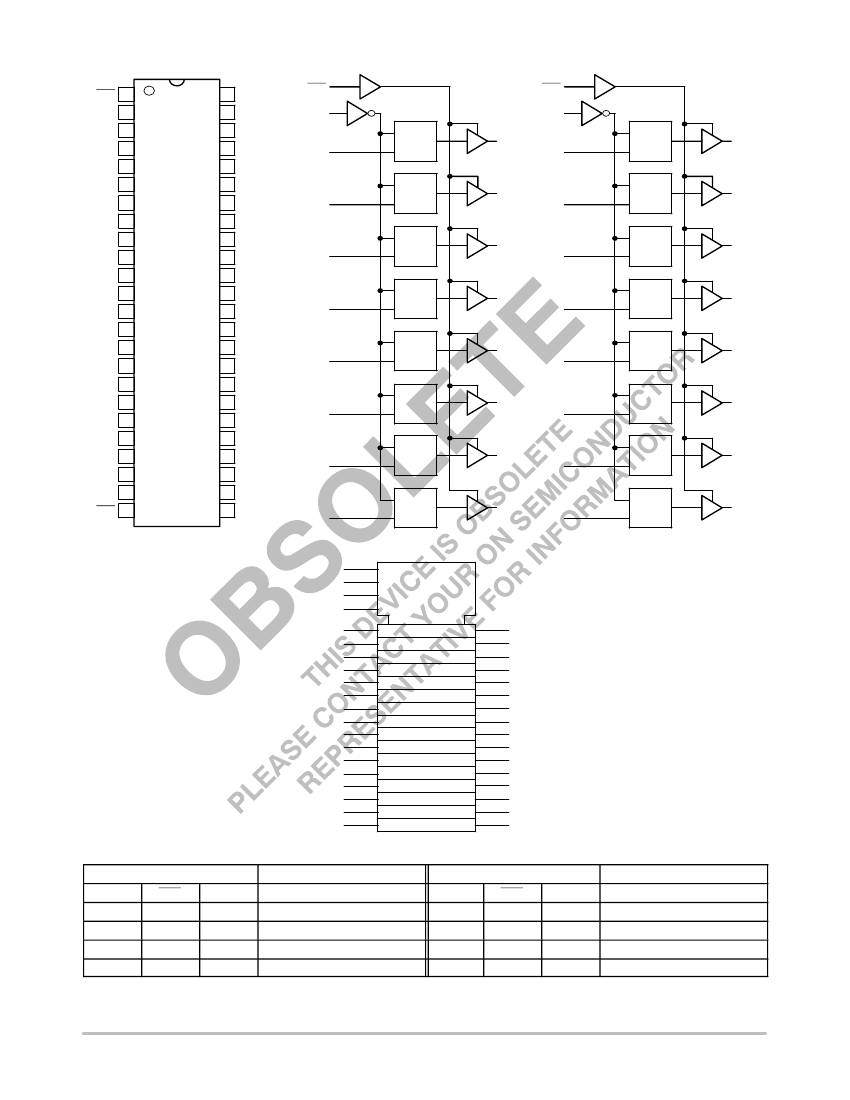

Figure 1. 48−Lead Pinout
(Top View)
Figure 2. Logic Diagram
OE1
48
CP1
25
CP2
24
OE2
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
47
46
44
43
41
40
38
37
36
35
33
32
30
29
27
26
1
EN1
EN2
EN3
EN4
1
1
∇
2
∇
1
1
3
∇
1
4
∇
2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23
O0
O1
O2
O3
O4
O5
O6
O7
O8
O9
O10
O11
O12
O13
O14
O15
Figure 3. IEC Logic Diagram
Inputs
CP1
↑
↑
X
X
OE1
L
L
L
H
D0:7
H
L
X
X
Outputs
O0:7
H
L
O0
Z
CP2
↑
↑
X
X
Inputs
OE2
L
L
L
H
D8:15
H
L
X
X
Outputs
O8:15
H
L
O0
Z
H = High Voltage Level; L = Low Voltage Level; Z = High Impedance State;
↑
= Low−to−High Transition; X = High or Low Voltage Level and
Transitions Are Acceptable, for I
CC
reasons, DO NOT FLOAT Inputs. O0 = No Change.
http://onsemi.com
2
74ALVCH16374
MAXIMUM RATINGS
(Note 1)
Symbol
V
CC
V
I
V
O
I
IK
I
OK
I
O
I
CC
I
GND
T
STG
T
L
T
J
q
JA
MSL
F
R
V
ESD
DC Supply Voltage
DC Input Voltage
DC Output Voltage
DC Input Diode Current
DC Output Diode Current
DC Output Sink Current
DC Supply Current per Supply Pin
DC Ground Current per Ground Pin
Storage Temperature Range
Lead Temperature, 1 mm from Case for 10 Seconds
Junction Temperature Under Bias
Thermal Resistance (Note 2)
Moisture Sensitivity
Flammability Rating
ESD Withstand Voltage
Oxygen Index: 30 to 35
Human Body Model (Note 3)
Machine Model (Note 4)
Charged Device Model (Note 5)
Above V
CC
and Below GND at 125°C (Note 6)
V
I
< GND
V
O
< GND
Parameter
Value
*0.5
to
)4.6
*0.5
to
)4.6
*0.5
to
)4.6
*50
*50
$50
$100
$100
*65
to
)150
260
)150
90
Level 1
UL 94 V−O @ 0.125 in
u2000
u200
N/A
$250
V
Unit
V
V
V
mA
mA
mA
mA
mA
°C
°C
°C
°C/W
I
LATCH−UP
Latch−Up Performance
mA
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the
Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect
device reliability.
1. I
O
absolute maximum rating must be observed.
2. Measured with minimum pad spacing on an FR4 board, using 10 mm−by−1 inch, 2−ounce copper trace with no air flow.
3. Tested to EIA/JESD22−A114−A.
4. Tested to EIA/JESD22−A115−A.
5. Tested to JESD22−C101−A.
6. Tested to EIA/JESD78.
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
I
V
O
T
A
Dt/DV
Supply Voltage
Input Voltage
Output Voltage
Operating Free−Air Temperature
Input Transition Rise or Fall Rate
V
CC
= 2.5 V
$
V
CC
= 3.0 V
$
0.2 V
0.3 V
Parameter
Operating
Data Retention Only
(Note 7)
(Active State)
(3−State)
Min
2.3
1.5
−0.5
0
0
*40
0
0
Max
3.6
3.6
3.6
3.6
3.6
)85
20
10
Unit
V
V
V
°C
ns/V
7. Unused inputs may not be left open. All inputs must be tied to a high−logic voltage level or a low−logic input voltage level.
http://onsemi.com
3
74ALVCH16374
DC ELECTRICAL CHARACTERISTICS
T
A
=
*405C
to
)855C
Symbol
V
IH
Parameter
HIGH Level Input Voltage
(Note 8)
1.65 V
v
V
CC
t
2.3 V
2.3 V
v
V
CC
v
2.7 V
2.7 V
t
V
CC
v
3.6 V
V
IL
LOW Level Input Voltage
(Note 8)
1.65 V
v
V
CC
t
2.3 V
2.3 V
v
V
CC
v
2.7 V
2.7 V
t
V
CC
v
3.6 V
V
OH
HIGH Level Output Voltage
1.65 V
v
V
CC
v
3.6 V; I
OH
=
*100
mA
V
CC
= 1.65 V; I
OH
=
*4
mA
V
CC
= 2.3 V; I
OH
=
*6
mA
V
CC
= 2.3 V; I
OH
=
*12
mA
V
CC
= 2.7 V; I
OH
=
*12
mA
V
CC
= 3.0 V; I
OH
=
*12
mA
V
CC
= 3.0 V; I
OH
=
*24
mA
V
OL
LOW Level Output Voltage
1.65 V
v
V
CC
v
3.6 V; I
OL
= 100
mA
V
CC
= 1.65 V; I
OL
= 4 mA
V
CC
= 2.3 V; I
OL
= 6 mA
V
CC
= 2.3 V; I
OL
= 12 mA
V
CC
= 2.7 V; I
OL
= 12 mA
V
CC
= 3.0 V; I
OL
= 24 mA
I
I
I
I(HOLD)
Input Leakage Current
Minimum Bus−hold Input
Current
1.65 V
v
V
CC
v
3.6 V; 0 V
v
V
I
v
3.6 V
V
CC
= 3.6 V; V
IN
= 0 to 3.6 V
V
CC
= 3.0 V, V
IN
= 0.8 V
V
CC
= 3.0 V, V
IN
= 2.0 V
V
CC
= 2.3 V, V
IN
= 0.7 V
V
CC
= 2.3 V, V
IN
= 1.7 V
V
CC
= 1.65 V, V
IN
= 0.58 V
V
CC
= 1.65 V, V
IN
= 1.07 V
I
OZ
I
OFF
I
CC
3−State Output Current
Power−Off Leakage Current
Quiescent Supply Current
(Note 9)
Increase in I
CC
per Input
1.65 V
v
V
CC
v
3.6 V; 0 V
v
V
O
v
3.6 V; V
I
= V
IH
or V
IL
V
CC
= 0 V; V
I
or V
O
= 3.6 V
1.65 V
v
V
CC
v
3.6 V; V
I
= GND or V
CC
1.65 V
v
V
CC
v
3.6 V; 3.6 V
v
V
I
, V
O
v
3.6 V
2.7 V
t
V
CC
≤
3.6 V; V
IH
= V
CC
*
0.6 V
75
*75
45
*45
25
*25
$10
10
40
$40
750
mA
mA
mA
mA
V
CC
*
0.2
1.2
2.0
1.7
2.2
2.4
2.0
0.2
0.45
0.4
0.7
0.4
0.55
$5.0
$500
mA
mA
V
Condition
0.65
1.7
2.0
0.35
0.7
0.8
V
V
CC
V
Min
V
CC
Max
Unit
V
DI
CC
8. These values of V
I
are used to test DC electrical characteristics only.
9. Outputs disabled or 3−state only.
http://onsemi.com
4
74ALVCH16374

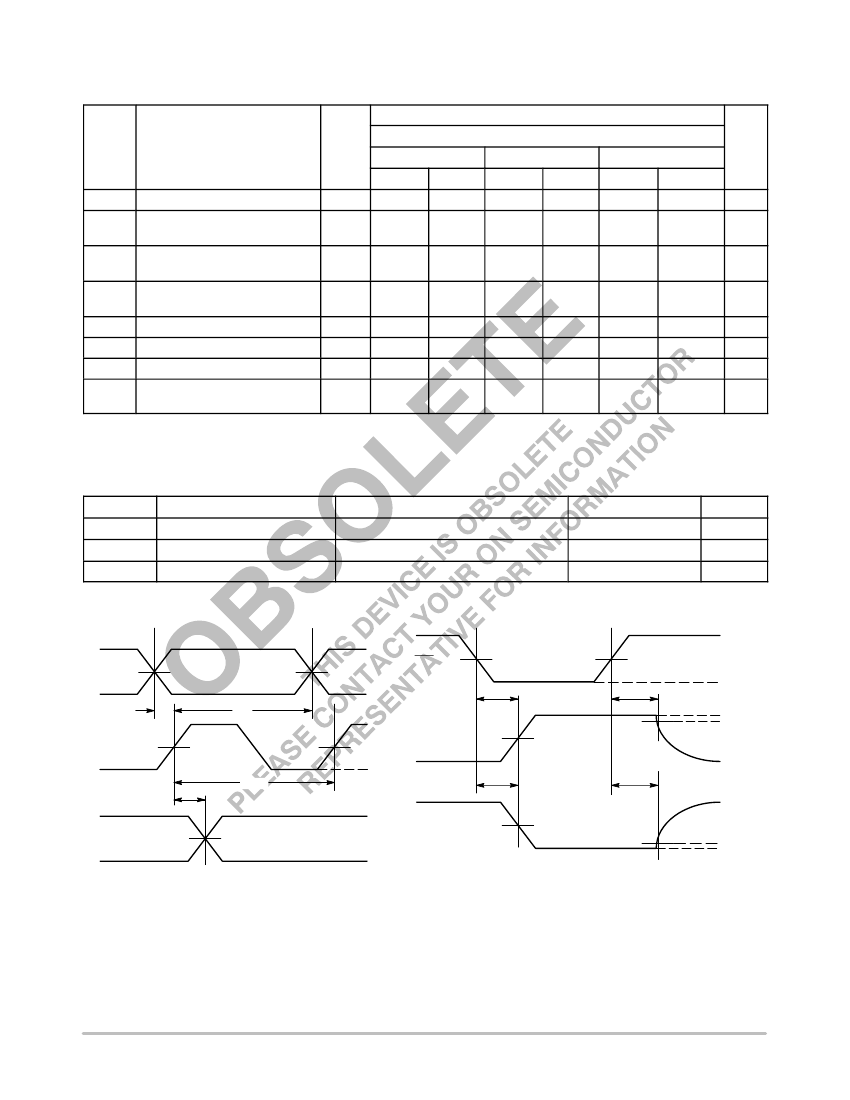

AC CHARACTERISTICS
(Note 10; t
R
= t
F
= 2.0 ns; C
L
= 30 pF; R
L
= 500
W)
Limits
T
A
=
−40°C
to +85°C
Wave−
form
1
1
2
2
3
3
3
V
CC
= 3.0 V to 3.6 V
Min
250
1.0
1.0
1.0
1.0
1.0
1.0
1.5
1.0
1.5
3.6
3.6
4.7
4.7
4.1
4.1
Max
V
CC
= 2.3 V to 2.7 V
Min
200
1.0
1.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
4.5
4.5
6.0
6.0
5.1
5.1
Max
V
CC
= 1.65 V to 1.95 V
Min
100
1.0
1.0
1.0
1.0
1.5
1.5
2.5
1.0
4.0
7.8
7.8
9.2
9.2
6.8
6.8
Max
Unit
MHz
ns
ns
ns
ns
ns
ns
Symbol
f
max
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
t
s
t
h
t
w
Parameter
Clock Pulse Frequency
Propagation Delay
CP to On
Output Enable Time to
High and Low Level
Output Disable Time From
High and Low Level
Setup Time, High or Low Dn to CP
Hold Time, High or Low Dn to CP
CP Pulse Width, High
t
OSHL
Output−to−Output Skew
0.5
0.5
0.75
ns
t
OSLH
(Note 11)
0.5
0.5
0.75
10. For C
L
= 50 pF, add approximately 300 ps to the AC maximum specification.
11. Skew is defined as the absolute value of the difference between the actual propagation delay for any two separate outputs of the same device.
The specification applies to any outputs switching in the same direction, either HIGH−to−LOW (t
OSHL
) or LOW−to−HIGH (t
OSLH
); parameter
guaranteed by design.
CAPACITIVE CHARACTERISTICS
Symbol
C
IN
C
OUT
Parameter
Input Capacitance
Output Capacitance
Condition
Note 12
Note 12
Note 12, 10 MHz
Typical
6
7
20
Unit
pF
pF
pF
C
PD
Power Dissipation Capacitance
12. V
CC
= 1.8, 2.5 or 3.3 V; V
I
= 0 V or V
CC
.
V
IH
Dn
Vm
t
s
CPn
Vm
f
max
t
PLH
, t
PHL
V
OH
On
Vm
V
OL
WAVEFORM 1 − PROPAGATION DELAYS, SETUP AND HOLD TIMES
t
R
= t
F
= 2.0 ns, 10% to 90%; f = 1 MHz; t
W
= 500 ns
t
h
V
IH
Vm
0V
Vm
0V
V
IH
OEn
t
PZH
On
Vm
≈
0V
t
PZL
On
Vm
Vx
V
OL
WAVEFORM 2 − OUTPUT ENABLE AND DISABLE TIMES
t
R
= t
F
= 2.0 ns, 10% to 90%; f = 1 MHz; t
W
= 500 ns
t
PLZ
≈
V
CC
Vm
Vm
0V
t
PHZ
V
OH
Vy
Figure 4. AC Waveforms
http://onsemi.com
5
京公网安备 11010802033920号
EEWORLD
