8609-432-88-13-768-073-E2: DescriptionBoard Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug,; CategoryThe connector The connector; File Size248KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

8609-432-88-13-768-073-E2 Overview

Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug,

8609-432-88-13-768-073-E2 Parametric

Parameter Name	Attribute value
Objectid	300240244
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.335 inch
subject depth	0.602 inch
body length	3.701 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT
DIN compliance	YES
Insulator color	GRAY
insulator material	POLYETHYLENE
Manufacturer's serial number	8609
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	3
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

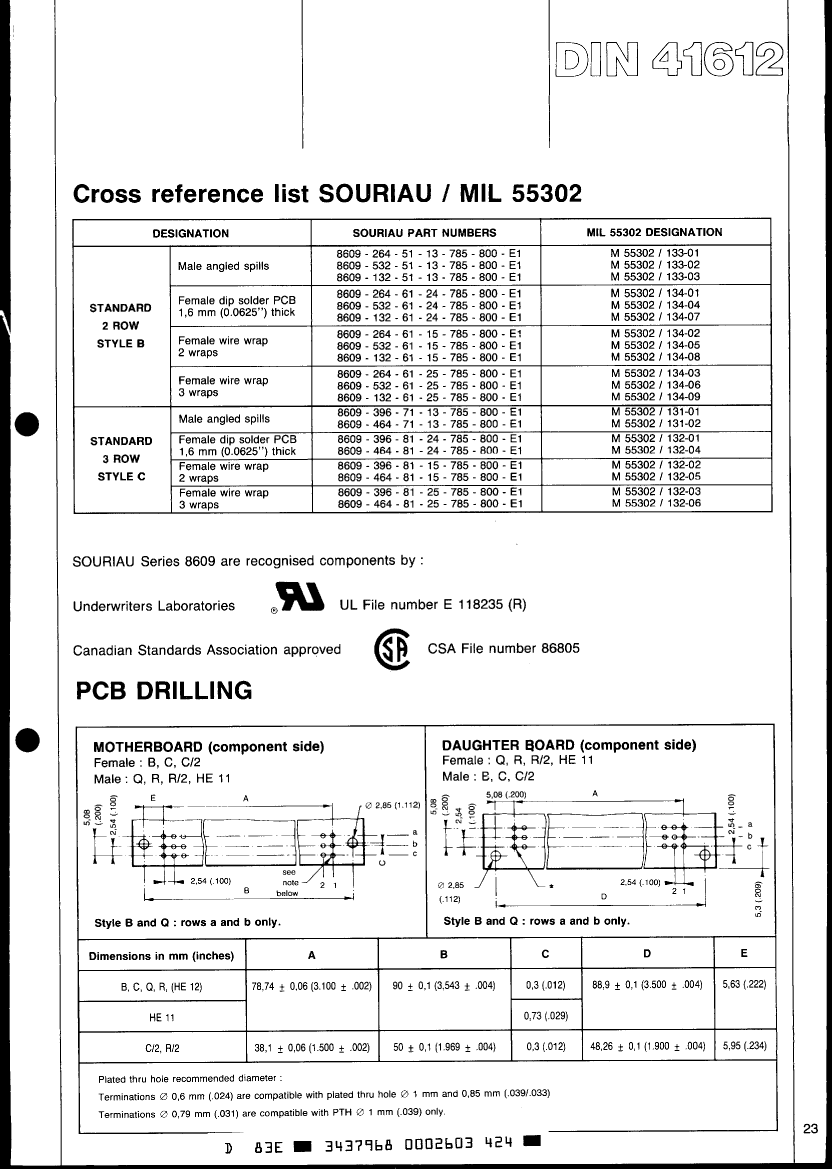

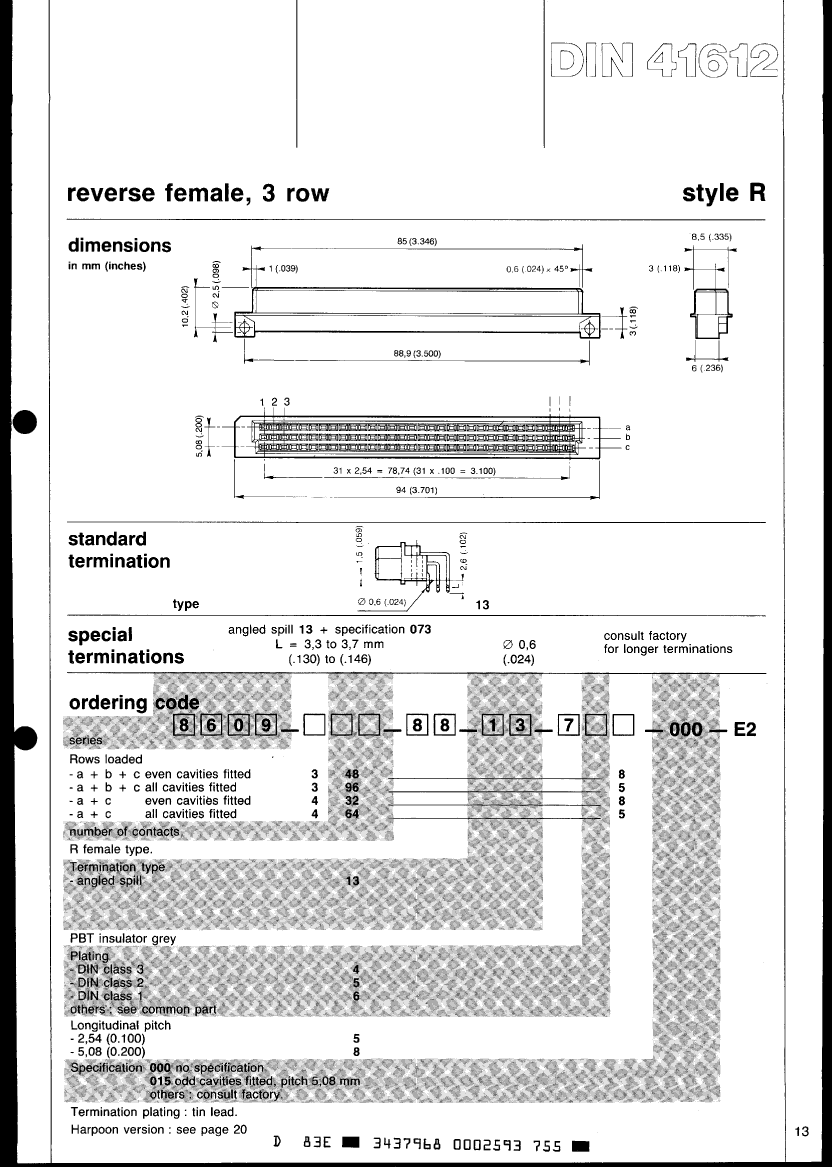

Preview

Download Datasheet

View All

8609-432-88-13-768-073-E2 Related Products

	8609-432-88-13-768-073-E2	8609-432-88-13-758-000-E2	8609-432-88-13-758-015-E2	8609-348-88-13-758-073-E2	8609-432-88-13-758-073-E2	8609-432-88-13-748-000-E2	8609-432-88-13-748-015-E2	CER0255B	8609-432-88-13-748-073-E2
Description	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug,	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug	Board Euro Connector, 48 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug,	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug	Board Euro Connector	Surface mount, silver (Ag) coated neodymium ceramic Duplexer.	Board Euro Connector, 32 Contact(s), 3 Row(s), Female, Right Angle, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Plug,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown	-	compliant
body width	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	0.335 inch	-	-	0.335 inch
subject depth	0.602 inch	0.602 inch	0.602 inch	0.602 inch	0.602 inch	0.602 inch	-	-	0.602 inch
body length	3.701 inch	3.701 inch	3.701 inch	3.701 inch	3.701 inch	3.701 inch	-	-	3.701 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	-	-	PLUG
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	-	BOARD EURO CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	-	-	AU ON NI
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	-	-	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	-	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	-	PHOSPHOR BRONZE
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-	SQ PIN-SKT
DIN compliance	YES	YES	YES	YES	YES	YES	-	-	YES
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY	-	-	GRAY
insulator material	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC	POLYETHYLENE	THERMOPLASTIC	THERMOPLASTIC	-	-	POLYETHYLENE
Manufacturer's serial number	8609	8609	8609	8609	8609	8609	8609	-	8609
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	-	0.1 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-	-	BOARD
Loaded row name	A,C	A,C	A,C	A,B,C	A,C	A,C	-	-	A,C
PCB row number	3	3	3	3	3	3	-	-	3
Number of rows loaded	3	3	3	3	3	3	-	-	3
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	2.54 mm
Plating thickness	30u inch	16u inch	16u inch	16u inch	16u inch	10u inch	-	-	10u inch
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	-	-	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	COMMERCIAL
Terminal length	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch	-	-	0.102 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	-	SOLDER
Total number of contacts	32	32	32	48	32	32	-	-	32
