86094328191768E3LF: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size79KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86094328191768E3LF Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE

86094328191768E3LF Parametric

Parameter Name	Attribute value
Objectid	1673608949
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8
Other features	STANDARDS: DIN 41612
Connector type	BOARD EURO CONNECTOR
Contact point gender	FEMALE
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	32

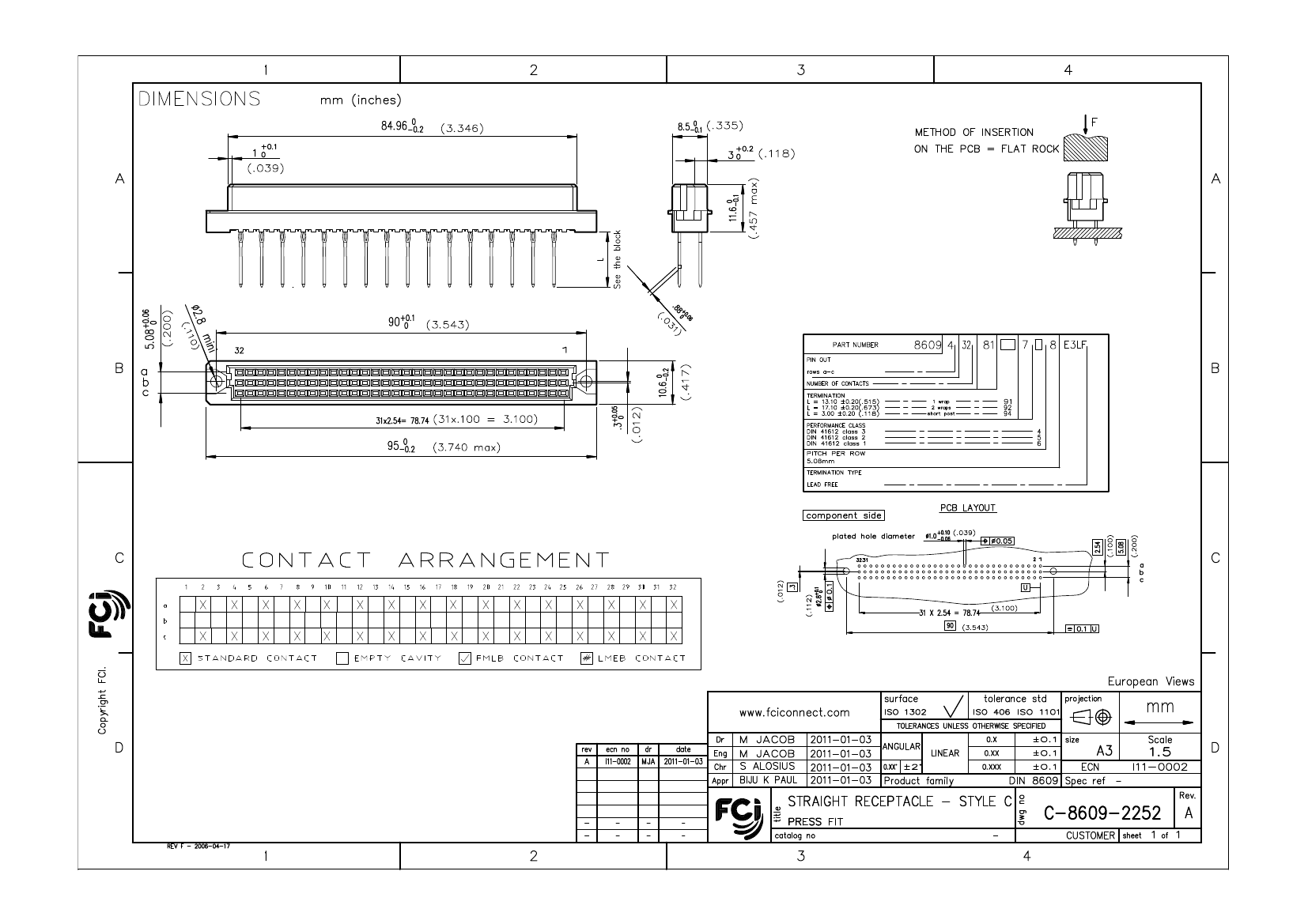

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: May 14, 2011

.

86094328191768E3LF Related Products

	86094328191768E3LF	86094328194748E3LF	86094328194758E3LF	86094328194768E3LF	86094328191748E3LF	86094328191758E3LF	86094328192758E3LF
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, Press Fit Terminal, LEAD FREE
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612	STANDARDS: DIN 41612
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	32	32	32	32	32	32	32
Objectid	1673608949	-	-	-	1673608945	1673608947	1673608953
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Manufacturer's serial number	-	8609	8609	8609	-	-	8609
