RJHSE-5389-02 datasheet, PDF - EEWORLD Datasheet

RJHSE-5389-02: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack,; CategoryThe connector The connector; File Size154KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

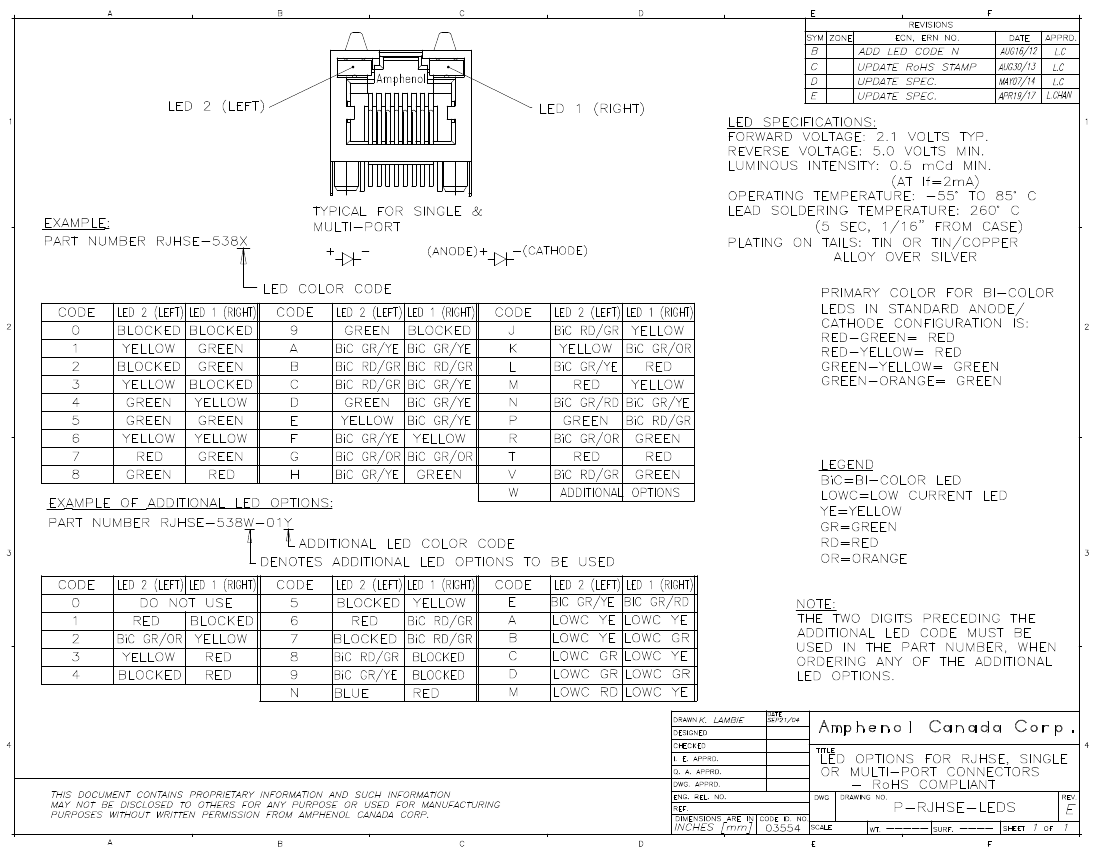

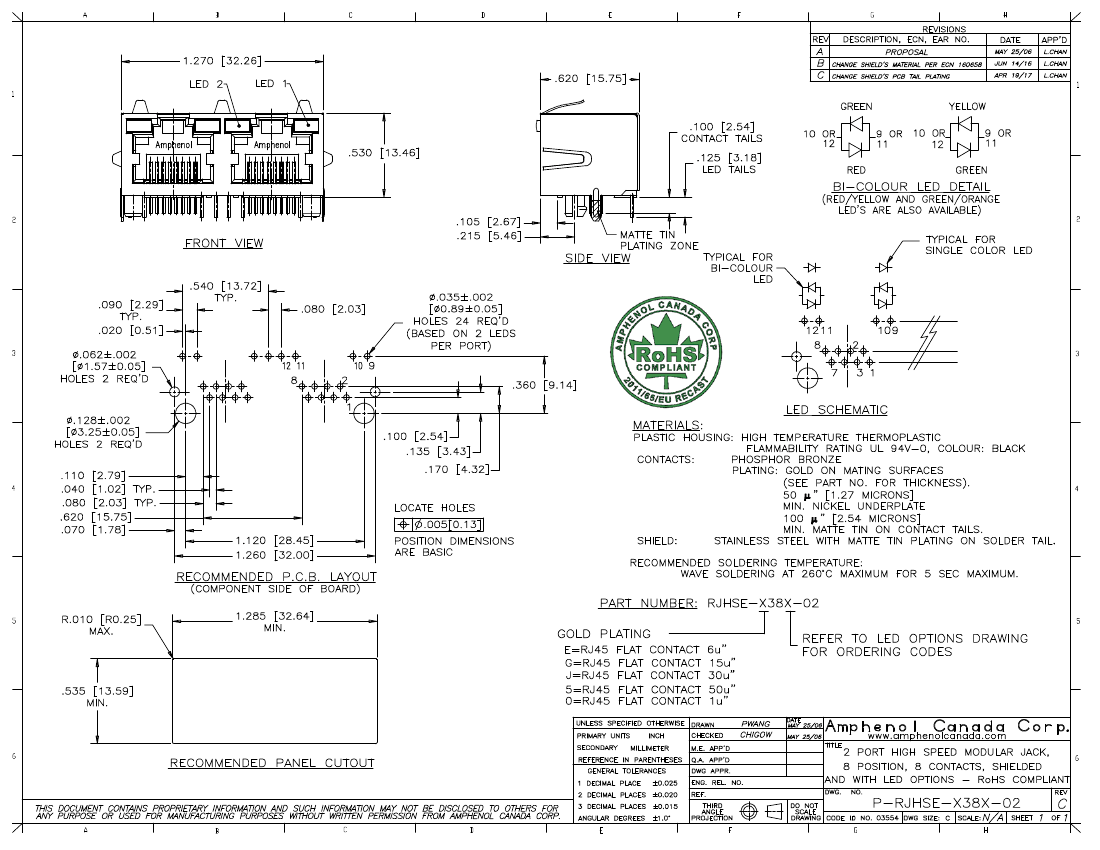

RJHSE-5389-02 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	8302781440
Reach Compliance Code	unknown
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.53 inch
subject depth	0.62 inch
body length	1.27 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Durability	750 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	COPPER ALLOY
Terminal length	0.1 inch
Terminal pitch	2.032 mm
Termination type	SOLDER
Total number of contacts	8
