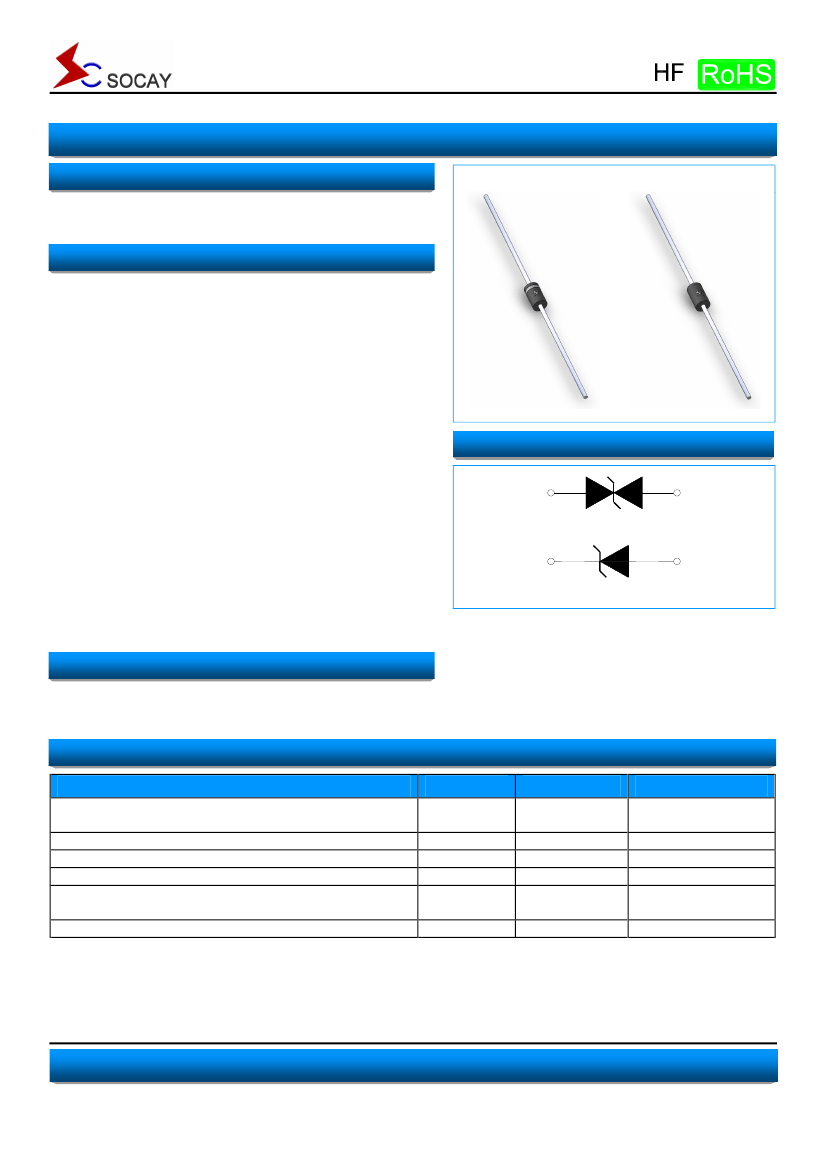

Axial Lead Transient Voltage Suppressors (TVS)
SA Series
Description
The SA series is designed specifically to protect sensitive electronic
equipment from voltage transients induced by lightning and other transient
voltage events.
5.0 To 190 V
500W
Uni-directional
Bi-directional
Features
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
u
Glass passivated chip junction in DO-15 Package
Low leakage
Uni and Bidirectional unit
Excellent clamping capability
500W Peak power capability at 10
×
1000µs waveform Repetition rate
(duty cycle):0.01%
Fast response time: typically less than 1.0ps from 0 Volts to V
BR
min
Typical I
R
less than 5μA above 12V.
High Temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient
ΔV
BR
= 0.1%
×
V
BR
@25°C×
ΔT
Plastic package has Underwriters Laboratory Flammability 94V-0
Matte tin lead–free Plated
Halogen free and RoHS compliant
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table
4a and 4c
IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)
ESD protection of data lines in accordance with IEC 61000-4-2
(IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4
(IEC801-4)
Functional Diagram
Bi-directional
Cathode
Uni-direction
Anode
Applications
TVS devices are ideal for the protection of I/O interfaces, V
CC
bus and other
vulnerable circuits used in Telecom, Computer, Industrial and Consumer
electronic applications.
Maximum Ratings
(T
A
=25℃ unless otherwise noted)
Parameter
Symbol
P
PPM
I
PP
P
M(AV)
I
FSM
V
F
T
J
, T
STG
Value
500
See Next Table
3.0
70
3.5/5.0
-55 to +150
Unit
Watts
Amps
Watt
Amps
Voltage
°C
Peak Pulse Power Dissipation with a 10/1000µs waveform (Fig.1)(Note
1), (Note 2)
Peak Pulse Current with a 10/1000µs waveform.(Note1,Fig.3)
Power Dissipation on Infinite Heat Sink at T
L
=75°C
Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward Voltage at 25A for Unidirectional Only
(Note 4)
Operating junction and Storage Temperature Range.
Notes:
1. Non-repetitive current pulse, per Fig. 3 and derated above T
A
= 25°C per Fig. 2.
2. Mounted on 5.0mm x 5.0mm (0.03mm thick) Copper Pads to each terminal.
3. 8.3ms single half sine-wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
4. V
F
< 3.5V for V
BR
< 200V and V
F
< 6.5V for V
BR
> 201V.
SOCAY Electronics Co., Ltd.
Revision August 25, 2013
www.socay.com
1/6
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Axial Lead Transient Voltage Suppressors (TVS)
SA Series
5.0 To 190 V
500W
Electrical Characteristics
(T
A
=25℃ unless otherwise noted)
Reverse
Stand-Off
Voltage
V
RWM
(V)
5.0
5.0
6.0
6.0
6.5
6.5
7.0
7.0
7.5
7.5
8.0
8.0
8.5
8.5
9.0
9.0
10.0
10.0
11.0
11.0
12.0
12.0
13.0
13.0
14.0
14.0
15.0
15.0
16.0
16.0
17.0
17.0
18.0
18.0
19.0
19.0
20.0
20.0
22.0
22.0
24.0
24.0
26.0
26.0
28.0
28.0
30.0
30.0
33.0
33.0
36.0
36.0
40.0
40.0
Breakdown
Voltage V
BR
(V)
@I
T
MIN
6.40
6.40
6.67
6.67
7.22
7.22
7.78
7.78
8.33
8.33
8.89
8.89
9.44
9.44
10.00
10.00
11.10
11.10
12.20
12.20
13.30
13.30
14.40
14.40
15.60
15.60
16.70
16.70
17.80
17.80
18.90
18.90
20.00
20.00
21.13
21.10
22.20
22.20
24.40
24.40
26.70
26.70
28.90
28.90
31.10
31.10
33.30
33.30
36.70
36.70
40.00
40.00
44.40
44.40
MAX
7.30
7.00
8.15
7.37
8.82
7.98
9.51
8.60
10.20
9.21
10.90
9.83
11.50
10.40
12.20
11.10
13.60
12.30
14.90
13.50
16.30
14.70
17.60
15.90
19.10
17.20
20.40
18.50
21.80
19.70
23.10
20.90
24.40
22.10
25.76
23.30
27.10
24.50
29.80
26.90
32.60
29.50
35.30
31.90
38.00
34.40
40.70
36.80
44.90
40.60
48.90
44.20
54.30
49.10
Test
Current
I
T
(mA)
10
10
10
10
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage V
C
@I
PP
(V)
9.6
9.2
11.4
10.3
12.3
11.2
13.3
12.0
14.3
12.9
15.0
13.6
15.9
14.4
16.9
15.4
18.8
17.0
20.1
18.2
22.0
19.9
23.8
21.5
25.8
23.2
26.9
24.4
28.8
26.0
30.5
27.6
32.2
29.2
34.0
30.8
35.8
32.4
39.4
35.5
43.0
38.9
46.6
42.1
50.0
45.4
53.5
48.4
59.0
53.3
64.3
58.1
71.4
64.5
Maximum
Peak
Pulse
Current
I
PP
(A)
52.08
54.35
43.86
48.54
40.65
44.64
37.59
41.67
34.97
38.76
33.33
36.76
31.45
34.72
29.59
32.47
26.60
29.41
24.88
27.47
22.73
25.13
21.01
23.26
19.38
21.55
18.59
20.49
17.36
19.23
16.39
18.12
15.53
17.12
14.70
16.24
13.97
15.43
12.69
14.08
11.63
12.85
10.73
11.88
10.00
11.01
9.35
10.33
8.47
9.38
7.78
8.61
7.00
7.75
Maximum
Reverse
Leakage I
R
@V
RWM
(μA)
600
600
600
600
400
400
150
150
50
50
25
25
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Part Number
Uni
SA5.0
SA5.0A
SA6.0
SA6.0A
SA6.5
SA6.5A
SA7.0
SA7.0A
SA7.5
SA7.5A
SA8.0
SA8.0A
SA8.5
SA8.5A
SA9.0
SA9.0A
SA10
SA10A
SA11
SA11A
SA12
SA12A
SA13
SA13A
SA14
SA14A
SA15
SA15A
SA16
SA16A
SA17
SA17A
SA18
SA18A
SA19
SA19A
SA20
SA20A
SA22
SA22A
SA24
SA24A
SA26
SA26A
SA28
SA28A
SA30
SA30A
SA33
SA33A
SA36
SA36A
SA40
SA40A
Bi
SA5.0C
SA5.0CA
SA6.0C
SA6.0CA
SA6.5C
SA6.5CA
SA7.0C
SA7.0CA
SA7.5C
SA7.5CA
SA8.0C
SA8.0CA
SA8.5C
SA8.5CA
SA9.0C
SA9.0CA
SA10C
SA10CA
SA11C
SA11CA
SA12C
SA12CA
SA13C
SA13CA
SA14C
SA14CA
SA15C
SA15CA
SA16C
SA16CA
SA17C
SA17CA
SA18C
SA18CA
SA19C
SA19CA
SA20C
SA20CA
SA22C
SA22CA
SA24C
SA24CA
SA26C
SA26CA
SA28C
SA28CA
SA30C
SA30CA
SA33C
SA33CA
SA36C
SA36CA
SA40C
SA40CA
SOCAY Electronics Co., Ltd.
Revision August 25, 2013
www.socay.com
2/6
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Axial Lead Transient Voltage Suppressors (TVS)
SA Series
5.0 To 190 V
500W
Electrical Characteristics
(T
A
=25℃ unless otherwise noted) (Continue)
Reverse
Stand-Off
Voltage
V
RWM
(V)
43.0
43.0
45.0
45.0
48.0
48.0
51.0
51.0
54.0
54.0
58.0
58.0
60.0
60.0
64.0
64.0
70.0
70.0
75.0
75.0
78.0
78.0
80.0
80.0
85.0
85.0
90.0
90.0
100.0
100.0
110.0
110.0
120.0
120.0
130.0
130.0
140.0
140.0
150.0
150.0
160.0
160.0
170.0
170.0
180.0
180.0
190.0
190.0
Breakdown
Voltage V
BR
(V)
@I
T
MIN
47.80
47.80
50.00
50.00
53.30
53.30
56.70
56.70
60.00
60.00
64.40
64.40
66.70
66.70
71.10
71.10
77.80
77.80
83.30
83.30
86.70
86.70
88.96
88.80
94.40
94.40
100.00
100.00
111.00
111.00
122.00
122.00
133.00
133.00
144.00
144.00
155.68
155.00
167.00
167.00
178.00
178.00
189.00
189.00
201.00
201.00
211.21
211.00
MAX
58.40
52.80
61.10
55.30
65.10
58.90
69.30
62.70
73.30
66.30
78.70
71.20
81.50
73.70
86.90
78.60
95.10
86.00
102.00
92.10
106.00
95.80
108.80
97.60
115.00
104.00
122.00
111.00
136.00
123.00
149.00
135.00
163.00
147.00
176.00
159.00
190.40
171.00
204.00
185.00
218.00
197.00
231.00
209.00
244.80
220.00
258.40
232.00
Test
Current
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum
Clamping
Voltage V
C
@I
PP
(V)
76.7
69.4
80.3
72.7
85.5
77.4
91.1
82.4
96.3
87.1
103.0
93.6
107.0
96.8
114.0
103.0
125.0
113.0
134.0
121.0
139.0
126.0
143.2
129.6
151.0
137.0
160.0
146.0
179.0
162.0
196.0
177.0
214.0
193.0
231.0
209.0
250.6
226.8
268.0
243.0
287.0
259.0
304.0
275.0
322.2
291.6
340.1
307.8
Maximum
Peak
Pulse
Current
I
PP
(A)
6.52
7.20
6.23
6.88
5.85
6.46
5.49
6.07
5.19
5.74
4.85
5.34
4.67
5.17
4.39
4.85
4.00
4.42
3.37
4.13
3.60
3.97
3.49
3.86
3.31
3.65
3.13
3.42
2.79
3.09
2.55
2.82
2.34
2.59
2.16
2.39
2.00
2.20
1.87
2.06
1.74
1.93
1.64
1.82
1.55
1.71
1.47
1.62
Maximum
Reverse
Leakage I
R
@V
RWM
(μA)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Part Number
Uni
SA43
SA43A
SA45
SA45A
SA48
SA48A
SA51
SA51A
SA54
SA54A
SA58
SA58A
SA60
SA60A
SA64
SA64A
SA70
SA70A
SA75
SA75A
SA78
SA78A
SA80
SA80A
SA85
SA85A
SA90
SA90A
SA100
SA100A
SA110
SA110A
SA120
SA120A
SA130
SA130A
SA140
SA140A
SA150
SA150A
SA160
SA160A
SA170
SA170A
SA180
SA180A
SA190
SA190A
Note:
Bi
SA43C
SA43CA
SA45C
SA45CA
SA48C
SA48CA
SA51C
SA51CA
SA54C
SA54CA
SA58C
SA58CA
SA60C
SA60CA
SA64C
SA64CA
SA70C
SA70CA
SA75C
SA75CA
SA78C
SA78CA
SA80C
SA80CA
SA85C
SA85CA
SA90C
SA90CA
SA100C
SA100CA
SA110C
SA110CA
SA120C
SA120CA
SA130C
SA130CA
SA140C
SA140CA
SA150C
SA150CA
SA160C
SA160CA
SA170C
SA170CA
SA180C
SA180CA
SA190C
SA190CA
1. Suffix 'A ' denotes 5% tolerance device. Without 'A' denotes 10% tolerance device
2. Add suffix 'C 'or ' CA ' after part number to specify Bi-directional devices
3. For Bi-Directional devices having V
R
of 10 volts and under, the I
R
limit is double
SOCAY Electronics Co., Ltd.
Revision August 25, 2013
www.socay.com
3/6
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Axial Lead Transient Voltage Suppressors (TVS)
SA Series
5.0 To 190 V
500W
Ratings and Characteristic Curves (T
A
=25°C unless otherwise noted)
Figure 1 - Peak Pulse Power Rating Curve
100
Figure 2 - Pulse Derating Curve
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
100
P
PPM
- Peak Pulse Power (kW)
80
10
60
40
1
20
0.1
0.1
1
10
100
t
d
- Pulse Width (μs)
1000
10000
0
0
25
50
75
100
125
T
A
-Ambient temperature(°C)
150
175
Figure 3 - Pulse Waveform
150
Figure 4 - Typical Junction Capacitance
10000
I
PPM
- Peak Pulse Current, % I
RSM
t
r
=10µsec
Peak Value
IPPM
100
T
J
=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of I
PPM
Bi-directional
@zero bins
1000
Uni-directional @V
RWM
Uni-directional
@zero bins
Half Value
I
PPM
(I
PPM
/2)
50
10/1000µsec. Waveform
as defined by R.E.A
Cj (pF)
100
10
Tj=25°C
f=1.0MHz
Vsig=50mVp-p
Bi-directional @V
RWM
0
0
t
c
1.0
2.0
t - Time (ms)
3.0
4.0
1
1.0
10.0
100.0
1000.0
V
BR
-Reverse Breakdown Voltage (V)
Figure 5 - Steady State Power Derating Curve
P
M(AV)
, Steady State Power Dissipation (W)
3.0
Figure 6 - Maximum Non-Repetitive Surge Current
80
I
FSM
-Peak Forward Surge Current
(A)
T
J
=T
J
max.
8.3 ms Single Half Sine-Wave
60
2.0
40
1.0
20
0.0
0
25
50
75
100
125
150
175
200
T
L
- Lead Temperature(°C)
0
1
10
Number of Cycles at 60Hz
100
SOCAY Electronics Co., Ltd.
Revision August 25, 2013
www.socay.com
4/6
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Axial Lead Transient Voltage Suppressors (TVS)
SA Series
5.0 To 190 V
500W

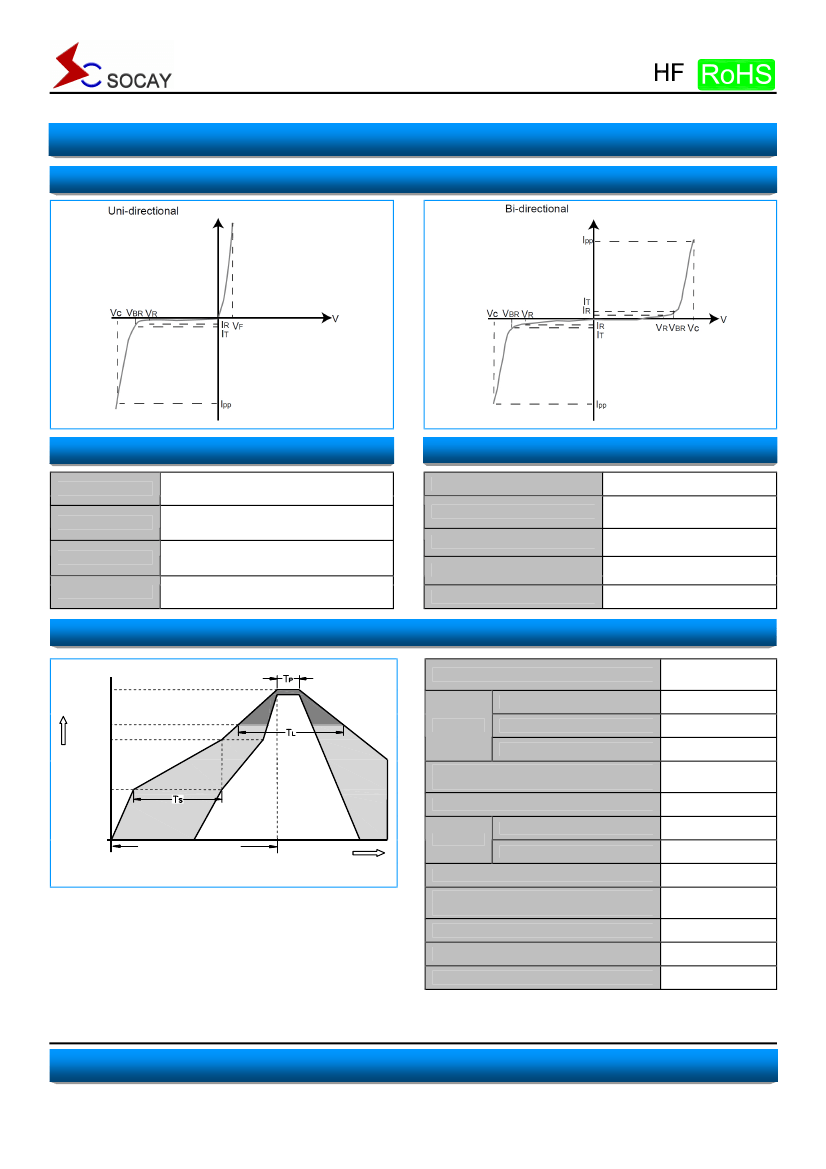

I-V Curve Characteristics
Physical Specifications
Weight
Case
Polarity
Terminal
0.015 ounce, 0.4 gram
JEDEC DO-204AC (DO-15) Molded
Plastic over glass passivated junction
Color band denotes cathode except
Bipolar
Matte Tin-plated leads, Solderable per
JESD22-B102D
Environmental Specifications
Temperature Cycle
Pressure Cooker
High Temp. Storage
HTRB
Thermal Shock
JESD22-A104
JESD22-A102
JESD22-A103
JESD22-A108
JESD22-A106
Soldering Parameters
Reflow Condition
T
P
Ramp-up
Critical Zone
T
L
to T
P
Lead–free assembly
150°C
200°C
60 -180 Seconds
3°C/second max
3°C/second max
217°C
60 -150 Seconds
260 +0/-5°C
of
actual
peak
20 -40 Seconds
6°C/second max
8 minutes Max
280°C
-Temperature Min (T
s(min)
)
Pre Heat
-Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
T
L
T
S(max)
Temperature
Ramp-down
T
S(min)
Preheat
Average ramp up rate ( Liquidus Temp T
L
)
to peak
T
S(max)
to TL - Ramp-up Rate
- Temperature (T
L
) (Liquidus)
25
Time to peak temperature
(t 25℃ to peak)
Reflow
Time
- Time (min to max) (t
s
)
Peak Temperature (T
P
)
Time within 5°C
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
SOCAY Electronics Co., Ltd.
Revision August 25, 2013
www.socay.com
5/6
@ SOCAY Electronics Co., Ltd. 2013
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
京公网安备 11010802033920号
EEWORLD
