292PS-J-P-HP-ST-PN2

Description
RF SMA Connector, 1 Contact(s), Female, Locking, Jack,
CategoryThe connector    The connector
File Size301KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

292PS-J-P-HP-ST-PN2 Overview

RF SMA Connector, 1 Contact(s), Female, Locking, Jack,

292PS-J-P-HP-ST-PN2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid1546376336
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF SMA CONNECTOR
Contact point genderFEMALE
Contact styleCOAX
Coupling typeTHREADED
Installation option 1LOCKING
Installation methodSTRAIGHT
Number of ports1
Maximum operating frequency40 GHz
reliabilityCOMMERCIAL
Shell materialSTAINLESS STEEL
Total number of contacts1
RF-16
292PS–J–P–HP–ST–PN2
292PS–J–P–HP–ST–PN2

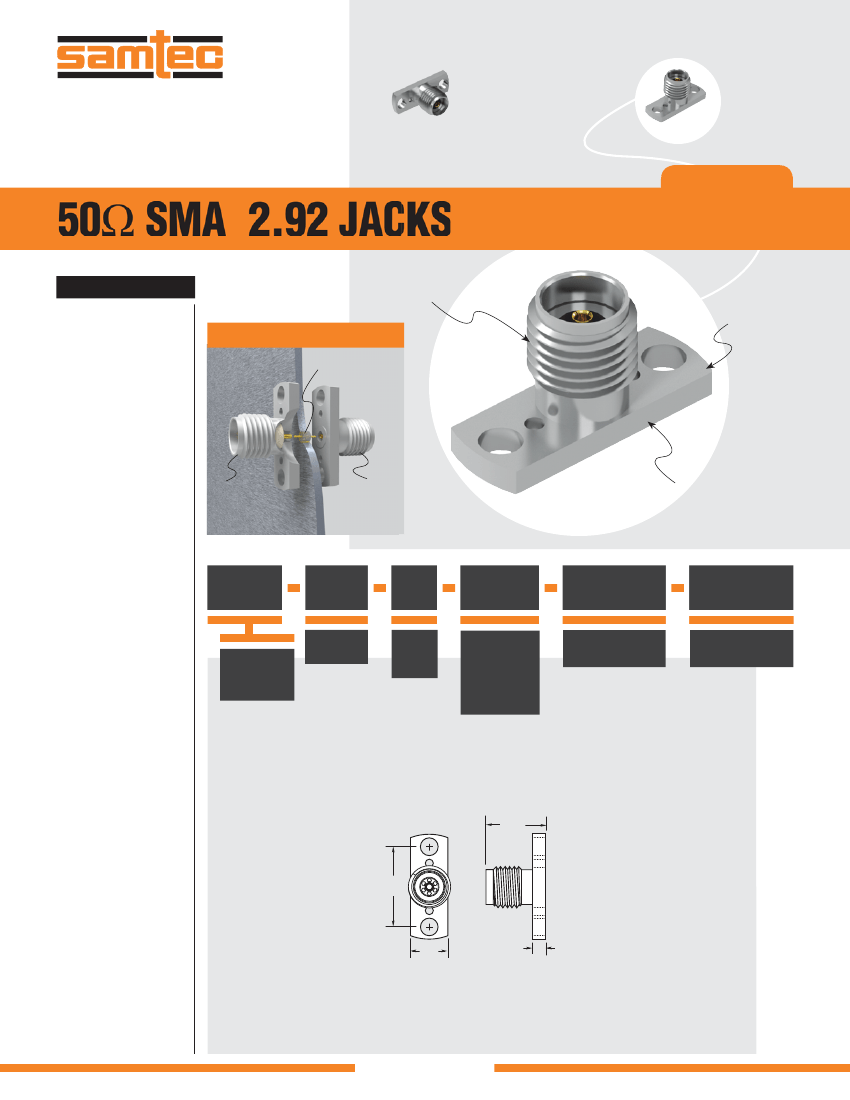

292PS SERIES
50Ω SMA 2.92 JACKS
SPECIFICATIONS
For complete specifications
and assembly instructions see
www.samtec.com?292PS-PN
Shell Material:
Stainless Steel
Insert:
Stainless Steel
Socket:
BeCu
Insulator Material:
PCTFE
Impedance:
50Ω
Frequency Range:
Testing Now!
V.S.W.R:
Testing Now!
Working Voltage:
Testing Now!
Dielectric Withstanding:
Testing Now!
Contact Resistance:
Testing Now!
Operating Temperature:
Testing Now!
RoHS Compliant:
Yes
Lead–Free Solderable:
Yes
Mates with:
RF23S, RF405, BE25S
Performance up to
40 GHz/80 Gbps
Panel Mount
APPLICATION
Hermetically
sealed pin
292PS
292PS
Passivated Stainless Steel
outer contact and shell
Hermetically sealed pin not included.
TYPE
GENDER
TYPE
PLATING
ORIENTATION
TERMINATION
–J
292PS
= Passivated
Stainless Steel
= Jack
–P
= PCB
Mount
–HP
= 30µ"
(0.76 µm) Gold
center contact,
Passivated
outer contact
–ST
= Straight
= Panel Mount
–PN2
(8.84)
.348
(12.22)
.481
(5.66)
.223
(1.65)
.065
