SCS140V
Elektronische Bauelemente
1 A, 40 V
Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
SOD-323
FEATURES
High Current Capability
Extremely Low Thermal Resistance
For Surface Mount Application
Higher Temp Soldering : 250°C for 10 Seconds at Terminals
Low Forward Voltage
D
1
Cathode Band
H
G
2
MECHANICAL DATA
F
Case: Molded Plastic
Epoxy: UL 94V-0 Rate Flame Retardant
Lead: Solderable per MIL-STD-202, method 208 guaranteed
Polarity: Color Band Denotes Cathode End
Mounting Position: Any
C
B
A
E
J
REF.
Millimeter
Min.
0.039
0.004
0.80
0.25
Max.
1.00
0.1
1.00
0.40
REF.
E
F
G
H
Millimeter
Min.
0.080
1.15
1.60
2.30
Max.
0.180
1.45
1.80
2.70
MARKING CODE
SL
A
B
C
D
PACKAGE INFORMATION
Package
SOD-323
MPQ
3K
Leader Size
7 inch
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, de-rate current by 20%.)
PARAMETER
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Average Forward Current @T
J
=25°C
Peak Forward Current @ 8.3 ms Half Sine
Maximum Instantaneous Forward
Voltage @ I
FM
= 1 A,
Maximum DC Reverse Current
At Rated DC Blocking Voltage
Typical Junction Capacitance
1
Typical Thermal Resistance
2
Operating Temperature Range
Storage temperature
Notes:
1. Measured at 1MHZ and applied reverse of 0V DC.
2. FR-4 PCB, 2 oz. 0.65mm ×1.35mm copper pad.
http://www.SeCoSGmbH.com/
SYMBOL
V
RRM
V
RWM
V
R
I
F(AV)
I
FSM
V
F
RATING
40
40
40
1
10
0.52
0.45
0.1
5
160
488
-55~125
-55~125
UNITS
V
V
V
A
A
V
V
mA
mA
pF
°C/W
°C
°C
T
J
= 25°C
T
J
= 125°C
T
J
= 25°C
T
J
= 125°C
I
R
C
J
R
θJA
T
J
T
STG
Any changes of specification will not be informed individually.
21-Oct-2014 Rev. F
Page 1 of 2
SCS140V
Elektronische Bauelemente
1 A, 40 V
Schottky Barrier Rectifiers

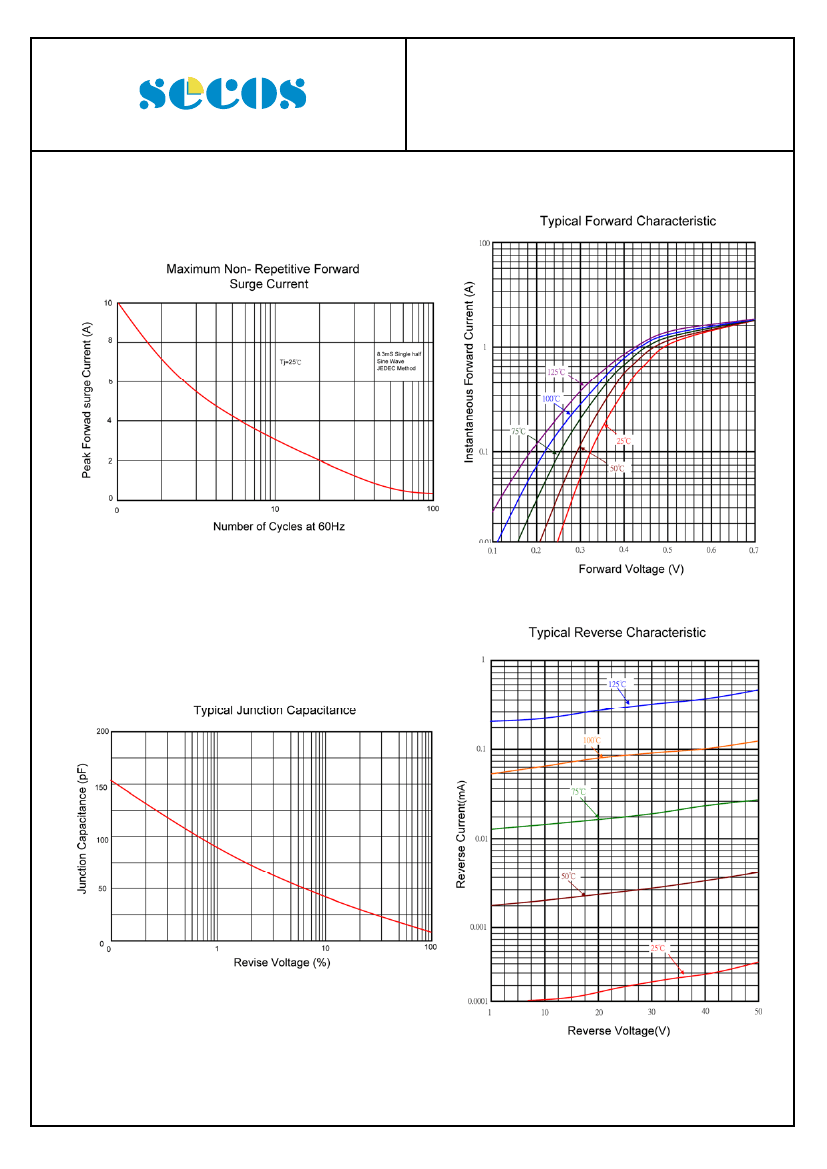

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
21-Oct-2014 Rev. F
Page 2 of 2
