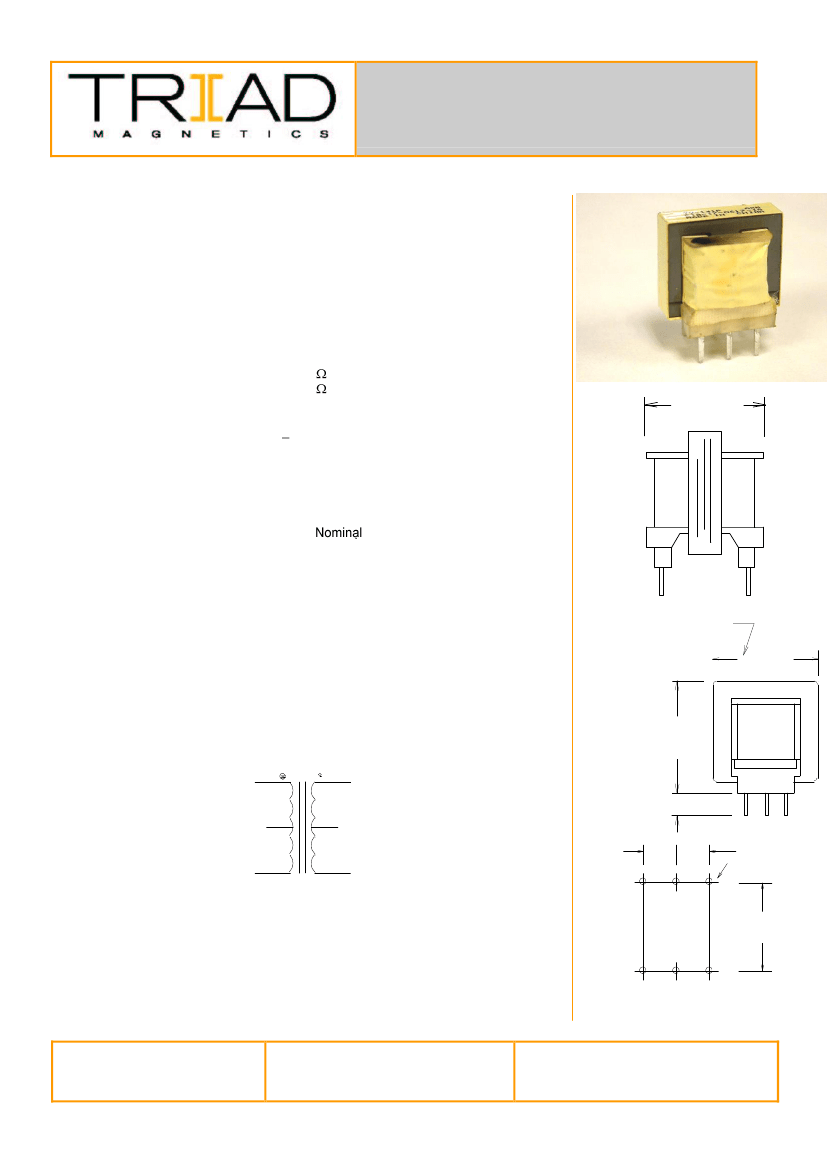

A u d i o Tr a n s f o r m e r
PC Mount
T Y- 1 4 1 P
Description:
These transformers operate in the 200 Hz to 15,000 Hz range, making them
suitable for a broad application spectrum in the audio industry. These devices
are used in line matching, telephone coupling, pulse trigger, driver, interstage,
output, isolation and input applications.
Operating Temperature Range:
Electrical Specifications at 25º C:
1. Primary Impedance:
2. Secondary Impedance:
3. Output:
4. Primary DC Unbalance:
5. Frequency Response:
6. Impedance Matching:
7. Longitudinal Balance
8. Insertion Loss @ 1K Hz:
9. Return Loss:
10. Total Harmonic Distortion
11. DCR:
Primary (1-3)
Secondary (4-6)
12. Turns Ratio:
13. Dielectric Strength
0º C to 105º C
10000 CT
10000 CT
100mW
4 mA
+ 2dB from 200 to 15,000 Hz
10% over full frequency range
> 45dB
< 1.5dB
> 26dB
< 0.5% between 275Hz and3.5KHz
820Ω
1070Ω Nominal
1:1
1500V Pri to Sec to Core
.7 0
0
MAX
Construction:
Bobbin has plug-in terminals which are spaced to provide fixed mounting centers.
Pins are rugged, minimizing the incidence of bent pins from handling.
DOT ABOVE #1 PIN
ON BOBBIN FLANGE
.812
Outline Dimensions:
A. Dimensions: As figures show
B. PIN DIM. : .042” x .020”
C. Weight. : 0.51 oz.
.740
MAX
1
4
Schematic:
.187 REF
2
5
.187 .187
.060 DIA HOLES
1 2 3
6
3
6
5
4
Z = 10 K TO 10 K
RoHS Compliance:
As of manufacturing date February 2005, all standard
products meet the requirements of 2011/65/EU, known as the RoHS initiative.
*Upon printing, this document is considered “uncontrolled”.Please contact
Triad Magnetics’ website for the most current version.
.420
1
2
3
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
