84688-105 datasheet, PDF - EEWORLD Datasheet

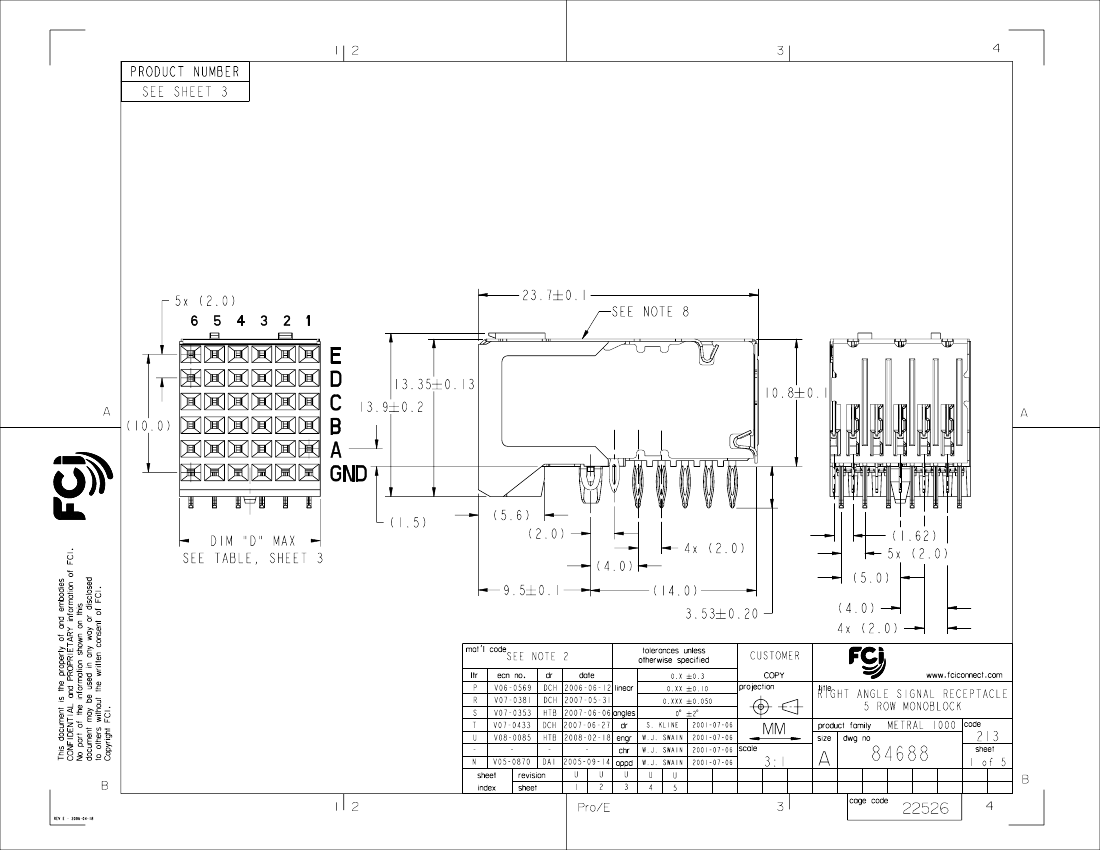

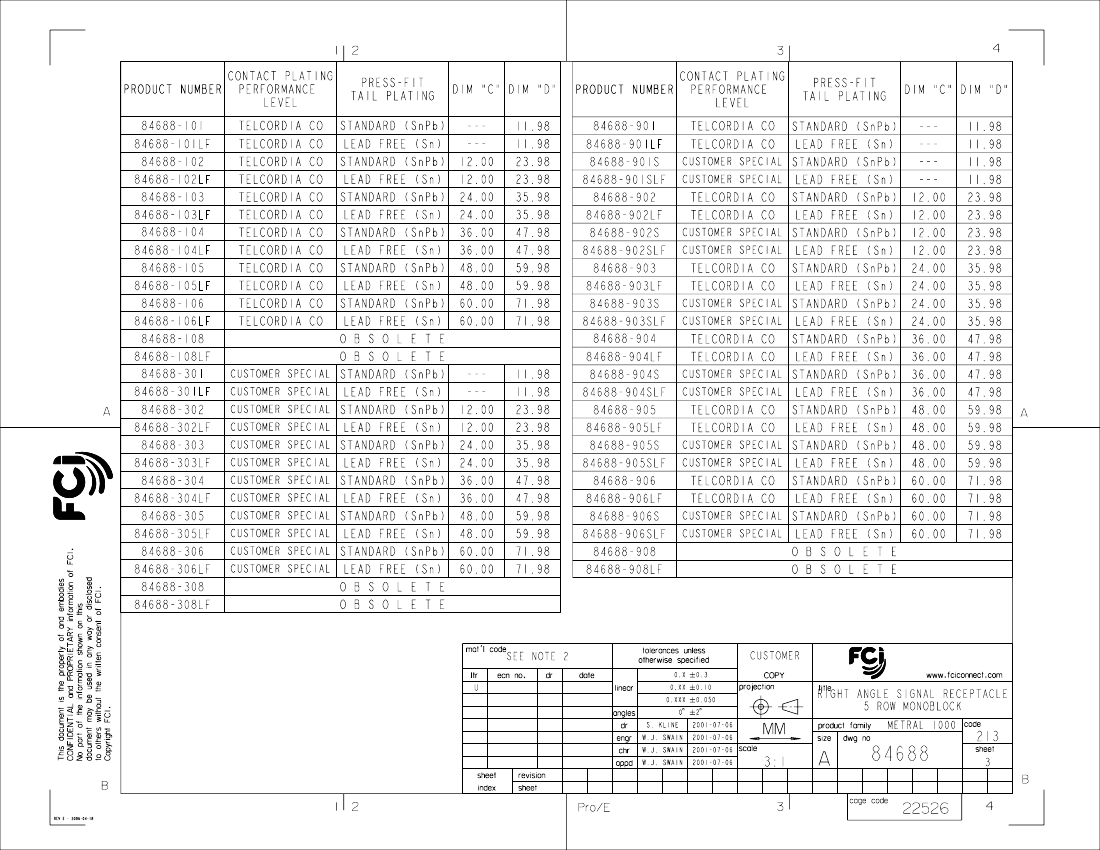

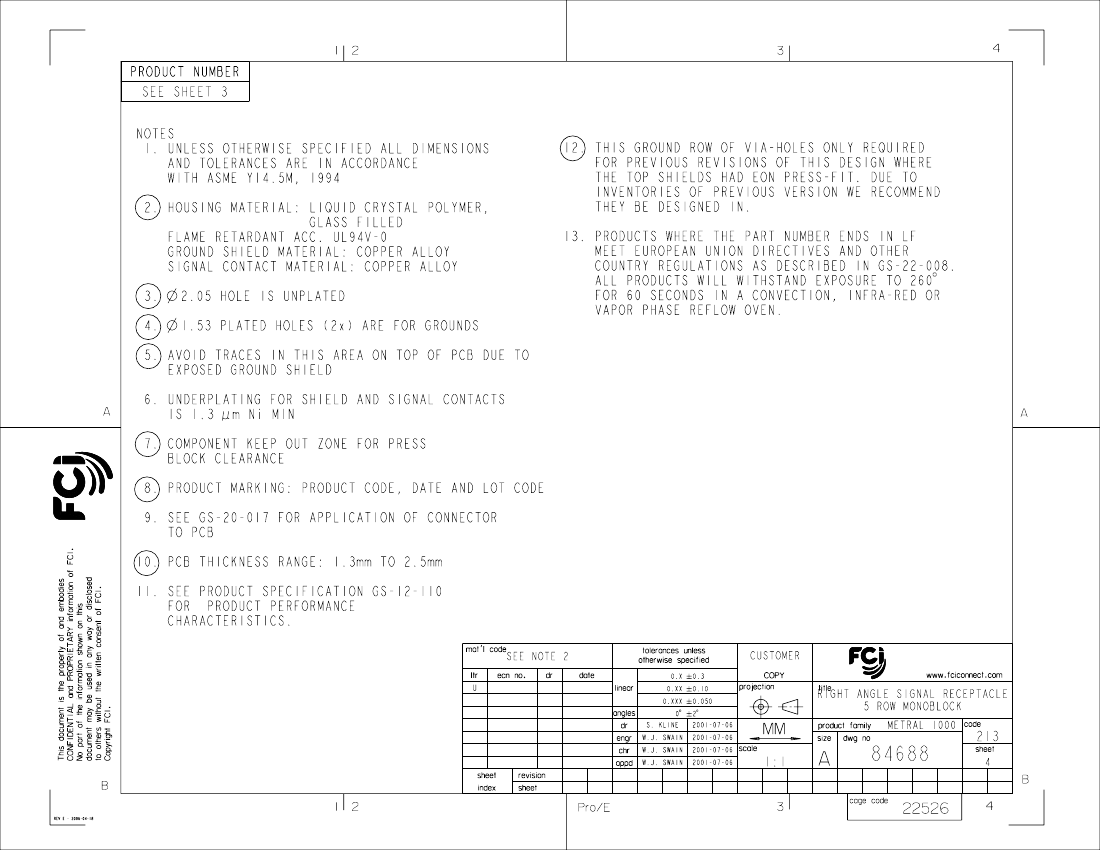

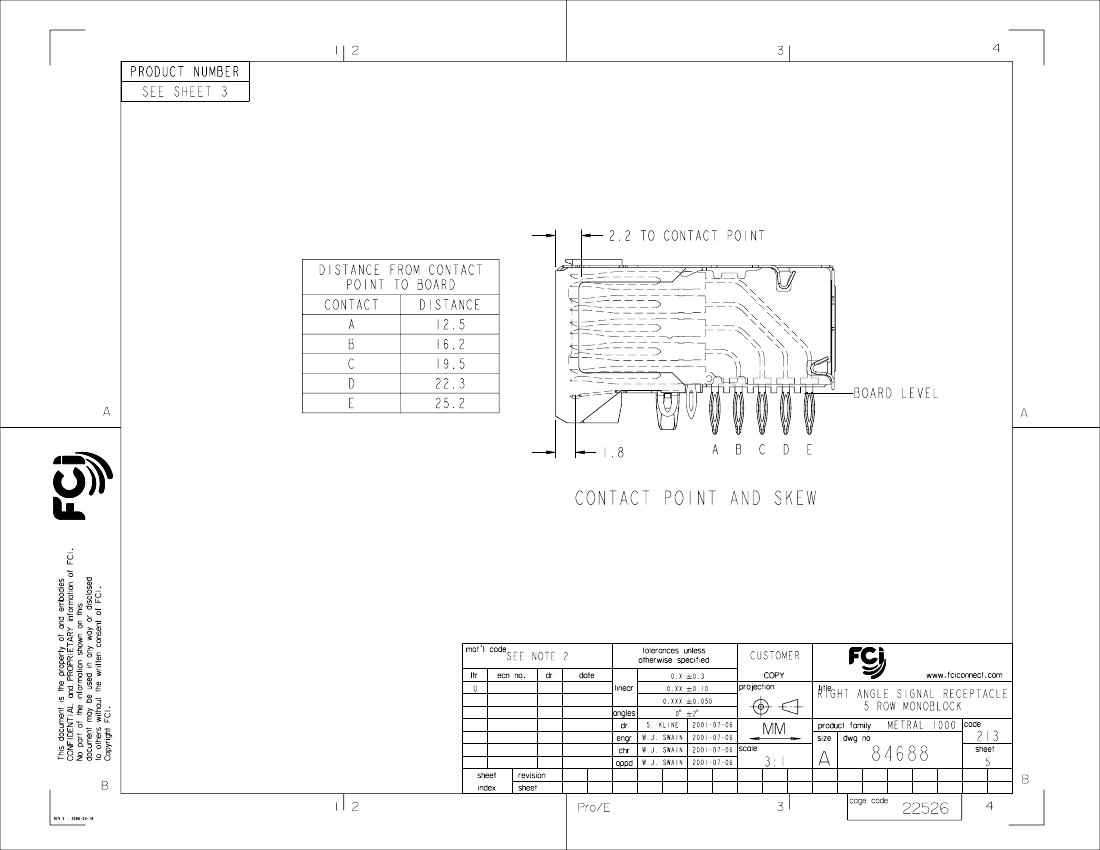

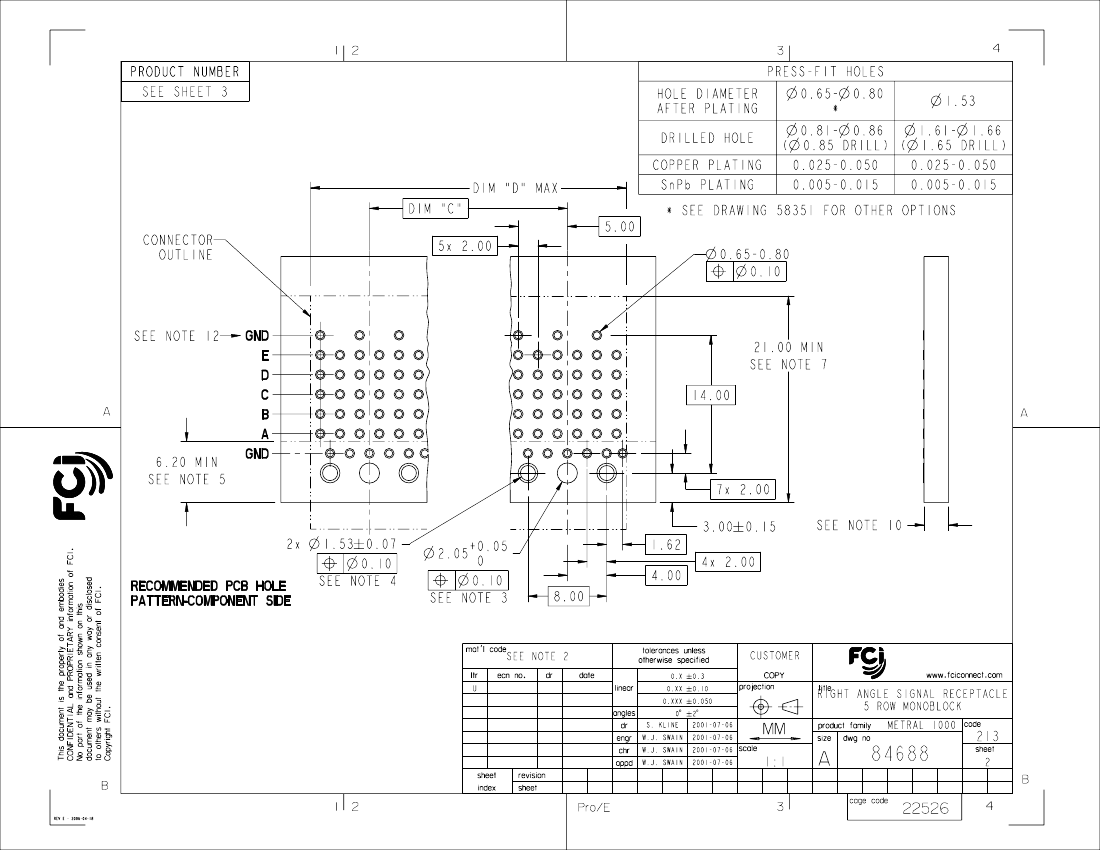

84688-105: DescriptionBoard Connector, 36 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle,; CategoryThe connector The connector; File Size491KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

84688-105 Overview

Board Connector, 36 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Natural Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1900482778
Reach Compliance Code	compliant
Other features	6 GROUND SHIELD CONTACTS AVAILABLE IN 1 ROW, SHIELDED
body width	0.543 inch
subject depth	0.933 inch
body length	2.361 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.556 N
Insulation resistance	1000000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	84688
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	7
Number of rows loaded	5
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	31u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.139 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	36
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

PDM: Rev:U

STATUS:

Released

Printed: May 13, 2011
