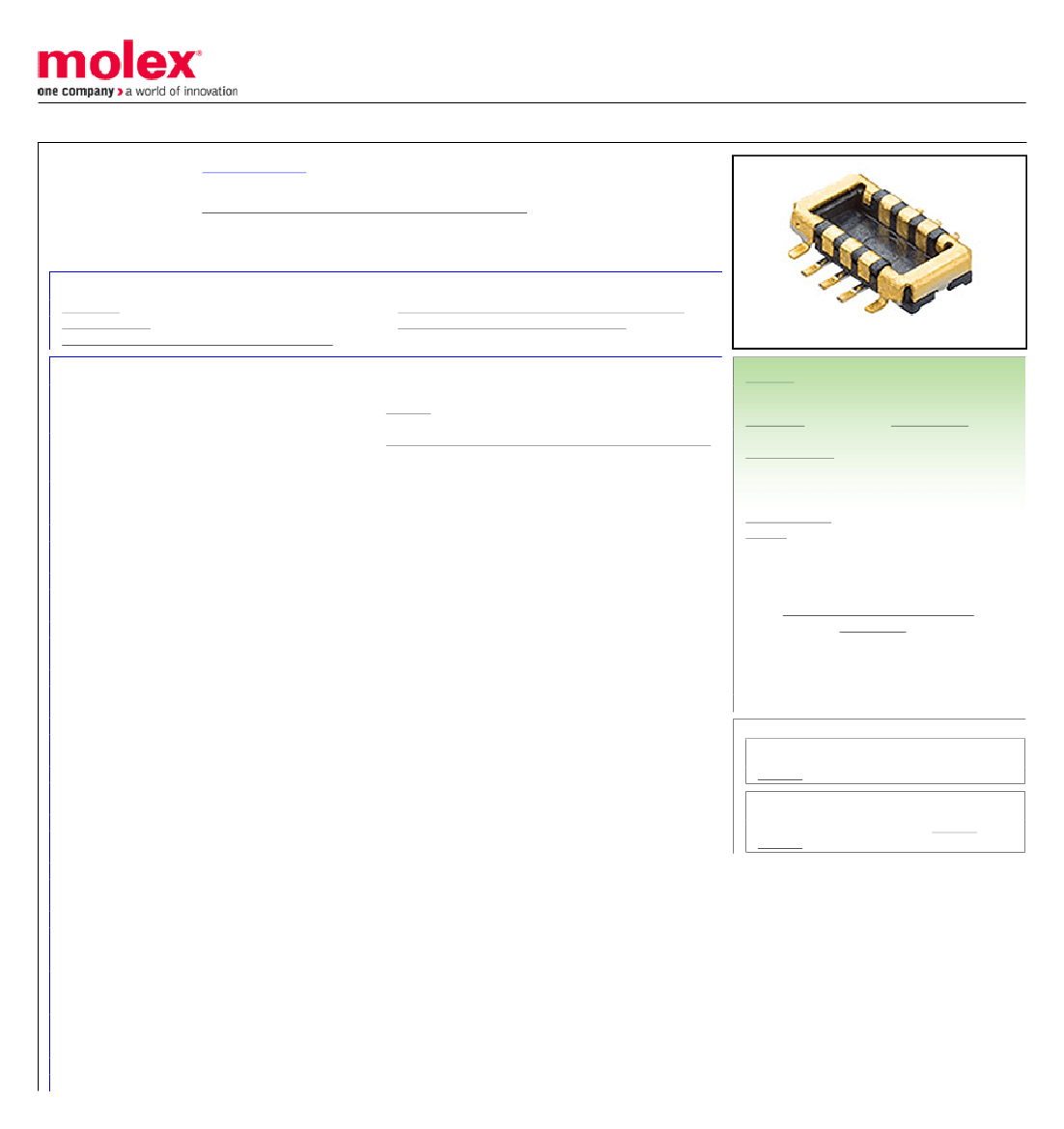

File Size45KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

5052745410 Overview

Headers and Edge Type Connector,

5052745410 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid145049435544
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact materialNOT SPECIFIED
JESD-609 codee4
This document was generated on 08/16/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5052745410
Active
SlimStack™ 0.35mm pitch Board-to-Board Connectors
0.35mm Pitch SlimStack Armor Board-to-Board Plug Connector, Surface Mount, Dual
Row, Vertical, 0.80mm or 0.90mm Stacking Height, 2.00mm Width, 0.15mm Fitting Nail
Width, 54 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification 5052700000-000 (PDF)
General
Product Family
Series
Application
Overview
Product Name
Series Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Capable
Mated Height
Mated Width
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Retention
Packaging Type
Pitch - Mating Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification 5052749200-200 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/61/2018 (27 June
2018)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
PCB Headers
505274
Board-to-Board
SlimStack™ 0.35mm pitch Board-to-Board Connectors
SlimStack
SSB8RP, SSB9RP
889056162913
No
54
54
Black
30
No
0.80mm, 0.90mm
2.00mm
Copper Alloy
Gold over Nickel
Gold over Nickel
Liquid Crystal Polymer
17.314/mg
2
Vertical
Yes
Embossed Tape on Reel
0.35mm
0.102µm
0.051µm
No
No
No
-40° to +85°C
Surface Mount
0.3A
50V AC (RMS)/DC
Search Parts in this Series
505274 Series
Mates With
SlimStack Armor Receptacle 505270 ,
505413
5052749200-200
5052700000-000
5052740000-000, 5052741000-004
