SG55451B/SG55461/SG55471
SG75451B/SG75461/SG75471
DUAL PERIPHERAL POSITIVE-AND DRIVER
DESCRIPTION
The SG5541B/SG55461/SG55471 (SG75451B/SG75461/SG75471) se-
ries of dual peripheral Positive-AND drivers are a family of versatile
devices designed for use in systems that employ TTL or DTL logic. This
family of drivers are direct replacements for the Texas Instruments
SN55451B/61/71 (SN75451B/61/71)series. Diode-clamped inputs sim-
plify circuit design. Typical applications include high-speed logic buffers,
power drivers, relay drivers, MOS drivers, line drivers, and memory drivers.
The SG55451B/SG55461/SG55471 drivers are characterized for opera-
tion over the full military ambient temperature range of -55°C to 125°C and
the SG75451B/SG75461/SG75471 drivers are chracterized for operation
from 0°C to 70°C.
FEATURES
•
•
•
•
•
•
300mA output current capability
High-voltage output
No output latch-up at 20V
High speed switching
TTL or DTL compatible diode-clamped inputs
Standard supply voltages
HIGH RELIABILITY FEATURES
- SG55451B/SG55461/SG55471
♦
Available to MIL-STD-883
♦
Scheduled for MIL-M-38510 QPL listing
♦
LMI level "S"processing available

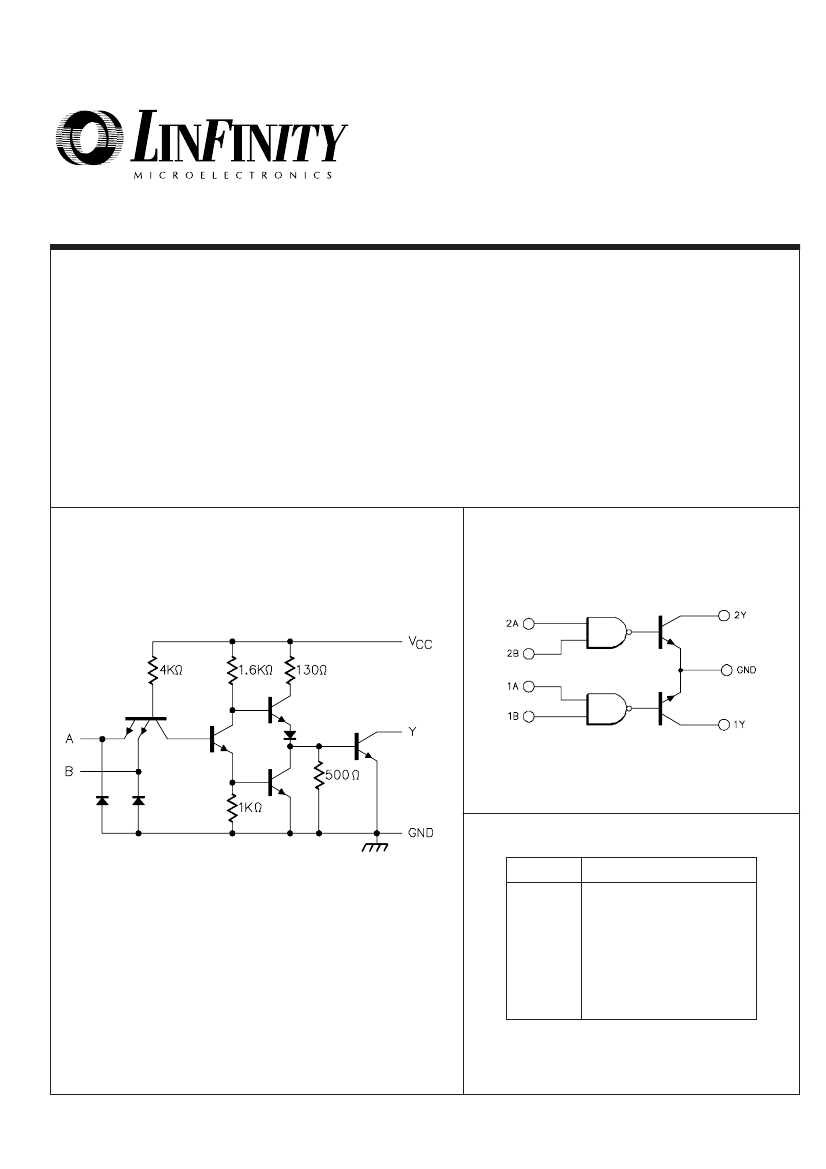

EQUIVALENT CIRCUIT SCHEMATIC
(each driver)
BLOCK DIAGRAM
Positive Logic: Y = AB
FUNCTION TABLE
(each gate)
A
L
L
H
H
B
L
H
L
H
Y
L (on-state)
L (on-state)
L (on-state)
H (off-state)
H = High Level, L = Low Level
5/92 Rev 1.1 2/94
Copyright
©
1994
1
11861 Western Avenue
∞
Garden Grove, CA 92841
(714) 898-8121
∞
FAX: (714) 893-2570
L
INFINITY
Microelectronics Inc.
SG55451B/61/71 SERIES
ABSOLUTE MAXIMUM RATINGS
(Note 1)
Supply Voltage (V
CC
) ............................................................ 7V
Input Voltage ..................................................................... 5.5V
Interemitter Voltage ........................................................... 5.5V
Off-state Output Voltage
X5451B Series ................................................................ 30V
X5461 Series .................................................................. 35V
X5471 Series .................................................................. 70V
Note 1. Exceeding these ratings could cause damage to the device.
Output Current ............................................................. 400mA
Continuous Total Dissipation at (or below)
25°C Free-Air Temperature ..................................... 800mW
Operating Junction Temperature
Hermetic (Y, L Packages) .......................................... 150°C
Storage Temperature Range .......................... -65°C to 150°C
Lead Temperature (1/16 inch from case
for soldering 60 sec.) ................................................. 300°C
THERMAL DATA
Y Package:
Thermal Resistance-
Junction to Case
,
θ
JC
.................. 50°C/W
Thermal Resistance-
Junction to Ambient
,
θ
JA
............ 130°C/W
L Package:
Thermal Resistance-
Junction to Case
,
θ
JC
.................. 35°C/W
Thermal Resistance-
Junction to Ambient
,
θ
JA
............ 120°C/W
Note A. Junction Temperature Calculation: T
J
= T
A
+ (P
D
x
θ
JA
).
Note B. The above numbers for
θ
JC
are maximums for the limiting
thermal resistance of the package in a standard mount-
ing configuration. The
θ
JA
numbers are meant to be
guidelines for the thermal performance of the device/pc-
board system. All of the above assume no ambient
airflow.
RECOMMENDED OPERATING CONDITIONS
(Notes
2 & 3)
Supply Voltage (V
CC
)
SG55451B, SG55461, SG55471 ....................... 4.5V to 5.5V
SG75451B, SG75461, SG75471 ................... 4.75V to 5.25V
Operating Ambient Temperature Range
SG55451B, SG55461, SG55471 ................... -55°C to 125°C
SG75451B, SG75461, SG75471 ........................ 0°C to 70°C
Note 2. Range over which device is functional.
Note 3. The substrate (pin 8) must always be at the most-negative device voltage for proper operation.
ELECTRICAL CHARACTERISTICS
(Unless otherwise specified, these specifications apply over the operating ambient temperatures for SG55451B/461/471 with -55°C
≤
T
A
≤
125°C, and
SG75451B/461/471 with 0°C
≤
T
A
≤
70°C. Typical values are tested at V
CC
= 5V, and T
A
= 25°C. Low duty cycle pulse testing techniques are used
which maintains junction and case temperatures equal to the ambient temperature.)
Parameter
High-level Input Voltage (V
IH
)
Low-level Input Voltage (V
IL
)
Input Clamp Voltage (V
IK
)
High-level Output Current (I
OH
)
Test Conditions
Low-level Output Voltage (V
OL
)
Input Current at Max V
IN
(I
IN
)
High-level Input Current (I
IH
)
Low-level Input Current (I
IL
)
Supply Current, Outputs High
Supply Current, Outputs Low
V
CC
= MIN, I
IN
= -12mA
V
CC
= MIN, V
IH
= 2V,
V
OH
= 30V SGX5451B
V
OH
= 35V SGX5461
V
OH
= 70V SGX5471
V
CC
= MIN, V
IL
= 0.8V, I
OL
= 100mA
V
CC
= MIN, V
IL
= 0.8V, I
OL
= 300mA
V
CC
= MAX, V
IN
= 5.5V
V
CC
= MAX, V
IN
= 2.4V
V
CC
= MAX, V
IN
= 0.4V
V
CC
= MAX, V
IN
= 5V
V
CC
= MAX, V
IN
= 0V
SGX5451B
SGX5461
SGX5471
SG55451B
SG75451B
SG55461
SG75461
Units
SG55471
SG75471
Min. Typ. Max. Min. Typ. Max.
V
2
2
V
0.8
0.8
-1.2 -1.5
V
-1.2 -1.5
300
100
µA
0.25
0.5
0.5
0.8
1.0
60
-1.0 -1.6
8
11
52
56
56
65
76
76
0.25
0.5
-1.0
8
52
56
56
0.4
0.7
1.0
60
-1.6
11
65
76
76
V
V
mA
µA
mA
mA
mA
mA
mA
5/92 Rev 1.1 2/94
Copyright
©
1994
2
11861 Western Avenue
∞
Garden Grove, CA 92841
(714) 898-8121
∞
FAX: (714) 893-2570
L
INFINITY
Microelectronics Inc.
SG55451B/61/71 SERIES
SWITCHING CHARACTERISTICS
Parameter
Propagation Delay Time, Low-
to-High Level Output
Propagation Delay Time, High-
to-Low Level Output
Transition Time, Low-to-High
Output
Transition Time, High-to-Low
Level Output
High-Level Output Voltage
After Switching
(Note 1)
(V
CC
= 5V, T
A
= 25°C)
Test Conditions
SG55451B
SG55461
SG55471
SG75451B
SG75461
SG75471
Units
Min. Typ. Max. Min. Typ. Max. Min. Typ. Max.
25
30 110
30 110
ns
18
18
25
8
12
25
8
10
80
25
25
25
8
10
80
25
25
ns
ns
ns
I
C
= 200mA, C
L
= 15pF,
R
L
≈
50Ω
5
7
I
C
= 300mA,
V
S
= 20V SGX5451B
V
S
= 30V SGX5461
V
S
= 55V SGX5471
V
S
-6.5
V
S
-10
V
S
-18
mV
mV
mV
Note 1. These parameters, although guaranteed, are not tested in production.
CONNECTION DIAGRAMS & ORDERING INFORMATION
Package
8-PIN CERAMIC DIP
Y - PACKAGE
(See Notes Below)
Part No.
Ambient
Temperature Range
-55°C to 125°C
-55°C to 125°C
-55°C to 125°C
-55°C to 125°C
-55°C to 125°C
-55°C to 125°C
0°C to 70°C
0°C to 70°C
0°C to 70°C
-55°C
-55°C
-55°C
-55°C
-55°C
-55°C
to
to
to
to
to
to
125°C
125°C
125°C
125°C
125°C
125°C
Connection Diagram
SG55451BY/883B
SG55451BY
SG55461Y/883B
SG55461Y
SG55471Y/883B
SG55471Y
SG75451BY
SG75461Y
SG75471Y
SG55451BL/883B
SG55451BL
SG55461L/883B
SG55461L
SG55471L/883B
SG55471L
1A
1B
1Y
GND
1
2
3
4
8
7
6
5
V
CC
2B
2A
2Y
20-PIN CERAMIC
LEADLESS CHIP CARRIER
L- PACKAGE
1. N.C.
2. 1A
3. N.C.
4. N.C.
5. 1B
6. N.C.
7. 1Y
8. N.C.
9. N.C.
10. GND
3
2
1
20 19
4
5
6
7
8
18
17
16
15
14
9
10 11 12 13
11. N.C.
12. 2Y
13. N.C.
14. N.C.
15. 2A
16. N.C.
17. 2B
18. N.C.
19. N.C.
20. V
CC
Note 1. Contact factory for JAN and DESC product availability.
2. All parts are viewed from the top.
3. Product is also available in flat pack. Consult factory for price and delivery.
5/92 Rev 1.1 2/94
Copyright
©
1994
3
11861 Western Avenue
∞
Garden Grove, CA 92841
(714) 898-8121
∞
FAX: (714) 893-2570
L
INFINITY
Microelectronics Inc.
