Low Voltage Switches
Enclosed switches - eOT
Manual motor controllers and disconnects
The next generation of enclosed switches
General information
The eOT series of enclosed manual motor controllers are
rotary operated, 3 and 4 pole, 600V Hp rated switches,
housed in thermoplastic/polycarbonate, sheet steel or stainless
steel enclosures. They are suitable for wet and corrosive
environments.

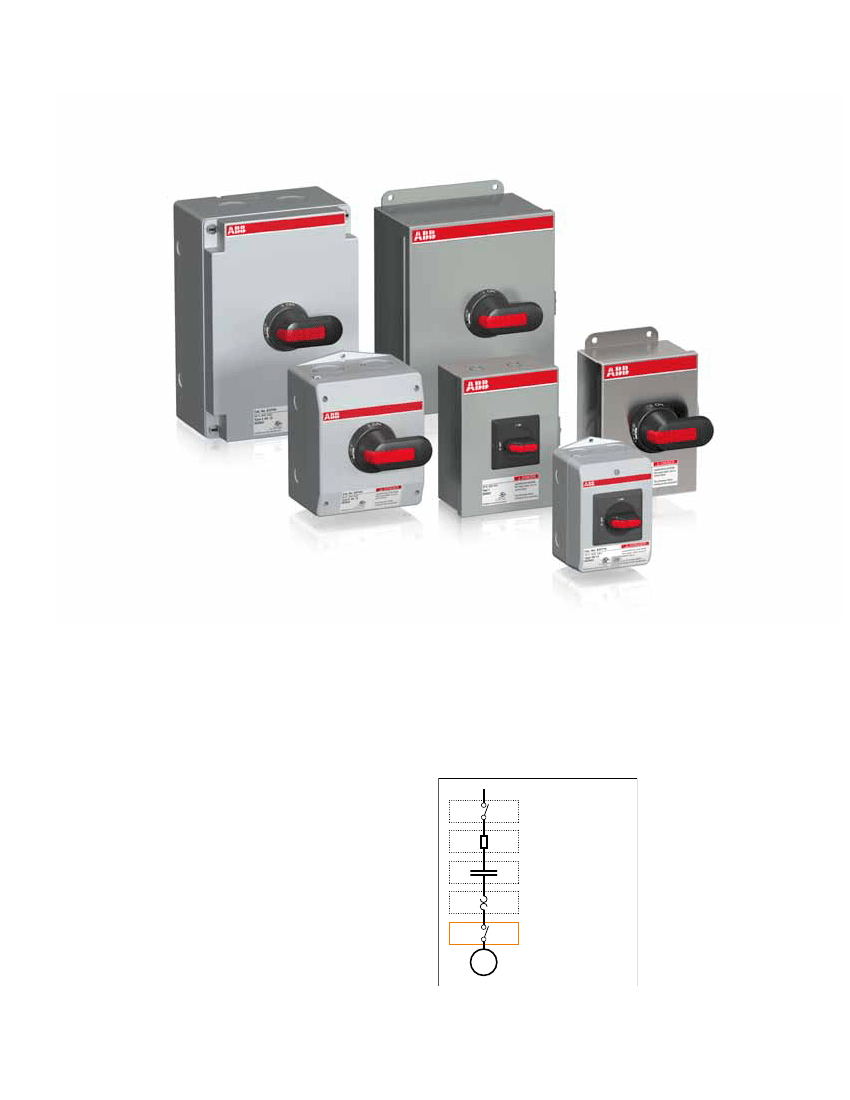

Plastic enclosed disconnect switches,
from 16 up to 80 Amperes
– UL/NEMA 3R/12 and 4/4X versions
– 2 Handle color options, selector or pistol type
– Standard black handle
– Emergency red/yellow handle
– Available with and without 1 NO auxiliary contact installed
Sheet steel enclosed disconnect switches,
from 16 up to 100 Amperes
– UL/NEMA 1 and 3R/12 versions
– Black color handle, selector or pistol type
Stainless steel enclosed disconnect switches,
from 16 up to 100 Amperes
– UL/NEMA 4/4X versions
– Metallic or black plastic pistol type handles
Disconnect means
Short Circuit protective device
Controller
Overload protections
Motor disconnect
(OSHA Lock Out/Tag Out)
M
Fig.1
eOT products are properly installed on the load side of a branch
circuit protective device and are suitable for use as motor
disconnects as illustrated in Fig. 1.
2 | Enclosed switches - eOT
Cutting edge design and technology.
eOT
ensures reliable switching time after time.
Outstanding features
– cUL approval, UL508 and 98 Listed
– Suitable as motor disconnect
– Horsepower rated
– Touch safe construction
– Positive operation
– Clear position indication
– Self lifting tunnel terminals
– Extremely compact size
– Accessories
– 4th power pole
– Snap-on auxiliary contacts
Clean and simple installation
Plastic and Type 1 enclosures have
conduit knockouts provided on the top
and bottom of the enclosure.
Plastic enclosures have a metallic base
plate that electrically bonds together all
conduit hubs installed in the top and
bottom of the enclosure - additional
conduit bonding jumpers are not required.
Plastic enclosure installs flush on
mounting surface, reducing the accu-
mulation of dirt behind the enclosure.
Sealed enclosure cover is water tight,
suitable for hose-down environments
(Type 4X version only).
Enclosed switches - eOT | 3
Technical data
Enclosed switches
Enclosed disconnect switches
Approvals
UL Amperage Rating
Max Horsepower rating
Three Phase
200V-208V
240V
480V
600V
Single Phase
120V
240V
Interrupting Capacity (SCCR) with fuse
Fuse Type CC
Fuse Type J
Fuse Type T
Fuse Type RK1
Fuse Type RK5
Fuse Type L
Fuse Type H
Maximum Fuse Size
Endurances
Min. electrical endurance power
factor
0.75...0.8
0.40...0.50
Mechanical endurance
Switch operating torque
Knock-outs
Plastic enclosure
Metallic enclosure
Terminal Lug Kits
Wire Range
Wire Tightening Torque
Lug Mounting
Auxiliary Contacts
Auxiliary Contacts
NEMA ratings, AC
AC rated voltage
AC rated thermal current
AC maximum volt-ampere
making
AC maximum volt-amperage
breaking
NEMA ratings, DC
DC rated voltage
DC thermal rated current
DC maximum make-break
Torque: wire tightening
Wire Range
1)
eOT16
3pole
UL 508
16
eOT32
UL 508
40
HP
HP
HP
HP
HP
HP
kA
kA
kA
kA
kA
kA
kA
A
3
6
10
10
1
2
10/-
10/10
10/10
10/-
5/5
-/-
-/-
30/60
1)
10
10
20
25
2
5
10/-
10/10
10/10
10/-
5/5
-/-
-/-
30/60
1)
op. cycles
op. cycles
operations
lbs. in.
Ends
Ends
6000
1000
20000
8.8
4x1/2” or 4x3/4”
4x3/4" or 4x1/2" +
2x1" or 2x3/4"
Not required
6000
1000
20000
8.8
4x1/2" or 4x 3/4"
4x3/4" or 4x1/2" +
2x1" or 2x3/4"
Not required
#18-8
7
Integral
OA1G_ or OA2G11
OA1G_
AC600
600
10
7200
720
R300
300
1
28
7
#18-14
AWG
lbs. in.
lbs. in.
#18-8
7
Integral
OA1G_ or OA2G11
OA1G_
AC600
Plastic enclosure
Metallic enclosure
VAC
A
VAC
VAC
600
10
7200
720
R300
VDC
A
VA
lbs. in.
AWG
300
1
28
7
#18-14
Fuse size 70A for RK5
4 | Enclosed switches - eOT
eOT45
UL 508
60
eOT63
UL 508
80
eOT30
UL 98
30
eOT60
UL 98
60
eOT100
UL 98
100
15
15
30
30
2
7.5
-/-
100/-
100/-
-/-
10/5
-/-
-/5
100/150
20
20
40
40
2
10
-/-
100/-
100/-
-/-
10/5
-/-
-/5
100/150
60/60
150/60
150/100
50/200
50/200
50/200
50/200
50/200
50/200
10
20
30
2
5
20
40
40
3
7.5
30
50
50
5
15
6000
1000
20000
10.5
4x3/4" or 4x1"
4x3/4" or 4x1/2" +
2x1" or 2x3/4"
Not required
#14-4
18
Integral
OA1G_ or OA2G11
OA1G_
AC600
600
10
7200
720
R300
300
1
28
7
#18-14
6000
1000
20000
10.5
4x1" or 4x1 1/4"
4x3/4" or 4x1/2" +
2x1" or 2x3/4"
Not required
#14-4
18
Integral
OA1G_ or OA2G11
OA1G_
AC600
600
10
7200
720
R300
300
1
28
7
#18-14
6000
20000
17.6
4x3/4" or 4x1/2" +
2x1" or 2x3/4"
Not required
#14-4
55
Integral
OA1G_
OA1G_
AC600
600
10
7200
720
R300
300
1
28
7
#18-14
6000
20000
17.6
4x3/4" or 4x1/2" +
2x1" or 2x3/4"
Not required
#14-4
55
Integral
OA1G_
OA1G_
AC600
600
10
7200
720
R300
300
1
28
7
#18-14
6000
20000
17.6
4x3/4" or 4x1/2" +
2x1" or 2x3/4"
Not required
#8-1/0
55
Integral
OA1G_
OA1G_
AC600
600
10
7200
720
R300
300
1
28
7
#18-14
Enclosed switches - eOT | 5
