LC01707PLF is a vehicle-mounted FM multiple tuner IC with FM-FE, IF, IF-Filter, PLL, FM-DEMO and LPF
incorporated. An FM multiple tuner can be developed with this one chip. It makes up a small-sized FM multiple tuners
which can be mounted on PND.
Functions
•
It is the FM tuner IC exclusively for the FM multiple.
•
LNA is incorporated
•
Image reduction complex BPF is incorporated
•
Wide / Narrow Band RF AGC is incorporated
•
Narrow Band IF AGC is incorporated
•
Image rejection is adopted
•
DLL detection method is adopted for the FM detection circuit, and it is not necessary to adjust.
•
LPF for the carrier removal is incorporated.
•
IC requires fewer external components.
•
It is a BUS control tuner IC which can be controlled by controlled by I
2
C BUS.
Specifications
Maximum Ratings
at Ta = 25°C
Parameter
Supply voltage
Maximum input voltage
Maximum output voltage
Power dissipation
Operating ambient
Storage temperature
Maximum junction temperature
Symbol
VDD max
VDD H
VDD L
Pd max
Topr
Tstg
Tj max
Ta = 85°C *1
Conditions
Ratings
4.3
4.3
4.3
700
-40 to 85
-55 to 150
150
Unit
V
V
V
mW
°C
°C
°C
*1: Board size: 80mm
×
70mm
×
1.6mm Glass epoxy double-sided board
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Semiconductor Components Industries, LLC, 2013
May, 2013
32812 SY/O1911 SY/81011 SY 20110210-S00002 No.A1928-1/18
LC01707PLF
Recommended Operating Conditions
at Ta = 25°C
Parameter
Supply voltage range
Recommended supply
temperature
Symbol
VDD
VDD
Conditions
Ratings
3.0 to 3.6
3.3
Unit
V
V
Electrical Characteristics
at Ta
=
25°C, VDD = 3.3V,
fc = 83MHz, VIN=60dBμVEMF, fm=1kHz, Audio filter: HPF=100Hz, LPF=15kHz
Resister setting: IF AGC (02h) =6(110), RF AGC (00h) =0(0000)
DLL demodulator loop gain setting (09h) =1(01), Mono multi center setting (09h) =7(0111)
Ratings
Parameter
Practical sensitivity 1 (S/N30dB)
Practical sensitivity 2 (S/N10dB)
S/N1
S/N2
Total harmonic distortion rate 1
Total harmonic distortion rate 2
AM suppression ratio
Image rejection ratio
Audio output level 1
Audio output level 2
Consumption current
Symbol
SN30
SN10
SN1
SN2
THD_1
THD_2
AMR
IMR
AD01
AD02
IDD
Conditions
min
22.5kHz dev, fm=1kHz, S/N=30dB input level
7.5kHz dev, fm=76kHz, S/N=10dB input level
*1
22.5kHz dev, fm=1kHz
7.5kHz dev, fm=76kHz *1
22.5kHz dev, fm=1kHz
75.0kHz dev, fm=1kHz
AM 30% mod
22.5k\Hz dev, fm=1kHz
7.5kHz dev, fm=1kHz *1
7.5kHz dev, fm=76kHz *1
No signal input
26
15
34
34
44
21
0.5
0.5
44
32
39
23
106
70
41
170
dB
dB
%
%
dB
dB
mVrms
mVrms
mA
typ
12
27
max
20
dBμEMF
dBμEMF
Unit
*1: Audio filter: HPF=100Hz, LPF=OFF
Package Dimensions
unit : mm (typ)
3408
TOP VIEW
6.0
SIDE VIEW
BOTTOM VIEW
(4.0)
6.0
(4.0)
0.5
12
0.16
SIDE VIEW
(0.8)
0.85 MAX
2 1
0.4
(1.0)
0.0 NOM
SANYO : VQFN44K(6.0X6.0)
44
No.A1928-2/18
LC01707PLF
Example of applied circuit (constant is tentative)
0.022 F
0.68 F
Decoder
DEMCO
56pF
220pF
LPFI
DEMCO
0.22 F
NC
NC
39
37
38
36
35
43
41
44
42
40
34
SMETER
GND
LPFO
VDD
NC
NC
NAGC
0.22 F
WAGC
10nF
VSS
1
2
3
W_AGC
Freq.Count
33
-
+
VDD
0.022 F
LIM
DEMO
LPF
32
I/F
31
30
SDA
SCL
N_AGC
INT
NC
VDD
4
5
6
7
8
9
DIV
10
11
13
15
12
14
16
NC
22 F
0.68 F
VDD
0.022 F
LNA_P
MIX I
IF
AGC
IF
AGC
Complex
BPF
f0:1.2MHz
MIX I
f0:600kHz
29
28
NC
COM
17
19
18
20
21
L1 : 2.7nH
L2 : 2.7nH
CP
VSS
VSS
NC
NC
VDD
VDD
10pF
* Culprits oscillation circuit is used in this IC as a crystal oscillation circuit. Caution is required for layout of the board
because oscillation between pin25 and power source and GND line.
* The margin of crystal oscillation changes due to the combination of the IC, a crystal oscillator and a board layout. This
independent IC does not quarantine the oscillation operation.
* This IC uses the signal of FM band frequency (VCO divided into 1/4) which leaks into ANT pin. If the VCO leakage
affects the performance of the system, make sure to connect an isolator on ANT pin path.
Component
L1/L2
L3
X1
Parameter
Local OSC coil
Differential input coil
Crystal
100pF
0.022 F
0.022 F
Value
2.7nH
120nH
7.2MHz
Type
C2012H-2N7D-RD
C2012C-R12G-RC
SMD-49
AT-49
EXS00A-A01145
EXS00A-A01146
NC
Supplier
SAGAMI
SAGAMI
KDS
KDS
NDK
NDK
NC
22
+
BPF
NC
MIX Q
Complex
BPF
MIX Q
1.8MHz
DIV
LNA
injection
LOCK
DET
PD CP
REF
COUNT
PROG
COUNT
Freq.Count
27
26
X_TAL
25
24
23
NC
100pF
L3 :
120nH
27pF
VSS
47pF
LNA_N
SD
18pF
7.2MHz
VSS
DEVAR
XTAL
NC
NC
C BANK
No.A1928-3/18
LC01707PLF

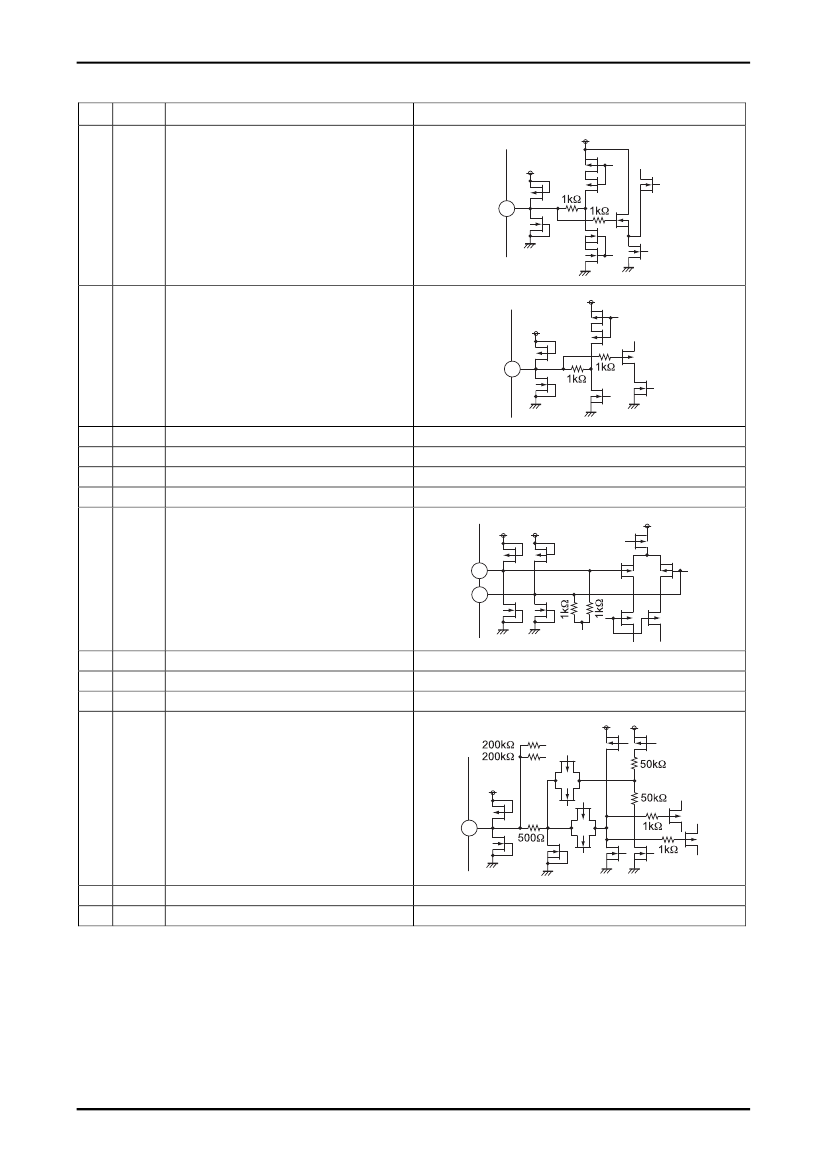

Pin Description
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Pin name
NAGC
WAGC
VSS
NC
NC
VDD
LNA_A
VSS
LNA_N
NC
NC
VSS
CP
VDD
VDD
LO_1
VSS
LO_2
NC
NC
NC
NC
DEVER
VSS
XTAL
SD
NC
NC
NC
INT
SCL
SDA
VDD
SMETER
VDD
LPFO
DEMOO
LPFI
DEMOC
NC
NC
NC
NC
GND
I/O
O
O
P
-
-
P
I
P
I
-
-
P
O
P
P
O
P
O
-
-
-
-
I
P
I
O
-
-
-
O
I
I
P
O
P
O
O
I
O
-
-
-
-
P
GND pin
Test pin
Serial data clock input
serial data input-output
Supply pin for PLL and logic
S-meter output
Supply pin for IF
Demodulation output (after band limitation)
Demodulation output
Demodulation signal input pin
Capacitance connecting pin for demodulation detection
