220W AC-DC High Reliability Industrial Adaptor
GST220A
series
UL60950-1
EN60950-1
J60950-1
CNS14336
AS/NZS60950-1
GB4943
THOMAS SAMUEL
THOMAS SAMUEL
MS IEC60950-1
IS13252
K60950-1
TPTC004
(optional)
(except for 36V) (except for 36V) (except for 36V) (except for 36V)
IEC60950-1
■
Features
Global certificates
Universal AC input / Full range
3 pole AC inlet IEC320-C14,Class
Ⅰ
power unit
Built-in active PFC function
No load power consumption<0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS,
AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage
/Over temperature
Fanless design with -30~+70
℃
working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warranty
■
Applications
Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments
■
Description

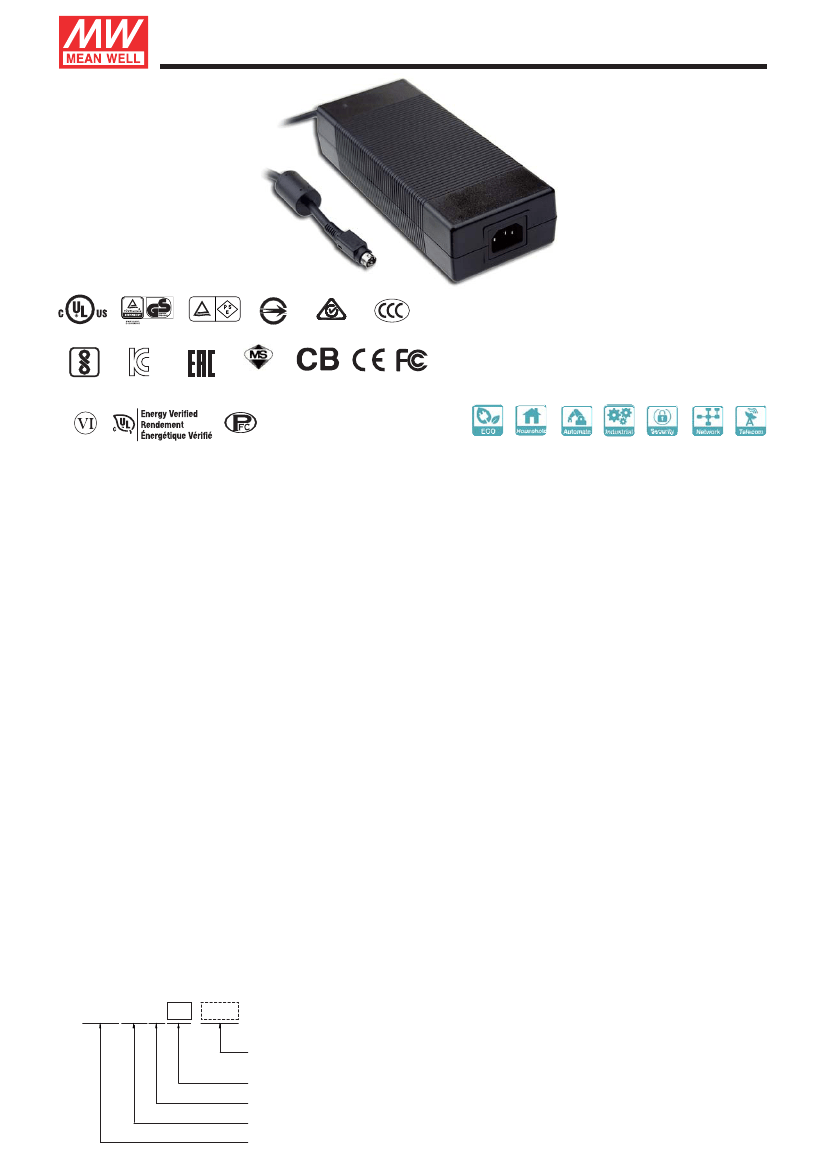

GST220A is a highly reliable, 220W desktop style single-output green adaptor series. This product is a
class
Ⅰ
power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range
from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between
12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the efficiency up to 94.5% and the extremely low no-load power consumption below 0.15W, GST220A is
compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,
Korea K-MEPS,
EU ErP and
Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either
under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic
case.GST220A is certified for the international safety regulations.
■
Model Encoding
GST 220 A 12 - R7B
DC plug type
Output voltage
IEC320-C14 AC inlet
Rated wattage
Series name
{
R7B: Standard model,Power DIN 4Pin with lock type
Other options available by customer requested (see Page 4~5)
File Name:GST220A-SPEC 2017-05-05
220W AC-DC High Reliability Industrial Adaptor
SPECIFICATION
ORDER NO.
SAFETY MODEL NO.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER (max.)
OUTPUT
GST220A12-R7B
GST220A12
Note.2
12V
15A
0 ~ 15A
180W
GST220A15-R7B
GST220A15
15V
13.4A
0 ~ 13.4A
201W
100mVp-p
±5.0%
±1.0%
±5.0%
GST220A20-R7B
GST220A20
20V
11A
0 ~ 11A
220W
120mVp-p
±4.0%
±1.0%
±4.0%
2000ms, 50ms / 115VAC at full load
GST220A
GST220A24-R7B
GST220A24
24V
9.2A
0 ~ 9.2A
221W
150mVp-p
±3.0%
±1.0%
±3.0%
GST220A36-R7B
GST220A36
36V
6.1A
0 ~ 6.1A
219.6W
200mVp-p
±2.0%
±1.0%
±2.0%
4.6A
series
GST220A48-R7B
GST220A48
48V
0 ~ 4.6A
221W
200mVp-p
±2.0%
±1.0%
±2.0%
RIPPLE & NOISE (max.)
Note.3
80mVp-p
VOLTAGE TOLERANCE
Note.4
±5.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
Note.5
±1.0%
±5.0%
Note.6
2000ms, 50ms / 230VAC
20ms / 230VAC
20ms / 115VAC at full load
Note.7
85 ~ 264VAC 120 ~ 370VDC
47 ~ 63Hz
PF>0.91 / 230VAC
90%
4A / 115VAC
0.75mA / 240VAC
105 ~ 135% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
105 ~ 135% rated output voltage
Cold start 60 / 115AC
PF>0.98 / 115VAC at full load
90%
92%
93.5%
93%
94.5%
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (max.)
LEAKAGE CURRENT(max.)
OVERLOAD
2A / 230VAC
120A / 230VAC
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
Protection type : H
iccup
mode
@ 10%load
Shut down o/p voltage, recovers automatically after temperature goes down
-30 ~ +70
℃

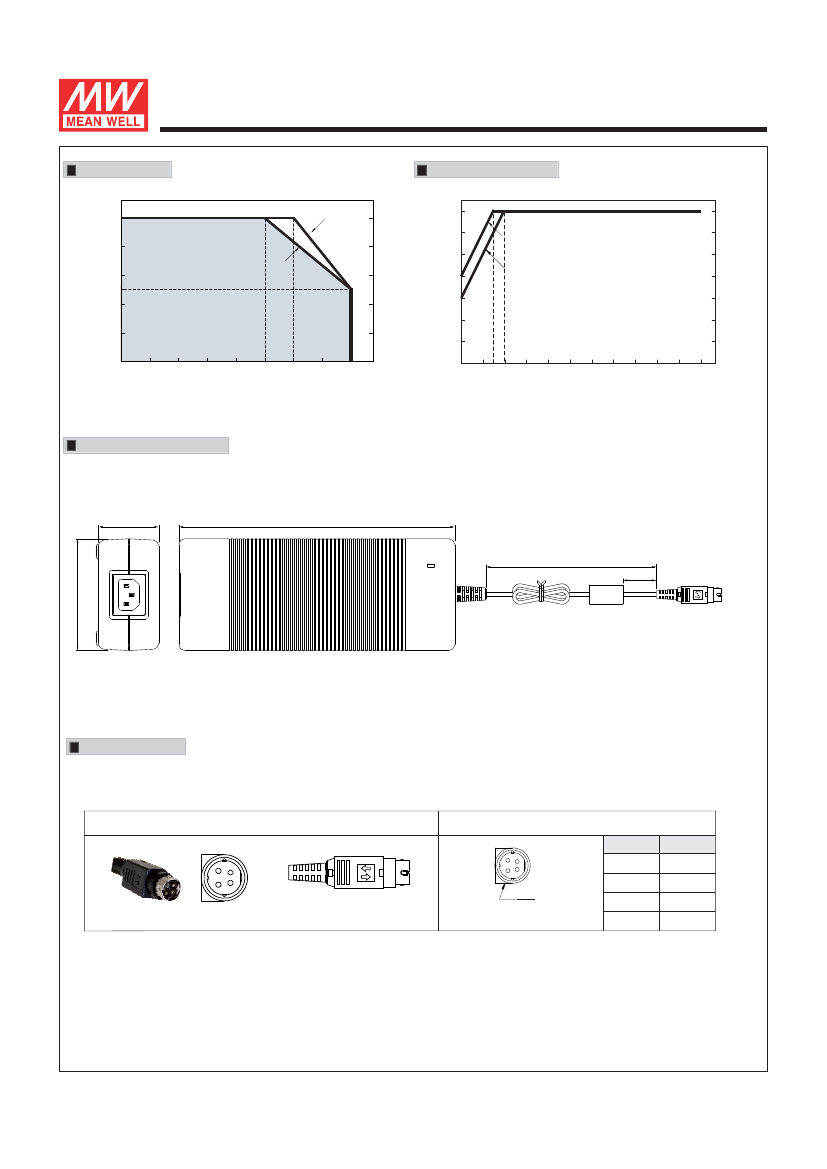

(Refer to "Derating Curve")
20% ~ 90% RH non-condensing
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
±
0.03% /
℃
(0~50
℃
)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1
,AS/NZS
60950.1 , BIS IS13252,
KC K60950-1,
EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional)
approved
SAFETY STANDARDS Note. 8
(UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1
,AS/NZS
60950.1 for GST220A36-R7B)
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT
I/P-O/P:100M Ohms / 500VDC / 25
℃
/ 70% RH
Parameter
Conducted emission
EMC EMISSION
Radiated emission
Harmonic current
Voltage flicker
SAFETY &
EMC
(Note. 9)
Standard
EN55032(CISPR32),FCC PART 15 / CISPR22
CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1
EAC TP TC 020,MSIP KN32
EN55032(CISPR32),FCC PART 15 / CISPR22
CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1
EAC TP TC 020,MSIP KN32
EN61000-3-2,GB9254
EN61000-3-3
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
Test Level / Note
Class B
Class B
Class A
-------
Test Level /Note
Level 4, 15KV air; Level 4, 8KV contact
Level 2, 3V/m
Level 2, 1KV
Level 3, 1KV/Line-Line , 2KV/Line-FG
Level 2, 3V
Level 2, 3A/m
＞
95% dip 0
.
5 periods, 30% dip 25 periods,
＞
95% interruptions 250 periods
Parameter
ESD
RF field susceptibility
EFT bursts
EMC IMMUNITY
Surge susceptibility
Conducted susceptibility
Magnetic field immunity
Voltage dips , interruption
OTHERS
MTBF
DIMENSION
PACKING
PLUG
CABLE
CONNECTOR
NOTE
209.4K hrs min. MIL-HDBK-217F(25
℃
)
210*85*46mm (L*W*H)
1.1Kg; 12pcs/14.2Kg/0.96CUFT

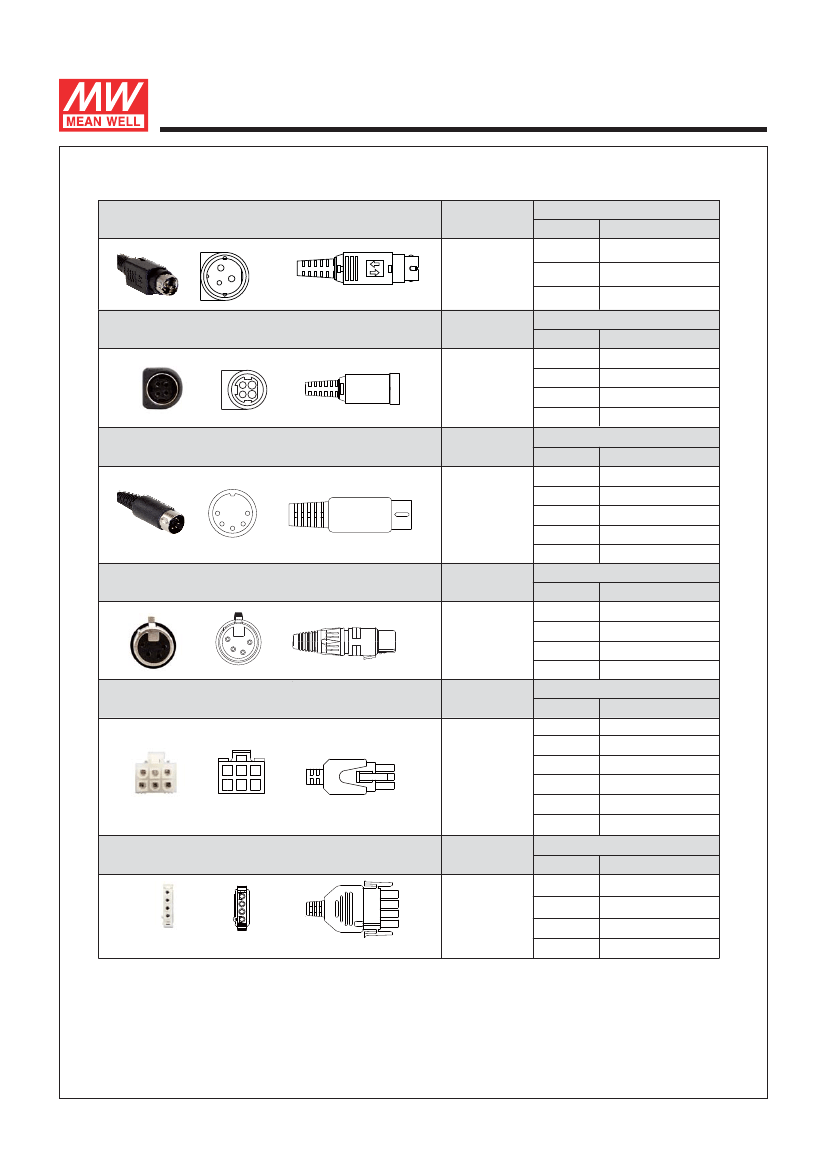

See page
4~5
; Other type available by customer requested
See page
4~5
; Other type available by customer requested
1. All parameters are specified at 230VAC input, rated load, 25
℃
70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
μ
μ
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1 f & 47 f capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The demand for Malaysia safety is processed with the order no. GST220A -SIRIM by request. Please contact MEAN WELL for details.
9.
The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the
EMC directives.
For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
(as available on http://www.meanwell.com)
File Name:GST220A-SPEC 2017-05-05
