60W AC-DC High Reliability Industrial Adaptor
GST60A
series
THOMAS SAMUEL
THOMAS SAMUEL
IS13252 K60950-1 TPTC004
UL60950-1
EN60950-1
J60950-1
CNS14336 AS/NZS60950-1
GB4943 MS IEC60950-1 IEC60950-1
(optional)
■
Features
Global certificates
Universal AC input / Full range
3 pole AC inlet IEC320-C14,Class
Ⅰ
power unit
No load power consumption< 0.075W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS,
AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage
/ Over temperature
Fully enclosed plastic case
Pass LPS
-30~+70
℃
wide range working temperature
LED indicator for power on
3 years warranty
■
Applications
Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments
■
Description

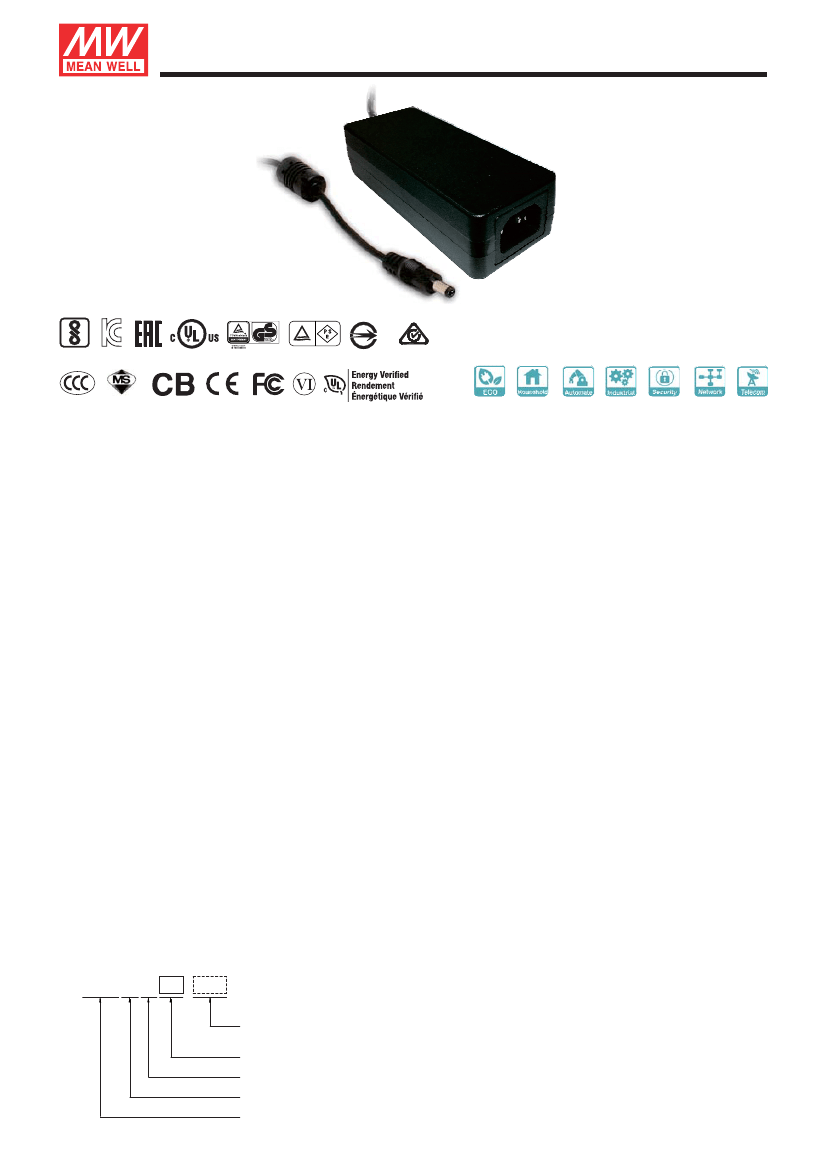

GST60A is a highly reliable, 60W desktop style single-output green adaptor series. This product is a class
Ⅰ
power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from
90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC
and 48VDC that can satisfy the demands for various types of consumer electronic devices.
With the efficiency up to 92% and the extremely low no-load power consumption below 0.075W, GST60A is
compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,
Korea K-MEPS,
EU ErP and
Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either
under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic
case.GST60A is certified for the international safety regulations.
■
Model Encoding
GST 60 A 05 - P1J
DC plug type
Output voltage
IEC320-C14 AC inlet
Rated wattage
Series name
File Name:GST60A-SPEC 2017-05-05
{
P1J: Standard model,2.1
ψ
x5.5
ψ
x11mm,C+,tuning fork type

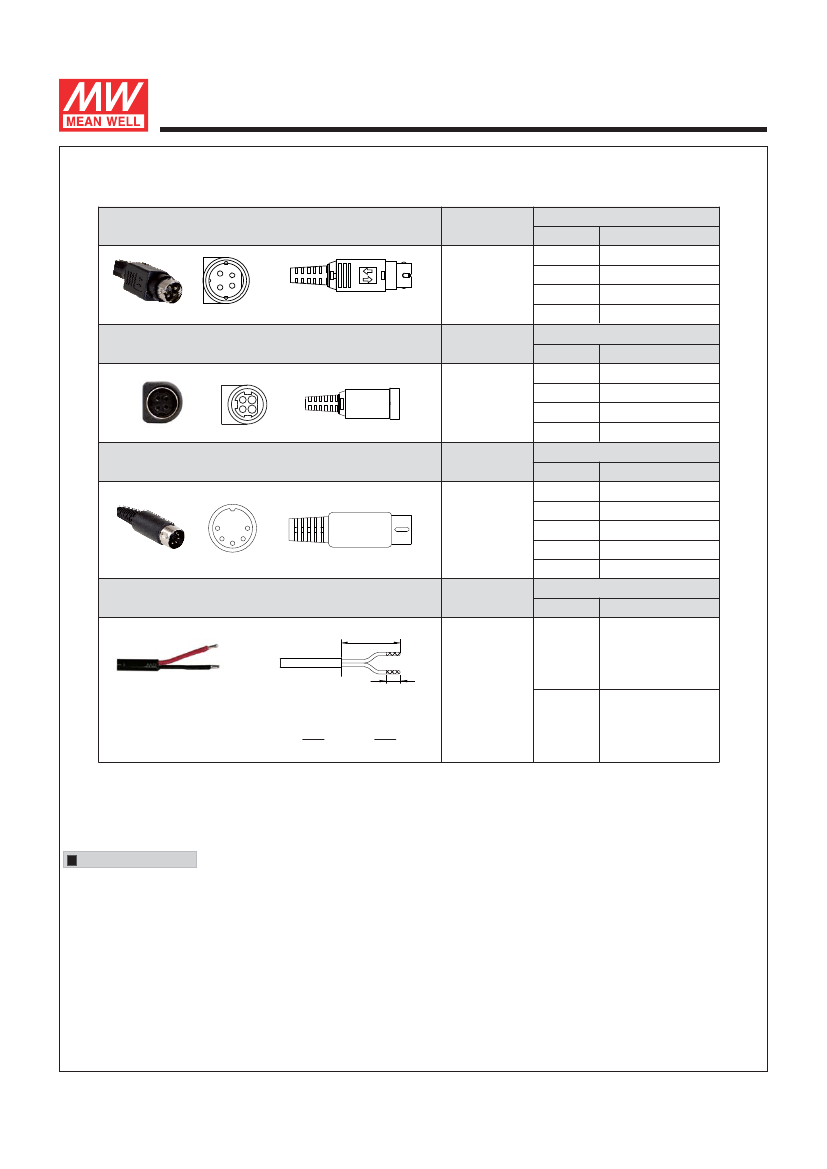

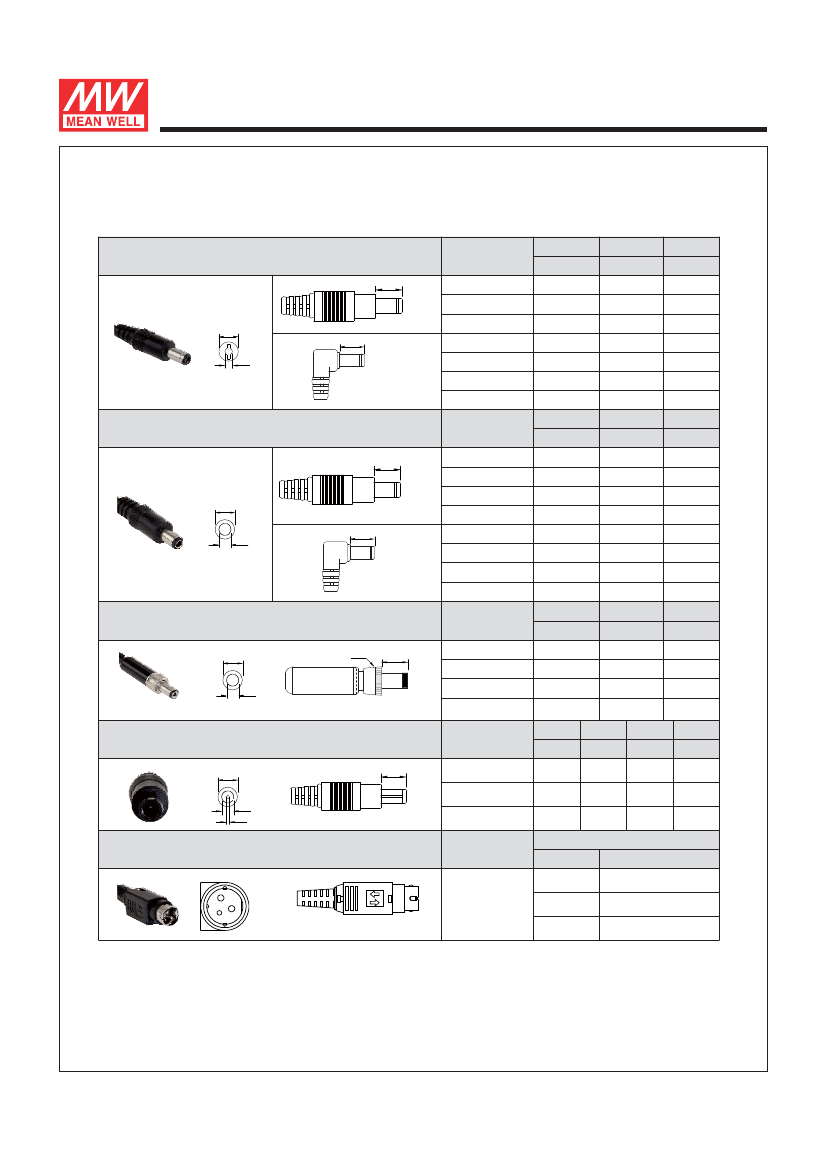

Other options available by customer requested (see Page 4~5)
60W AC-DC High Reliability Industrial Adaptor
SPECIFICATION
ORDER NO.
SAFETY MODEL NO.
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER (max.)
OUTPUT
GST60A
GST60A15
15V
4A
0 ~ 4A
60W
120mVp-p
±3.0%
±1.0%
±3.0%
GST60A18
18V
3.33A
0 ~ 3.33A
60W
150mVp-p
±3.0%
±1.0%
±3.0%
GST60A24
24V
2.5A
0 ~ 2.5A
60W
150mVp-p
±3.0%
±1.0%
±3.0%
series
GST60A05-P1J GST60A07-P1J GST60A09-P1J GST60A12-P1J GST60A15-P1J GST60A18-P1J GST60A24-P1J GST60A48-P1J
GST60A05
Note.2
5V
GST60A07
7.5V
6A
0 ~ 6A
45W
120mVp-p
±5.0%
±1.0%
±5.0%
GST60A09
9V
6A
0 ~ 6A
54W
120mVp-p
±5.0%
±1.0%
±5.0%
GST60A12
12V
5A
0 ~ 5A
60W
120mVp-p
±3.0%
±1.0%
±3.0%
GST60A48
48V
1.25A
0 ~ 1.25A
60W
200mVp-p
±2.5%
±1.0%
±2.5%
6A
0 ~ 6A
30W
RIPPLE & NOISE (max.)
Note.3
120mVp-p
VOLTAGE TOLERANCE
Note.4
±5.0%
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT (max.)
LEAKAGE CURRENT(max.)
OVERLOAD
Note.5
±1.0%
±5.0%
Note.6
1000ms, 50ms / 230VAC
1000ms, 50ms / 115VAC at full load
50ms / 230VAC
15ms / 115VAC at full load
Note.7
90 ~ 264VAC 135 ~ 370VDC
47 ~ 63Hz
85.5%
1.4A / 115VAC
Cold start
0.75mA / 240VAC
105 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
5.2 ~ 6.8V
7.8 ~ 10.2V
9.4 ~ 12.2V
12.6 ~ 16.2V 15.7 ~ 20.3V
18.9 ~ 24.3V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, re-power on to recover
-30 ~ +70
℃
(Refer to "Derating Curve")
20% ~ 90% RH non-condensing
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
±
0.03% /
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
88.5%
1A / 230VAC
65A / 230VAC
35A / 115AC
89%
89.5%
89.5%
89.5%
90.5%
92%
INPUT
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
WORKING HUMIDITY
25.2 ~ 32.4V
50.4 ~ 64.8V
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS Note. 8
UL60950-1, CSA C22.2, TUV EN60950-1, BSMI CNS14336, CCC GB4943, PSE J60950-1
,AS/NZS
60950.1 , BIS IS13252,
KC K60950-1,
EAC TP TC 004 approved; SIRIM MS IEC60950-1 (optional)
approved
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Parameter
Conducted emission
Standard
Test Level / Note
EN55032(CISPR32),FCC PART 15 / CISPR22
CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1
Class B
EAC TP TC 020,MSIP KN32
EN55032(CISPR32),FCC PART 15 / CISPR22
CAN ICES-3(B)/NMB-3(B),CNS13438,GB17625.1
Class B
EAC TP TC 020,MSIP KN32
EMC EMISSION
Radiated emission
SAFETY &
EMC
(Note. 9)
Harmonic current
Voltage flicker
Parameter
ESD
RF field
susceptibility
EN61000-3-2,GB9254
EN61000-3-3
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11
Class A
-------
Test Level /Note
Level 4, 15KV air; Level 4, 8KV contact
Level 2, 3V/m
Level 2, 1KV
Level 3, 1KV/Line-Line , 2KV/Line-FG
Level 2, 3V
Level 2, 3A/m
＞
95% dip 0
.
5 periods, 30% dip 25 periods,
＞
95% interruptions 250 periods
EMC IMMUNITY
EFT bursts
Surge susceptibility
Conducted susceptibility
Magnetic field
immunity
Voltage dips , interruption
MTBF
DIMENSION
PACKING
PLUG
CABLE
OTHERS
CONNECTOR
NOTE
709.7K hrs min. MIL-HDBK-217F(25
℃
)
125*50*31.5mm (L*W*H)
0.305Kg; 40pcs/13.02Kg/1.05CUFT
See page 4~5 ; Other type available by customer requested
See page 4~5 ; Other type available by customer requested
1. All parameters are specified at 230VAC input, rated load, 25
℃
70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
μ
μ
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1 f & 47 f capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
8. The demand for Malaysia safety is processed with the order no. GST60A
-SIRIM by request. Please contact MEAN WELL for details.
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the
EMC directives.
For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
(as available on http://www.meanwell.com)
File Name:GST60A-SPEC 2017-05-05
7. Derating may be needed under low input voltages. Pleas check the derating curve for more details.
