ARSM11-4167I: DescriptionSingle Port Surface Mount RJ45; File Size2MB，2 Pages; ManufacturerALLIED [Allied Electronics]

Download Datasheet View All

ARSM11-4167I Overview

Single Port Surface Mount RJ45

Preview

Download Datasheet

View All

RoHS

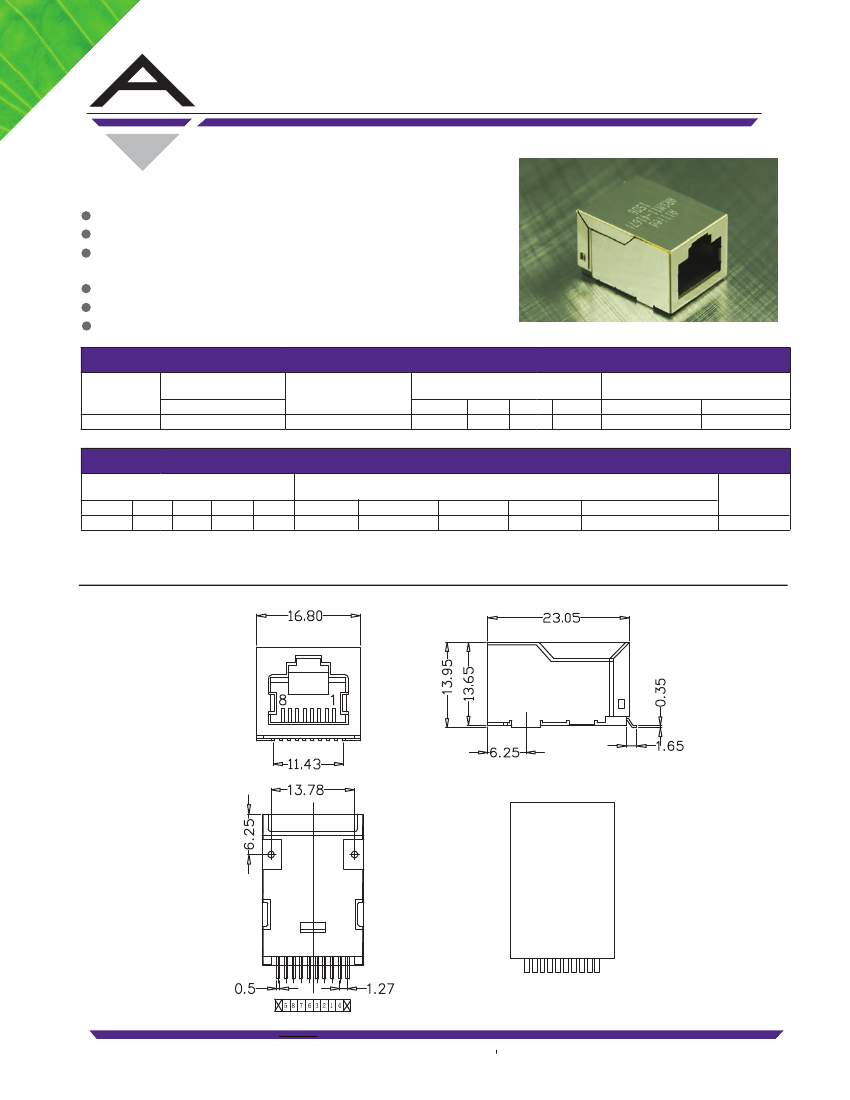

Single Port Surface Mount RJ45

ARSM11-4167I

10/100 Base-T Ethernet Application

Impedance: 100OHMS

RJ45 jack cavity conforms to FCC rules and

regulations Part 68, SUB Part F

Industrial Operating Temp: -40ºC to +85ºC

Available in other Circuit Designs

Optional Gold Plating Thickness

Electrical Speciﬁcations @ 25°C

Part

Number

ARSM11-4167I

OCL(uH Min)

@ 100kHz, 0.1V

With 8mA DC Bias

350

Turns Ratio

chip: cable

(±2%)

1CT:1CT

Cross Talk

Hi-Pot

(dB Max)

1.0 mA (V)

0.5-10MHz 30MHz 50MHz 100MHz without Capacitance wtih Capacitance

-50

-30

1500AC

2250 DC

-40

-35

Electrical Speciﬁcations @ 25°C

Cross Talk

(dB Min)

0.5-1MHz 10MHz 30MHz 50MHz 100MHz

-40

-35

-50

-30

-50

Return Loss

(dB Min) @ Load 100 Ohm

0.3-1MHz

-50

30-50MHz

-47

60MHz

-42

60-80MHz

-37

80-100MHz (10/100/1000)

-10

CMR

(dB Min)

1-100 MhZ

-30

All specifications subject to change without notice.

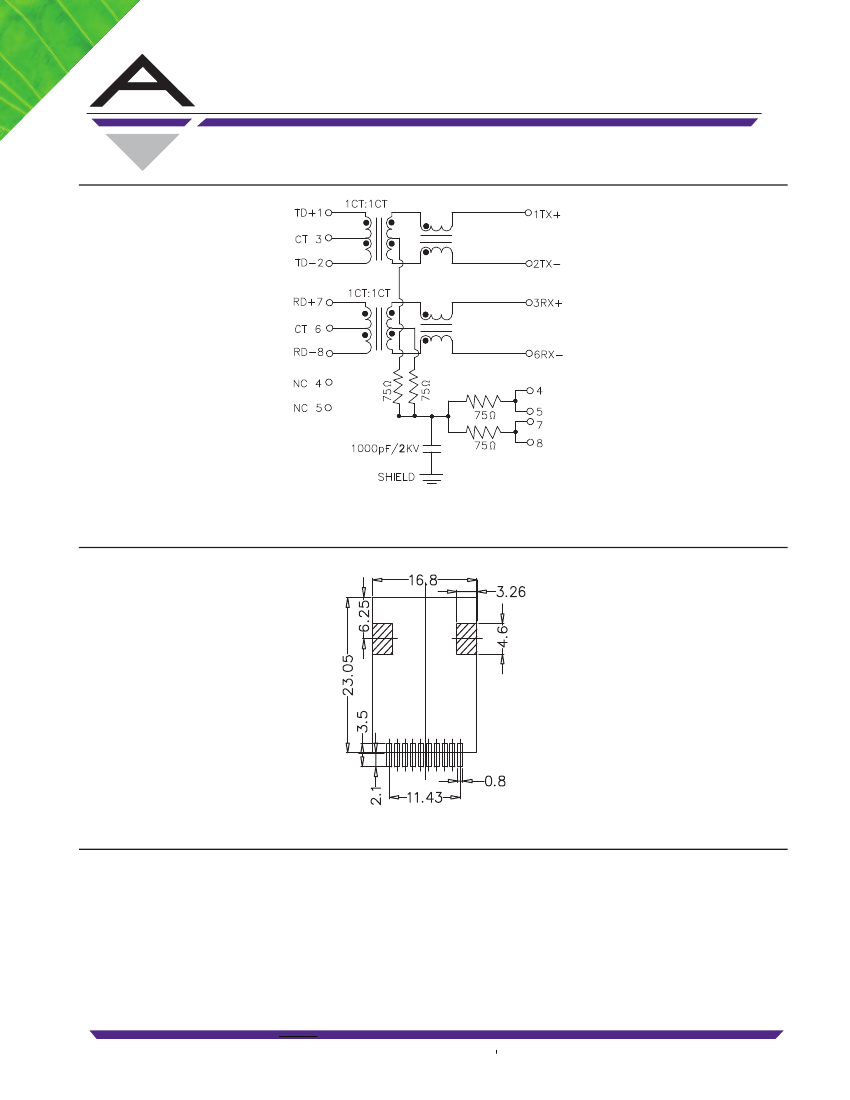

MECHANICAL

949-356-1780

ALLIED COMPONENTS INTERNATIONAL

01/26/2015

www.alliedcomponents.com
