AEP7-4006I

Description
EP7 Power Transformer
File Size385KB,1 Pages
ManufacturerALLIED [Allied Electronics]
Download Datasheet View All

AEP7-4006I Overview

EP7 Power Transformer

RoHS
EP7 Power Transformer

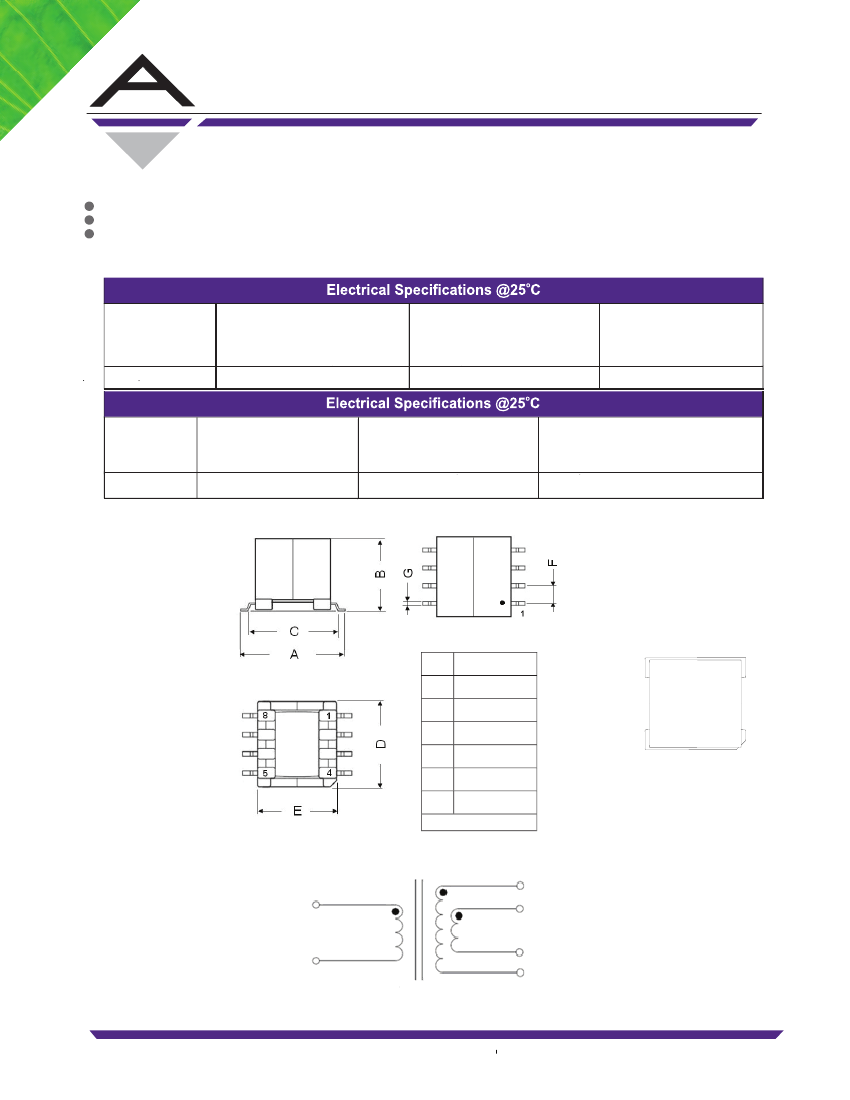

AEP7-4006I
EP7 Package in SMD
Operating temperature range: -40ºC to +85ºC
Reflow Condition:
Maximum reflow temperature is 250ºC/-5ºC
time is 20~40 sec. (Refer to IPC/JEDECJ-STD-020 standard
Part Number
Inductance
Lp @100KHz,0.1V
3-4
40uH (±10%)
Inductance
Lp @100KHz,0.1V, Idc=1.3A
3-4
36uH Max
Leakage Inductance
LS @ 100KHz, 0.1V
AEP7-4006I
3-4
(Tie 5+6+7+8)
1.2uH Max
Part Number
DCR
3-4
150mΩ Max.
DCR
5,6 - 7,8
50mΩ Max.
Isolation Voltage
@ 60sec, 1mA
PRI - SEC
1500Vac
All specifications subject to change without notice.
AEP7-4006I
MECHANICAL
Marking
A
B
C
D
E
F
G
13.00 Max
9.20 Max
11.10 Ref
10.00 Max
8.80 Max
2.54 ± 0.10
0.60 ± 0.10
Unit : mm
Allied
AEP7-4006I
YYWW
SCHEMATICS
3
1
0.3
5
6
8
7
PRI
SEC
www.alliedcomponents.com
4
949-356-1780
ALLIED COMPONENTS INTERNATIONAL
04/15/2014
