AR11-4299

Description
10/100/1000 Base-T for Ethernet Applications
File Size3MB,2 Pages
ManufacturerALLIED [Allied Electronics]
Download Datasheet View All

AR11-4299 Overview

10/100/1000 Base-T for Ethernet Applications

RoHS
Single Port RJ45

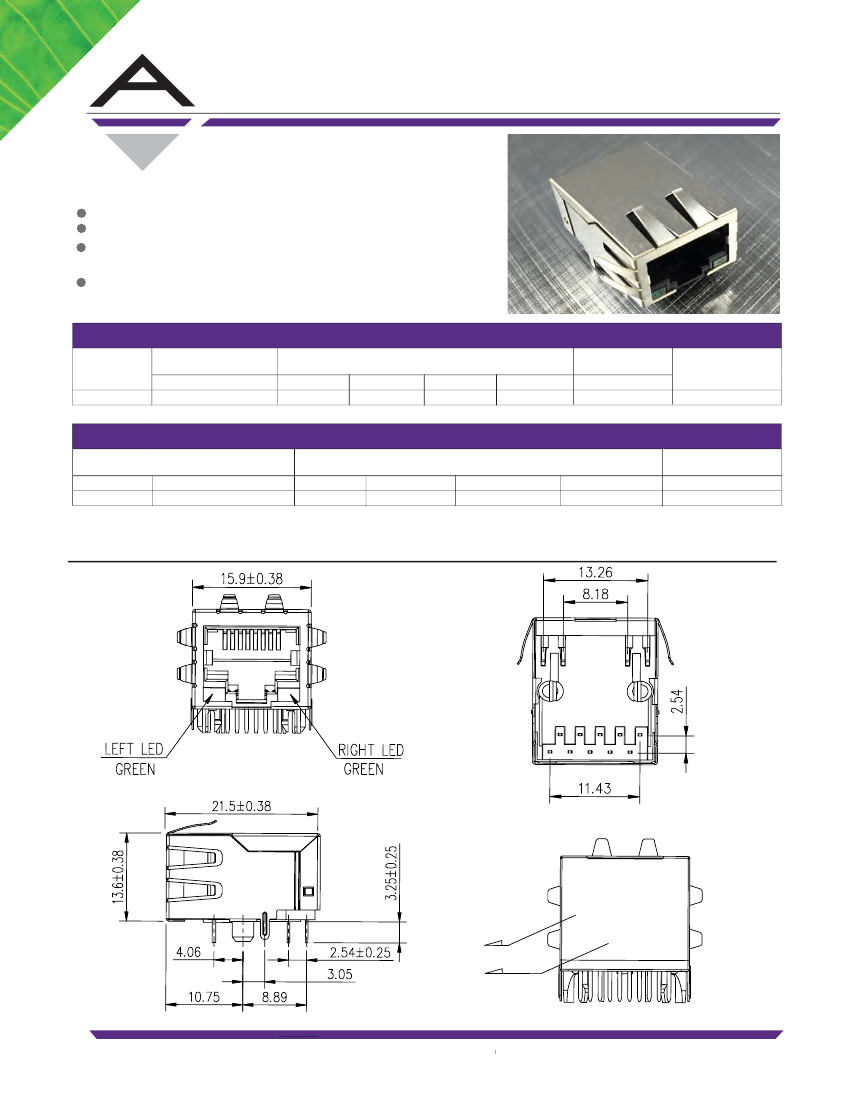

AR11-4299
10/100/1000 Base-T for Ethernet Applications
Standard operating temp: 0ºC to +70ºC
Transmit open circuit inductance (OCL): 350uH (MIN)
@ 100KHz,0.1Vrms with 8mA DC Bias
RJ45 jack cavity conforms to FCC rules and regulations Part 68,
SUB Part F
Electrical Specifications @ 25°C
Part
Number
AR11-4299
OCL(uH Min)
@ 100kHz, 0.1V
With 8mA DC Bias
3 50
P2-P3: J1-J2
1:1±5%
Turns Ratio
@100KHz, 0.1V
P4-P7: J3-J6 P5-P6: J4-J5
1:1±5%
1:1±5%
P8-P9: J7-J8
1:1±5%
Cross Talk
(dB Min)
0.5-10MHz
-50
HI-POT
1.0mA, 60S (V)
Input to Output
1500
Electrical Specifications @ 25°C
Insertion Loss
(dB Max)
100-125 MHz (10/100/100)
-1.2
1-30MHz
-18
Return Loss
(dB Min) @ Load 100 Ohm
30-60MHz
60-80MHz
-16
-12
80-100MHz
-10
CMR
(dB Min)
1-100 MHz
-30
1-100 MHz
-1.0
All specifications subject to change without notice.

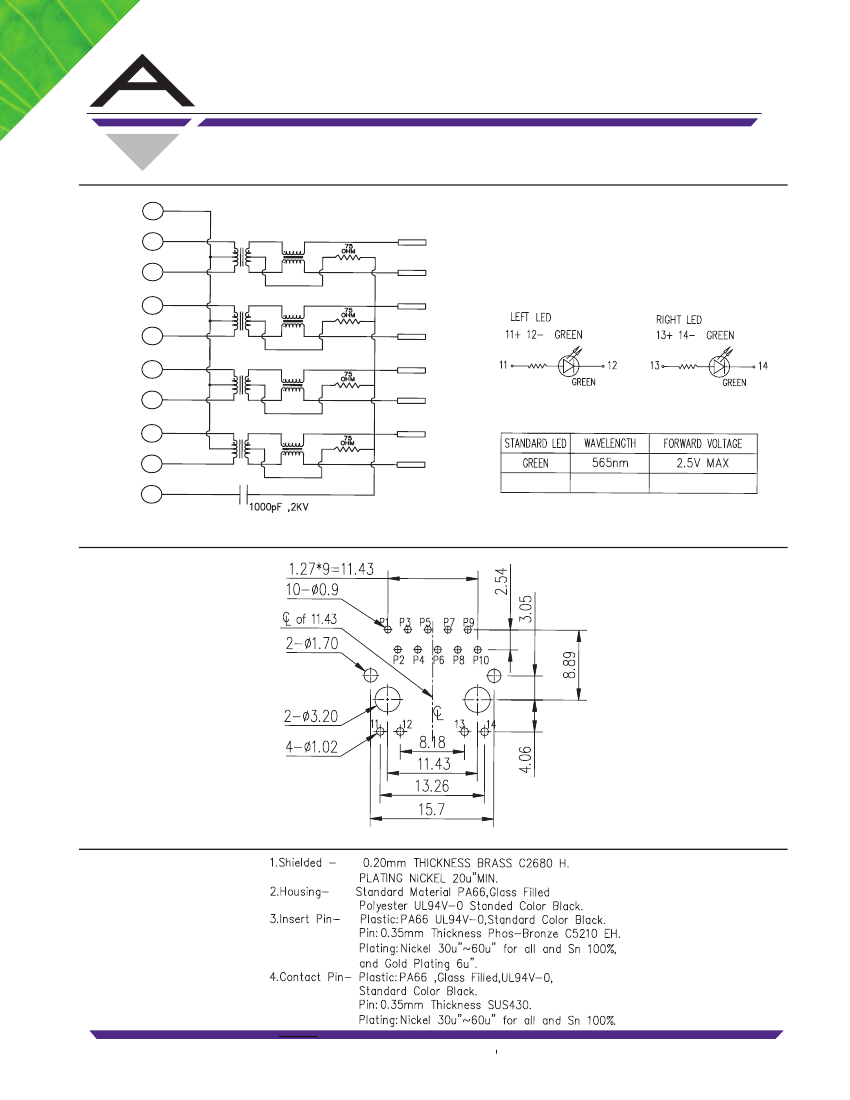

MECHANICAL
P/N
D/C
Allied
AR11-4299
XXXX
949-356-1780
ALLIED COMPONENTS INTERNATIONAL
10/05/2015
www.alliedcomponents.com
