BU-64703G4-890 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BU-64703G4-890

BU-64703G4-890: DescriptionMil-Std-1553 Controller, CMOS, CQFP80; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，50 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric View All

BU-64703G4-890 Overview

Mil-Std-1553 Controller, CMOS, CQFP80

BU-64703G4-890 Parametric

Parameter Name	Attribute value
Objectid	1154985096
Reach Compliance Code	compliant
JESD-30 code	S-XQFP-G80
Number of terminals	80
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC
encapsulated code	QFP
Encapsulate equivalent code	QFP80,1.1SQ,40
Package shape	SQUARE
Package form	FLATPACK
power supply	3.3,5 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553

Preview

Download Datasheet

View All

BU-64703

Make sure the next

Card you purchase

has...

SIMPLE SYSTEM RT MARK3

(SSRT MARK3)

FEATURES

•

Complete Integrated Remote Terminal

Including:

•Dual Low-Power 3.3V or 5.0V

Transceivers

•Complete RT Protocol Logic

•

Supports MIL-STD-1553A/B Notice 2,

STANAG-3838 RT, and

MIL-STD-1760 Stores Management

•

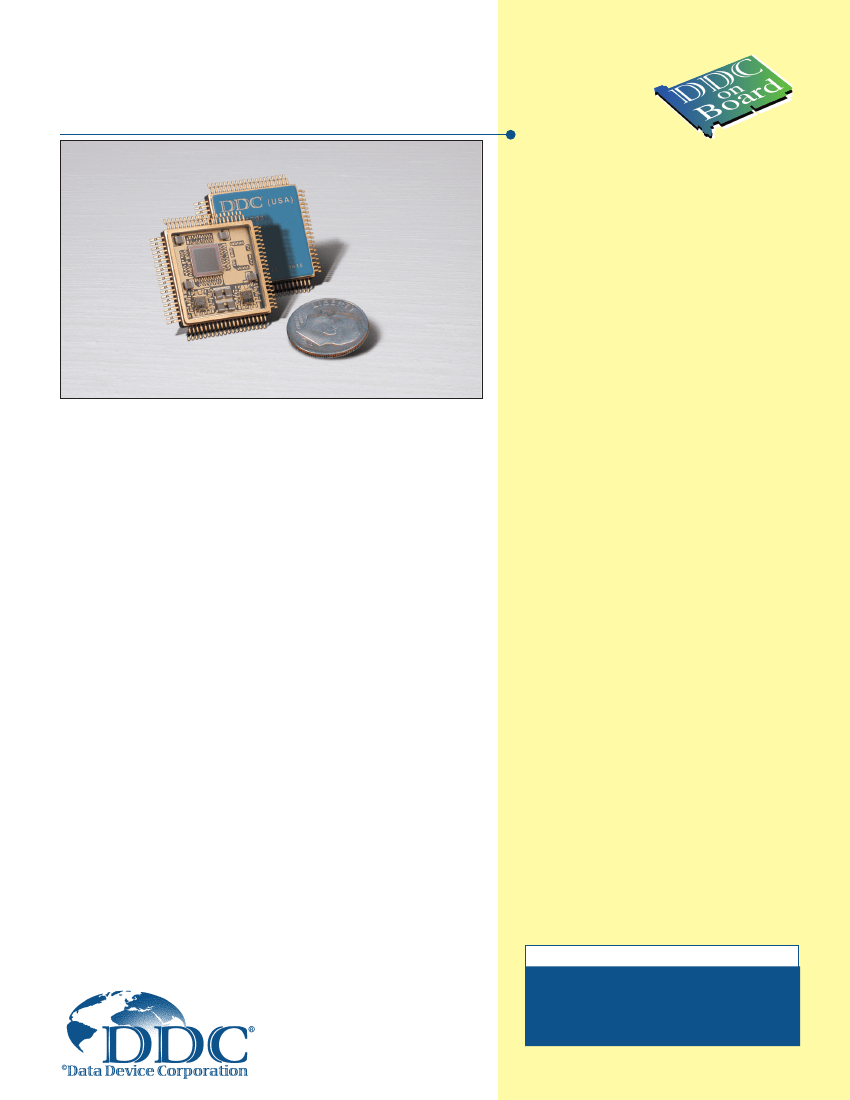

World’s Smallest CQFP SSRT

•

80-Pin Ceramic Flat Pack or Gull Wing

Package

DESCRIPTION

The BU-64703 Simple System RT Mark3 (SSRT Mark3) MIL-

STD-1553 terminal provides a complete interface between a simple

system and a MIL-STD-1553 bus. The SSRT Mark3 can be powered

entirely by 3.3 volts, thus eliminating the need for a 5V power supply.

This terminal integrates dual transceiver, protocol logic, and a FIFO

memory for received messages in an extremely small, 0.88 inch

square 0.130” max height ceramic package. The gull wing package

with a “toe-to-toe” maximum dimension of 1.110 inches enables its

use in applications where PC board space is at a premium. The

SSRT Mark3 provides multi-protocol support of MIL-STD-1553A/B,

MIL-STD-1760, McAir, and STANAG-3838.

The SSRT Mark3's transceivers are completely monolithic, require

only a +3.3V supply (+5.0V available), and consume low power. The

internal architecture is identical to that of the original BU-61703/61705

Simple System RT (SSRT). There are versions of the Simple System

RT Mark3 available with transceivers trimmed for MIL-STD-1760

compliance, or compatible to McAir standards. The SSRT Mark3 can

operate with a choice of clock frequencies at 10, 12, 16, or 20 MHz.

The SSRT Mark3 incorporates a Built-In-Test (BIT). This BIT, which is

processed following power turn-on or after receipt of an Initiate Self-

Test Mode command, provides a comprehensive test of the SSRT

Mark3's encoders, decoders, protocol, transmitter watchdog timer,

and protocol section. The SSRT Mark3 also includes an auto-config-

uration feature.

The SSRT Mark3 is ideal for stores and other simple systems that do

not require a microprocessor. To streamline the interface to simple

systems, the SSRT Mark3 includes an internal 32-word FIFO for

received data words. This serves to ensure that only complete, con-

sistent blocks of validated data words are transferred to a system.

•

3.3V Logic Power

•

Meets 1553A/McAir Response Time

Requirements

•

Internal FIFO for Burst Mode Capability on

Receive Data

•

16-bit DMA Interface

•

Auto Configuration Capability

•

Comprehensive Built-In Self-Test

•

Direct Interface to Simple (Processorless)

Systems

•

Available with Full Military Temperature

Range and Screening

•

Selectable Input Clock:

10, 12, 16, or 20 MHz

FOR MORE INFORMATION CONTACT:

Technical Support:

1-800-DDC-5757 ext. 7771

Data Device Corporation

105 Wilbur Place

Bohemia, New York 11716

631-567-5600 Fax: 631-567-7358

www.ddc-web.com

2003 Data Device Corporation
