CTS21C12UF10%50VH datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> CTS21C12UF10%50VH

CTS21C12UF10%50VH: DescriptionTantalum Capacitor, Polarized, Tantalum, 50V, 10% +Tol, 10% -Tol, 12uF,; CategoryPassive components capacitor; File Size461KB，16 Pages; ManufacturerEXXELIA Group

Download Datasheet Parametric Compare View All

CTS21C12UF10%50VH Overview

Tantalum Capacitor, Polarized, Tantalum, 50V, 10% +Tol, 10% -Tol, 12uF,

CTS21C12UF10%50VH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	763849604
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	12 µF
Capacitor type	TANTALUM CAPACITOR
diameter	7.5 mm
dielectric materials	TANTALUM (DRY/SOLID)
ESR	210 mΩ
length	18.2 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Axial
method of packing	TR
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	50 V
series	CTS21

Preview

Download Datasheet

View All

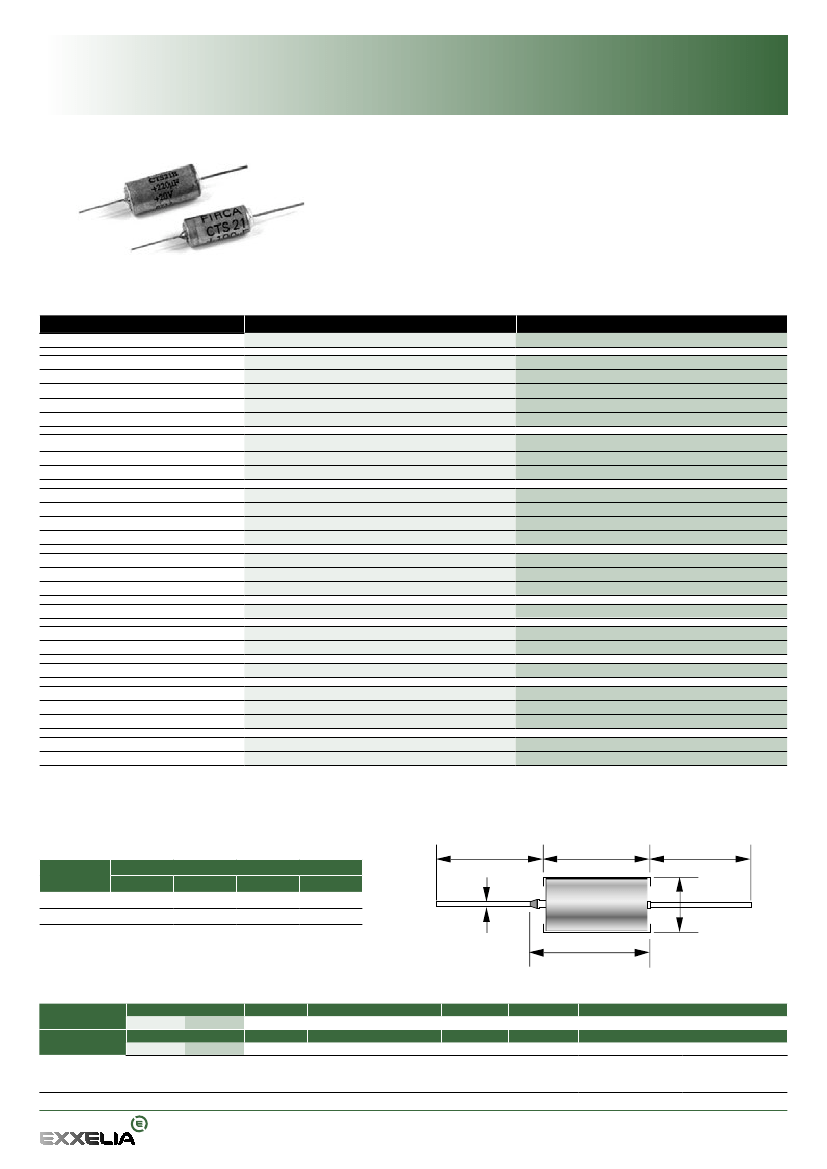

HERMETICALLY SEALED - METAL CASES

SOLID TANTALUM MnO

CAPACITORS

CTS21

CTS21E

Solid tantalum MnO

capacitors

Hermetically sealed metal cases

Axial leads

For power supplies and converters

Polarized

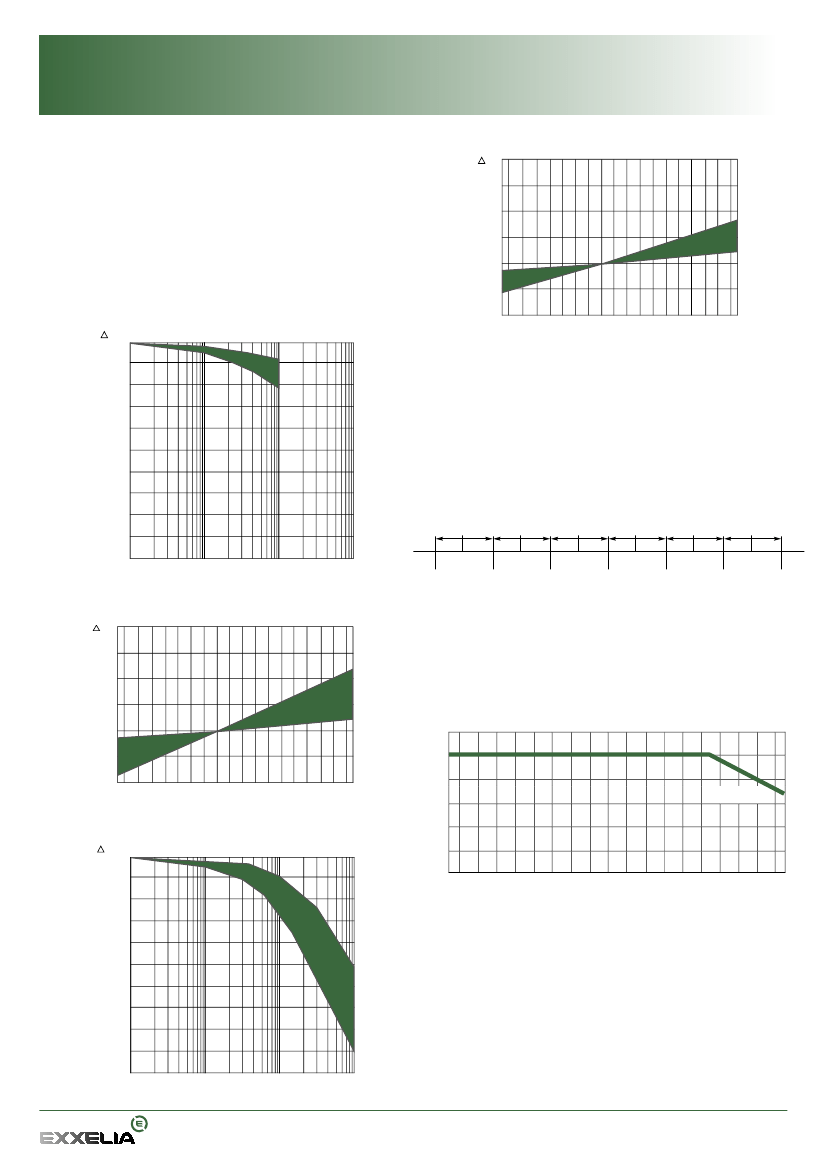

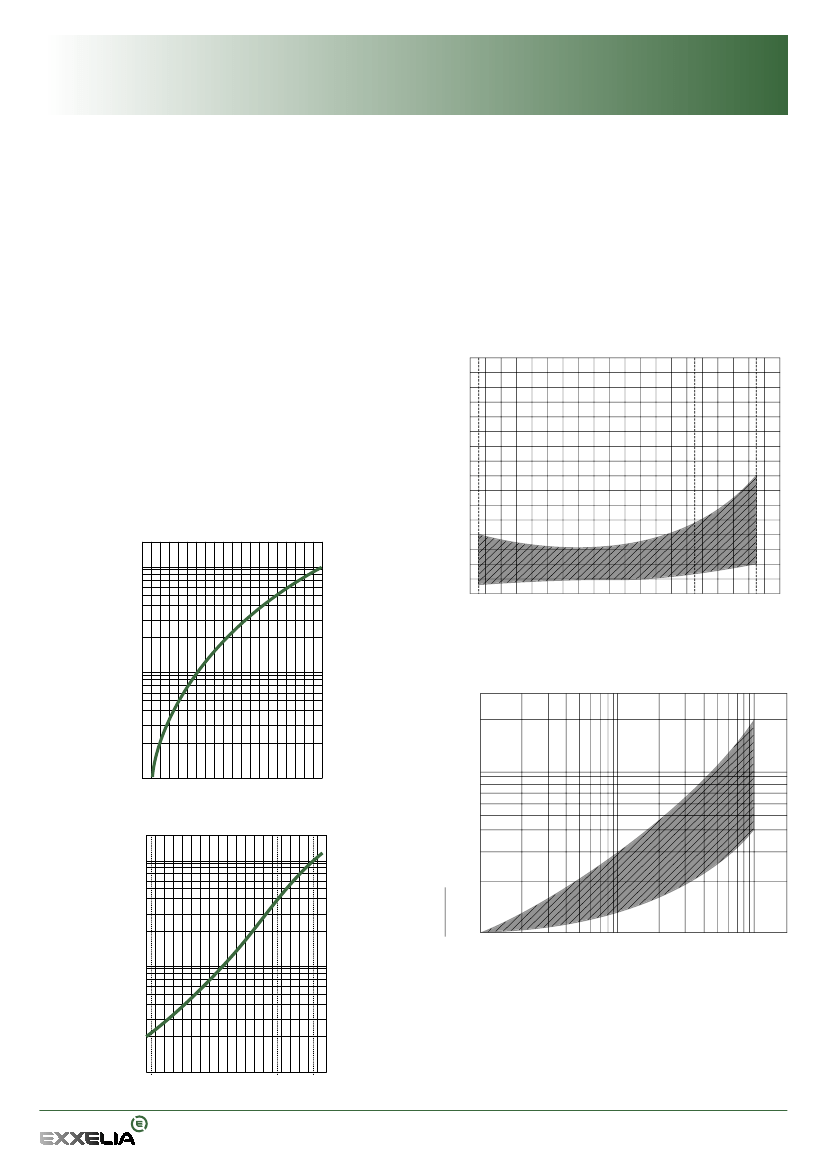

ELECTRICAL AND CLIMATIC CHARACTERISTICS

CTS21

Detail speciﬁcation

Operating temperature

Damp heat

Capacitance range

Tolerance

Voltage range

Max. capacitance change –55°C

Max. capacitance change +85°C

Max. capacitance change +125°C

Maximum DF at +20°C

Maximum DF at –55°C

Maximum DF at +85°C

Maximum DF at +125°C

Max. leakage current at +20°C

Max. leakage current at +85°C

Max. leakage current at +125°C

Max. ESR at 100kHz +20°C

Max. ripple current 1kHz +20°C

Max. ripple current 100kHz +20°C

High surge current

Max. Reverse voltage at +20°C

Max. Reverse voltage at +85°C

Max. Reverse voltage at +125°C

Max. surge voltage at +85°C

Max. surge voltage at +125°C

CECC 30201-040

–55°C +125°C

56 days

5,6µF



330µF

±10% - ±20%

6,3V



50V

–10%

+8%

+12%

see table

= 2 x lim20°C

= 1,5 x lim20°C

see table

0,1 x C

0,125 x C

see table

1 million cycles

15 % U

5 % U

1 % U

1,3 x U

CTS21E

CECC 30201-040

–55°C +125°C

56 days

22µF



1000µF

±10% - ±20%

6,3V



50V

–10%

+8%

+12%

see table

= 2 x lim20°C

= 1,5 x lim20°C

see table

0,1 x C

0,125 x C

see table

1 million cycles

15 % U

5 % U

1 % U

1,3 x U

DIMENSIONS

(mm)

Case code

Dimensions with insulating sleeve

Lt max

L max

D max

+10%/ – 0,05

20,5

18,2

7,5

0,6

24,0

20,8

9,1

0,6

30 min (*)

(*) 23mm for capacitors delivered on tape

MARKING, PACKAGING, CONSTRUCTION:

see general characteristics

HOW TO ORDER

Commercial

description

EXXELIA PN

Model

CTS21

CTS21E

Model code

TS21

TS21E

Case

Capacitance in µF

22µF

Capacitance code

226

Expressed in pF with 3 digits:

2 digits for the value

and the third for the multiplier

Tolerance in %

DC Voltage

20%

50V

Tolerance code DC Voltage code

050

= 10%

= 20%

Expressed in volt

with 3 digits

Termination (RoHS)

Commercial description

= SnPb (No RoHS)

= Sn100% (RoHS)

EXXELIA PN

= SnPb (No RoHS)

= Sn100% (RoHS)

www.exxelia.com

105

tantalum@exxelia.com

Page revised 09/18

CTS21C12UF10%50VH Related Products

	CTS21C12UF10%50VH	CTS21C100UF10%10VH	CTS21C10UF10%50V	CTS21C10UF10%50VH	CTS21C10UF20%50VH	CTS21C12UF10%50V
Description	Tantalum Capacitor, Polarized, Tantalum, 50V, 10% +Tol, 10% -Tol, 12uF,	Tantalum Capacitor, Polarized, Tantalum, 10V, 10% +Tol, 10% -Tol, 100uF,	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 10uF, Through Hole Mount, AXIAL LEADED	Tantalum Capacitor, Polarized, Tantalum, 50V, 10% +Tol, 10% -Tol, 10uF,	Tantalum Capacitor, Polarized, Tantalum, 50V, 20% +Tol, 20% -Tol, 10uF,	Tantalum Capacitor, Polarized, Tantalum (dry/solid), 50V, 10% +Tol, 10% -Tol, 12uF, Through Hole Mount, AXIAL LEADED
Is it Rohs certified?	incompatible	incompatible	conform to	incompatible	incompatible	conform to
Objectid	763849604	763849544	1635763164	763849568	763849571	1635763168
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
capacitance	12 µF	100 µF	10 µF	10 µF	10 µF	12 µF
Capacitor type	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR	TANTALUM CAPACITOR
diameter	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
dielectric materials	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)	TANTALUM (DRY/SOLID)
ESR	210 mΩ	75 mΩ	230 mΩ	230 mΩ	230 mΩ	210 mΩ
length	18.2 mm	18.2 mm	18.2 mm	18.2 mm	18.2 mm	18.2 mm
negative tolerance	10%	10%	10%	10%	20%	10%
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	Axial	Axial	Axial	Axial	Axial	Axial
method of packing	TR	TR	TR	TR	TR	TR
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	10%	10%	10%	10%	20%	10%
Rated (DC) voltage (URdc)	50 V	10 V	50 V	50 V	50 V	50 V
series	CTS21	CTS21	CTS21	CTS21	CTS21	CTS21
ECCN code	EAR99	EAR99	-	EAR99	EAR99	-
