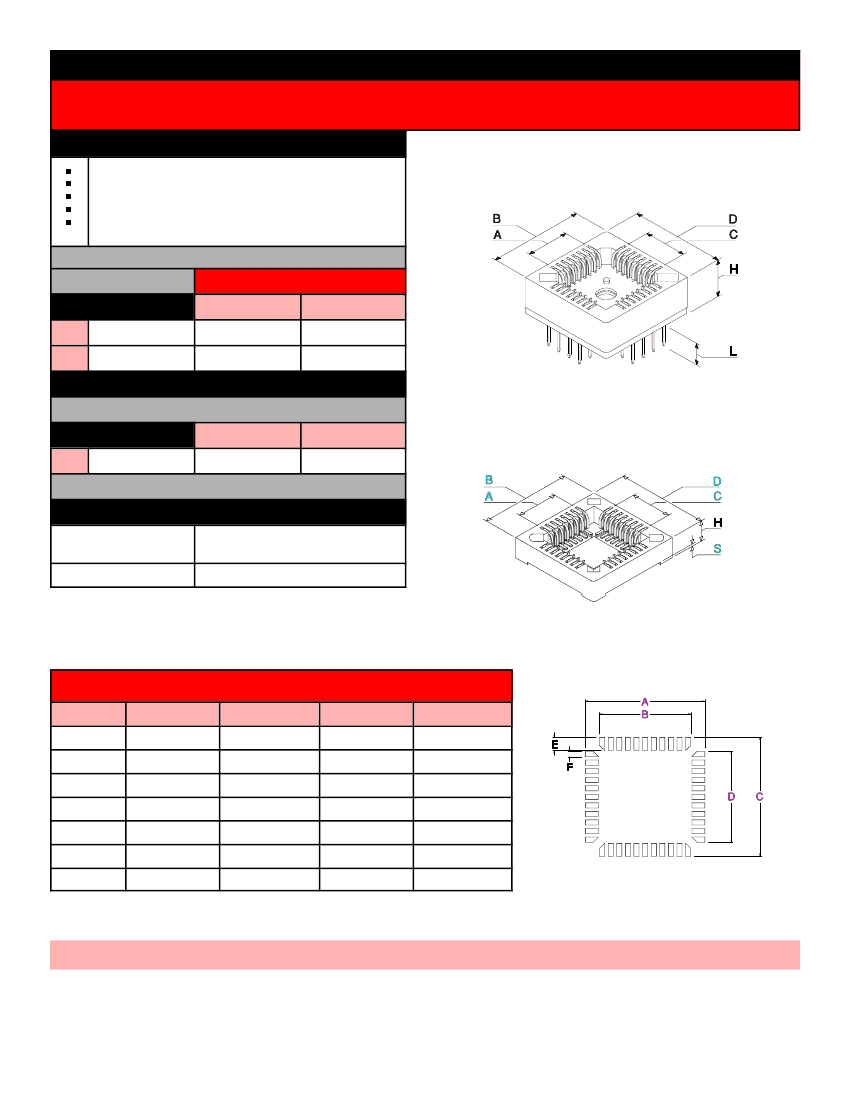

LCC SERIES
PAGE ONE OF THREE
&+,3&$55,(562&.(7
FEATURES
Conforms to JEDEC standards for leaded chip carriers
Leads are tin plated after stamping
Same footprint as most common chip carriers
Available in surface mount and thru-hole styles
High temperature material resists distortion during soldering
THRU-HOLE (20 to 84 Positions)
STANDARD PART DIMENSIONS
INSULATOR BODY
H
S
HEIGHT
STANDOFF
Thru-Hole
0.315" / 8,0mm
0.020" / 0,51mm
Surface Mount
0.177" / 4,5mm
0.020" / 0,51mm
SEE TABLE BELOW FOR OTHER DIMENSIONS
PC TAIL
L
LENGTH
Thru-Hole
0.130" / 3,30mm
Surface Mount
N/A
SURFACE MOUNT (20 to 84 Positions)
MATERIALS
INSULATOR BODY
CONTACT
High Temp Thermoplastic
(UL94V-O)
Phosphor Bronze
See SPECIFICATIONS and PERFORMANCE DATA for more information.
PART DIMENSIONS CHART
CONTACTS
20
28
32
44
52
68
84
A
0.20" / 5,08mm
0.30" / 7,62mm
0.30" / 7,62mm
0.50" / 12,70mm
0.60" / 15,24mm
0.80" / 20,32mm
1.00" / 25,40mm
B (±0.010")
0.62" / 15,75mm
0.72" / 18,29mm
0.72" / 18,29mm
0.92" / 23,37mm
1.02" / 25,91mm
1.22" / 31,00mm
1.42" / 36,07mm
C
0.20" / 5,08mm
0.30" /7,62mm
0.40" /10,16mm
0.50" /12,70mm
0.60" / 15,24mm
0.80" / 20,32mm
1.00" / 25,40mm
D (±0.010")
0.62" / 15,75mm
0.72" / 18,29mm
0.82" / 18,29mm
0.92" / 23,37mm
1.02" / 25,91mm
1.22" / 31,00mm
1.42" / 36,07mm
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
LCC SERIES
Adapts 0.050" (1,27mm) High Density Chip Carrier
To 0.100" (2,54mm) PCB Hole Spacing
PAGE TWO OF THREE
HOW TO ORDER CRANE’S LCC SERIES
STANDARD PART NUMBER
--
OPT.
PRODUCT SERIES
LCC
TOTAL NUMBER OF POSITIONS
Please reference table above for available sizes.
POSITIONS
20-84
PLATING (See Specifications At Bottom Of Page)
TIN
T
TAIL CONFIGURATION
SURFACE MOUNT (Omit for Thru-Hole)
S
ALIGNMENT PIN (OPTIONAL)
SURFACE MOUNT (Omit for Thru-Hole)
A
LCC-HT EXTRACTION TOOL
Crane’s LCC-HT extraction tool fits the slots in the insulator for
easy removal of the chip. The LCC-HT tool accommodates the
full range of chip carriers offered. Contact the factory for more
information.
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
CRANE CONNECTORS - PLATING SPECIFICATIONS
PLATING OPTIONS
CONTACT AREA
Inches (Millimeters)
15
” (0,,00038) Gold
100
” (0,00254) Tin / Lead
50
” (0,00127) Gold
30
” (0,00076) Gold
10
” (0,00025) Gold
3
” (0,00008) Gold
PC TAIL
Inches (Millimeters)
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
100
” (0,00254) Tin/Lead - Min
UNDERPLATE
Inches (Millimeters)
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
50
” (0,00127) Nickel - Min.
G
T
M
H
L
F
Selective
Tin / Lead
Selective
Selective
Selective
Selective
ISO9001
Crane Connectors
File No. A-3620
Registered by UL to ISO9001 under
UL’s accreditation by Raad voor de
Certificatie (RvC), the Dutch Council
for Certification.
SAMPLE HOTLINE: 1-800-676-7644
CRANE CONNECTORS
• 4700 Smith Road • Cincinnati, Ohio 45212 USA • E-mail Address: info@craneconnectors.com
Phone: (513) 631-4700 • Fax (513) 631-5700 • Toll Free US (800) 676-7644 • Canada (800) 420-7310
