ECS-.327-6-1210B-CP-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-.327-6-1210B-CP-TR

ECS-.327-6-1210B-CP-TR: DescriptionParallel - Fundamental Quartz Crystal, 0.032768MHz Nom, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size425KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ECS-.327-6-1210B-CP-TR Overview

Parallel - Fundamental Quartz Crystal, 0.032768MHz Nom, SMD, 4 PIN

ECS-.327-6-1210B-CP-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145154455527
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Ageing	3 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.0256%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	6 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
physical size	1.2mm x 1.0mm x 0.35mm
Series resistance	80000 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

ECX-1210B

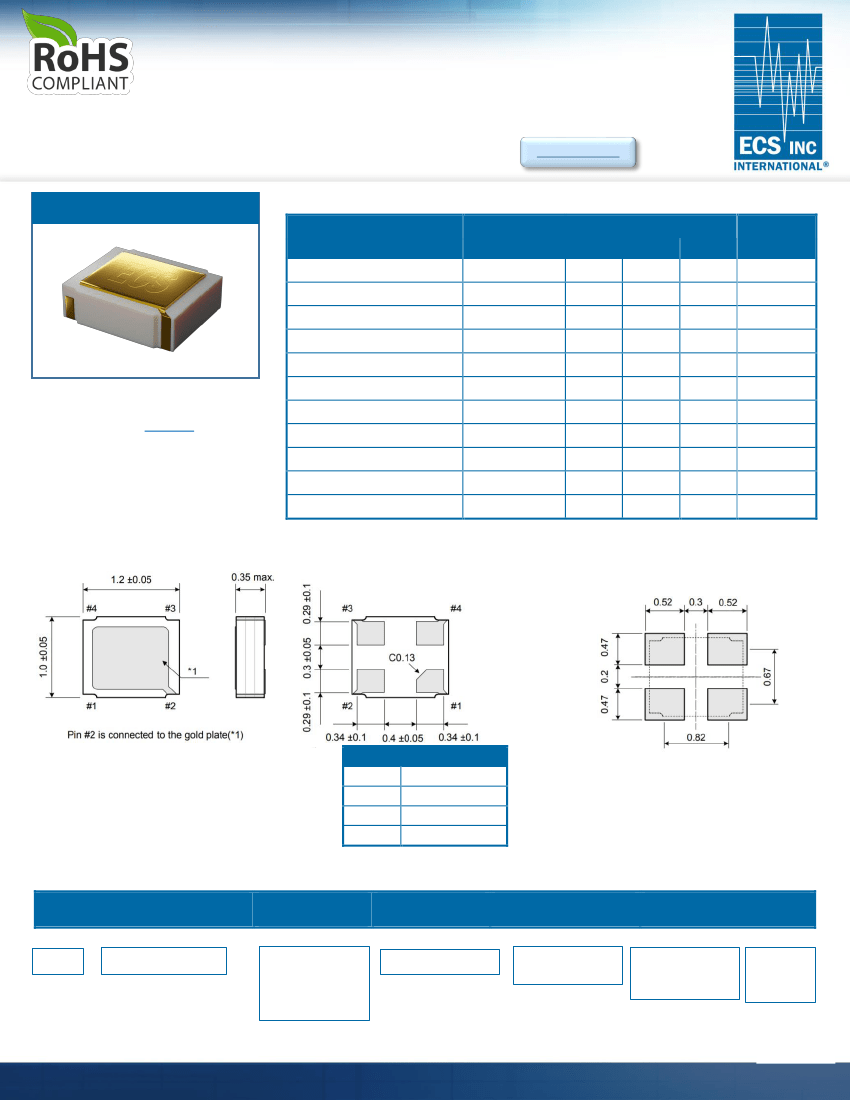

The ultra-miniature 4-Pad ECX-1210B is a very compact SMD

Tuning Fork Crystal. The 1.2 x 1.0 x 0.35 mm ceramic package is

the smallest in it’s class. This is very popular with small

wearables and medical devices.

ECX-1210B SMD CRYSTAL

Request a Sample

32.768 KHz

SMD Tuning Fork Crystal

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance*

Load Capacitance

Drive Level

Equivalent Series Resistance

Turnover Temperature

@ +25°C

CONDITIONS

MIN

ECX-1210B

TYP

MAX

UNITS

KHz

± 20

ppm

1.0

80K

μW

°C

ppm/°C²

±3

ppm

°C

+105

32.768

Specify in P/N

+20

-0.02

@ +25°C ±3°C

opr

stg

-40

+25

-0.03

1.5

12.5

•

Low Power RTC Applications

such as STM32

AN2867

•

1.2 x 1.0 mm Footprint

•

Extended Temp. Range

•

RoHS Compliant

•

Applications: Smartphones,

wireless modules, wearable

devices

+30

-0.04

Temperature Coefficient

Shunt Capacitance

Aging (First Year)

Operating Temperature*

Storage Temperature

Specify options in part number

DIMENSIONS (mm)

Figure 1)

Top, Side, and Bottom views

PAD CONNECTIONS

In/Out

Ground

Out/In

No Connect

Figure 2)

Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-.327-12.5-1210B-CN-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

12.5 = 12.5 pF

9 = 9 pF

7 = 7 pF

6 = 6 pF

PACKAGE

CUSTOM OPTIONS

Tolerance

Blank = ±20 ppm

* C = ± 10 ppm

PACKAGING

Operating Temp

M = -20 ~ +70°C

N = -40 ~ +85°C

P = -40 ~ +105°C

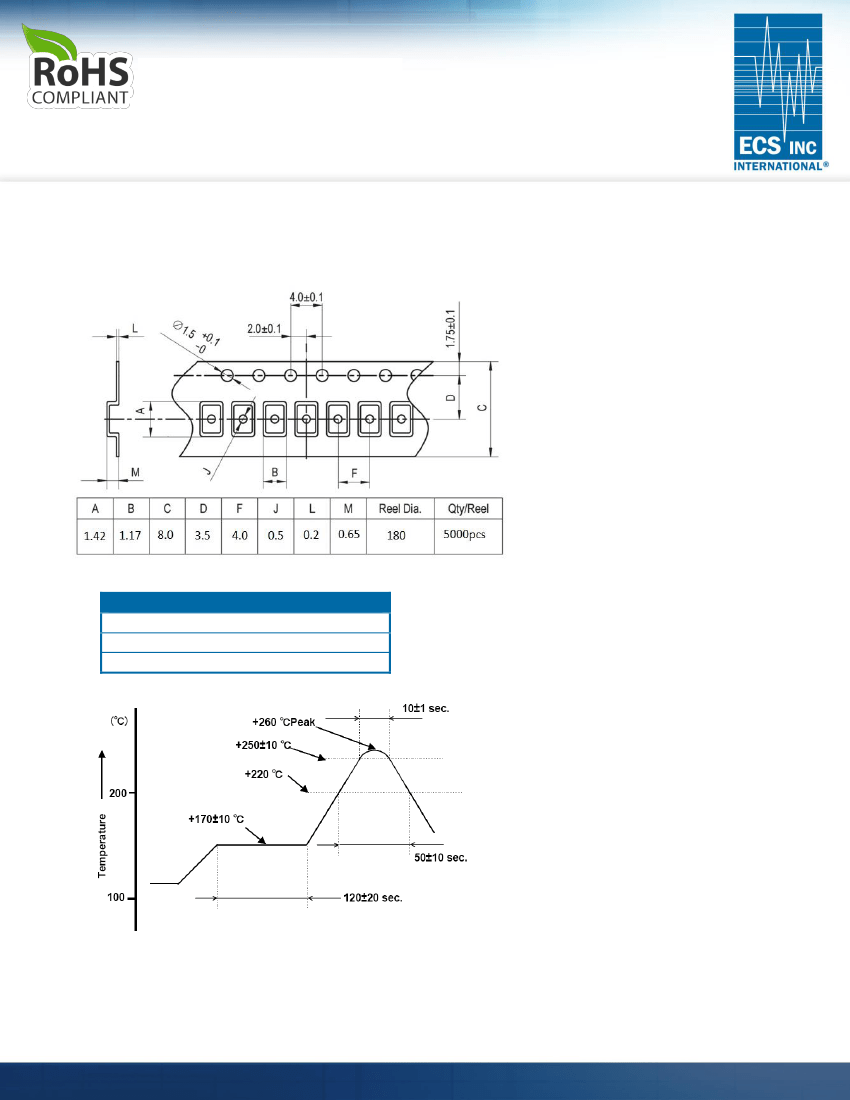

TR = Tape

& Reel

5K/Reel

ECS

.327 = 32.768 KHz

-1210B = ECX-1210B

* Contact ECS for availability

Rev.2020

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991

www.ecsxtal.com
