P82586-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P82586-8

P82586-8: DescriptionLAN Controller, MOS, PDIP48,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，37 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

P82586-8 Overview

LAN Controller, MOS, PDIP48,

P82586-8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	101328994
package instruction	DIP, DIP48,.6
Reach Compliance Code	compliant
JESD-30 code	R-PDIP-T48
JESD-609 code	e0
Number of terminals	48
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP48,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	550 mA
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN

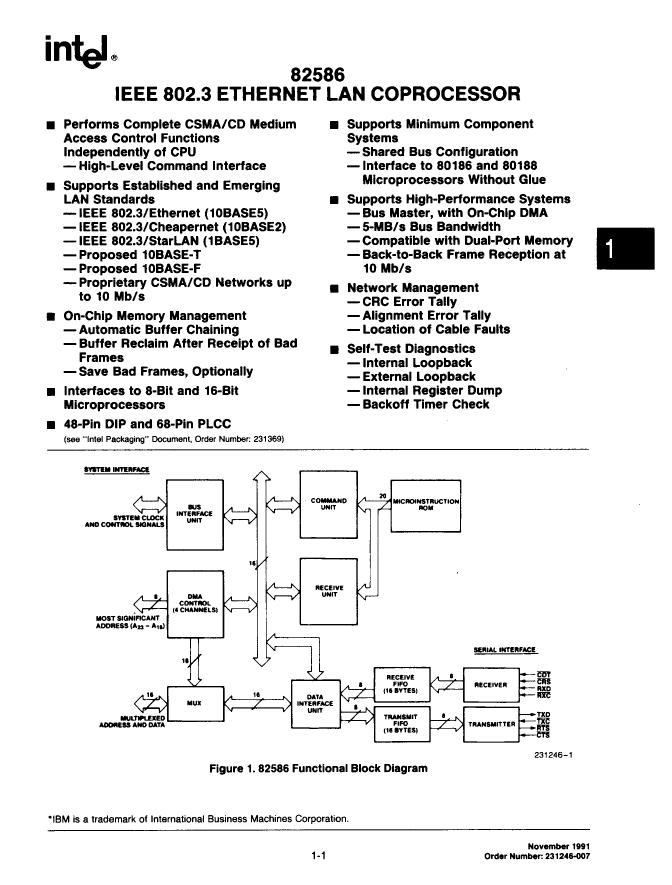

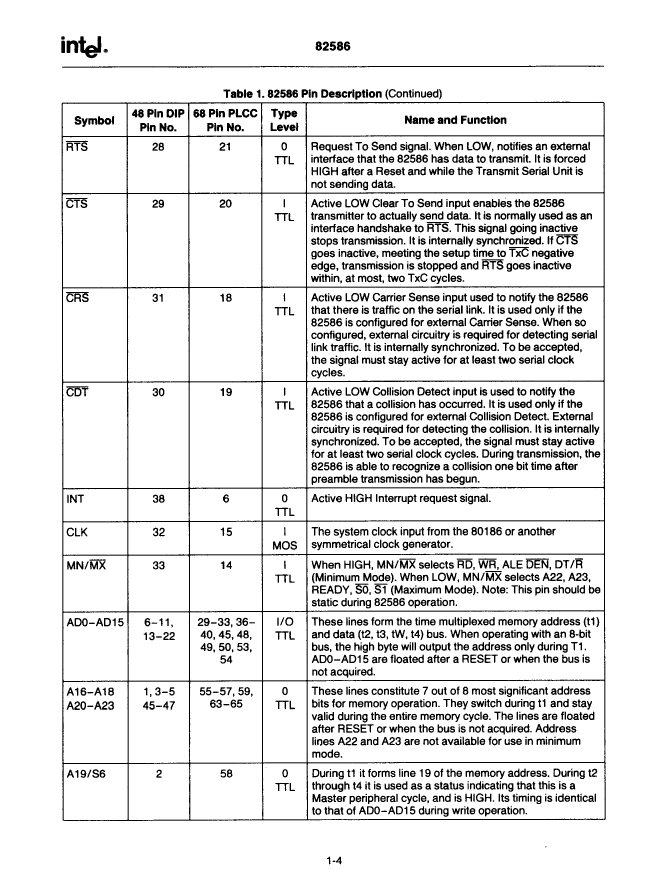

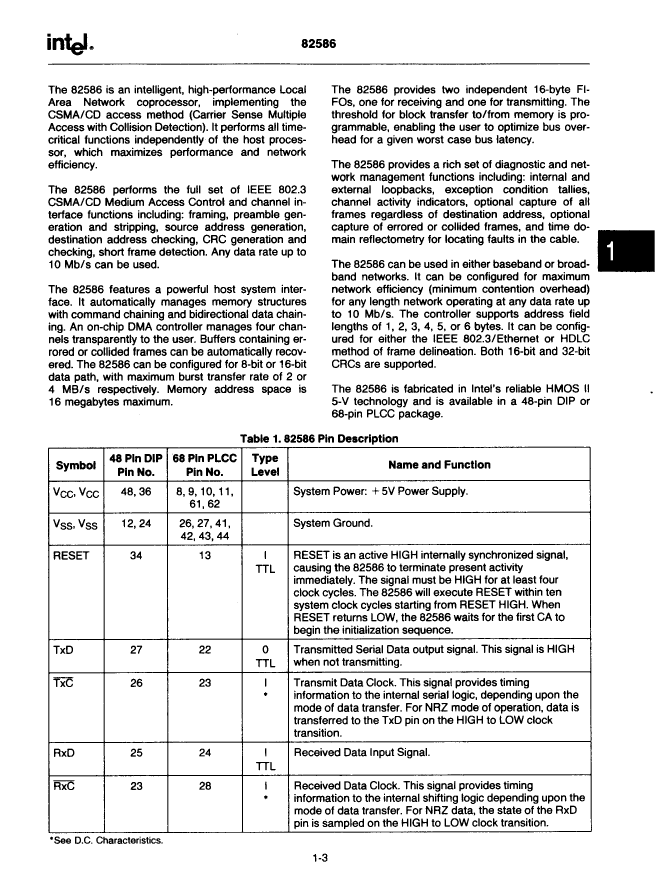

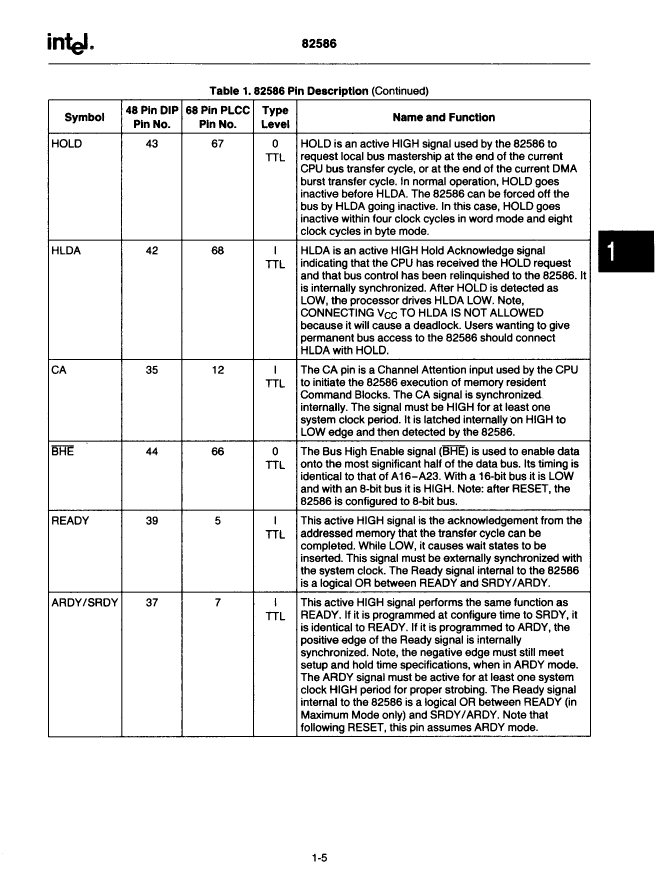

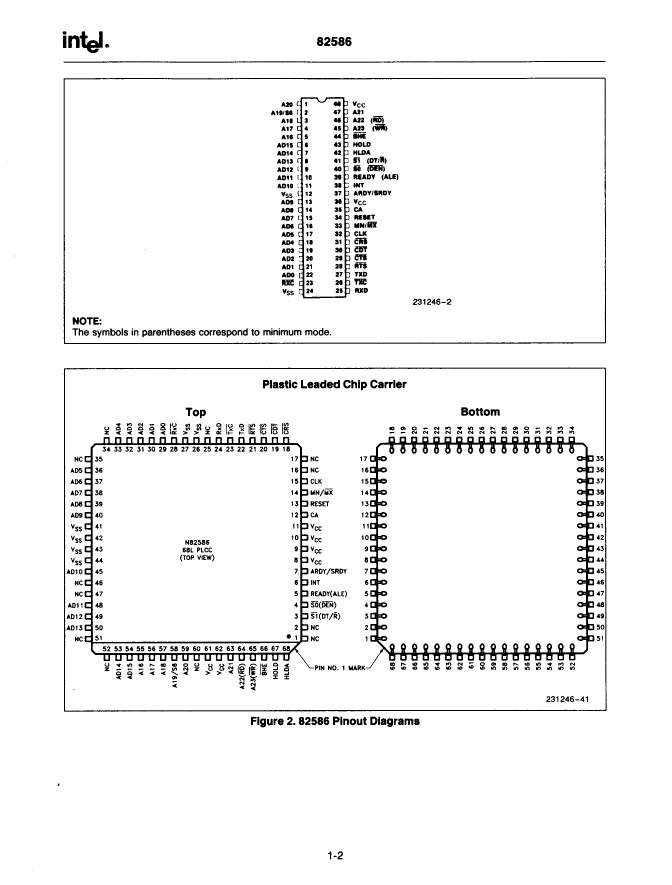

Preview

Download Datasheet

View All

P82586-8 Related Products

	P82586-8	QP82586-10	N82586-10/SZ004	C82586SZ468	C82586/S52069	P82586-6/SZ003	QC82586	P82586S52274	N82586-8
Description	LAN Controller, MOS, PDIP48,	LAN Controller, MOS, PDIP48,	LAN Controller, MOS,	LAN Controller, MOS, CDIP48	LAN Controller, MOS, CDIP48,	LAN Controller, MOS, PDIP48,	LAN Controller, MOS, CDIP48	LAN Controller, MOS, PDIP48	LAN Controller, MOS, PQCC68
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP48,.6	DIP, DIP48,.6	QCCJ, LDCC(UNSPEC)	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6	DIP, DIP48,.6	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	compliant	compli	compliant	unknown	compliant	compliant	compliant	unknown	unknown
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	DIP	DIP	DIP	DIP	DIP	QCCJ
Encapsulate equivalent code	DIP48,.6	DIP48,.6	LDCC(UNSPEC)	DIP48,.6	DIP48,.6	DIP48,.6	DIP48,.6	DIP48,.6	LDCC68,1.0SQ
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO	NO	NO	NO	YES
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
JESD-30 code	R-PDIP-T48	R-PDIP-T48	-	R-XDIP-T48	R-XDIP-T48	R-PDIP-T48	R-XDIP-T48	R-PDIP-T48	S-PQCC-J68
Number of terminals	48	48	-	48	48	48	48	48	68
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Maker	-	-	Intel	Intel	Intel	Intel	Intel	Intel	-
