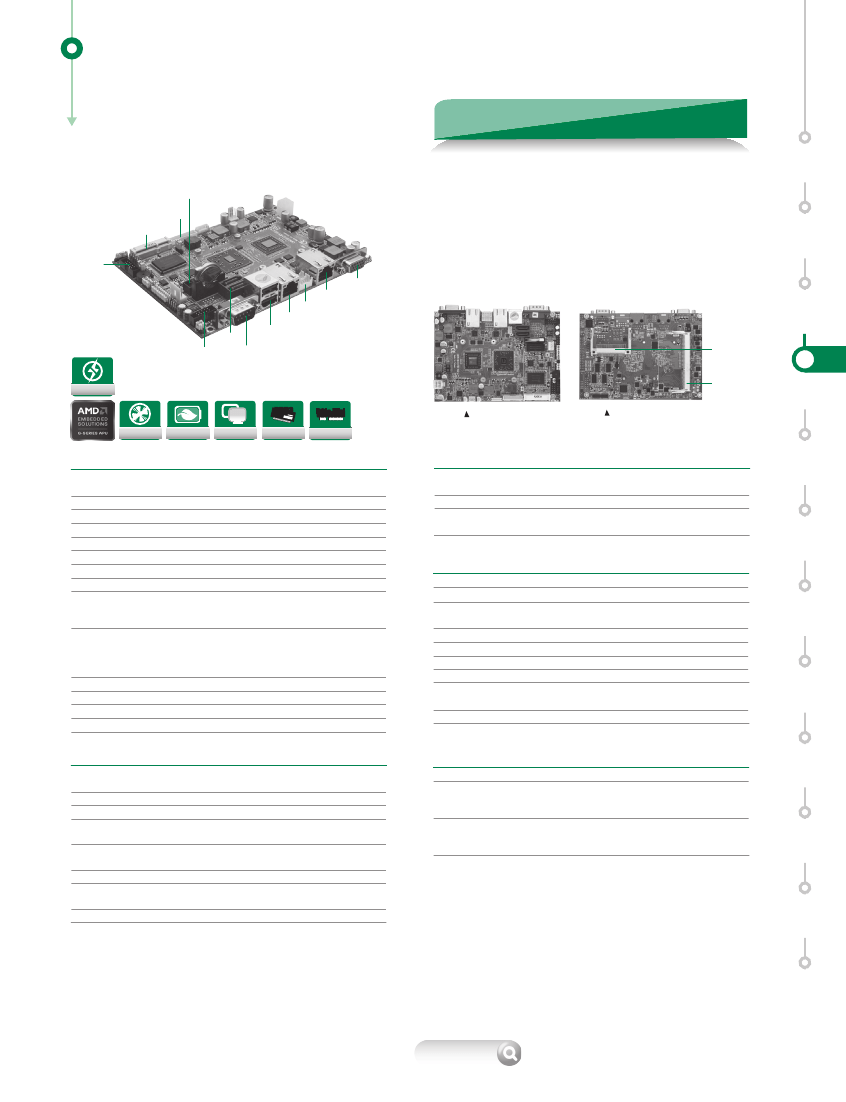

CAPA111
AMD G-Series APU 3.5" Embedded SBC
with AMD A50M, LVDS/VGA, Dual LANs
and Audio
COM 3/4
PCI Express
Mini Card
LVDS
Features
●
AMD G-Series APU T40R (1.0 GHz)/ T40E (1.0 GHz)
●
1 DDR3 SO-DIMM supports up to 4 GB memory capacity
●
2 SATA-600 supported
●
6 USB 2.0 ports
●
4 COM ports
●
DirectX 11 support
SBC
Services
and Solutions
Systems
on
Modules
COM 2
VGA
Ethernet 1
USB 2.0 3~6
Ethernet 2
USB 2.0 1/2
COM 1
CF type-II
DDR
SO-DIMM
DDR3
PCIe Mini
Embedded
SBCs
>EPIC
SATA
Audio
3
Embedded
SBCs
>3.5" Capa
AiRD
Top view
Rear view
Fanless
Low Power
DualView
DDR3
PCIe Mini
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery
Power Input
AMD G-Series APU T40R 1.0 GHz single core and T40E
1.0 GHz dual core onboard
1 x 204-pin SO-DIMM supports DDR3-1066 max. up to 4 GB
AMD A50M
AMI UEFI BIOS
1 x CompactFlash™
255 levels, 1~255 sec.
1 x PCI Express Mini Card V1.2
Lithium 3V/220mAH
2 x 2-pin connector
+12V DC-in only
AT Auto Power ON function supported
AMD G-Series APU T40E @ 1.0 GHz, 1 GB DDR3
Max. RMS: +12V @ 1.06A
AMD G-Series APU T40R @ 1.0 GHz, 1 GB DDR3
Max. RMS: +12V @ 0.96A
146 x 104mm
1.6 mm
0°C ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing
Display
Chipset
Memory Size
Display Interface
AMD G-Series APU integrated graphic engine
T40E/T40R - Radeon™ HD6250
Max. up to 2 GB in 4 GB DDR3 module
1 x VGA
1 x LVDS; 18/24-bit single/dual channel
Embedded
SBCs
>Nano-ITX
Packing List
Standard
Quick installation guide, user's manual/utility CD, cable
Cable
Part Number
59382620000E
59384500100E
59382631000E
Optional
59380000300E
Embedded
SBCs
>Pico-ITX
Power Requirement
Size
Board Thickness
Operating Temperature
Operation Humidity
Description
1 x COM w/ bracket P=2.0 mm, L=300 mm
Audio cable w/ bracket P=2.0 mm, L=450 mm
2 x USB 2.0 wafer cable w/ bracket 180 mm
Qty
1
1
1
Embedded
SBCs
>PC/104
Industrial
Mother-boards
2 x COM w/ bracket P=1.27 x 2.54 L=300 mm
I/O
MIO
SATA
Hardware Monitoring
Ethernet
Audio
USB
SMBus
Digital I/O
1 x RS-232/422/485 (COM 1); with +5V/+12V powered
3 x RS-232 (COM 2/3/4) ; with +5V/+12V powered
2 x SATA-600
Detect CPU/system temperature, voltage and fan speed
2 ports 10/100/1000 Mbps support Wake-on-LAN,
RPL/PXE Boot ROM with Realtek RTL8111E
HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out
with Realtek ALC662
6 x USB 2.0
System Management Bus for advanced monitoring/control
(optional)
8 channels IN/OUT programmable
Ordering Information
Standard
CAPA111VGGA-T40R
(P/N: E38E111101)
CAPA111VGGA-T40E
(P/N: E38E111100)
3.5" embedded SBC with AMD G-Series APU T40R 1.0 GHz,
A50M chipset, VGA/LVDS, 2 GbE LAN, 2 SATA-600, 4 COM,
6 USB and audio
3.5" embedded SBC with AMD G-Series APU T40E 1.0 GHz
and A50M chipset, VGA/LVDS, 2 GbE LAN, 2 SATA-600,
4 COM, 6 USB and audio
Slot CPU
Cards
ARM
Embedded
Boards
Accessories
Appendix
* All specifications and photos are subject to change without notice.
