PTMBL1B
Compact Thermal Printer
Contributing to set design flexibility with compact and lightweight mechanisms.
■
Typical Specifications
Items
Compatible models
Paper setting
Specifications
LTPZ245B FTP-628MCL101
Removable platen Easy loading
Line thermal
Horizontal
Printing method
Specifications
Items
Number of dots per line
Horizontal density
Density of dot
Dot pitch
Vertical density
Paper feed pitch
Printing speed
Printing width
Paper width
Paper thickness
Pulling force
Holding force
Sensor
Head temp. sensor
Lock sensor
Paper sensor
Operating voltage
Current consumption
Head and motor drive
Head logic
Head drive
Motor drive
Head logic
Temperature
Print quality
Operating
Storage
Head life
Abrasion resistance
Pulse activation

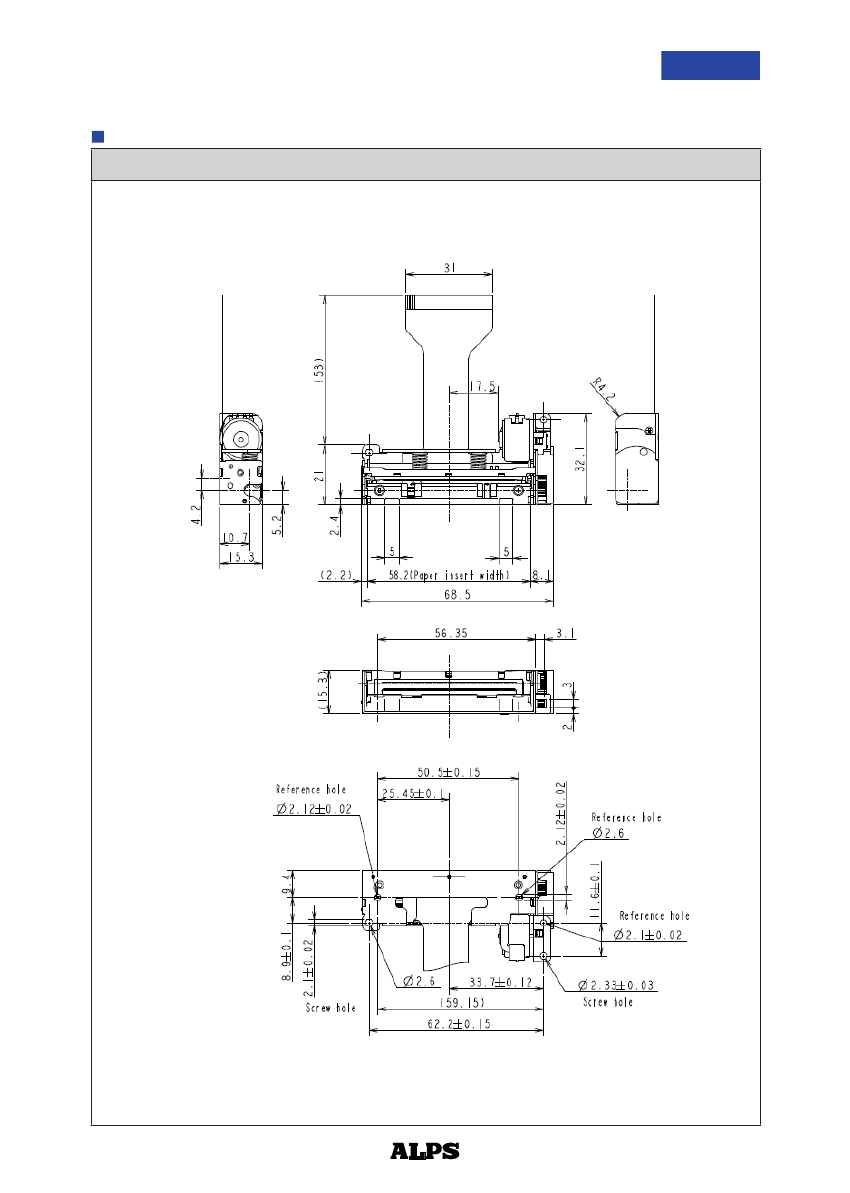

Mechanical
dimensions
Weight
Recommended paper
Platen cover
Release lever
(Head) Pressed by
FPC location
Motor diameter
Motor resistance
Head resistance
Width (W)
Depth (D)
Height (H)
Max speed
Specifications
384 dots
8 dots/mm
0.125mm
8 (16) dots/mm
0.125mm/2 steps
75mm/s
48mm
58mm+0-1
-
0.49N (50gf) or more
0.98N (100gf) or more
Thermistor
No
Reflective photo interrupter
4.2V to 8.5V
3V to 5.25V
3.3A/Head
300 (350) mA/Phase
36mA
0 to 50℃
-20 to 50℃
-25 to 70℃
50km
100Mil pulses
68.5
32.1
15.3
approx. 41g
Nippon Paper TF50KS-E2
No
No
Coil spring
Center
φ15
10Ω
176Ω
