300CMQ… SERIES
Green Products
300CMQ… SERIES SCHOTTKY RECTIFIER
Applications:
●
High current switching power supply
●
Plating power supply
●
Free-Wheeling diodes
●
Reverse battery protection
●
Converters
●
UPS System
●
Welding
Features:
•
•
•
•
•
•
•
•
•
150
℃
T
J
operation
Center tap module
High purity, high temperature epoxy encapsulation for enhanced
mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
300CMQ035
300CMQ035R

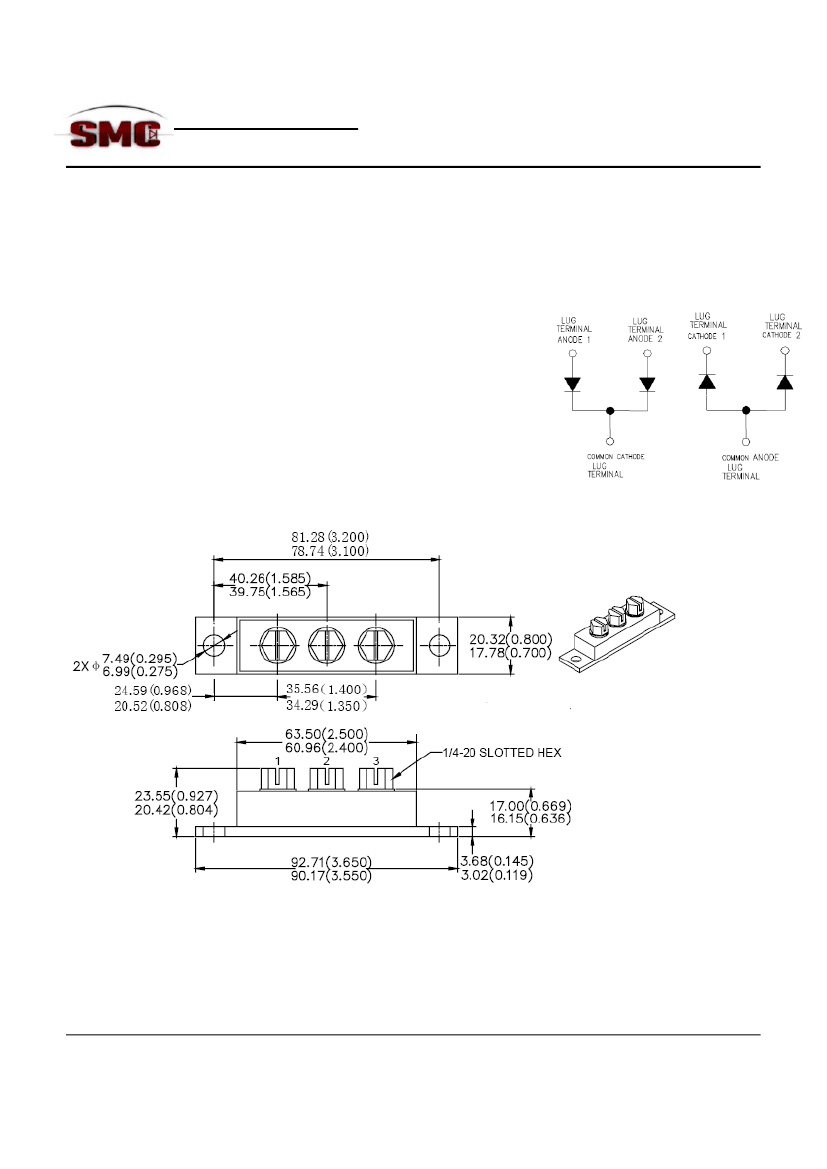

Mechanical Dimensions: In mm/Inches
Please Note: Suffix “R” Denotes For Reversed Polarity
PRM4 (Isolated)
MARKING,MOLDING RESIN
st
nd
Marking for 300CMQ035/R, 1 row SS YYWWL, 2 row 300CMQ035/300CMQ035R
Where YY is the manufacture year
WW is the manufacture week code
L is the wafer’s Lot Number
Molding resin
Epoxy resin UL:94V-0
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N1209, Rev. C
300CMQ… SERIES
Green Products
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Symbol
V
RWM
Condition
-
35
40
45
150
300
Max.
300CMQ035/R
300CMQ040/R
300CMQ045/R
per leg
per device
2880
150
30
Units
V
Max. Average Forward
Current
Max. Peak One Cycle Non-
Repetitive Surge Current
(per leg)
Non-Repetitive Avalanche
Energy(peg leg)
Repetitive Avalanche
Current(peg leg)
I
F(AV)
I
FSM
E
AS
I
AR
50% duty cycle @T
C
=104°C,
rectangular wave form
8.3 ms, half Sine pulse
T
J
=25℃,I
AS
=30A,L=0.67mH
Current decaying linearly to
zero in 1
μsec
Frequency
limited by T
J
max. V
A
=1.5×
V
R
typical
Condition
@ 150A, Pulse, T
J
= 25
°C
@ 300A, Pulse, T
J
= 25
°C
@ 150A, Pulse, T
J
= 125
°C
@ 300A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
T
J
= 25
°C
@V
R
= rated V
R
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz
Measured lead to lead 5 mm
from package body
-
A
A
mJ
A
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
(per leg) *
Symbol
V
F1
V
F2
Max. Reverse Current (per
leg) *
Max. Junction Capacitance
(per leg)
Typical Series Inductance
(per leg)
Max. Voltage Rate of Change
*
Pulse Width < 300µs, Duty Cycle <2%
I
R1
I
R2
C
T
L
S
dv/dt
Max.
0.61
0.77
0.62
0.75
15
750
7750
6.0
10,000
Units
V
V
mA
mA
pF
nH
V/μs
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
(per leg)
Maximum Thermal
Resistance Junction to Case
(per package)
Typical Thermal Resistance,
case to Heat Sink
Mounting Torque
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
R
θJC
R
θcs
Condition
-
-
DC operation
DC operation
Mounting surface, smooth
and greased
-
-
Specification
-55 to +150
-55 to +150
0.50
0.25
0.10
24(min)
35(max)
35(min)
46(max)
Units
°C
°C
°C/W
°C/W
°C/W
T
M
wt
Mounting
Torque
Terminal
Torque
79
PRM4 Isolated
Kg-cm
g
•
