LQG15HH1N6S02B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> LQG15HH1N6S02B

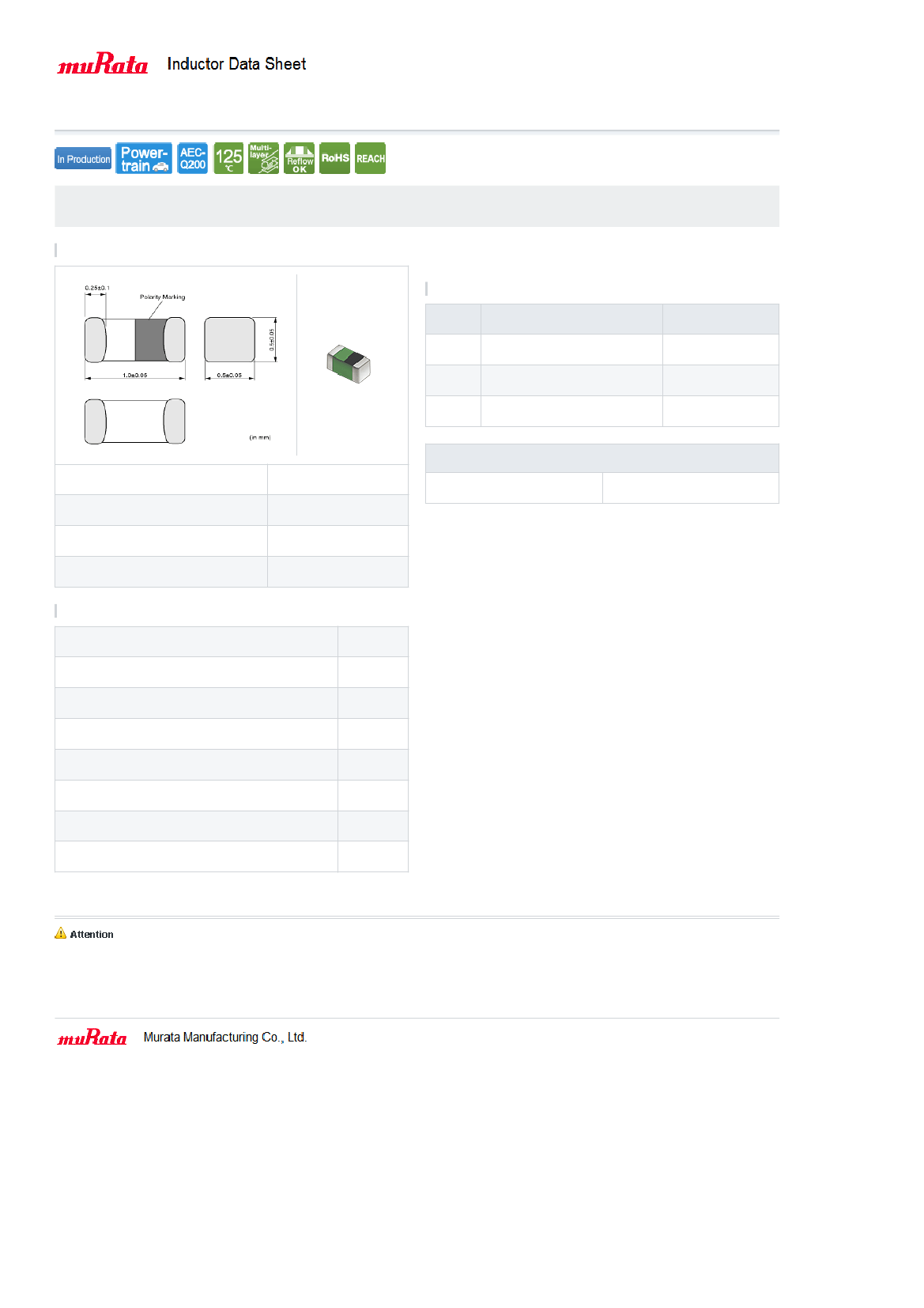

LQG15HH1N6S02B: Description1 ELEMENT, 0.0016 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size66KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LQG15HH1N6S02B Overview

1 ELEMENT, 0.0016 uH, GENERAL PURPOSE INDUCTOR, SMD

LQG15HH1N6S02B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Murata
package instruction	CHIP, 0402
Reach Compliance Code	compli
ECCN code	EAR99
Samacsys Descripti	LQG15HH_02 Series Inductor 1.6nH ±0.3nH 0402 (1005)
DC Resistance	0.07 Ω
Nominal inductance(L)	0.0016 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	1 mm
Package form	SMT
Package width	0.5 mm
Minimum quality factor (at nominal inductance)	8
Maximum rated current	1 A
Guideline	AEC-Q200
self resonant frequency	6000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	INDUCTANCE TOLERANCE IS 0.3 NANO HENRY
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	18.75%

Preview

Download Datasheet

View All

LQG15HH1N6S02#

# indicates a package specification code.

< List of part numbers with package codes >

LQG15HH1N6S02D , LQG15HH1N6S02J , LQG15HH1N6S02B

Shape

References

Packaging

code

Specifications

φ180mm Paper taping

φ330mm Paper taping

Packing in bulk

Minimum quantity

10000

50000

1000

Mass (Typ.)

L size

W size

T size

Size code in inch (mm)

1.0 ±0.05mm

0.5 ±0.05mm

0402 (1005)

1 piece

0.001g

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Q (min.)

Q test frequency

Self resonance frequency (min.)

Operating temperature range (Self-temperature rise is not included)

1.6nH ±0.3nH

100MHz

1000mA

0.07Ω

100MHz

6000MHz

-55∼125℃

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2016/04/21

LQG15HH1N6S02B Related Products

	LQG15HH1N6S02B	LQG15HH1N6S02	LQG15HH1N6S02J
Description	1 ELEMENT, 0.0016 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.0016 uH, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.0016 uH, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	-	Lead free
Is it Rohs certified?	conform to	-	conform to
Maker	Murata	-	Murata
package instruction	CHIP, 0402	-	CHIP, 0402
Reach Compliance Code	compli	-	compli
ECCN code	EAR99	-	EAR99
Samacsys Descripti	LQG15HH_02 Series Inductor 1.6nH ±0.3nH 0402 (1005)	-	LQG15HH_02 Series Inductor 1.6nH ±0.3nH 0402 (1005)
DC Resistance	0.07 Ω	-	0.07 Ω
Nominal inductance(L)	0.0016 µH	-	0.0016 µH
Inductor Applications	RF INDUCTOR	-	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	-	e3
Number of functions	1	-	1
Number of terminals	2	-	2
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Package height	0.5 mm	-	0.5 mm
Package length	1 mm	-	1 mm
Package form	SMT	-	SMT
Package width	0.5 mm	-	0.5 mm
Minimum quality factor (at nominal inductance)	8	-	8
Maximum rated current	1 A	-	1 A
Guideline	AEC-Q200	-	AEC-Q200
self resonant frequency	6000 MHz	-	6000 MHz
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
shield	NO	-	NO
special characteristics	INDUCTANCE TOLERANCE IS 0.3 NANO HENRY	-	INDUCTANCE TOLERANCE IS 0.3 NANO HENRY
surface mount	YES	-	YES
Terminal surface	Tin (Sn)	-	Tin (Sn)
Terminal location	DUAL ENDED	-	DUAL ENDED
Terminal shape	WRAPAROUND	-	WRAPAROUND
Test frequency	100 MHz	-	100 MHz
Tolerance	18.75%	-	18.75%
