The amplifier requires a minimal number of off-chip
components resulting in a highly integrated low cost
solution.
N/C
N/C
V
DD
1B
I
ADJ
B
Pin Configuration
3
Pin No.
1
2
3
4
5
6
7
8
9
10
11
Pin Name
N/C
RF
IN
A
N/C
N/C
RF
IN
B
N/C
I
ADJ
B
V
DD
1B
TiltB
V
AGC
N/C
InterB
R
FB
B
RF
OUT
B
I
ADJ
2B
I
ADJ
2A
RF
OUT
A
R
FB
A
InterA
N/C
V
DD_AGC
TiltA
V
DD
1A
I
ADJ
A
Paddle
Description
No Connection
RF Input A
No Connection
No Connection
RF Input B
No Connection
Current Adjust
+ 5V Bias Voltage
Tilt Connection
AGC Control Voltage: 0V to 3V
No Connection
Interstage Pin
Feedback Resistor
RF Output B
Current Adjust
Current Adjust
RF Output A
Feedback Resistor
Interstage Pin
No Connection
+ 5V AGC Bias Voltage
Tilt Connection
+ 5V Bias Voltage
Current Adjust
RF & DC Ground
Ordering Information
1,2
Part Number
MAAM-010333-TR1000
MAAM-010333-TR3000
MAAM-010333-001SMB
Package
1000 Piece Reel
3000 Piece Reel
Sample Test Board
1. Reference Application Note M513 for reel size information.
2. All sample boards include 5 loose parts. Sample board is
supplied with mounted photodiode.
12
13
14
15
16
17
18
19
20
21
22
23
* Restrictions on Hazardous Substances,
European Union Directive 2002/95/EC.
24
25
3. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
1
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
TILTB
InterB
V
AGC
MAAM-010333
Optical Node RF Amplifier
50 - 1200 MHz
Electrical Specifications
4
: V
DD
= +5 Volts, T
A
= 25°C, Z
0
= 75
Ω
Parameter
Trans-Impedance Gain
Gain Tilt
7
Gain Flatness
8
Gain Control Range
AGC Control Voltage Range
EIN
6
5,6
Rev. V4
Test Conditions
50 MHz
870 MHZ
1 GHz
V
AGC
= +3 V
V
AGC
= 0 V
V
AGC
: 0 to 3 V
50 MHz
870 MHZ
1 GHz
50 MHz - 1 GHz
50 MHz - 1 GHz
50 MHz - 1 GHz
79 channels
79 channels
V
DD
= +5 V
Units
dB
dB
dB
dB
V
pA/rtHz
dB
dBc
dBc
mA
Min.
26.5
31.0
31.5
-
Typ.
29.0
33.0
34.0
5
7
0.7
29.0
26.0
27.0
-
3.2
18
-68
-65
260
Max.
30.5
35.0
35.5
-
25.5
23.0
24.0
0
-
-
-
-
225
32.0
29.0
30.0
+3
-
-
-
-
295
Output Return Loss
CTB
9
CSO
9
Current
4.
5.
6.
7.
8.
9.
Performance is specified using JDSU Photodiode EPM-745 or equivalent (EPM705) and output balun # MABA-009210-CT1760.
Gain = 20*log(Z
T
/75), where Z
T
= Transconductance (Ω)
Specified at maximum gain (V
AGC
= +3.0 V)
Positive gain slope from 50 MHz to 1 GHz (tilt of best fit straight line from 50 MHz to 1 GHz)
Flatness defined as peak-peak deviation from best fit straight line.
Optical Input Power Range: -8 dBm to +2 dBm; 79 channels
OMI = 3.5%; Pout = +24 dBmV/ch at 550 MHz
P
OUT
= +22.5 dBmV/ch at 55 MHz; +24 dBmV/ch at 550 MHz
Absolute Maximum Ratings
10,11,12
Parameter
Input Power
Operating Voltage
AGC Voltage
Operating Temperature
Junction Temperature
13
Storage Temperature
Absolute Maximum
+3 dBm Optical
+15 volts
+5 volts
-40°C to +85°C
+150°C
-65°C to +150°C
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
2
10. Exceeding any one or combination of these limits may cause
permanent damage to this device.
11. M/A-COM Technology Solutions does not recommend
sustained operation near these survivability limits.
12. Operating at nominal conditions with T
J
≤
+150°C will ensure
MTTF > 1 x 10
6
hours.
13. Junction Temperature (T
J
) = T
C
+
Өjc
* ((V * I) - (P
OUT
- P
IN
))
Typical thermal resistance (Өjc) = 19° C/W.
a) For T
C
= 25°C,
T
J
= 53 °C @ 5 V, 295 mA
b) For T
C
= 85°C,
T
J
= 112 °C @ 5 V, 295 mA
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAAM-010333
Optical Node RF Amplifier
50 - 1200 MHz
Recommended PCB
Rev. V4

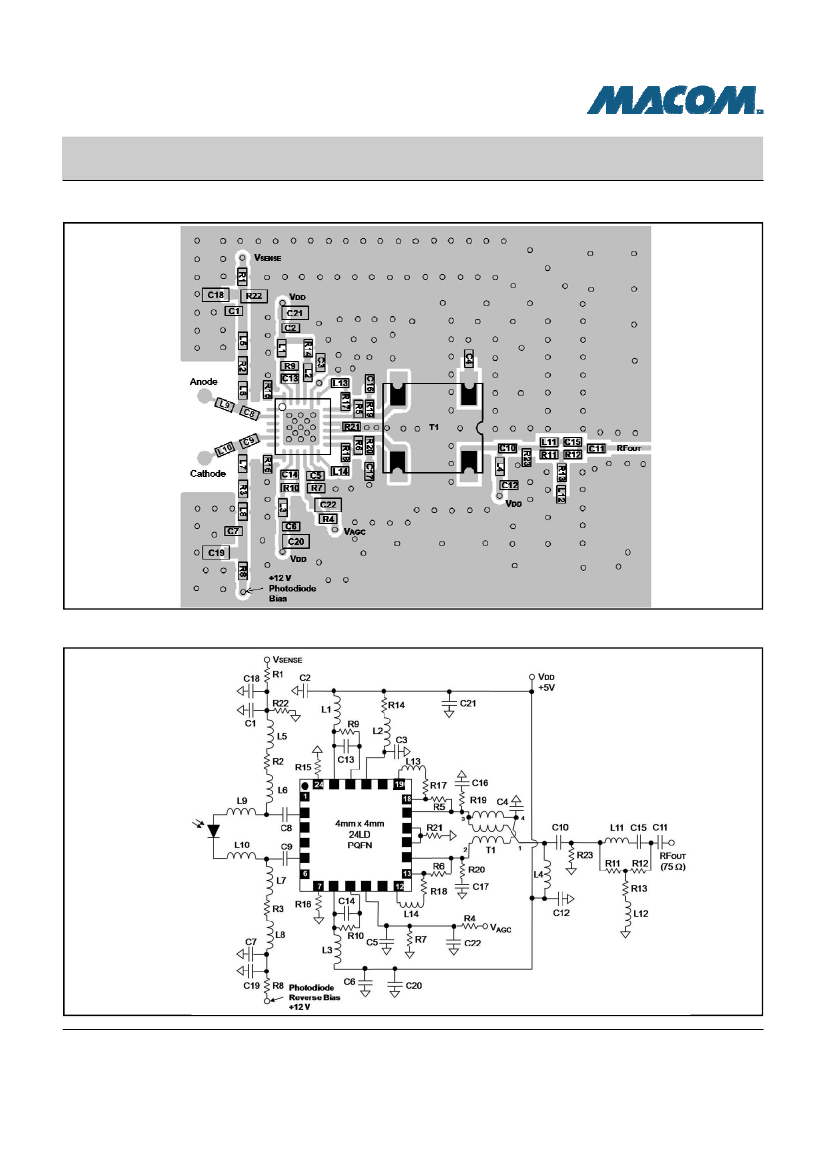

Schematic Including Off-Chip Components
3
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
MAAM-010333
Optical Node RF Amplifier
50 - 1200 MHz
Parts List for 1GHz Matching
Component
L1 - L8
L11
L12
L13 - L14
C1 - C12
C13 - C14
C15
C16 - C17
C18 - C22
R1 - R4
R5 - R7
R8
R9 - R10
R11 - R12
R13
R14
R15 - R16
R17 - R18
R19 - R20
R21
R22
R23
T1
15
14
Rev. V4
Application Schematic
Case Style
0402
0402
0402
0402
0402
0402
0402
0402
0603
0402
0402
0402
0402
0402
0402
0402
0402
0402
0402
0402
0603
0402
SM-118A
Bulk Optic
MAAM-010333
Value
Ferrite Bead
12 nH w/w
8.2 nH
33 nH
10 nH
10 nF
2.7 pF
3.0 pF
2.0 pF
1.0 µF
1 kΩ
680
Ω
200
Ω
120
Ω
39
Ω
82
Ω
180
Ω
12
Ω
47
Ω
62
Ω
6.2
Ω
1 kΩ
470
Ω
1:1 Balun
PCB Land Pattern
14. Ferrite Bead from Murata, part number BLM15HD182SN
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
Balun
L9 - L10
0402
Gain
Control
RF
Output
MAAM-010333
Optical Node RF Amplifier
50 - 1200 MHz
Typical Performance Curves with 1GHz
Matching:
+25°C, VAGC = 0V to 3V in 0.2 V Steps
Receiver Gain vs. Frequency to 1.1 GHz
35
30
25
20
15
10
5
0
-5
0
200
400
600
800
1000
Vagc=0.0V
Vagc=0.2V
Vagc=0.4V
Vagc=0.6V
Vagc=0.8V
Vagc=1.0V
Vagc=1.2V
Vagc=1.4V
Vagc=1.6V
Vagc=1.8V
Vagc=2.0V
Vagc=2.2V
Rev. V4
Vagc=2.4V
Vagc=2.6V
Vagc=2.8V
Vagc=3.0V
Receiver Gain vs. Frequency to 1.6 GHz
35
30
25
20
15
10
5
0
-5
0
200
400
600
800
1000
1200
1400
1600
Frequency (MHz)
Frequency (MHz)
Output Return Loss vs. Frequency
-10
-15
-20
-25
-30
-35
-40
0
200
400
600
800
1000
Frequency (MHz)
5
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make changes to the product(s) or information contained herein without notice.
Visit www.macom.com for additional data sheets and product information.
