NSVS1147 Apr. 2013
NewJRC SAW FILTER
NSVS1147
Application
426.5MHz Low Power Transceiver
Electrical Specification: (Table 1)
The device characteristics are measured in the circuit shown in Fig.1.
Table 1. Electrical Specifications
Item
Nominal Center Frequency (f0)
3dB Band Width
Insertion Loss
f0±150kHz
Ripple
f0±150kHz
429½430MHz
Attenuation
850½860MHz
1280½1290MHz
Spec.
Typ.
426.5MHz
-
f0±250kHz
-
4.5dB
4.0dB
1.5dB
1.0dB
50dB
60dB
60dB
70dB
60dB
70dB
(Operating Temperature Range : -10½+50℃)
Maximum Rating: (Table 2)
Table 2. Maximum Ratings
Item
Maximum Input Power
Operating Temperature Range
Storage Temperature
Rating
+5dBm
-10~+50ºC
-40~+85ºC

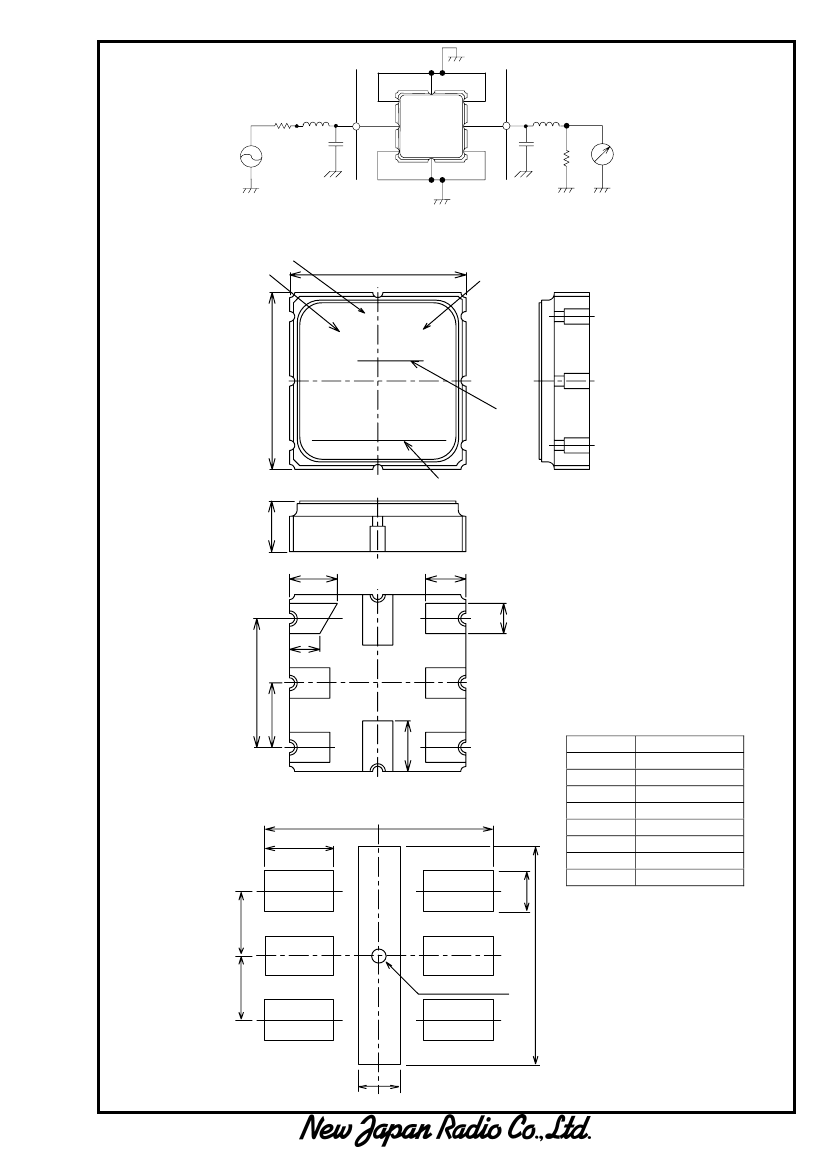

Mechanical Specifications: (Fig.2)
Package is designed as small as 3.5x3.5x1.0 [mm
3
] for SMD (Surface Mount Device) type.
Notice:
This part is electrostatic discharge sensitive and may be damaged by improper handling.
http://www.njr.co.jp/products/device/index.html
http://www.njr.com/products/device/index.html
(Japanese)
(English)
NSVS1147 Apr. 2013
Notice
1. Use this component within operating temperature range. It might not be
satisfied with electrical specification without operating temperature range.
When it is used less than -10ºC or more than +50ºC, it might be a cause of
degradation or destruction of the component. Even if it endures during a short
time, it causes degradation of qualification.
2. When soldering iron is used, solder with the temperature at the tip of
soldering iron: 350ºC max., the time of soldering: 10 seconds max., the power
of soldering iron: 30W max..
3. Notice that the allowed time of soldering with soldering iron is accumulated
time, when soldering is repeated.
4. As rapid temperature change for cleaning after reflow soldering might be a
cause of destruction clean this component after confirming that temperature
of this component goes down to room temperature.
5. Confirm that there are not any influences for qualification to this component in
mounting on PCB when this component is cleaned.
6. As it might be a cause of degradation of destruction to apply static electricity
to this component, do not apply static electricity or excessive voltage while
assembling and measuring. And do not transport this component with bare
hand.
7. As it might be a cause of degradation or destruction to apply D.C. voltage
between each terminal, apply D.C. voltage 7.5V max. in actual circuit.
Note
1. This specification specifies the quality of this component as a single unit. Make
sure that this component is evaluated and confirmed against this specification
when it is mounted to your products.
2. The information contained herein may be changed without prior notice. It is
therefore advisable to contact New Japan Radio Company before proceeding
with the design of equipment incorporating this product.
3.
The products are designed to be used with ordinary electronic equipment (data
and communications equipment, office equipment, audio-video equipment,
measuring instruments, etc). New Japan Radio Company does not assume
any liability for the case using the products with the application required high
reliability or safety extremely (such as space equipment, sea-bottom
equipment, medical equipment etc). When intending to use any our product
please contact our sales representatives in advance.
