CERAMIC CHIP INDUCTORS
1. PART NO. EXPRESSION :
C0BQ SERIES
C 0 B Q - 1 N 0 S -
□□
(a)
(b)
(c)
(d)
(e)
(a) Series code
(b) Category Code
(c) Inductance code : 1N0 = 1.0nH
(d) Inductance Tolerence : B=± 0.1nH ,C=± 0.2nH ,S=± 0.3nH , H=± 3% ,J=± 5%
(e) 10: Standard
11 ~ 99 : Internal control number

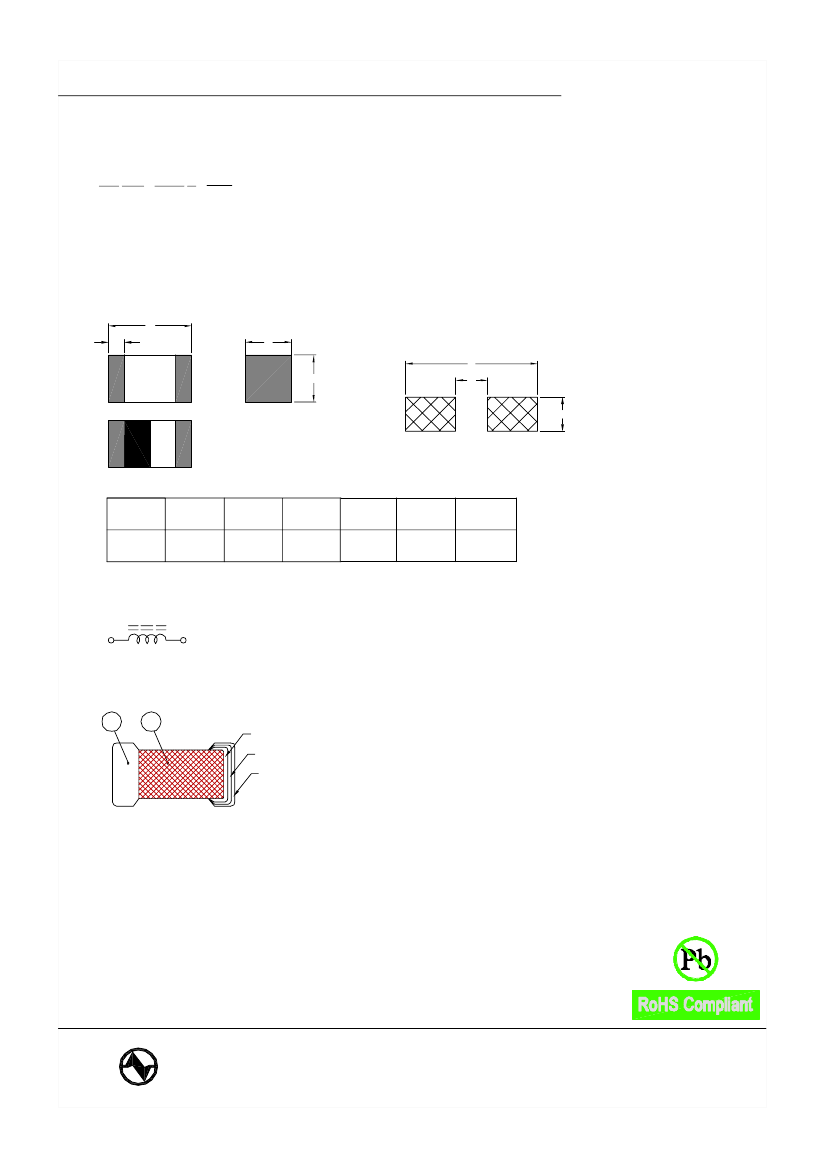

2. C0NFIGURATION & DIMENSIONS :
A
D
B
L
C
G
Recommended PC Board Pattern
Unit:m/m
A
0.60± 0.03
B
C
D
L
0.80 Ref.
G
0.20~0.30
H
0.25~0.40
0.30± 0.03 0.30± 0.03 0.10± 0.05
3. SCHEMATIC :
4. MATERIALS :
b
a
Ag(100%)
Ni(100%)-1.5um(min.)
Sn(100%)-3.0um(min.)
(a) Body : ceramic ( Pb Free )
(b) Termination : ( Pb Free )
5. GENERAL SPECIFICATION :
a) Operating temp. : -40° C to +105° C ( including self-temperature. rise )
b) Storage condition (component in its packaging)
i) Temperature : -10 to 40° C
ii) Humidity : 60%
NOTE : Specifications subject to change without notice. Please check our website for latest information.
H
28.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 1
CERAMIC CHIP INDUCTORS
6. ELECTRICAL CHARACTERISTICS :
Inductance
(nH)
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
3.9
Test
Tolerance Frequency
( MHz )
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
B,C,S
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
Q
Min
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
Q(Typ.) Frequency(Hz)
500M
>35
>35
>35
>35
>35
>35
35
32
29
27
25
25
25
24
24
24
24
24
22
22
21
20
20
20
20
20
20
20
20
20
19
19
19
19
800M
>47
>47
>47
>47
>47
>47
47
43
39
36
33
32
32
31
31
31
31
31
28
29
27
26
26
26
26
26
26
26
25
25
25
25
25
25
1.8G
>75
>75
>75
>75
>75
>75
75
70
63
59
54
52
51
50
50
50
50
49
45
46
44
41
41
41
41
41
40
40
40
40
40
40
39
39
2.0G
>80
>80
>80
>80
>80
>80
80
74
67
62
57
54
53
53
53
53
53
52
48
49
46
43
43
43
43
43
43
43
43
42
42
42
41
41
2.4G
>88
>88
>88
>88
>88
>88
88
82
75
69
63
61
59
58
58
58
58
58
53
54
51
48
47
47
47
47
47
47
47
46
46
46
45
45
C0BQ SERIES
Rated Current
(mA) Max
900
900
900
900
850
850
800
760
640
600
510
680
640
620
600
550
500
460
430
415
405
400
500
480
460
450
415
415
410
405
400
370
355
350
Part Number
C0BQ-0N6□-10
C0BQ-0N7□-10
C0BQ-0N8□-10
C0BQ-0N9□-10
C0BQ-1N0□-10
C0BQ-1N1□-10
C0BQ-1N2□-10
C0BQ-1N3□-10
C0BQ-1N4□-10
C0BQ-1N5□-10
C0BQ-1N6□-10
C0BQ-1N7□-10
C0BQ-1N8□-10
C0BQ-1N9□-10
C0BQ-2N0□-10
C0BQ-2N1□-10
C0BQ-2N2□-10
C0BQ-2N3□-10
C0BQ-2N4□-10
C0BQ-2N5□-10
C0BQ-2N6□-10
C0BQ-2N7□-10
C0BQ-2N8□-10
C0BQ-2N9□-10
C0BQ-3N0□-10
C0BQ-3N1□-10
C0BQ-3N2□-10
C0BQ-3N3□-10
C0BQ-3N4□-10
C0BQ-3N5□-10
C0BQ-3N6□-10
C0BQ-3N7□-10
C0BQ-3N8□-10
C0BQ-3N9□-10
DCR
(
Ω
)
Max.
0.06
0.06
0.06
0.06
0.07
0.07
0.08
0.09
0.12
0.15
0.19
0.11
0.12
0.13
0.15
0.16
0.20
0.24
0.26
0.28
0.30
0.32
0.20
0.22
0.24
0.25
0.28
0.28
0.29
0.30
0.32
0.36
0.40
0.41
SRF
( MHz )
Min.
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
9500
9300
9100
8900
8700
8600
8400
8200
8100
8000
7800
7700
NOTE : Specifications subject to change without notice. Please check our website for latest information.
28.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 2
CERAMIC CHIP INDUCTORS
C0BQ SERIES
Part Number
C0BQ-4N0□-10
C0BQ-4N1□-10
C0BQ-4N2□-10
C0BQ-4N3□-10
C0BQ-4N6□-10
C0BQ-4N7□-10
C0BQ-5N0□-10
C0BQ-5N1□-10
C0BQ-5N4□-10
C0BQ-5N6□-10
C0BQ-5N9□-10
C0BQ-6N2□-10
C0BQ-6N5□-10
C0BQ-6N8□-10
C0BQ-7N1□-10
C0BQ-7N5□-10
C0BQ-7N8□-10
C0BQ-8N2□-10
C0BQ-8N5□-10
C0BQ-9N1□-10
C0BQ-9N4□-10
C0BQ-10N□-10
C0BQ-12N□-10
C0BQ-15N□-10
C0BQ-18N□-10
C0BQ-22N□-10
Inductance
(nH)
4.0
4.1
4.2
4.3
4.6
4.7
5.0
5.1
5.4
5.6
5.9
6.2
6.5
6.8
7.1
7.5
7.8
8.2
8.5
9.1
9.4
10.0
12.0
15.0
18.0
22.0
Test
Tolerance Frequency
( MHz )
B,C,S
B,C,S
B,C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
C,S
H,J
H,J
H,J
H,J
H,J
H,J
H,J
H,J
H,J
H,J
H,J
H,J
H,J
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
Q
Min
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
14
Q(Typ.) Frequency(Hz)
500M
18
19
18
18
18
19
19
19
18
18
18
18
18
18
18
18
17
17
17
17
17
17
17
17
16
16
800M
25
25
24
24
24
24
24
24
24
24
23
23
23
23
23
23
22
22
22
22
22
22
22
21
21
21
1.8G
39
39
37
37
37
37
37
37
36
36
35
35
35
35
35
34
33
33
33
33
33
33
31
28
26
26
2.0G
41
41
39
39
39
39
39
39
38
37
36
36
36
36
36
35
34
34
34
34
34
34
32
29
26
26
2.4G
45
45
43
43
42
42
42
42
42
41
39
39
39
39
39
38
36
36
36
36
36
36
33
29
25
24
Rated Current
(mA) Max
335
320
320
320
360
350
335
330
315
325
325
305
305
305
305
305
310
290
290
270
250
230
230
220
205
190
DCR
(
Ω
)
Max.
0.44
0.48
0.48
0.48
0.39
0.42
0.44
0.45
0.49
0.47
0.47
0.52
0.52
0.55
0.55
0.55
0.51
0.57
0.57
0.65
0.73
0.85
0.85
0.89
1.05
1.29
SRF
( MHz )
Min.
7600
7500
7300
6500
6500
6400
6200
6100
5900
5500
5500
5100
5100
4800
4800
4600
4600
4300
4300
4000
4000
3800
3300
2600
2300
1900
□
: Inductance Tolerence : B=±0.1nH ,C=±0.2nH ,S=±0.3nH , H=±3% ,J=±5%
NOTE : Specifications subject to change without notice. Please check our website for latest information.
28.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 3
CERAMIC CHIP INDUCTORS

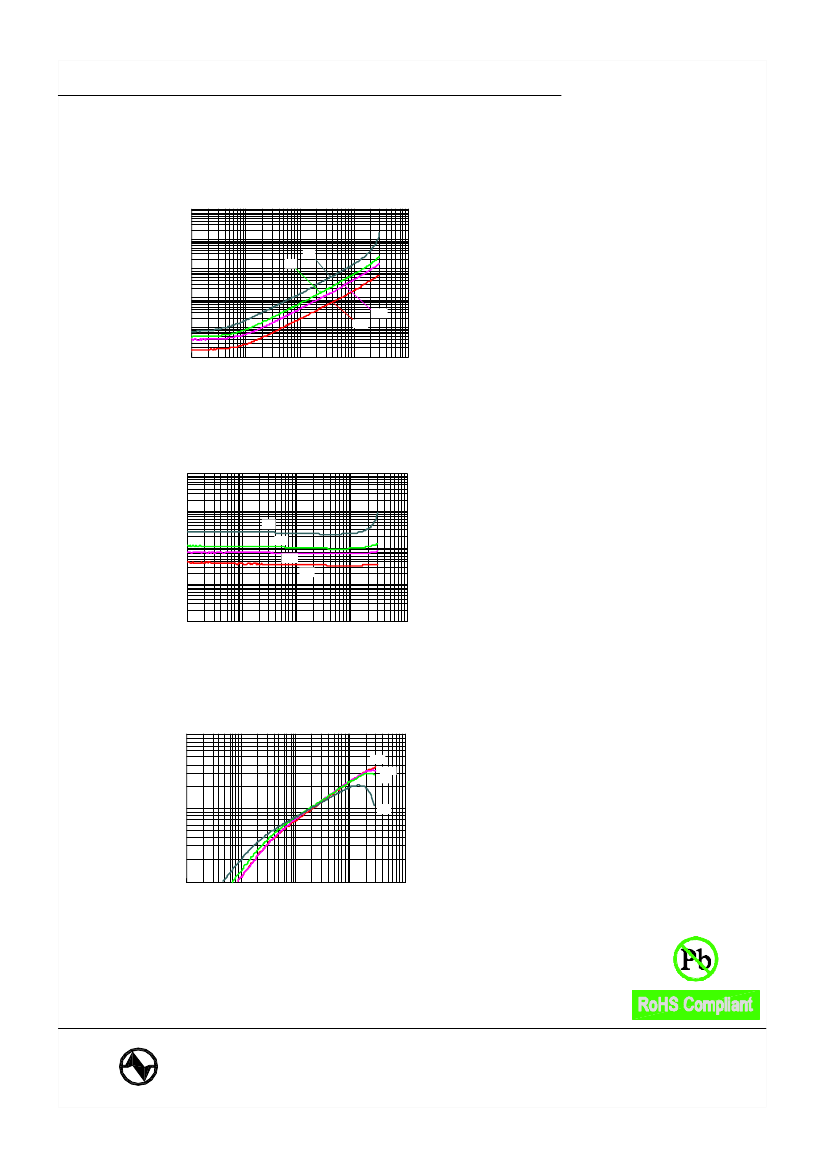

7. CHARACTERISTICS CURVES :
Impedance v.s. Frequency Characteristics
10000
C0BQ SERIES
HCI0603BQ Z
V
S
Fr eq.
1000
IMPEDANCE(Ohm)
22n
100
10n
10
6.8n
1
3.3n
0. 1
1
10
100
1000
10000
FREQ
UENCY(MHz)
Inductance v.s. Frequency Characteristics
1000
HCI0603BQ L
VS
Freq.
INDUCTANCE(nH)
100
22n
10n
10
6.8n
3.3n
1
0. 1
1
10
100
1 000
10000
FREQUENCY(MHz)
Q v.s. Frequency Characteristics
HCI0603BQ Q
VS
Freq.
100
3.3n
6.8n
10n
Q
10
22n
1
1
10
100
1000
10000
FREQUENCY(M
Hz)
NOTE : Specifications subject to change without notice. Please check our website for latest information.
28.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 4
CERAMIC CHIP INDUCTORS
8. SOLDERING AND MOUNTING :
8-1. Recommended PC Board Pattern
L
G
C0BQ SERIES
Unit:m/m
L
H
G
0.20~0.30
H
0.25~0.40
0.80
PC board should be designed so that products are not sufficient
under mechanical stress as warping the board.
Products shall be positioned in the sideway direction against
the mechanical stress to prevent failure.
8-2. Soldering
Mildly activated rosin fluxes are preferred. The terminations are suitable for re-flow soldering systems. If hand soldering
cannot be avoided, the preferred technique is the utilization of hot air soldering tools.
Note.
If wave soldering is used ,there will be some risk.
Re-flow soldering temperatures below 240 degrees, there will be non-wetting risk
8-2.1 Lead Free Solder Re-flow :
Recommended temperature profiles for re-flow soldering in Figure 1.
8-2.2 Soldering Iron (Figure 2) :
Products attachment with soldering iron is discouraged due to the inherent process Control limitations. In the event that
a soldering iron must be employed the following precautions are reCommended.
Note :
d) 1.0mm tip diameter (max)
a) Preheat circuit and products to 150° C.
e) Use a 20 watt soldering iron with tip diameter of 1.0mm
b) 350° C tip temperature (max)
f) Limit soldering time to 4 ~ 5 secs.
c) Never Contact the ceramic with the iron tip
Preheating
Soldering
20~40s
TEMPERATURE ° C
Natural
Cooling
Preheating
Soldering
Within 4~5s
TEMPERATURE ° C
Natural
Cooling
TP(26 0° C/40 s max.)
217
200
150
60~180s
25
4 80s max.
350
150
60~150s
Time(sec.)
O ve r 1min.
Figure 1. Re-flow Soldering : 3 times max
G rad ual
C0oling
Figure 2. Hand Soldering : 1 times max
NOTE : Specifications subject to change without notice. Please check our website for latest information.
28.01.2015
SUPERWORLD ELECTRONICS (S) PTE LTD
PG. 5
