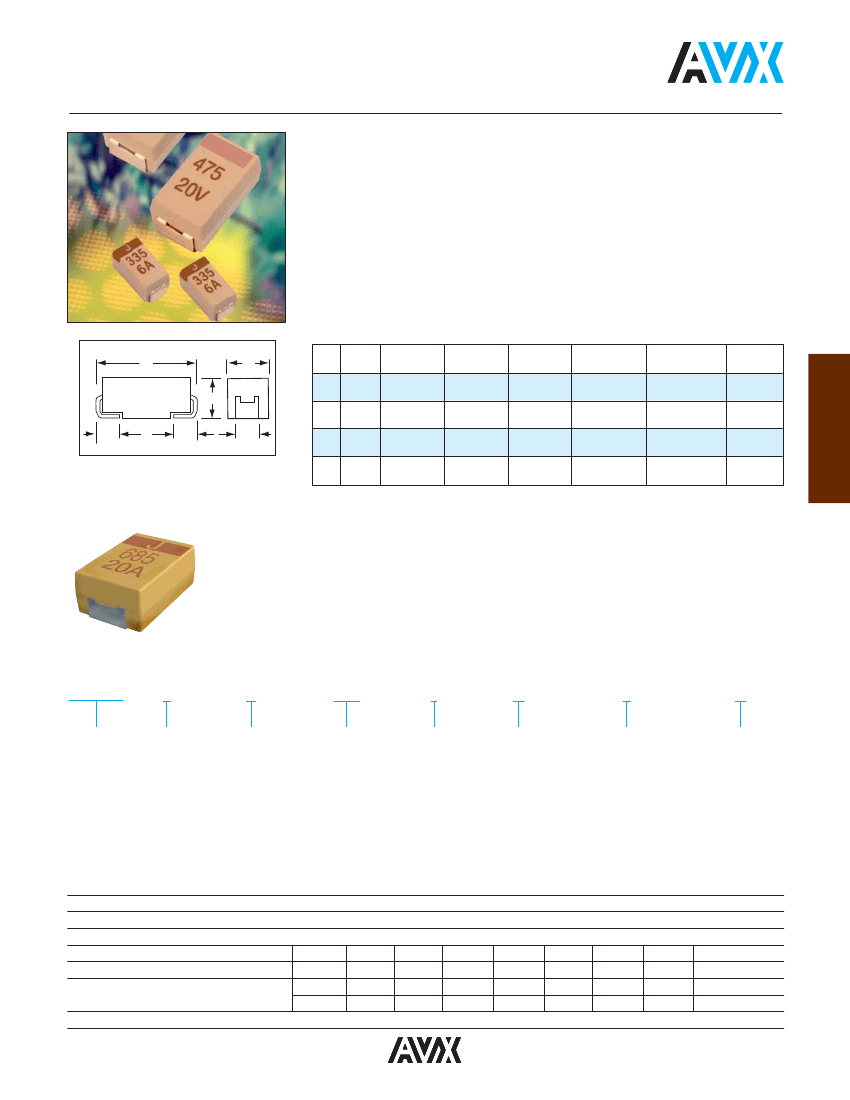

TBJ Series
CWR11 - MIL-PRF-55365/8
Fully qualified to MIL-PRF-55365/8,
the CWR11 is the military version of
EIA-535BAAC, the commercial indus-
try standard. It comprises four case
sizes (A through D). This series also
offers molded body/compliant termina-
tion construction, polarity, capacitance
and JAN brand marking. The molded
construction is compatible with a wide
range of SMT board assembly
processes including wave or reflow
solder, conductive epoxy or compres-
sion bonding techniques. There are
three termination finishes available:
fused solder plated (“K” per MIL-PRF-
55365), hot solder dipped (“C”) and
gold plated (“B”).
CASE DIMENSIONS:
millimeters (inches)
L
W
Case
Code
A
EIA
Code
3216-18
3528-21
6032-28
7343-31
Length (L)
3.20±0.20
(0.126±0.008)
3.50±0.20
(0.138±0.008)
6.00±0.30
(0.236±0.012)
7.30±0.30
(0.287±0.012)
Width (W)
Height (H)
Term. Width (W
1
)
±0.10 (±0.004)
1.20 (0.047)
2.20 (0.087)
2.20 (0.087)
2.40 (0.094)
Term. Length A
±0.30(±0.012)
0.80 (0.031)
0.80 (0.031)
1.30 (0.051)
1.30 (0.051)
S min
1.80 (0.071)
1.40 (0.055)
2.90 (0.114)
4.40 (0.173)
H
1.60±0.20
1.60±0.20
(0.063±0.008) (0.063±0.008)
2.80±0.20
1.90±0.20
(0.110±0.008) (0.075±0.008)
3.20±0.30
2.50±0.30
(0.126±0.012) (0.098±0.012)
4.30±0.30
2.80±0.30
(0.169±0.012) (0.110±0.012)
B
A
S
A
W
1
C
D
MARKING
(Brown marking on gold body)
Polarity Stripe (+)
“J” for “JAN” Brand
Capacitance Code
Rated Voltage
Manufacturer’s ID
HOW TO ORDER
CWR11
Type
J
Voltage
Code
C = 4Vdc
D = 6Vdc
F = 10Vdc
H = 16Vdc
J = 20Vdc
K = 25Vdc
M = 35Vdc
N = 50Vdc
B
Termination
Finish
K = Fused Solder
Plated
C = Hot Solder
Dipped
B = Gold Plated
225
Capacitance
Code
pF code:
1st two digits
represent
significant
figures 3rd digit
represents
multiplier
(number of zeros
to follow)
*
Capacitance
Tolerance
M = ±20%
K = ±10%
J = ±5%
@
Reliability
Grade
Weibull: B =
0.1%/1000 Hrs.
(90% C =
0.01%/1000
Hrs. conf.)
Comm: Z =
Non ER
+
Surge Test
Option
A = 10 cycles, +25°C
B = 10 cycles, -55°C
& +85°C
C = 10 cycles, -55°C
& +85°C before
Weibull
Z = None (required
for CWR19 &
CWR29 only)
Packaging
Bulk = Standard
\TR = 7" T&R
\TR13 = 13" T&R
\W = Waffle
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage: (V
R
)
Category Voltage: (V
C
)
Surge Voltage: (V
S
)
Temperature Range:
Unless otherwise specified, all technical
0.1 μF to 100 μF
±5%; ±10%; ±20%
4
6
10
16
2.7
4
7
10
5.2
8
13
20
3.4
5
8
13
-55°C to +125°C
data relate to an ambient temperature of 25°C
85°C:
125°C:
85°C:
125°C:
20
13
26
16
25
17
32
20
35
23
46
28
50
33
65
40
81

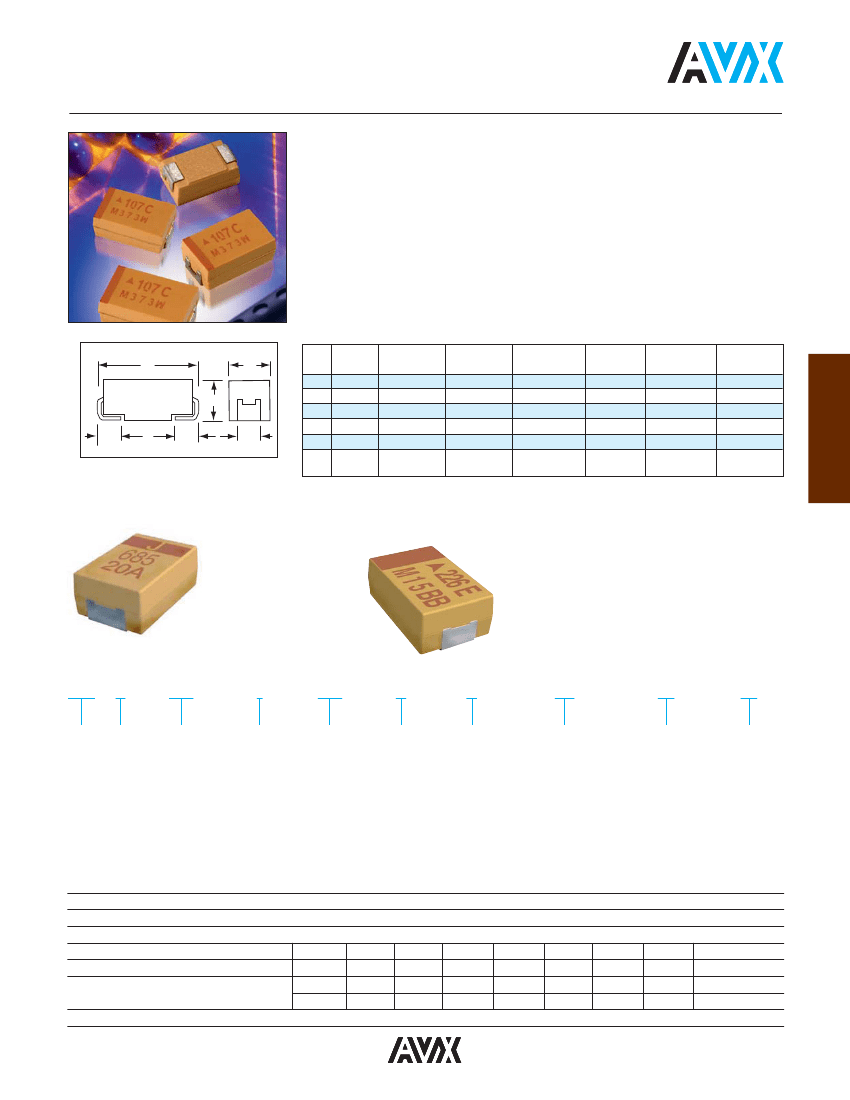

TBJ Series
COTS-Plus
This series features:
• CWR11 form factor in Standard and
Extended ratings.
• Low ESR Ratings (Cases A through E).
• Extended Case size (E) for ratings to
470 μF.
• Weibull Reliability Grading and Surge
Test options.
All ratings in this series offer the
advantages of molded body/compliant
termination construction, polarity,
capacitance and voltage marking. The
molded construction is compatible with
a wide range of SMT board assembly
processes including wave or reflow
solder, conductive epoxy or compres-
sion bonding techniques.
CASE DIMENSIONS:
millimeters (inches)
L
W
Code
A
EIA
Code
3216-18
3528-21
6032-28
7343-31
7343-43
7361-38
L±0.20 (0.008)
3.20 (0.126)
3.50 (0.138)
6.00 (0.236)
7.30 (0.287)
7.30 (0.287)
7.30 (0.287)
W+0.20 (0.008)
–0.10 (0.004)
1.60 (0.063)
2.80 (0.110)
3.20 (0.126)
4.30 (0.169)
4.30 (0.169)
6.10 (0.240)
H+0.20 (0.008)
–0.10 (0.004)
1.60 (0.063)
1.90 (0.075)
2.60 (0.102)
2.90 (0.114)
4.10 (0.162)
3.45±0.30
(0.136±0.012)
W1 ±0.20
(0.008)
1.20 (0.047)
2.20 (0.087)
2.20 (0.087)
2.40 (0.094)
2.40 (0.094)
3.10 (0.120)
A+0.30 (0.012)
–0.20 (0.008)
0.80 (0.031)
0.80 (0.031)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
1.40 (0.055)
S Min.
1.10 (0.043)
1.40 (0.055)
2.90 (0.114)
4.40 (0.173)
4.40 (0.173)
4.40 (0.173)
H
B
C
D
A
S
A
W
1
E
V
MARKING (Military
(Brown marking on gold body)
MARKING
(Brown marking on gold body)
Polarity stripe (+)
“J” for “JAN” Brand
Capacitance Code
Rated Voltage
Manufacturer’s ID
Polarity Stripe (+)
Capacitance Code
Rated Voltage
Manufacturer’s ID
Lot Number
HOW TO ORDER
TBJ
Type
D
Case
Size
227
Capacitance
Code
pF code:
1st two digits
represent
significant
figures 3rd digit
represents
multiplier
(number of zeros
to follow)
*
Capacitance
Tolerance
M = ±20%
K = ±10%
J = ±5%
006
Voltage
Code
004 = 4Vdc
006 = 6Vdc
010 = 10Vdc
016 = 16Vdc
020 = 20Vdc
025 = 25Vdc
035 = 35Vdc
050 = 50Vdc
C
Standard or
Low ESR
Range
C = Std ESR
L = Low ESR
Packaging
B = Bulk
R = 7" T&R
S = 13" T&R
#@
Qualification/
Reliability
# = Inspection Level
S = Std. Conformance
L = Group A
@ = Failure Level
Weibull:
B = 0.1%/1000 hrs.
C = 0.01%/ 1000 hrs.
(90% conf.)
Comm: Z = Non ER
00
++
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Rated Voltage: (V
R
)
Category Voltage: (V
C
)
Surge Voltage: (V
S
)
Temperature Range:
Unless otherwise specified, all technical
0.1 μF to 1000 μF
±5%; ±10%; ±20%
4
6
10
16
2.7
4
7
10
5.2
8
13
20
3.4
5
8
12
-55°C to +125°C
Termination
Surge Test
Finish
Option
09 = Gold Plated
00 = None
08 = Hot Solder
23 = 10 cycles,
Dipped
+25°C
07 = 100% Tin
24 = 10 cycles,
00 = Solder Fused
-55°C &
+85°C
45 = 10 cycles,
-55ºC &
+85ºC
before
Weibull
data relate to an ambient temperature of 25°C
85°C:
125°C:
85°C:
125°C:
20
13
26
16
25
17
32
20
35
23
46
28
50
33
65
40
85
