BF020-37-B-A-0400-0300-P-E datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF020-37-B-A-0400-0300-P-E

BF020-37-B-A-0400-0300-P-E: DescriptionBoard Connector, 37 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator,; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF020-37-B-A-0400-0300-P-E Overview

Board Connector, 37 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator,

BF020-37-B-A-0400-0300-P-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	314355898
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.079 inch
subject depth	0.059 inch
body length	2.913 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	37
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

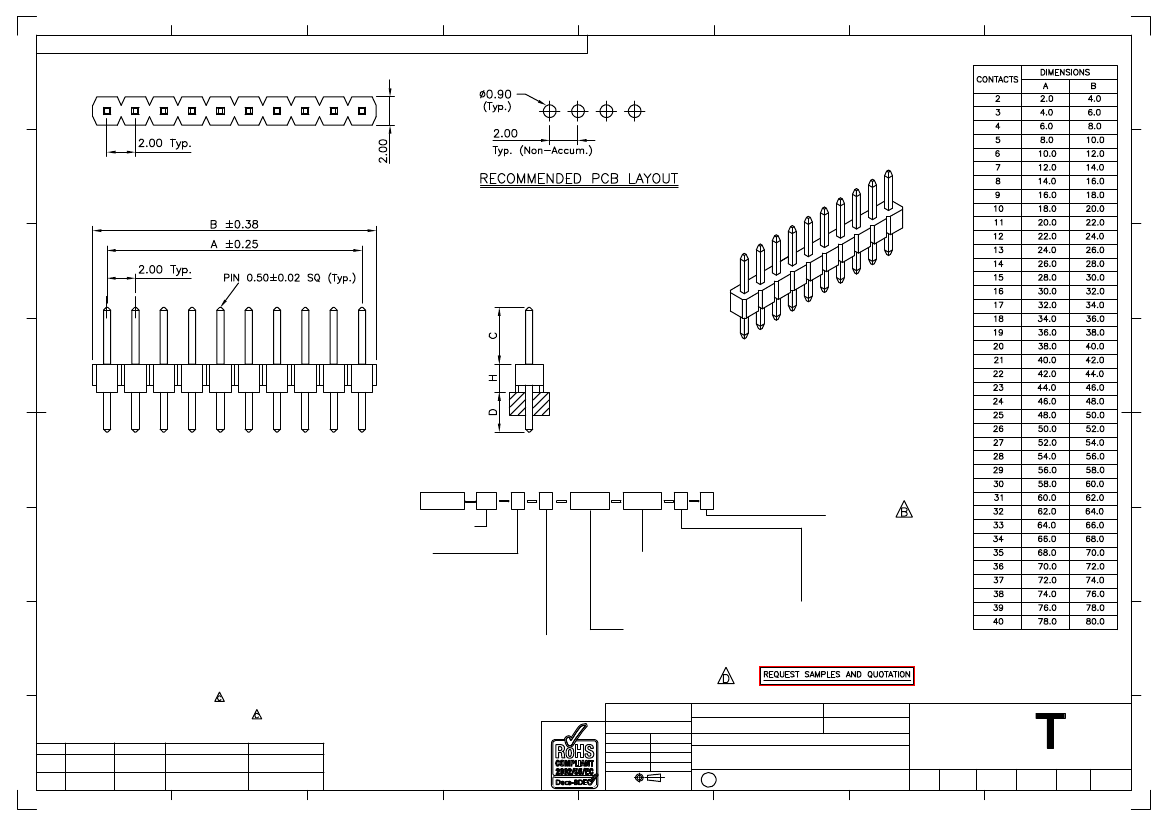

Global Connector Technology Ltd. - BF020: 2.0mm PITCH PIN HEADER, SINGLE ROW, THROUGH HOLE, VERTICAL

FEATURES

特点

EASILY BREAKABLE NOTCHES

易折断驳口

CUSTOM PIN LENGTH

可定制

长度

STANDOFFS FACILITATE POST SOLDER CLEANING

支脚设计易于清洁定½焊接点

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

:2 AMP

INSULATOR RESISTANCE

绝缘电阻值

:1000 MEGOHMS MIN.

CONTACT RESISTANCE

接触电阻值

: 20mOHMS MAX.

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OR POLYESTER

聚酯

, PBT, UL94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BF070

BF085

BF086

BF090

BF091

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

25/10/07

PACKING OPTIONS

CHANGED

Ordering Grid

BF020

No. of Contacts

02 to 40

XXXX

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Contact Plating

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Dimension D (1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

Or specify Dimension D

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Dimension C (1/100mm)

(Post Height)

Standard - 4.00mm = 0400

Standard - 6.00mm = 0600

Or specify Dimension C

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Tolerances

(Except as noted)

Insulator

Height 'H'

A = 1.50mm

B = 2.00mm

Standard = 2.00mm

Insulator Material

N = Nylon 6T (Standard)

P = PBT

L = LCP

Part Number:-

Date:-

Dimensions in mm

X.°±5°

X.X ± 0.20

.X°±2°

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

Third Angle Projection

X. ± 0.30

BF020

Description:-

25 OCT 07

27/04/09

AMENDMENT TO

CHANGE TO SOLDER

TEMP. INFORMATION

STANDARD DIMENSIONS

30/07/09

08/12/09

2.0mm PITCH PIN HEADER, SINGLE ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1
