NMC0402X5R564K6.3TRPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC0402X5R564K6.3TRPF

NMC0402X5R564K6.3TRPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.56uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size37KB，2 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

NMC0402X5R564K6.3TRPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.56uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT

NMC0402X5R564K6.3TRPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1580272465
package instruction	, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.56 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.6 mm
JESD-609 code	e3
length	1 mm
Manufacturer's serial number	NMC
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER
positive tolerance	10%
Rated (DC) voltage (URdc)	6.3 V
series	NMC X5R
size code	0402
surface mount	YES
Temperature characteristic code	X5R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.5 mm

Preview

Download Datasheet

View All

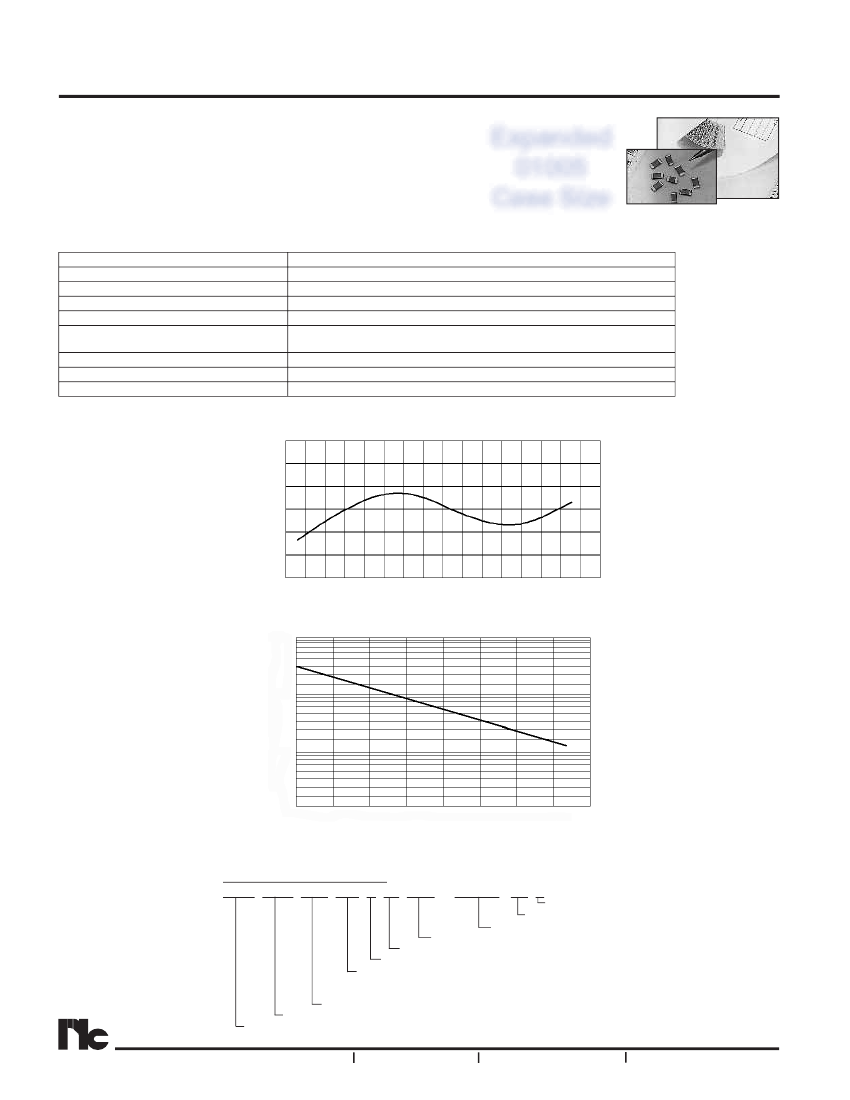

Multilayer Ceramic Chip Capacitors

FEATURES

• CLASS II DIELECTRIC, TEMPERATURE STABLE

• EXCELLENT FREQUENCY CHARACTERISTICS, NON-LINEAR

CAPACITANCE CHANGE

• NICKEL BARRIER TERMINATIONS AND EXCELLENT

MECHANICAL STRENGTH

CHARACTERISTICS

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltages

Dissipation Factor

insulation Resistance

Dielectric Withstanding Voltage

Test Conditions (EIA-198-2E)

NMC Series X5R

Expanded

01005

Case Size

100pF ~ 0.82μF (see high CV datasheet for higher capacitance values)

±10% (K), ±20% (M)

-55°C ~ +85°C

±15%Δ max. over temperature range (with 0 Vdc applied)

6.3Vdc, 16Vdc & 25Vdc (see NMC-H Series for higher voltages)

3.5% max. (25Vdc) 5% max. (16Vdc), 7.5% (10Vdc), 10% (6.3Vdc)

@ 1.0Vrms and 1KHz, +25°C

10,000Megohms min. or 500Megohm/μF min. whichever is less @ +25°C

250% of Rated Voltage for 5 ±1 seconds, 50mA maximum current

1KHz, 1.0V ±0.2Vrms

Typical X5R Temperature Coefﬁcient

20%

10%

%Δ°C

-10%

-20%

-50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90

Insulation Resistance (Ohm - Farads)

Insulation Resistance vs. Temperature

10,000

1,000

100

+20

+30

+40

+50

+60

+70

+80

Temperature °C

PART NUMBER SYSTEM

NMC 0805 X5R 102 K 50 TRP or TRPLP 3K F

RoHS Compliant

Optional Reel Qty (3K=3,000pcs)

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Punched carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, ﬁrst 2 digits are

signiﬁcant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

Series

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

NMC0402X5R564K6.3TRPF Related Products

	NMC0402X5R564K6.3TRPF	NMC0402X5R274M6.3TRP3KF	NMC0402X5R564M6.3TRPF
Description	Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 10% +Tol, 10% -Tol, X5R, 15% TC, 0.56uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT	Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, -/+15ppm/Cel TC, 0.27uF, 0402,	Ceramic Capacitor, Multilayer, Ceramic, 6.3V, 20% +Tol, 20% -Tol, X5R, 15% TC, 0.56uF, Surface Mount, 0402, CHIP, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to
Objectid	1580272465	921922803	1580272467
package instruction	, 0402	, 0402	, 0402
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
capacitance	0.56 µF	0.27 µF	0.56 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
dielectric materials	CERAMIC	CERAMIC	CERAMIC
high	0.6 mm	0.6 mm	0.6 mm
JESD-609 code	e3	e3	e3
length	1 mm	1 mm	1 mm
multi-layer	Yes	Yes	Yes
negative tolerance	10%	20%	20%
Number of terminals	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package form	SMT	SMT	SMT
method of packing	TR, PAPER	TR	TR, PAPER
positive tolerance	10%	20%	20%
Rated (DC) voltage (URdc)	6.3 V	6.3 V	6.3 V
series	NMC X5R	NMC X5R	NMC X5R
size code	0402	0402	0402
Temperature characteristic code	X5R	X5R	X5R
Temperature Coefficient	15% ppm/°C	15% ppm/°C	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
width	0.5 mm	0.5 mm	0.5 mm
Is it lead-free?	Lead free	-	Lead free
Manufacturer's serial number	NMC	-	NMC
Installation features	SURFACE MOUNT	-	SURFACE MOUNT
Package shape	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE
surface mount	YES	-	YES
Terminal shape	WRAPAROUND	-	WRAPAROUND
