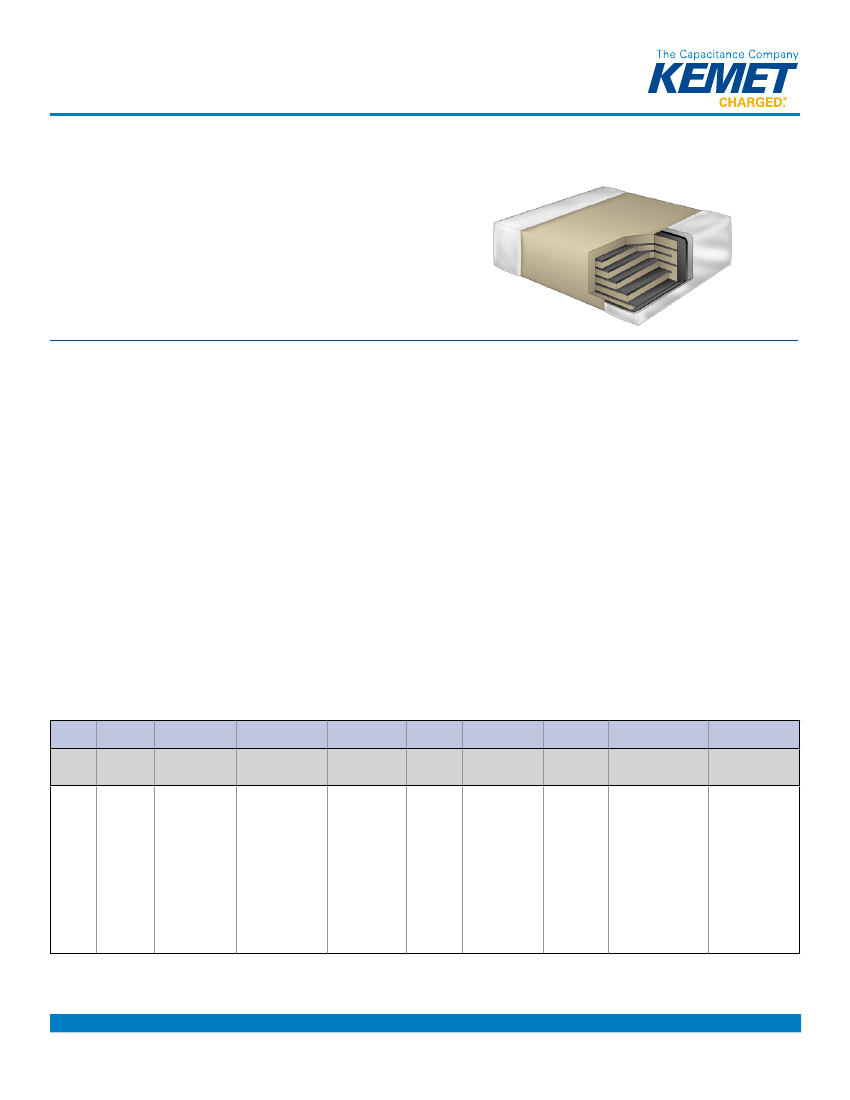

Capacitance Change with Reference to +25°C and 0 Vdc Applied (TCC)
Aging Rate (Max % Cap Loss/Decade Hour)
Dielectric Withstanding Voltage
Dissipation Factor (DF) Maximum Limit @ 25ºC
Insulation Resistance (IR) Limit @ 25°C
-55°C to +125°C
±30PPM/ºC
0%
250% of rated voltage
(5 ± 1 seconds and charge/discharge not exceeding 50mA)
0.1%
1000 megohm microfarads or 100GΩ
(Rated voltage applied for 120 ± 5 secs @ 25°C)
Parameters/Characteristics
To obtain IR limit, divide MΩ-µF value by the capacitance and compare to GΩ limit. Select the lower of the two limits.
Capacitance and Dissipation Factor (DF) measured under the following conditions:
1MHz ± 100kHz and 1.0Vrms ± 0.2V if capacitance ≤1000pF
1kHz ± 50Hz and 1.0Vrms ± 0.2V if capacitance >1000pF
Note: When measuring capacitance it is important to ensure the set voltage level is held constant. The HP4284 & Agilent E4980 have a feature known as Automatic
Level Control (ALC). The ALC feature should be switched to "ON".
Post Environmental Limits
High Temperature Life, Biased Humidity, Moisture Resistance
