Evolution Dual Series
• 25A & 50A Output rating per channel @ 40°C
• 24 to 280 & 48 to 600VAC Operating voltage
• 4-15, 15-32 & 4-32VDC Control input options
• Four input termination options
• Zero-crossing (resistive loads) or random-fire (inductive loads)
output
• Input status LED indicator for each channel
• Available with IP20 “Touch-Safe” Covers
• UL508 Endurance Rating

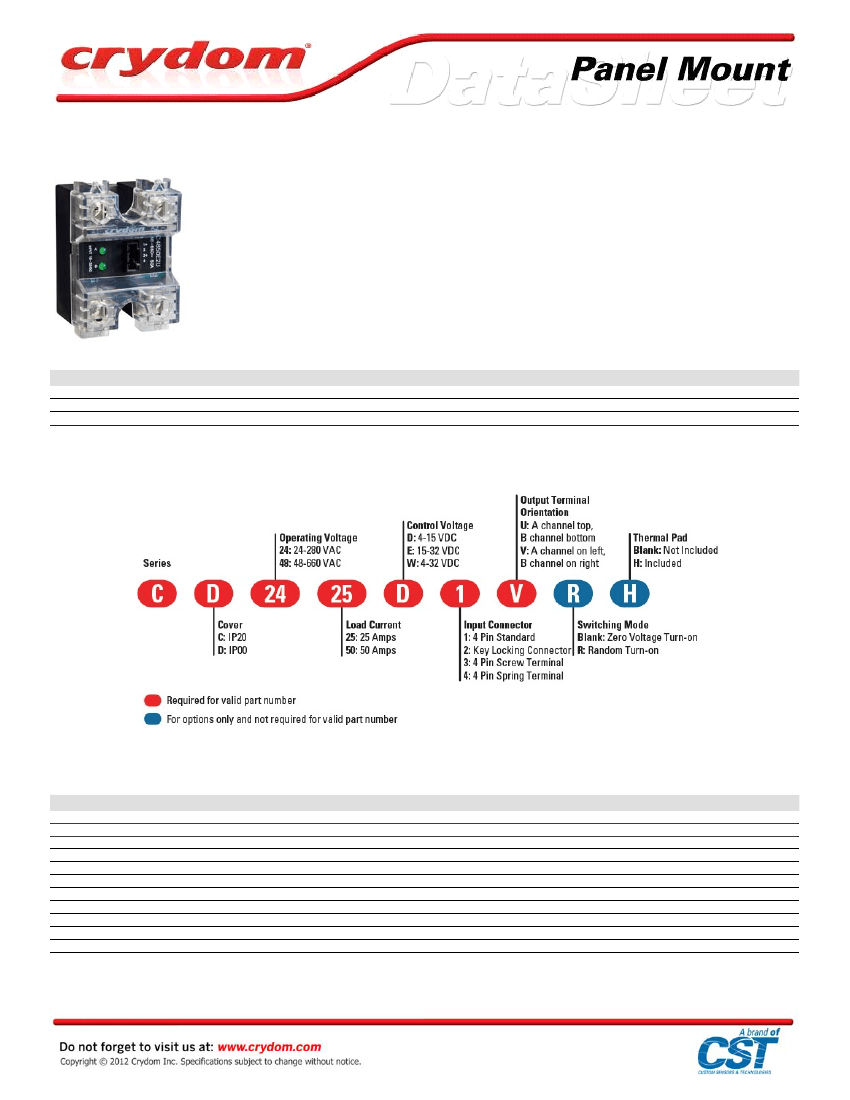

PRODUCT SELECTION
Control Voltage
4-15 VDC
15-32VDC
4-32 VDC
240V,25A
CD2425D1U
CD2425E1U
CD2425W1U
240V, 50A
CD2450D1U
CD2450E1U
CD2450W1U
480V, 25A
CD4825D1U
CD4825E1U
CD4825W1U
480V, 50A
CD4850D1U
CD4850E1U
CD4850W1U
AVAILABLE OPTIONS
OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-440Hz) [Vrms]
Load Current Range (3) [Arms]
Transient Overvoltage [Vpk]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec] (2)
Maximum 1 Cycle Surge Current (50/60) [Apk]
Maximum Surge Current 50Hz (20ms) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Thermal Resistance Junction to Case (Rjc) [°C/W]
Maximum I² t for Fusing 50/60Hz (1/2 cycle) [A² sec]
Minimum Power Factor (with Maximum Load)
Cx2425xxxx
24-280
0.15-25
600
1.0
500
275/300
275
1.3
0.65
380/370
0.5
Cx2450xxxx
24-280
0.15-50
600
1.0
500
710/750
710
1.3
0.33
2520/2320
0.5
Cx4825xxxx
48-600
0.15-25
1200
1.0
500
275/300
275
1.3
0.65
380/370
0.5
Cx4850xxxx
48-600
0.15-50
1200
1.0
500
710/750
710
1.3
0.33
2520/2320
0.5
INPUT SPECIFICATIONS (1)
Description
Control Voltage Range
Minimum Turn-On Voltage
Minimum Turn-Off Voltage
Typical Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec] (4)
Maximum Turn-Off Time [msec]
CxxxDxxx
4-15 VDC
4 VDC
1 .0 VDC
16 mA @ 5 VDC
300 Ohm
1/2 Cycle
1/2 Cycle
CxxxExxx
15-32 VDC
15 VDC
1 .0 VDC
18 mA @ 24 VDC
1500 Ohm
1/2 Cycle
1/2 Cycle
CxxxWxxx
4-32 VDC
4 VDC
1 .0 VDC
10 mA @ 12 VDC
See Note 5
1/2 Cycle
1/2 Cycle
GENERAL SPECIFICATIONS
Description
Dielectric Strength, Input/Output (50/60Hz)
Dielectric Strength, Input/Output/Base (50/60Hz)
Minimum Insulation Resistance (@ 500 V DC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Terminals
Max. Torque
Max. Wire Size
Parameters
4000 Vrms
2500 Vrms
10
9
Ohm
10 pF
-40 to 80 °C
-40 to 125 °C
3.0 oz (86.5 g)
Screw Type Output: 8-32
Output: 20 in lb (2.2Nm)
Output:2 x AWG 8 (3.8mm)
GENERAL NOTES
1)
2)
3)
4)
5)
All parameters at 25°C and per section unless otherwise specified.
Off-state dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1

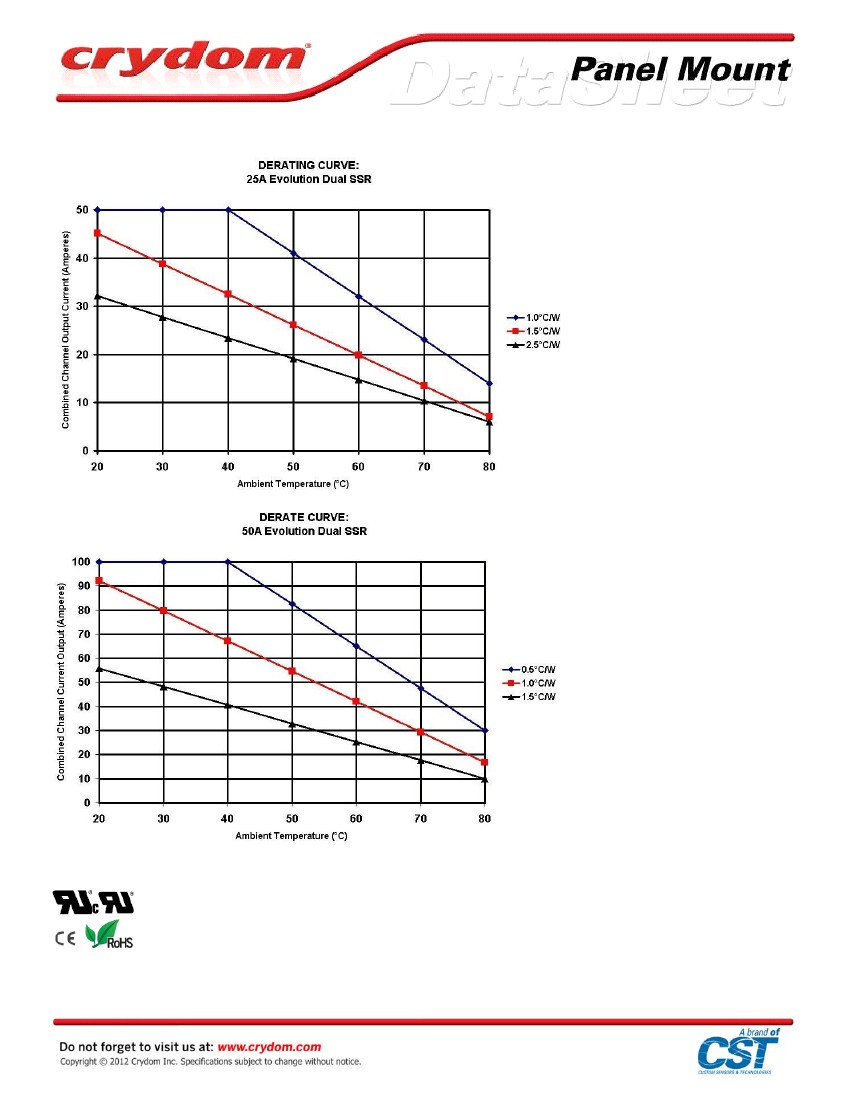

Heat sinking required, see derating curves.
Turn-on time for random turn-on (R) versions is 0.1 msec.
Input circuit incorporates active current limitation

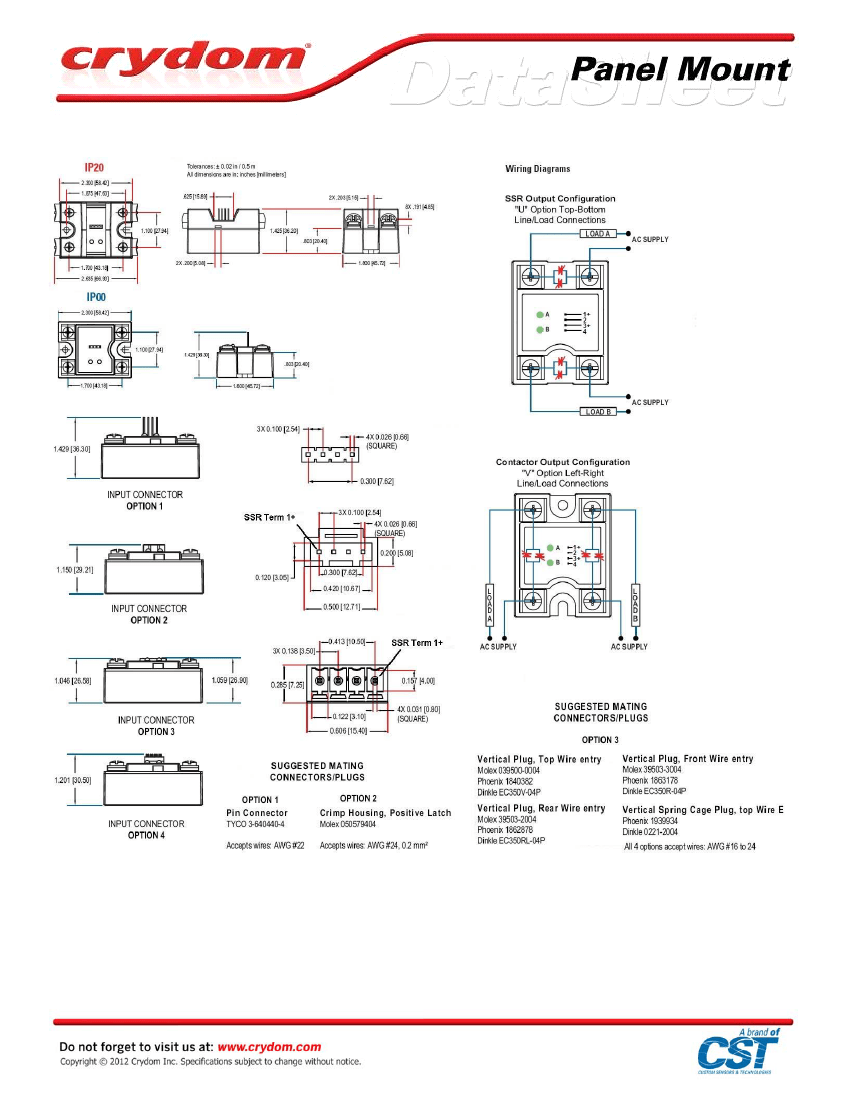

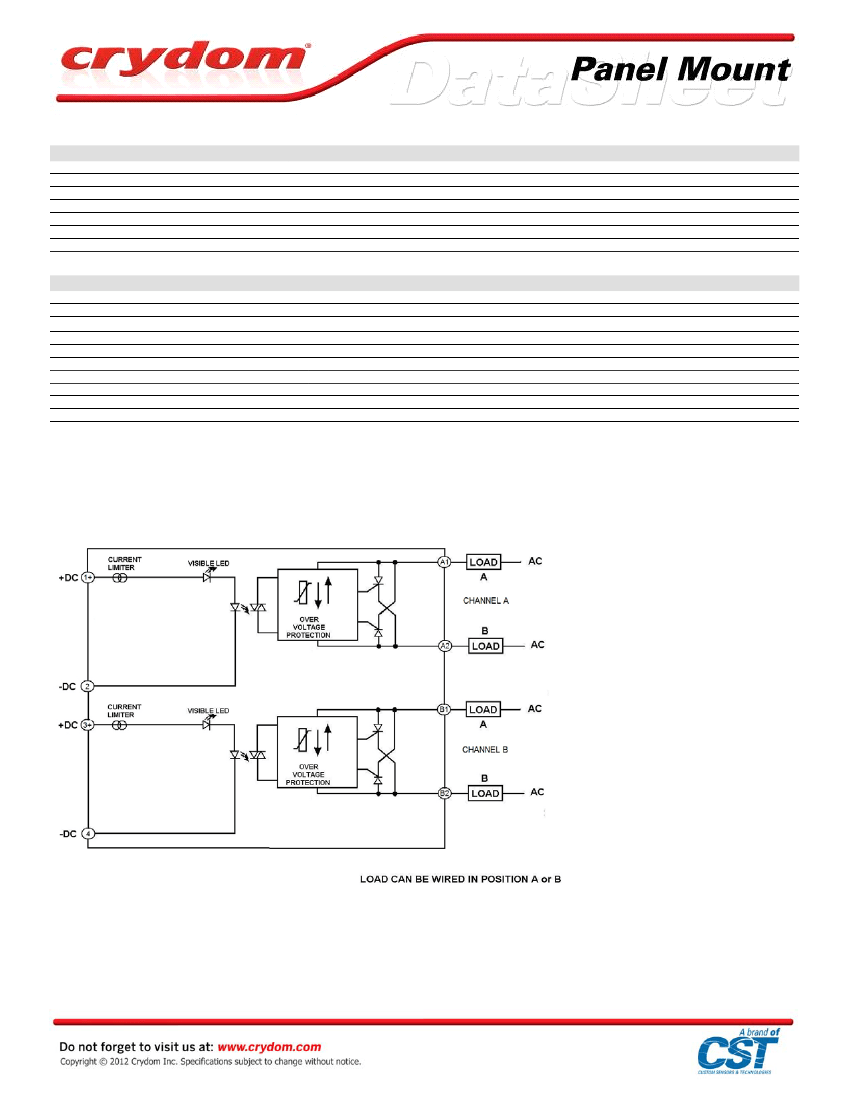

WIRING DIAGRAM
