SMD Transient Voltage Suppressor

Preview

Download Datasheet

View All

SMD Transient Voltage Suppressor

TV50C110-G Thru. TV50C441-G

Working Voltage: 11 to 440 Volts

Peak Pulse Power: 5000 Watts

RoHS Device

Features

- Glass passivated chip.

- 5000W peak pulse power capability with a 10/1000µs

waveform, repetitive rate (duty cycle):0.01%

- Low leakage.

- Uni and Bidirectional unit.

- Excellent clamping capability.

- Very fast response time.

- UL recognized file # E349157

SMC/DO-214AB

0.280(7.02)

0.260(6.52)

0.126(3.16)

0.114(2.86)

0.245(6.15)

0.220(5.52)

0.320(8.02)

0.305(7.64)

0.012(0.30)

0.006(0.15)

0.103(2.59)

0.079(1.98)

Mechanical Data

- Case: DO-214AB/SMC molded plastic.

- Epoxy: UL 94V-0 rate flame retardant

- Lead: Solderable per MIL-STD-750, method 2026.

- Polarity: Color band denoted cathode

end except bipolar.

- Mounting position: Any

- Weight:

0.230 gram

(approx.)

0.060(1.51)

0.030(0.75)

0.008(0.20)

0.000(0.00)

Dimensions in inches and (millimeter)

Circuit Diagram

Bi-directional

Uni-directional

Maximum Ratings and Electrical Characteristics

Rating at 25°C ambient temperature unless otherwise specified.

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Parameter

Peak power dissipation with a 10/1000μs

waveform (Note 1)

Peak pulse current with a 10/1000μs

waveform (Note 1)

Power dissipation on infinite heatsink

at T

=75°C

Peak forward surge current, 8.3ms single

half sine-wave unidirectional only (Note 2)

Maximum instantaneous forward voltage

at 100A for unidirectional only (Note 3)

Operation junction and storage

temperature range

Symbol

FSM

, T

STG

Value

5000

See Next Table

6.5

300

3.5/5.0

-55 to +150

Units

°C

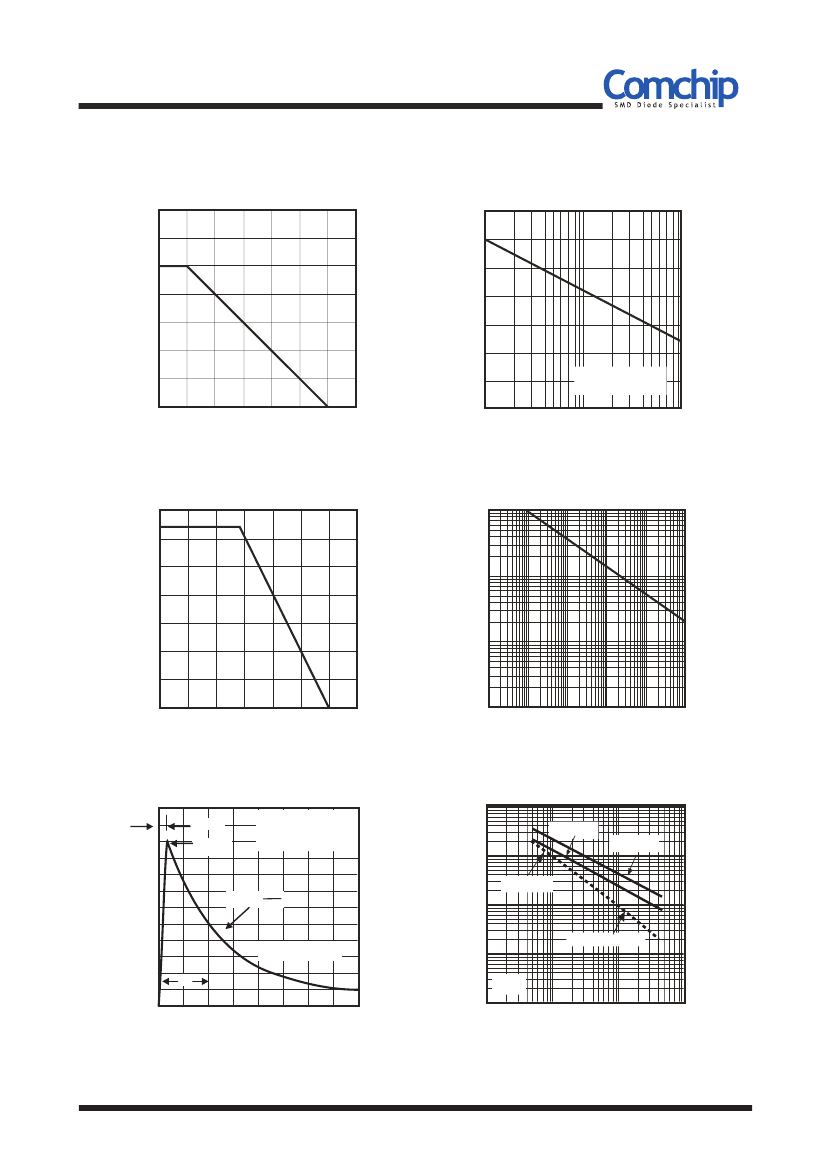

Notes: 1. Non-repetitive current pulse, per Fig.5 and derated above T

=25°C, per Fig.1

2. Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum.

3. V

<3.5V for devices of V

<200V and V

<5.0V for devices of V

>201V

Company reserves the right to improve product design , functions and reliability without notice.

QW-BTV14

REV:F

Page 1

Comchip Technology CO., LTD.
