52-PV2F640SSM05_15: DescriptionALL DIMENSIONS IN MM [INCH]; File Size197KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV2F640SSM05_15 Overview

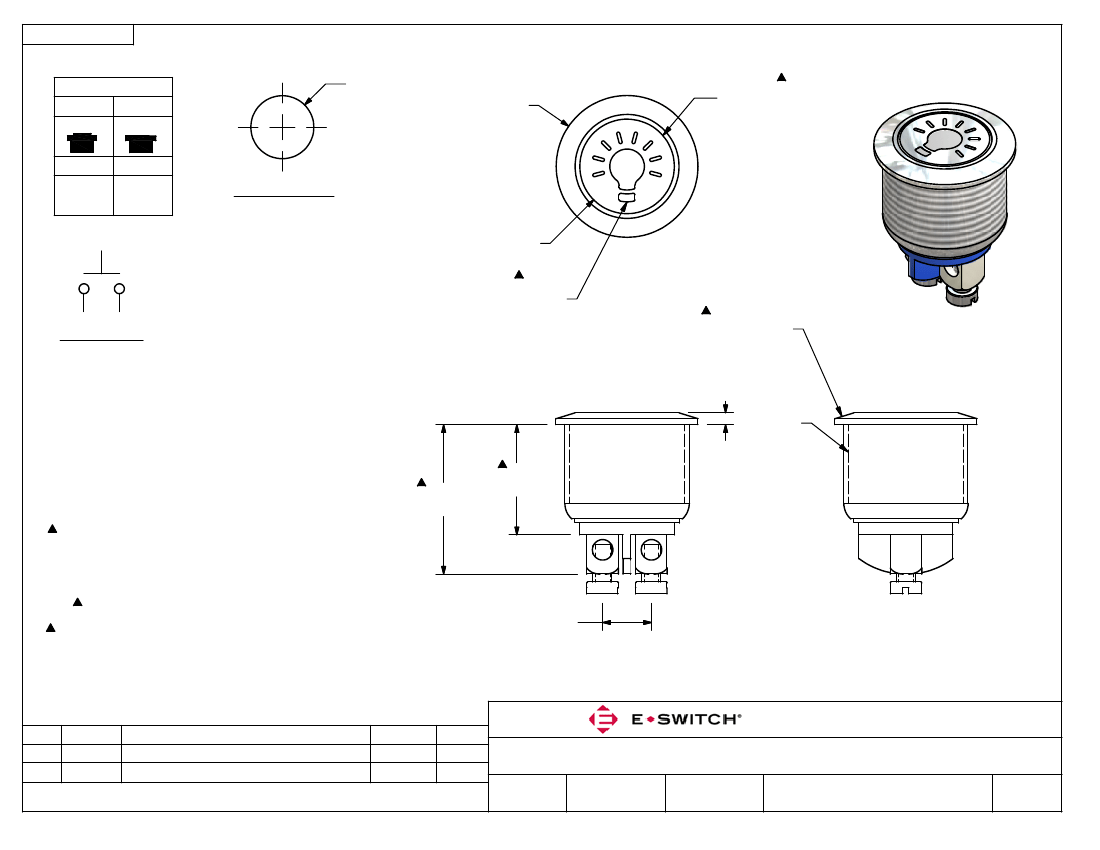

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

16.00

[.630 in]

SWITCH FUNCTION

POS. 1

POS. 2

[.709 in]

18.00

FLAT ACTUATOR

POLISHED STAINLESS STEEL

OFF

OPEN

(ON)

1-2

PANEL MOUNTING

MAX. PANEL THICKNESS 6.0mm

12.00

[.472 in]

(ON) = MOMENTARY

MO5 MARKING

LASER ETCHED

BULB SYMBOL

CIRCUIT: SPST

BODY FINISH

POLISHED STAINLESS STEEL

1.50

[.059 in]

M16x1.0

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 2A 48VDC

6: TRAVEL: 1.5 ± 0.2mm

7. ELECTRIC LIFE: 200,000 MAKE-AND-BREAK CYCLES

8. INSULATION RESISTANCE: 1,000 MΩ MIN.

9. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

10. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC

11. OPERATING TEMP.: -20°C to 55°C

12. DENOTES CRITICAL PARAMETER.

13. INGRESS PROTECTION: IP65

14. HARDWARE SUPPLIED: O-RING AND HEXNUT

15. 2002/95/EC (ROHS) COMPLIANT
