TXR40SJ00-1007AI
Ruggedized Backshells & Adapters, Raychem TXR
TXR40SJ00-1007AI
Raychem
|
Raychem TXR
ACTIVE
TE Internal #: 826827-000
Ruggedized Backshells & Adapters, Raychem TXR
View on TE.com >
Connectors
>
Connector Backshells & Adapters
>
Ruggedized Backshells & Adapters
Connector General Specification Number:
MIL-DTL-38999 Series III/Class C,F,K,W, MIL-DTL-38999 Series IV/Class C,F,W, MIL-
DTL-38999 Series IV/Class C,W, MIL-DTL-38999 Series IV/Class F,W
Backshell Material:
Corrosion Resisting Steel
Adapter Plating Material:
Passivated (SAE AMS-QQ-P-35 or MIL-S-5002)
Cable Diameter Range:
5.6 – 8.9 mm [ .219 – .35 in ]
Adapter Angle:
Straight
Features
Product Type Features
Termination Device Included
Pluggable I/O Accessory Type
Adapter Angle
Termination Device Type
TR07AI
Tinel-Lock Adapter
Straight
Side-Entry Tinel-Lock Ring, Tinel-Lock
Adapter, Tinel-Lock Ring
11, B
Connector Shell Size
Body Features
Backshell Material
Adapter Plating Material
Corrosion Resisting Steel
Passivated (SAE AMS-QQ-P-35 or MIL-S-
5002)
40
7
TE Adapter Code
Adapter Entry Size
Termination Features
Overbraid Termination
Dimensions
Cable Entry Diameter
Cable Diameter Range
Usage Conditions
Salt Spray Resistance
Tinel-Lock Ring
.2 – 11.1 mm[.01 – .44 in]
5.6 – 8.9 mm[.219 – .35 in]
For support call+1 800 522 6752
1000 Hr
07/07/2022 10:40PM | Page 1
TXR40SJ00-1007AI
Ruggedized Backshells & Adapters, Raychem TXR
Salt Spray Resistance
Operating Temperature Range
Industry Standards
Connector Detail Specification Number
1000 Hr
-65 – 260 °C[-85 – 500 °F]
D38999/20, D38999/24, D38999/26, D38999
/40, D38999/42, D38999/46, D38999/47
Other
Connector General Specification Number
MIL-DTL-38999 Series III/Class C,F,K,W,
MIL-DTL-38999 Series IV/Class C,F,W, MIL-
DTL-38999 Series IV/Class C,W, MIL-DTL-
38999 Series IV/Class F,W
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
EU ELV Directive 2000/53/EC
China RoHS 2 Directive MIIT Order No 32, 2016
EU REACH Regulation (EC) No. 1907/2006
Compliant
Compliant
No Restricted Materials Above Threshold
Current ECHA Candidate List: JAN 2022
(223)
Candidate List Declared Against: JUL 2021
(219)
SVHC > Threshold:
Not Yet Reviewed
Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Not applicable for solder process capability
Halogen Content
Solder Process Capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-
reach

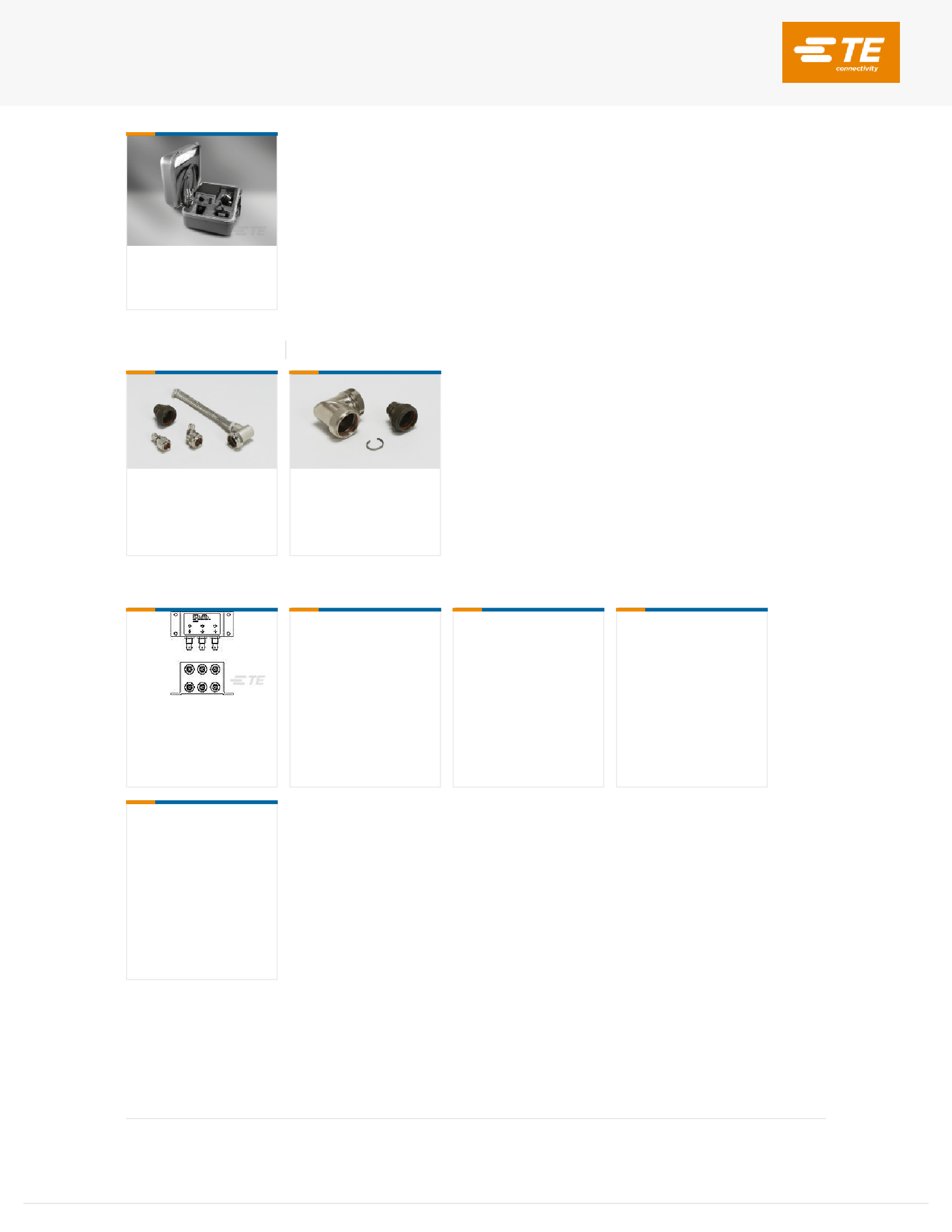

Compatible Parts
For support call+1 800 522 6752
07/07/2022 10:40PM | Page 2
TXR40SJ00-1007AI
Ruggedized Backshells & Adapters, Raychem TXR
3D
Customer View Model
ENG_CVM_CVM_826827-000_O.2d_dxf.zip
English
Customer View Model
ENG_CVM_CVM_826827-000_O.3d_igs.zip
English
Customer View Model
ENG_CVM_CVM_826827-000_O.3d_stp.zip
English
By downloading the CAD file I accept and agree to the
Terms and Conditions
of use.
Datasheets & Catalog Pages
5-1654025-5_sec6_Adapters
English
Circular Backshells
English
Product Specifications
General Information Package for Tinel-Lock Adapters
English
Product Specification
English
Braid termination using a Tinel Lock Ring installed using a resistance heater.
French
Braid termination using a Tinel Lock Ring installed using a resistance heater.
English
PERFORMANCE SPECIFICATION Tinel-Lock Rings, Heat Recoverable for Braid Termination
English
Specification for HexaShield Adapters for Circular Connectors
English
ASSEMBLY GUIDE for Tinel -Lock Rings, Heat Recoverable for Braid Temination
English
Instruction Sheets
Instruction Sheet (U.S.)
English
