PMDPB55XP

Description
20 V, dual P-channel Trench MOSFET
CategoryDiscrete semiconductor    The transistor
File Size861KB,15 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Environmental Compliance
Download Datasheet Parametric Compare View All

PMDPB55XP Overview

20 V, dual P-channel Trench MOSFET

PMDPB55XP Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerNXP
package instruction2 X 2 MM, 0.65 MM HEIGHT, LEADLESS, ULTRA THIN, PLASTIC, DFN2020-6, 6 PIN
Reach Compliance Codeunknow
ECCN codeEAR99
Shell connectionDRAIN
ConfigurationSEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage20 V
Maximum drain current (ID)3.4 A
Maximum drain-source on-resistance0.07 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeS-PDSO-N6
JESD-609 codee3
Humidity sensitivity level1
Number of components2
Number of terminals6
Operating modeENHANCEMENT MODE
Package body materialPLASTIC/EPOXY
Package shapeSQUARE
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeP-CHANNEL
GuidelineIEC-60134
surface mountYES
Terminal surfaceTIN
Terminal formNO LEAD
Terminal locationDUAL
Maximum time at peak reflow temperature30
transistor applicationsSWITCHING
Transistor component materialsSILICON

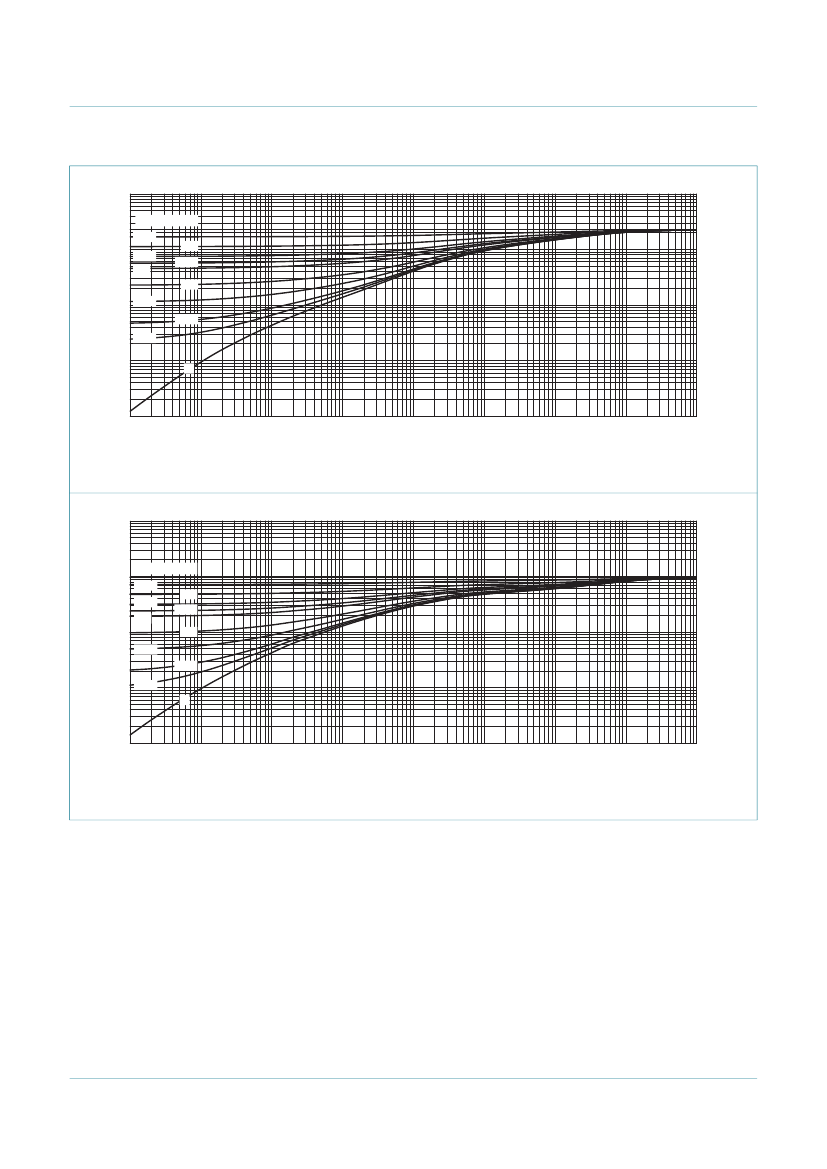

PMDPB55XP
020
-6
20 V, dual P-channel Trench MOSFET
Rev. 3 — 4 June 2012
Product data sheet
1. Product profile
1.1 General description
Dual P-channel enhancement mode Field-Effect Transistor (FET) in a small and leadless
ultra thin DFN2020-6 (SOT1118) Surface-Mounted Device (SMD) plastic package using
Trench MOSFET technology.
DF
N2
1.2 Features and benefits
Very fast switching
Trench MOSFET technology
Small and leadless ultra thin SMD
plastic package: 2 x 2 x 0.65 mm
Exposed drain pad for excellent
thermal conduction
1.3 Applications
Charging switch for portable devices
DC/DC converters
Small brushless DC motor drive
Power management in battery-driven
portables
Hard disc and computing power
management
1.4 Quick reference data
Table 1.
Symbol
Per transistor
V
DS
V
GS
I
D
R
DSon
drain-source voltage
gate-source voltage
drain current
drain-source on-state
resistance
V
GS
= -4.5 V; T
amb
= 25 °C; t
5 s
V
GS
= -4.5 V; I
D
= -3.4 A; T
j
= 25 °C
[1]
Quick reference data
Parameter
Conditions
T
j
= 25 °C
Min
-
-12
-
-
Typ
-
-
-
55
Max
-20
12
-4.5
70
Unit
V
V
A
mΩ
Static characteristics (per transistor)
[1]
Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated, mounting pad for drain 6 cm
2
.
