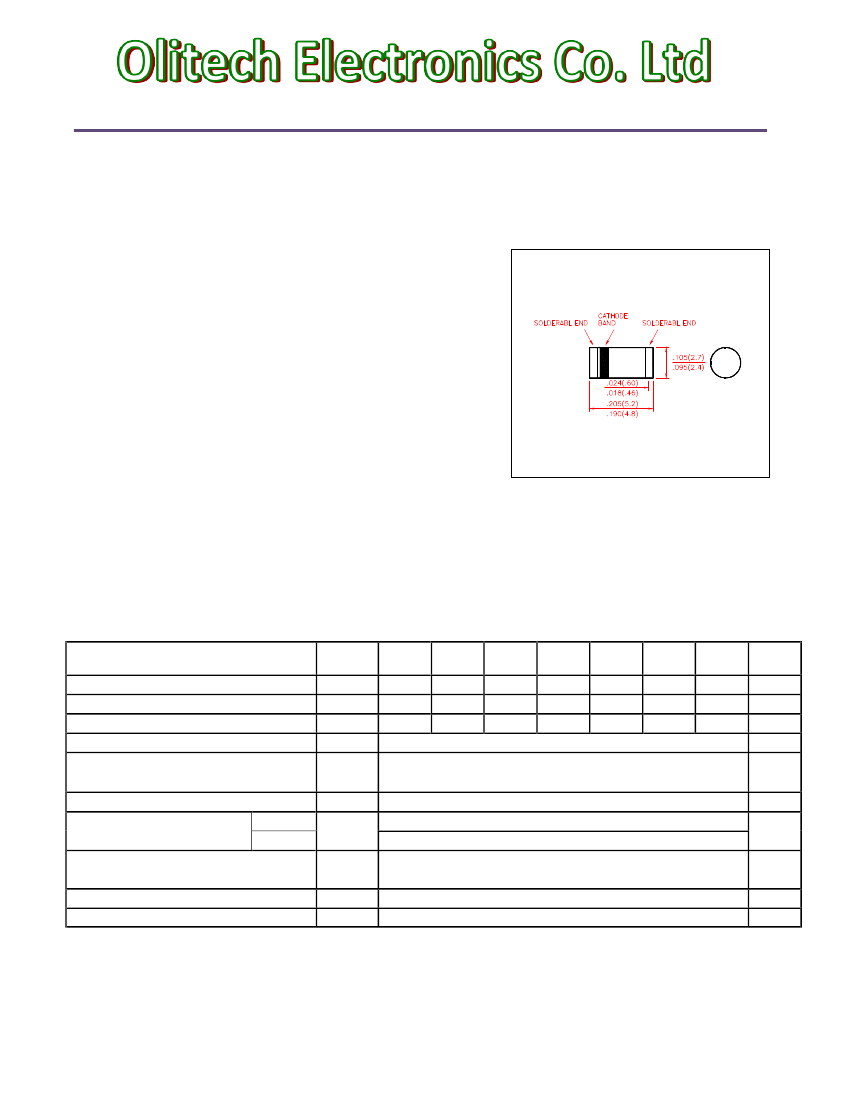

SM4001 THRU SM4007
SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
VOLTAGE RANGE
-50 to 1000 Volts
FORWARD CURRENT
1.0 A
FEATURES
•
•
•
•
•
For surface mounted applications
Glass passivated chip junction
Low leakage current
Plastic package has underwrites laboratory flammability
Classification 94V-0
High temperature soldering guaranteed
250℃/10 second at terminals
Plastic case MELF (DO-213AB)
MECHANICAL DATA
•
•
•
•
Case: molded plastic
Polarity: band indicate cathode
Mounting position: Any
Weight: 0.12 grams
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
•
•
•
Ratings at 25℃ ambient temperature unless otherwise specified
Single Phase, half wave, 60Hz, resistive or inductive load
For capacitive load derate current by 20%
SYMBOLS
SM
4001
50
35
50
SM
4002
100
70
100
SM
4003
200
140
200
SM
4004
400
280
400
1.0
30
1.1
5.0
100
15
50
-65 to +150
3
Maximum Repetitive Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current at T
T
=100℃
Peak Forward Surge Current
8.3ms single half sine wave superimposed on
rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 1.0A
Maximum DC Reverse Current
at rated DC Blocking Voltage at
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance (Note 2)
Operating and Storage Temperature Range
T
A
= 25℃
T
A
= 125℃
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
V
F
I
R
R
θJT
T
rr
T
J
,T
STG
SM
4005
600
420
600
SM
4006
800
560
800
SM
4007
1000
700
1000
UNIT
Volts
Volts
Volts
Amps
Amps
Volts
µA
PF
℃/W
℃
Notes:
1)
2)
3)
Measured at 1 MHz and applied reverse voltage of 4 V D.C
Thermal resistance from junction to terminal 6.0 mm copper pads to each terminal
Thermal resistance junction to terminal 6.0 mm copper pads to each terminal
3
Page:P2-P1
OLITECH ELECTRONICS CO. LTD.
Email: info@olitech-elec.com
Website: www.olitech-elec.com
SM4001 THRU SM4007
SURFACE MOUNT GLASS PASSIVATED SILICON RECTIFIER
VOLTAGE RANGE
-50 to 1000 Volts
FORWARD CURRENT
1.0 A

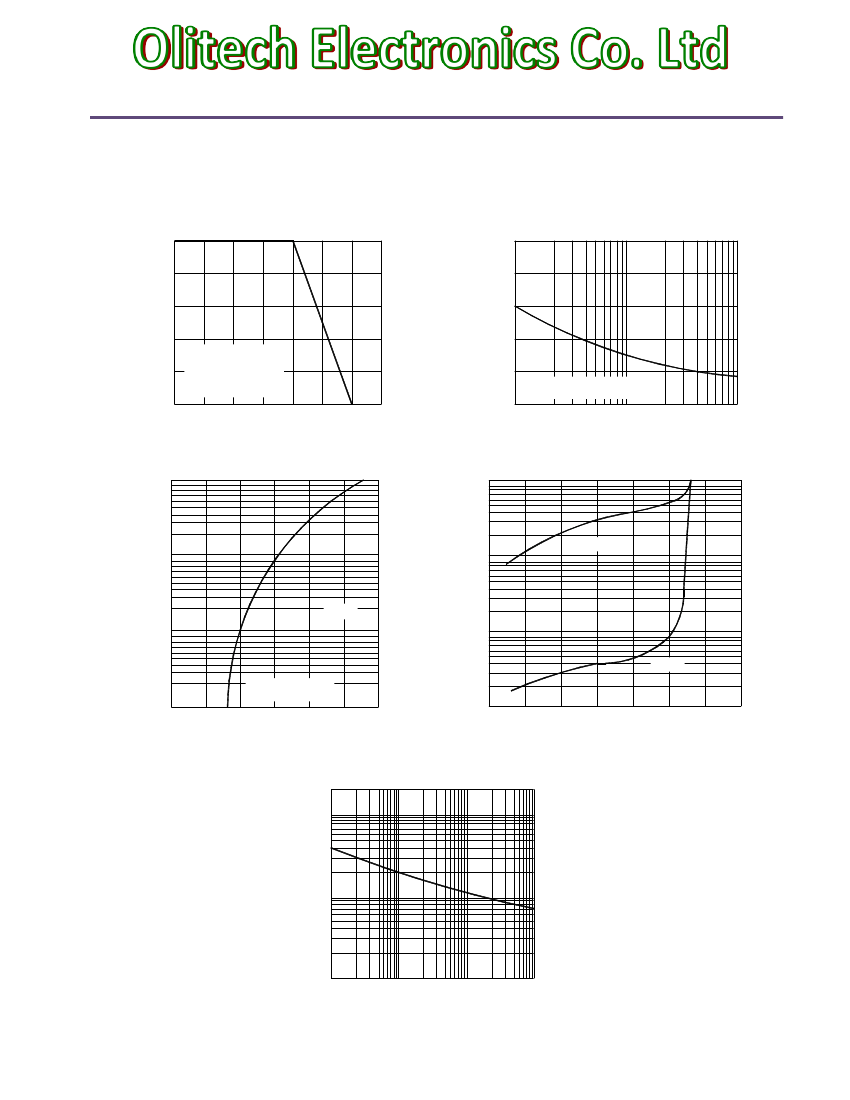

F1G.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
50
AVERAGE FORWARD CURRENT,
1.0
0.8
PEAK FORWARD SURGE CURRENT,(A)
F1G.1-FORWARD CURRENT
DERATING CURVE
40
0.6
30
0.4
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
0.375″(9.5mm) Lead Length
0
25
50
75
100
125
150
175
20
0.2
10
8.3ms Single Half Sine-Wave
(JEDEC Method)
0
1
2
4
6 8 10
20
40
60 80 100
0
LEAD TEMPERATURE,(
℃
)
F1G.3-TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT,(A)
10
20
NUMBER OF CYCLES AT 60 Hz
F1G.4-TYPICAL REVERSE
CHARACTERISTICS
INSTANTANEOUS REVERSE CURRENT,
(A)
10
T
J
=100℃
10
1.0
T
J
=25℃
0.1
10
T
J
=25℃
Pulse Width=300us
1% Duty Cycle
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
20
0
20
40
60
80
100
120
140
INSTANTANEOUS FORWARD VOLTAGE,(V)
PERCENT OF RATED PEAK REVERSE VOLTAGE,(%)
F1G.5-TYPICAL JUNCTION CAPACITANCE
200
JUNCTION CAPACITANCE,(pF)
100
60
40
20
10
6
4
2
1
0.1
0.2
0.4
1.0
2
4
10
20
40
100
REVRESE VOLTAGE,(V)
OLITECH ELECTRONICS CO. LTD.
Page:P2-P2
