Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
C1002_X7R_SMD • 9/14/2020
1

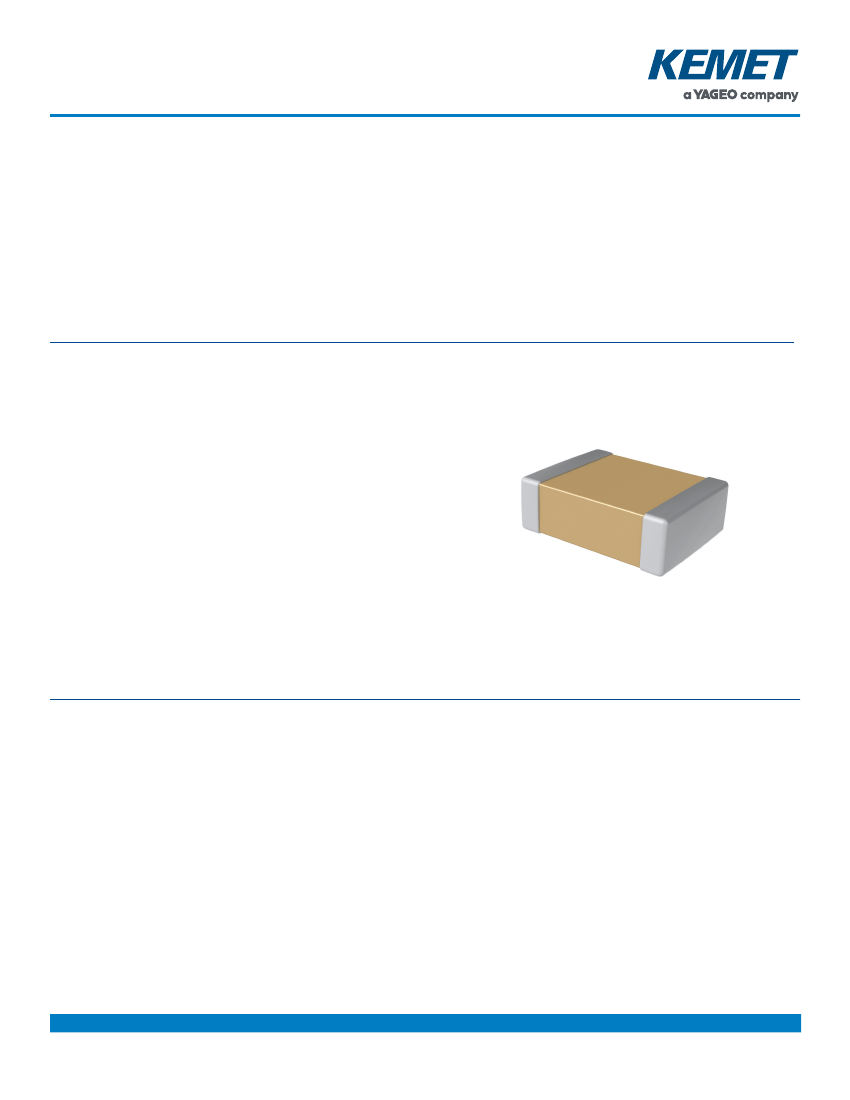

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)
X7R Dielectric, 6.3 – 250 VDC (Commercial Grade)
Ordering Information
C
Ceramic
1206
C
106
Capacitance
Code (pF)
Two
significant
digits and
number of
zeros.
M
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
4
Rated Voltage
(VDC)
9 = 6.3
8 = 10
4 = 16
3 = 25
6 = 35
5 = 50
1 = 100
2 = 200
A = 250
R
Dielectric
R = X7R
A
Failure Rate/
Design
A = N/A
C
TU
Case Size
Specification/
(L" x W")
Series
1
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
C = Standard
Termination
Packaging/
2
Finish
Grade (C-Spec)
C = 100%
Matte Sn
See
“Packaging
C-Spec
Ordering
Options
Table”
1
2
Flexible termination option is available. Please see FT-CAP product bulletin C1013_X7R_FT-CAP_SMD.
Additional termination finish options may be available. Contact KEMET for details.
Packaging C-Spec Ordering Options Table
Packaging Type
1
Bulk Bag/Unmarked
7" Reel/Unmarked
13" Reel/Unmarked
7" Reel/Marked
13" Reel/Marked
7" Reel/Unmarked/2 mm pitch
2
13" Reel/Unmarked/2 mm pitch
2
1
Packaging/Grade
Ordering Code (C-Spec)
Not required (Blank)
TU
7411 (EIA 0603 and smaller case sizes)
7210 (EIA 0805 and larger case sizes)
TM
7040 (EIA 0603)
7215 (EIA 0805 and larger case sizes)
7081
7082
Default packaging is "Bulk Bag." An ordering code C-Spec is not required for "Bulk Bag" packaging.
1
The terms "Marked" and "Unmarked" pertain to laser marking option of capacitors. All packaging options labeled as "Unmarked" will contain capacitors
that have not been laser marked. Please contact KEMET if you require a laser marked option. For more information see "Capacitor Marking."
2
The 2 mm pitch option allows for double the packaging quantity of capacitors on a given reel size. This option is limited to EIA 0603 (1608 metric) case
size devices. For more information regarding 2 mm pitch option see "Tape & Reel Packaging Information."
