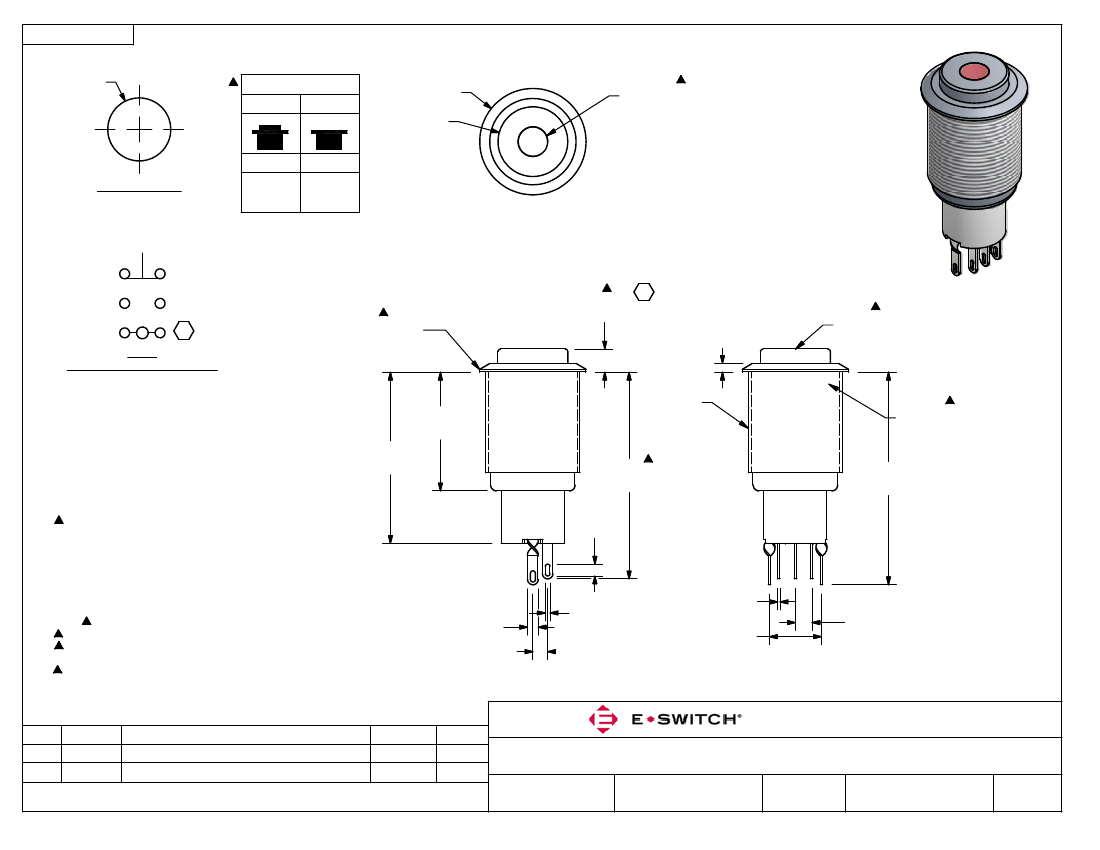

SHEET 1 OF 1
n
16.00
[.630 in]
SWITCH FUNCTION
POS. 1
POS. 2
n
18.00
[.709 in]
n
11.80
[.465 in]
ILLUMINATION COLOR:
RED
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
14.0mm [.551]
1-3
(ON)
1-2
(ON) = MOMENTARY
1
1
-
L
3
2
C
+
SPDT
CONTACT CONFIGURATION
BODY FINISH
BLACK
3.90
`
.50
[.154
`
.020
in]
C
1.50
[.059 in]
ACTUATOR FINISH
BLACK
M16x1.0
[.791
`
.039
in]
29.00
`
1.00
NOTE:
[1.142
`
.039
in]
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MΩ MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20°C to 55°C
11. DENOTES CRITICAL PARAMETER.
12. LAMP VOLTAGE: 12V
13. ILLUMINATION COLOR: RED
14. HARDWARE SUPPLIED: O-RING AND HEXNUT
15. INGRESS RATING: IP40
16. 2002/95/EC (ROHS) COMPLIANT
20.10
`
1.00
NOTE 14
HARDWARE SUPPLIED
35.00
`
1.00
[1.378
`
.039
in]
2.00
[.079 in]
(+)
36.00
`
1.00
[1.417
`
.039
in]
(-)
1
.80
[.031 in]
2.50
[.098 in]
.40
[.016 in]
8.80
[.346 in]
(-)
1
2
3
1.80
[.071 in]
2.80
[.110 in]
C
B
REV
20453
20414
PCR NO
CORRECT CONTACT CONFIG./ADD TOL.
UPDATE AND CONVERT
DESCRIPTION
02/02/12
01/19/12
DATE
BMA
BMA
BY
TITLE
SCALE
PV3H2B011-214
1.5:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
1/6/2012
DR
BMA
DWG
52-PV3H2B011214
REV
C
