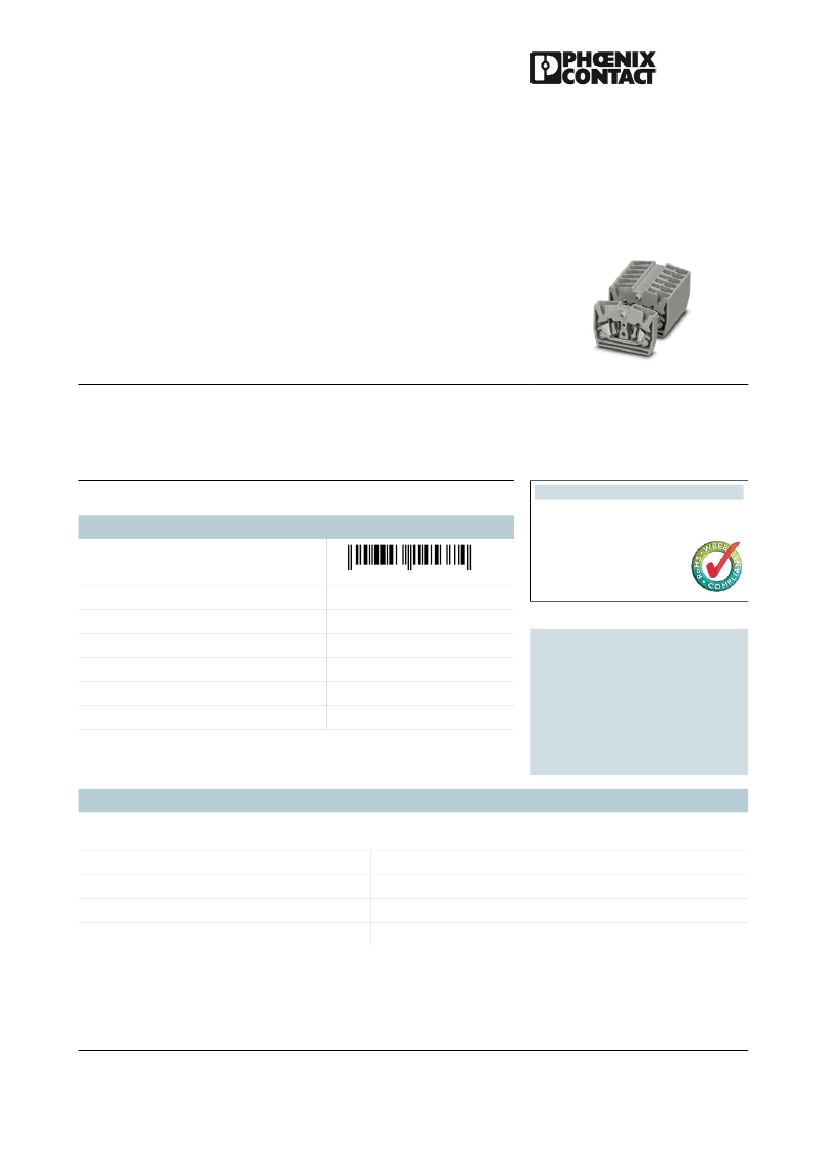

Extract from the online
catalog
MSB 2,5-M
Order No.: 3244067
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3244067
Mini feed-through terminal block, Connection method: Spring-
cage connection, Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12,
Width: 5.2 mm, Height: 22 mm, Color: gray, Mounting type: Direct
mounting with flange
Product notes
Commercial data
EAN
4
046356
145374
WEEE/RoHS-compliant since:
06/22/2006
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
Catalog page information
A611
50 Pcs.
85369010
0.00392 KG
0.003848 KG
Page 298 (C-3-2013)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
1
2
gray
PA
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 7
Aug 13, 2014
MSB 2,5-M
Order No.: 3244067
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3244067
Inflammability class according to UL 94
General
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Maximum load current (lower level)
Additional text
Nominal current I
N
(lower level)
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Surge voltage test setpoint
Result of surge voltage test
Power frequency withstand voltage setpoint
Result of power-frequency withstand voltage test
Checking the mechanical stability of terminal
points (5 x conductor connection)
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
V0
8 kV
3
III
I
IEC 60947-7-1
30 A
with 4 mm² conductor cross section
24 A
800 V
JA
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
9.8 kV
Test passed
2 kV
Test passed
Test passed
10 rpm
135
0.08 mm² / 0.1 kg
2.5 mm² / 0.7 kg
4 mm² / 0.9 kg
Result of bending test
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Tensile test result
Requirements, voltage drop
Test passed
0.08 mm²
5N
2.5 mm²
50 N
4 mm²
60 N
Test passed
≤ 3.2 mV
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 7
Aug 13, 2014
MSB 2,5-M
Order No.: 3244067
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3244067
Result of voltage drop test
Temperature-rise test
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Short circuit stability result
Ageing test for screwless modular terminal block
temperature cycles
Result of aging test
Proof of thermal characteristics (needle flame)
effective duration
Result of thermal test
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Oscillation, broadband noise test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Shock test result
Temperature index, insulating material (DIN EN
60216-1 (VDE 0304-21))
Static insulating material application in cold
Dimensions
Width
Length
Height
Test passed
Test passed
2.5 mm²
0.3 kA
4 mm²
0.48 kA
Test passed
192
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
0.964 (m/s ) /Hz
0.58g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
Test passed
130 °C
-60 °C
2 2
5.2 mm
32 mm
22 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 7
Aug 13, 2014
MSB 2,5-M
Order No.: 3244067
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3244067
Connection data
Connection in acc. with standard
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Stripping length
Internal cylindrical gage
Certificates / Approvals
IEC 60947-7-1
Spring-cage connection
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.5 mm²
8 mm
A3
Certification
CSA, cULus Recognized, VDE Zeichengenehmigung, IECEE CB
Scheme
ATEX, IECEx
Certification Ex:
Certifications applied for:
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 7
Aug 13, 2014
MSB 2,5-M
Order No.: 3244067
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=3244067
Accessories
Item
Covers
3024177
3024423
3024180
3024449
Marking
0818153
UC-TMF 5
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: BLUEMARK CLED, BLUEMARK LED, Plotter,
Mounting type: Snap into flat marker groove, for terminal block
width: 5.2 mm, Lettering field: 4.6 x 5.1 mm
Marker for terminal blocks, can be ordered: by sheet, white,
labeled according to customer specifications, Mounting type: Snap
into flat marker groove, for terminal block width: 5.2 mm, Lettering
field: 4.6 x 5.1 mm
Marker for terminal blocks, Sheet, white, unlabeled, can be
labeled with: THERMOMARK CARD, BLUEMARK CLED,
BLUEMARK LED, Mounting type: Snap into flat marker groove, for
terminal block width: 5.2 mm, Lettering field: 4.4 x 4.7 mm
Marker for terminal blocks, can be ordered: by sheet, white,
labeled according to customer specifications, Mounting type: Snap
into flat marker groove, for terminal block width: 5.2 mm, Lettering
field: 4.4 x 4.7 mm
Zack Marker strip, flat, can be ordered: Strip, white, labeled
according to customer specifications, Mounting type: Snap into flat
marker groove, for terminal block width: 5 mm, Lettering field: 5.15
x 5.15 mm
Zack Marker strip, flat, Strip, white, labeled, Printed
horizontally: Consecutive numbers 1 - 10, 11 - 20, etc. up to 491
- 500, Mounting type: Snap into flat marker groove, for terminal
block width: 5 mm, Lettering field: 5.15 x 5.15 mm
Zack Marker strip, flat, Strip, white, labeled, Printed
horizontally: Consecutive numbers 2 - 20, 22 - 40, etc. up to 82
- 100, Mounting type: Snap into flat marker groove, for terminal
block width: 5 mm, Lettering field: 5.15 x 5.15 mm
Zack Marker strip, flat, Strip, white, labeled, Printed
horizontally: Odd numbers 1 - 19, 21 - 39, etc. up to 81 - 99,
Mounting type: Snap into flat marker groove, for terminal block
width: 5 mm, Lettering field: 5.15 x 5.15 mm
Zack Marker strip, flat, Strip, white, labeled, Printed
vertically: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 -
100, Mounting type: Snap into flat marker groove, for terminal
block width: 5 mm, Lettering field: 5.15 x 5.15 mm
D-MZB 1,5
D-MZB 1,5 BU
D-MZB 1,5-F
D-MZB 1,5-F BU
End cover, Length: 32 mm, Width: 4 mm, Color: gray
End cover, Length: 32 mm, Width: 4 mm, Color: blue
End cover, Width: 4 mm, Color: gray
End cover, Width: 4 mm, Color: blue
Designation
Description
0824638
UC-TMF 5 CUS
0828744
UCT-TMF 5
0829658
UCT-TMF 5 CUS
0825025
ZBF 5 CUS
0808671
ZBF 5,LGS:FORTL.ZAHLEN
0810821
ZBF 5,LGS:GERADE ZAHLEN
0810863
ZBF 5,LGS:UNGERADE
ZAHLEN
0808697
ZBF 5,QR:FORTL.ZAHLEN
