LFV330-CAAPVXPN0250
LFV300
LEVEL SENSORS
Online data sheet
LFV330-CAAPVXPN0250 | LFV300
LEVEL SENSORS
A
B
C
D
E
F
H
I
J
K
L
M
N
O
P
Q
R
S
T
Ordering information
Type
LFV330-CAAPVXPN0250
Other models and accessories
www.sick.de/LFV300
Part no.
6041550
Illustration may differ
Detailed technical data
Features
Medium
Measurement
Probe length
Process pressure
Process temperature
Fill material density
ATEX approval
Type examination
GOST approval
WHG approval
Fluids
Switch
250 mm
–1 bar ... 64 bar
–50 °C ... +150 °C
0.5 g/cm³ ... 2.5 g/cm³
ATEX II 1G, II 1/2G, II 2G Ex ia IIC T6 Ga, Ga/Gb, Gb
TÜV 09 ATEX 372528 X
✔
✔
Performance
Accuracy of sensor element
Repeatability
Viscosity
Response time
± 2 mm
≤ 1 mm
0.1 mPas ... 10,000 mPas
500 ms
Electronics
Power consumption
Initialization time
VDE protection class 2
Electrical connection
Supply voltage
Hysteresis
Output current
Enclosure rating
Temperature drift
1 mA / 2,5 mA
< 2 s
✔
M20 x 1.5
NAMUR signal: 4.5 V DC ... 12 V DC
2 mm
1 mA / 2,5 mA
IP 66 / IP 67
0,03 mm/K
2
FLUID SENSORS | SICK
Online data sheet | 2015-12-07 11:19:05
Subject to change without notice
LFV330-CAAPVXPN0250 | LFV300
LEVEL SENSORS
Mechanics
Wetted parts
Process connection
Housing material
Sensor material
Stainless steel 316L (optional Ra ≤ 0.8 μm)
Flange 1" 150lb RF, ANSI B16.5 / 316L
Plastic
Stainless steel 1.4404
Ambient data
Ambient operating temperature
Ambient storage temperature
–40 °C ... +70 °C
–40 °C ... +80 °C

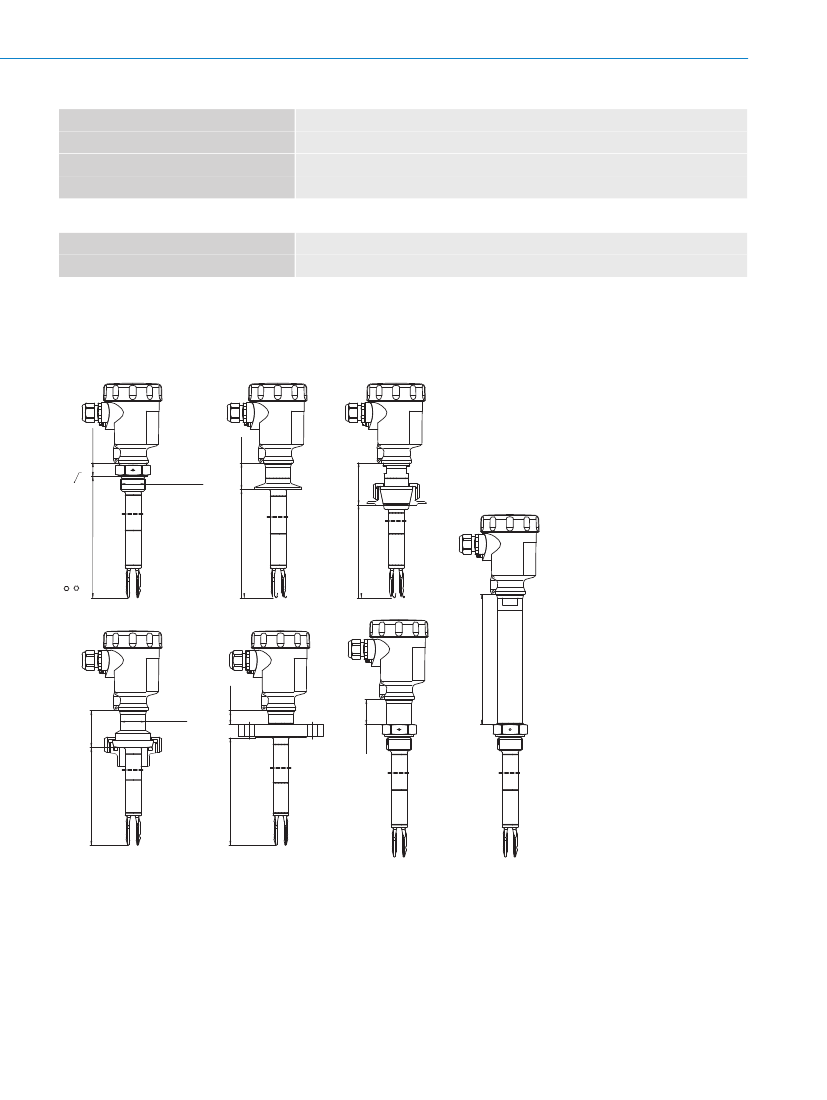

Dimensional drawing
(Dimensions in mm (inch))
LFV330
18.5
(0.73)
36
(1.42)
32 (G 3/4 A, 3/4" NPT)
41 (G 1 A, 1" NPT)
L
G 3/4 A,
3/4" NPT
G 1 A,
1" NPT
L
1
2
L
57
(2.24)
3
50
(1.97)
ø 33.7
(1.33)
19
(0.75)
L
L
4
5
6
7
① Thread
② Tri-Clamp
③ DN
25 cone
④ Bolting
D 40
⑤ Flange
⑥ Gas-tight
leadthrough
⑦ Temperature
adapter
2015-12-07 11:19:05 | Online data sheet
Subject to change without notice
34
(1.34)
178
(7.01)
FLUID SENSORS | SICK
3
LFV330-CAAPVXPN0250 | LFV300
LEVEL SENSORS
1 2
H
I
J
K
L
M
N
O
P
Q
R
S
T
Namur - electronic module
1
2
3
4
① Signal
lamp (LED)
② DIL
switch for characteristics reversal
③ DIL-switch
for sensitivity adjustment
④ Simulation
key
4
FLUID SENSORS | SICK
1
2
-
-
+
A
B
C
D
E
F
Marking on the welded flange
1
① Marking
Connection diagram
Namur connection diagram
+
Online data sheet | 2015-12-07 11:19:05
Subject to change without notice
LFV330-CAAPVXPN0250 | LFV300
LEVEL SENSORS
Instruction for installation
Inflowing medium
Characteristic curve
Influence of the process temperature on the switching point
1
4
10 ( 25/64")
8 ( 5/16")
6 ( 15/64")
4 ( 5/32")
3
2 ( 5/64")
0
-2 (-5/64")
-4 (-5/32")
-6 (-15/64")
-8 (-5/16")
-10 (-25/64")
0 °C
50 °C
100 °C
150 °C
200 °C
250 °C
2
① Shifting
of the switching point in mm (in)
② Process
temperature in °C (°F)
③ Switching
point at reference conditions (notch)
④ Tuning
fork
Recommended accessories
Other models and accessories
www.sick.de/LFV300
Brief description
Type
Part no.
Flanges
Welded flange/welded connector, DIN11851-1, DN25 / PN40, Stainless steel 1.4404
BEF-FL-851D25-LFV2
5321527
Welded flange/welded connector, process connection G 1, Stainless steel 1.4404
BEF-FL-
GEWG10-LFV2
4054605
2015-12-07 11:19:05 | Online data sheet
Subject to change without notice
FLUID SENSORS | SICK
5
